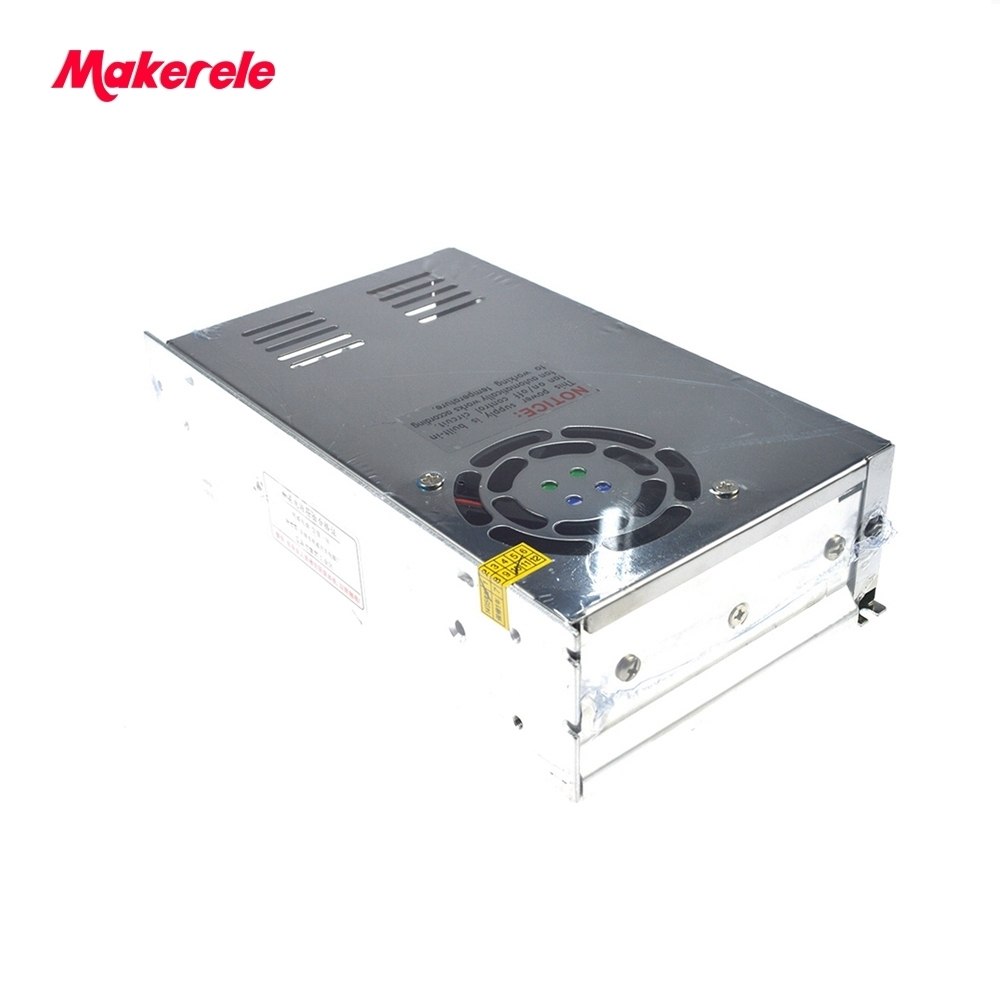

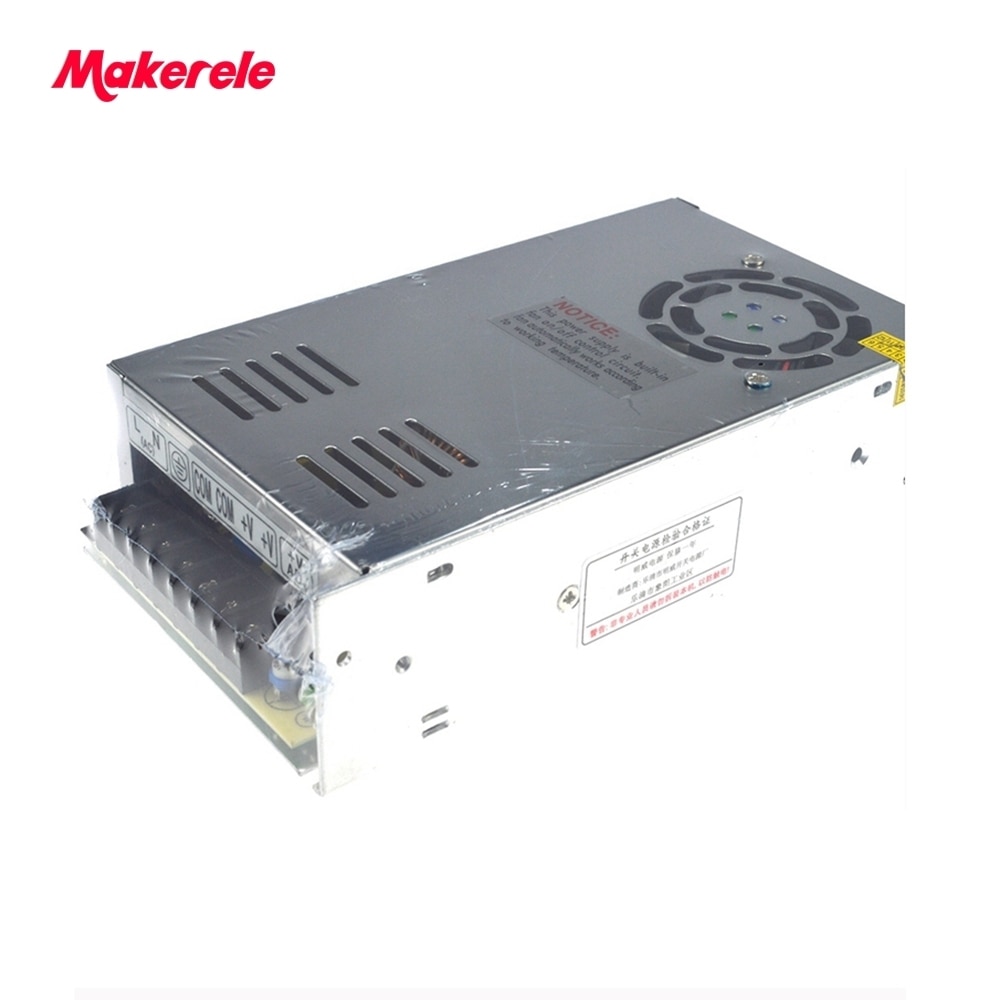

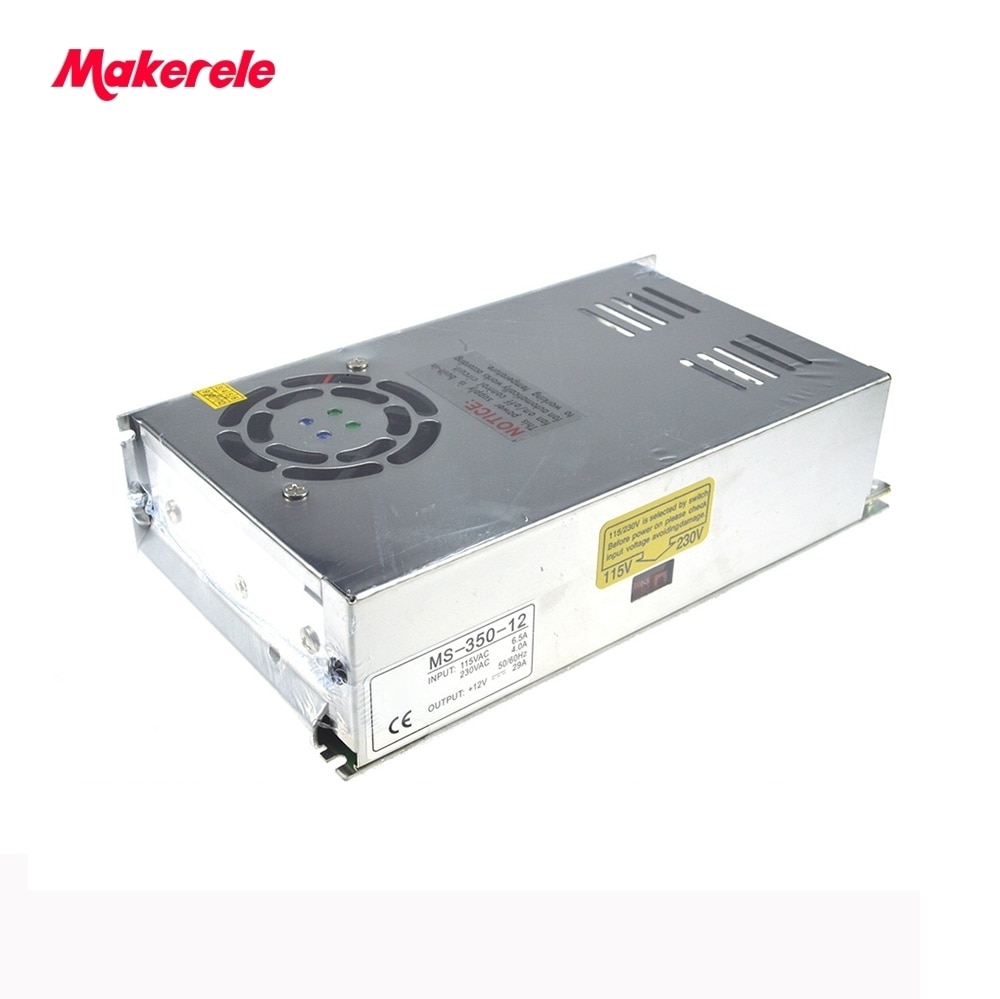

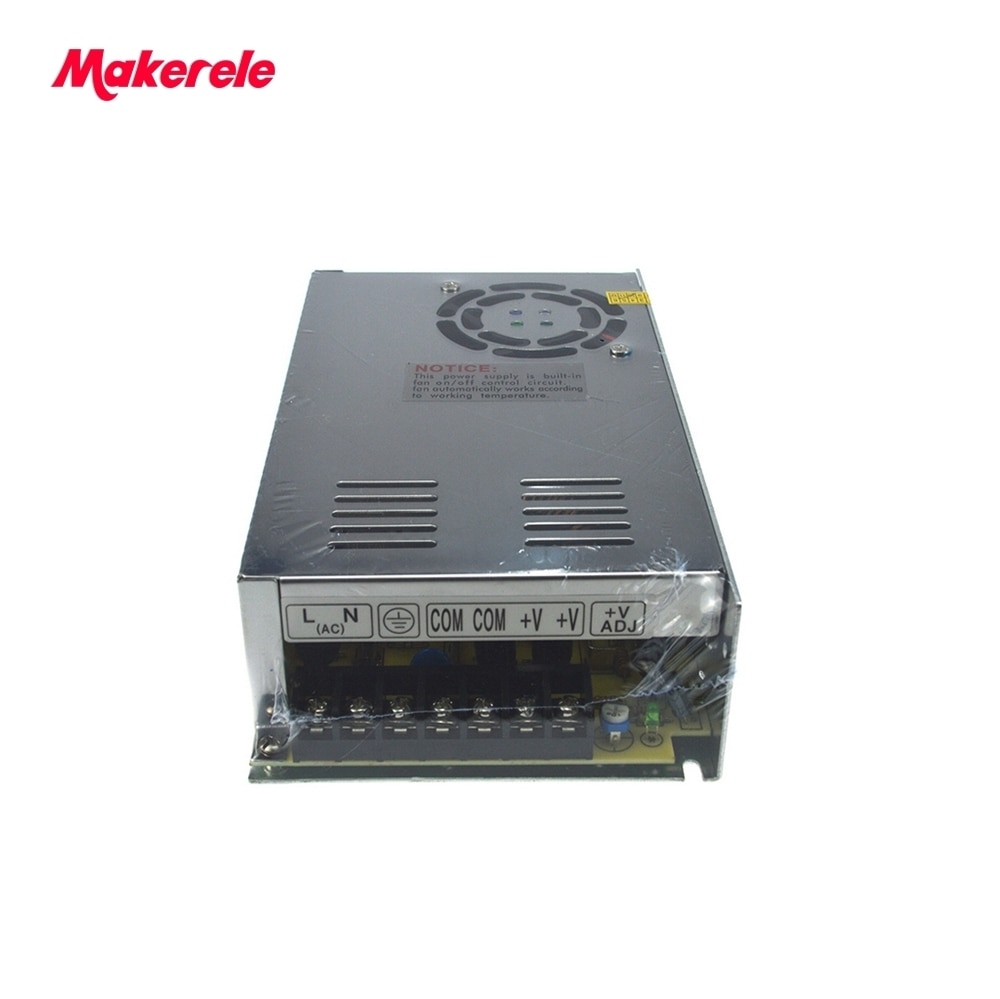

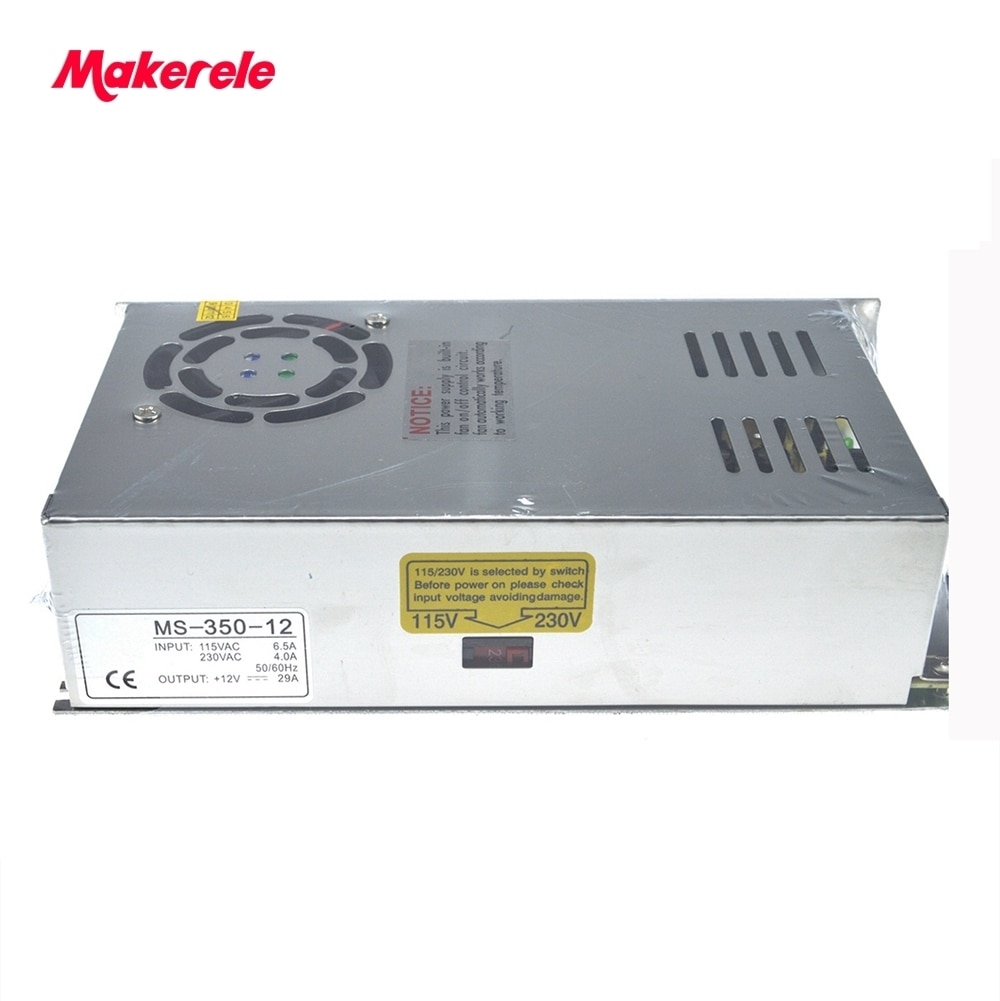

350w switching power supply 220/110VAC to 5V 7.5V 12V 13.5V 15V 24V 27V 48V smps mini size single output with aluminum shell

0 Review(s)

$32.46 – $34.36

SKU: N/A
Product by: MAKERELE
Clear
Add to Wishlist
Compare
Category:

Description

  • Brand Name: makerele
  • Output Power: 301 – 400W
  • Output Type: Single
  • Model Number: MS-350
  • Output Frequency: 47~63Hz
  • is_customized: Yes
  • Output Current: 50A 40A 29A 25.8A 23.2A 14.6A 13A 7.3A
  • Place of Origin: Zhejiang China (Mainland)
  • Rated Power: 350W
  • VOLTAGE: 5V 7.5V 12V 13.5V 15V 24V 27V 48V
  • Certification: CE
  • Voltage Tolerance: 1%
  • AC CURRENT: 0.5A/115VAC 0.25A/230VAC
  • Switching Power WORKING TEMP: -10-+60
  • Setup,Rise,Hold Time: 200ms,100ms,30ms at full load
  • Over Load: 110%-160%

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.

Product Description


MODEL

MS-350-5

 MS-350-7.5

MS-350-12

 MS-350-13.5

MS-350-15

 MS-350-24 MS-350-27

MS-350-48



















OUTPUT

DC VOLTAGE

5V

 7.5V

12V

 13.5V

15V

 24V 27v

48v

RATED CURRENT

70A

 40A

29A

 25.8A

23A

 14.5A 13A

7.3A

CURRENT RANGE

0 ~ 70A

 0-40A

0-29A

 0-25.8A

0-23A

 0-14.5A

0-13A

0-7.3A

RATED POWER

350W

 350W

350W

 350W

350W

 350W 351W

350.4W

RIPPLE & NOISE (max.) Note.2

100mVp-p

 100mVp-p

100mVp-p

 100mVp-p

120mVp-p

 120mVp-p 120mVp-p

120mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

 6-9V

10.8 ~ 13.2V

 12-15V

13.5 ~ 16.5V

 21.6 ~ 26.4V 26-32V

41-56V

VOLTAGE TOLERANCE Note.3

2.0%

 1.0%

1.0%

 1.0%

1.0%

 1.0% 1.0%

1.0%

LINE REGULATION

0.5%

 0.5%

0.5%

 0.5%

0.5%

 0.5% 0.5%

0.5%

LOAD REGULATION

1.0%

 0.5%

0.5%

 0.5%

0.5%

 0.5% 0.5%

0.5%

SETUP, RISE TIME

200ms 100ms

HOLD UP TIME (Typ.)

30ms









INPUT

VOLTAGE RANGE

85 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47~63Hz

EFFICIENCY(Typ.)

70%

76%

77%

79%

AC CURRENT (Typ.)

0.5A/115VAC 0.25A/230VAC

INRUSH CURRENT (Typ.)

COLD START15A/115VAC 30A/230VAC

LEAKAGE CURRENT

<0.5mA/ 240VAC



PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed.









ENVIRONMENT

WORKING TEMP.

-10 ~ +60C (Refer to “Derating Curve”)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85C, 10 ~ 95% RH

TEMP. COEFFICIENT

0.03%/C (0 ~ 50C)

VIBRATION

10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes





SAFETY &

EMC

(Note 4)

SAFETYSTANDARDS

UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH

EMC EMISSION

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A



OTHERS

MTBF

522.1K hrs min. MIL-HDBK-217F (25) C

DIMENSION

200*110*50mm (L*W*H)

PACKING

0.82Kg; 20pcs/16.4Kg





NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.

3.Tolerance : includes set up tolerance, line regulation and load regulation.





Product Size:

aeProduct.getSubject()
Packaging & Shipping

aeProduct.getSubject()

  • 1. Item will be shipped within 5-7 business days.

  • 2. Delivery Time:

  • —-Via Air: Generally 1-3 working days

  • —-Via Express: Generally 3-7 working days.

  • —-Via China Post Air Mail: Generally 15-25 working days

  • —-Via Sea: According to the order.

  • 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.

Shipping:

&middot; We Ship to Worldwide, except APO/FPO.

&middot; Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.

&middot; Delivery time depends on destination and other factors, it may takes up to 20 business days

&middot; Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.

Payment:

Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html

Warranty and Guarantee:

&middot; 12 months Warranty. Buy with confidence!

&middot; If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.

&middot; If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.

&middot; If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee

Other Policies:

&middot; We are not responsible for any custom duty or import tax.

&middot; We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.

&middot; All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.

Serious Buyer Only! Please place bid only if you agree with all the terms



Our Services

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

  • Custom Product Design

  • OEM/ODM

  • Profession in export service from Maker Electric

  • High quality Product, Affordable Price

FAQ

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

  •

  • What are switching power supplies?

  • Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).

What about production process of switching power supply?

aeProduct.getSubject()

Company Information

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:

Yueqing Maker electric Co., Ltd. concentrates on Import and Export.

Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()



Packaging

Items per Carton: according to your order
Gross Weight per Unit: 0.5 kg
Package Size per Unit: 17X11X5 cm
