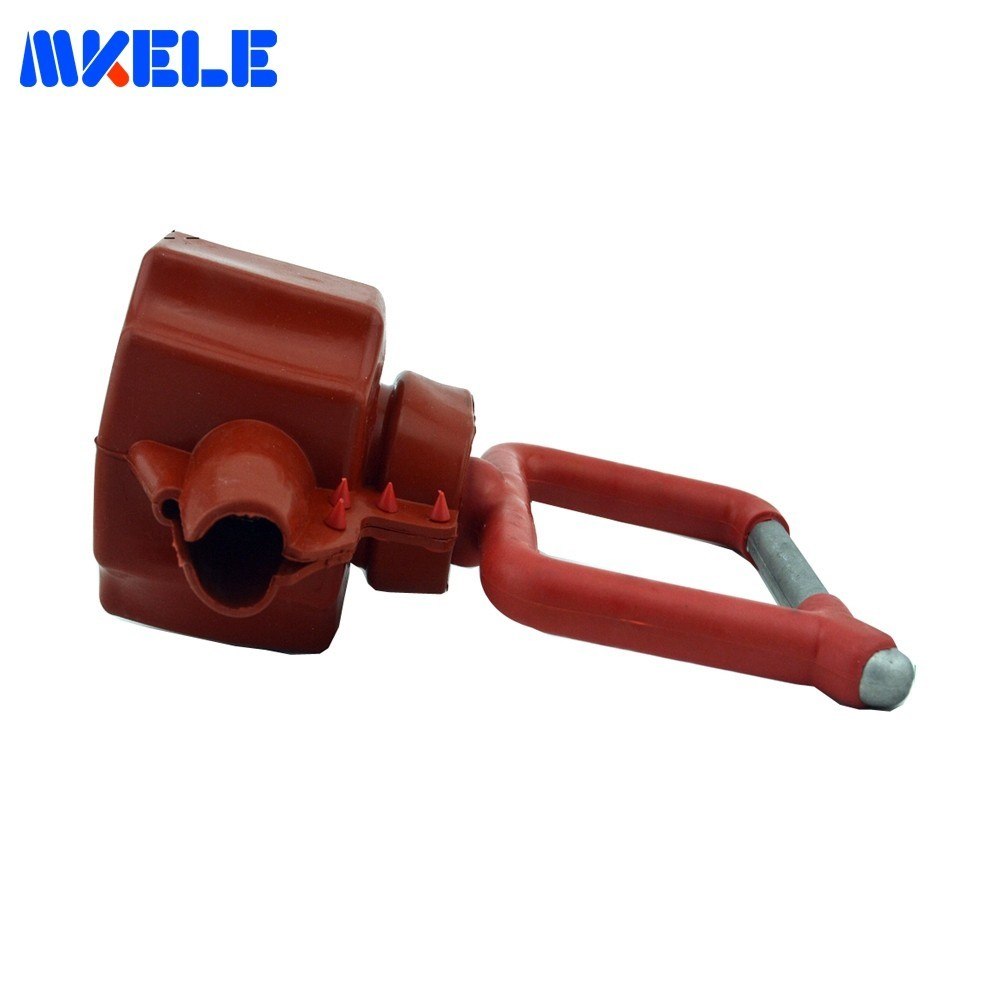

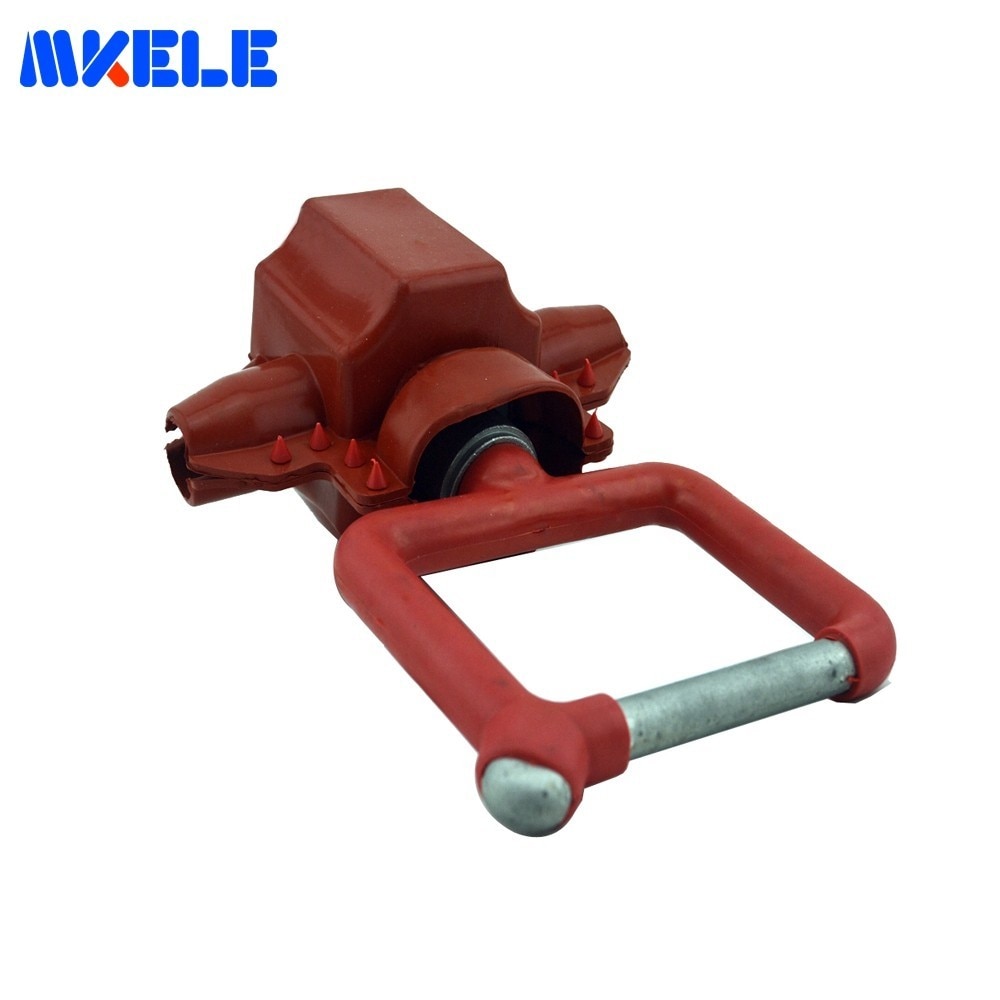

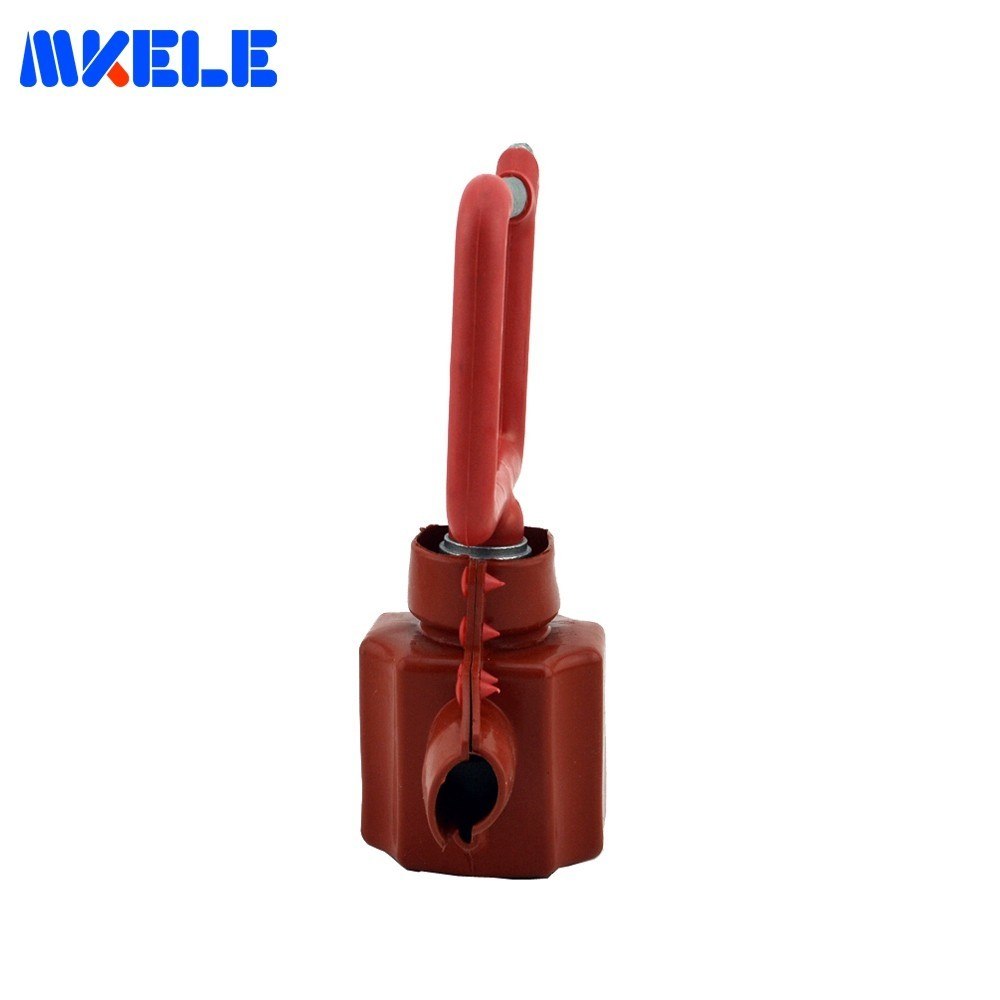

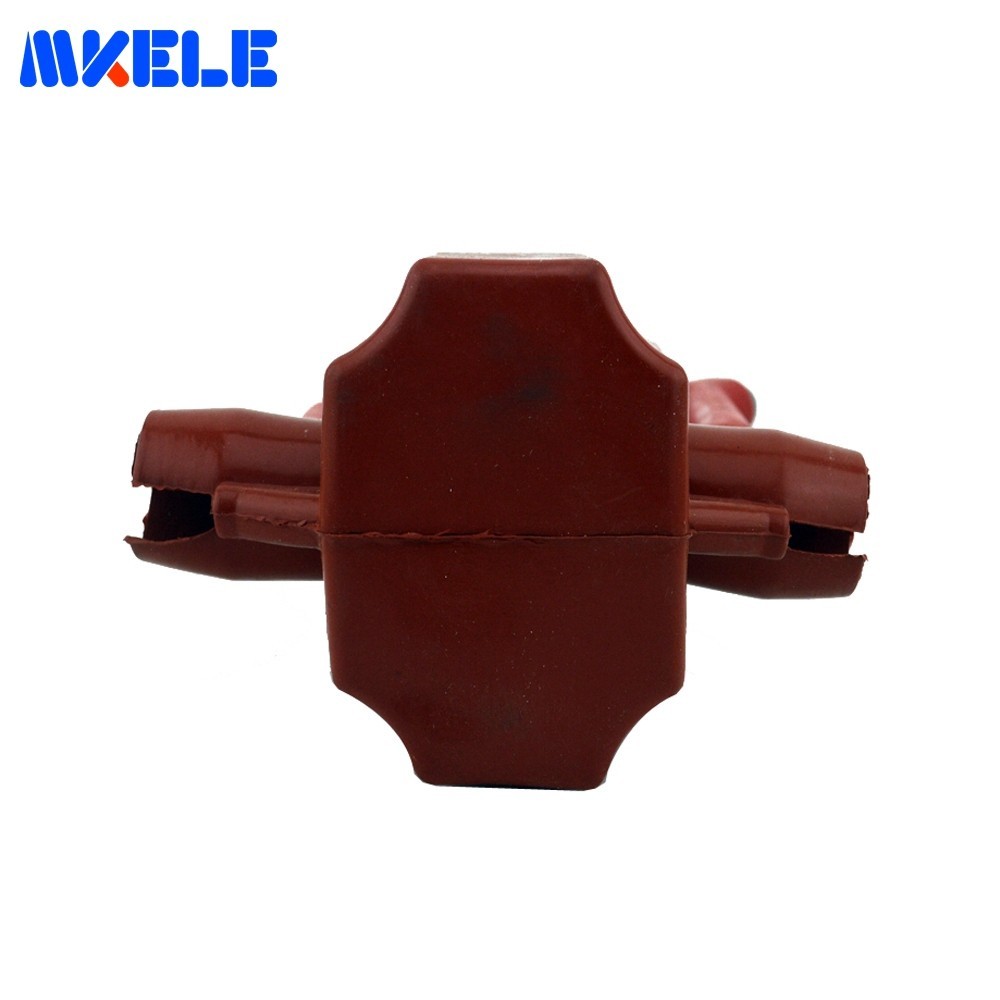

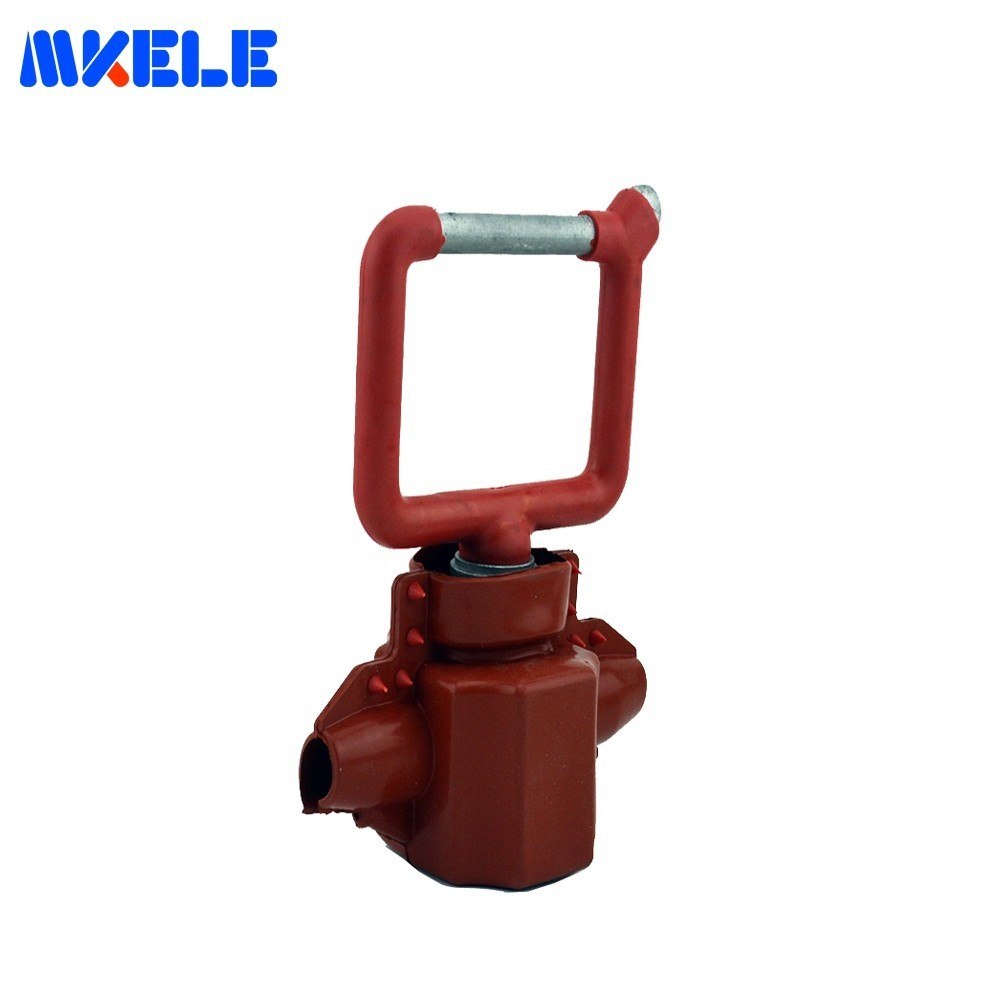

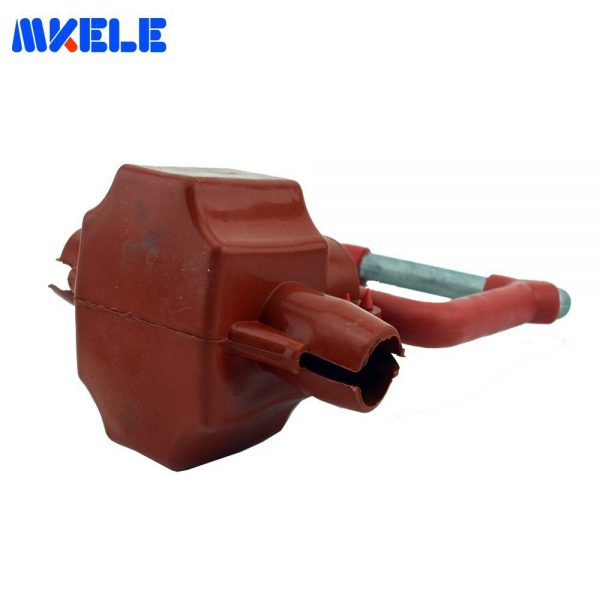

China Factory SLFDL Type Insulation Piercing Connector MK-IPCSLFDL-50/240A Lightning Electricity Testing Earthing Ring(Piercing)
$24.43
200 in stock
Description
- Brand Name: makerele
- Model Number: MK-IPCSLFDL-50/240A
- Place of Origin: Zhejiang, China (Mainland)
- Rated voltage: 12 kv
- Suitable wire(mm2): 50-240
- voltage (peak): 75 kw
- voltage (RMS) KV: dr42 wet 30
- arc current (RMS): 12.5KA
|
||||||||
|
||||||||
|
Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: MKELE
- Model Number: MK-IPCSLFDL-50/240A
- Type: Insulation Piercing Connector, SLFDL Type Lightning Electricity Testing Earthing Ring(Piercing)
- Application: Cable Connector, ABC cable
- Gender: Female
- Rated voltage:: 12 kv
- Suitable wire(mm2):: 50-240
- voltage (peak) :: 75 kw
- voltage (RMS) KV:: dr42 wet 30
- arc current (RMS) :: 12.5KA
Packaging
| Selling Units: | Single item |
|---|---|
| Single package size: | 24X17X11 CM |
| Single gross weight: | 0.95 KG |

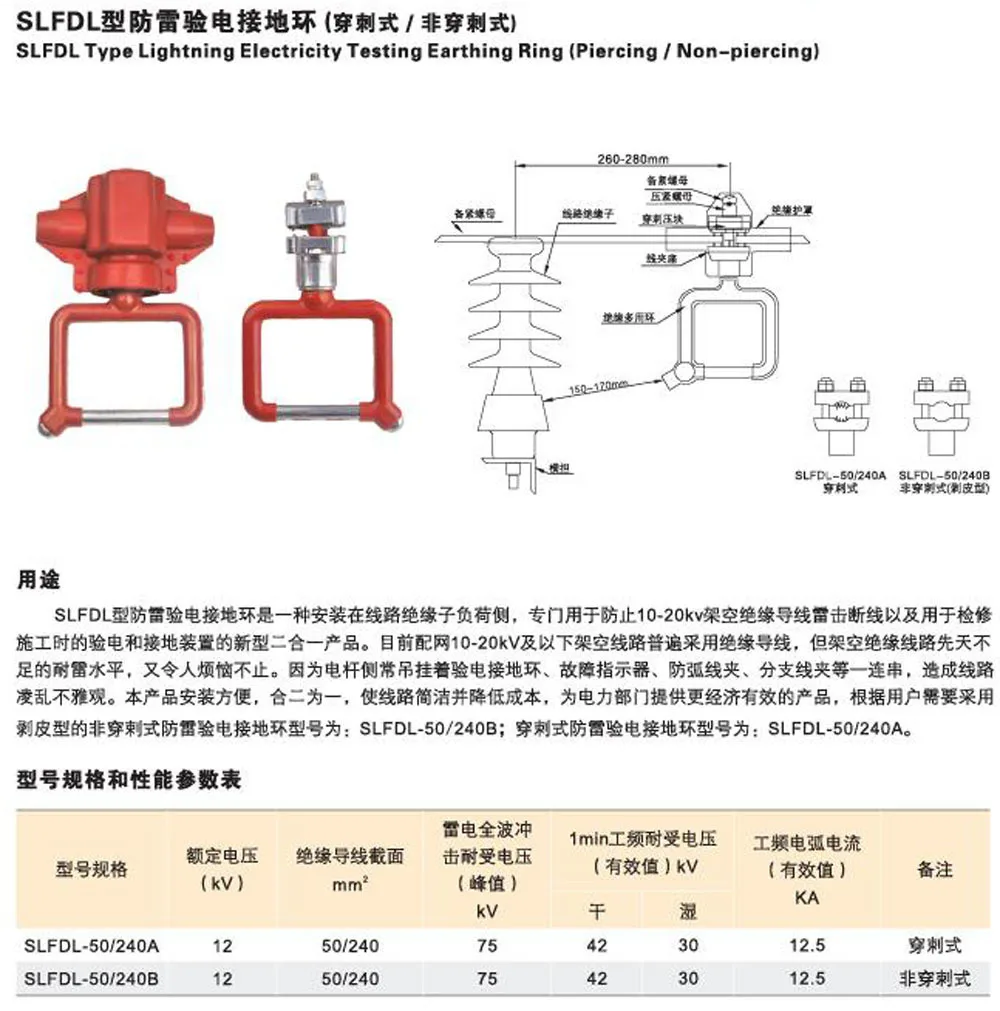

Specification
10KV Insulation piercing grounding
SLFDL Type Lightning Electricity Testing Earthing Ring(Piercing)
Rated voltage: 12 kv
50/240MM2
voltage (peak) : 75 kw
voltage (RMS) KV: dr42 wet 30
arc current (RMS) : 12.5KA
The piercing type
IPC-Insulation Piercing Connector
(1) IPC ( insulating piercing clamp) are suitable for connecting hign-low voltage insulating line which quote tap line from the main line, or connecting the jumping conductor between the two tension phase.
(2) Insulation connector/piercing connector/insulation piercing connector(IPC):With specially designedcontact teeth and special insulation plastic cover.
(3)All components are connected with the flame of fire-retardant properties
(4)Using corrosion-resistant shell, Anti-climate change, high-intensity ultraviolet insulation materials.
General of Insulation Piercing Connector
Installation of double single insulatoin piercing connector
Installation of double screw insulatoin piercing connector
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.
- Custom Product Design
- OEM/ODM
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Q:The reasons of choosing insulation piecring connector
A:1. Simple installation
Con be branch of cable without striping the insulated coat and the joint is completely insulated. Make branch in the random location of cable without cutting off the main cable.Simple and reliable installatiom, just need sleeve spanner,can be installed with on live line.
2. Safe use
The joint has good resistance to distortion,quake,fire,wet,electrochemical corrosion and aging,need no maintenance.Has been used successfully for 30 years.
3. Economical Cost
Small installation space,save the cost of bridge and land construction.In structural application, there need no terminal box, junction box and return wire of cable,save cable cost.The cost of cables and clamps is lower than other power supply system.
Q:The application of insulation piecring connector
