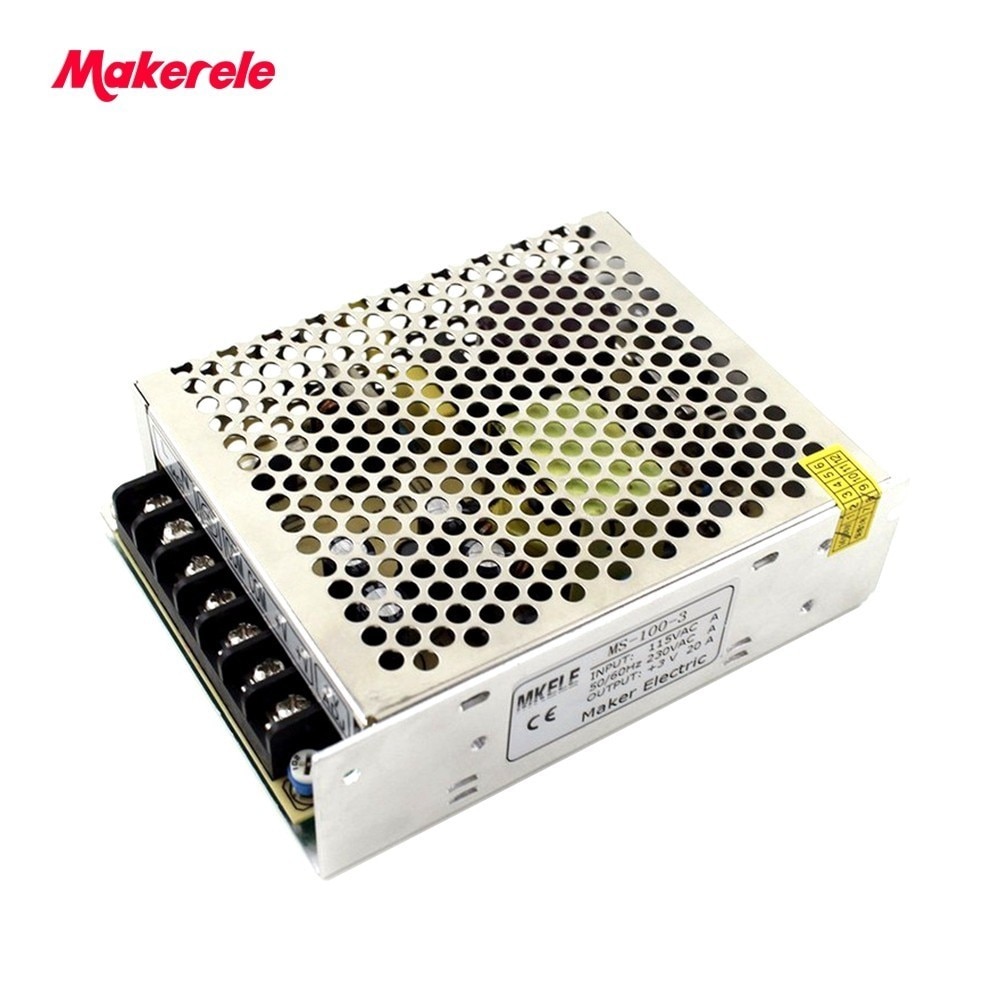

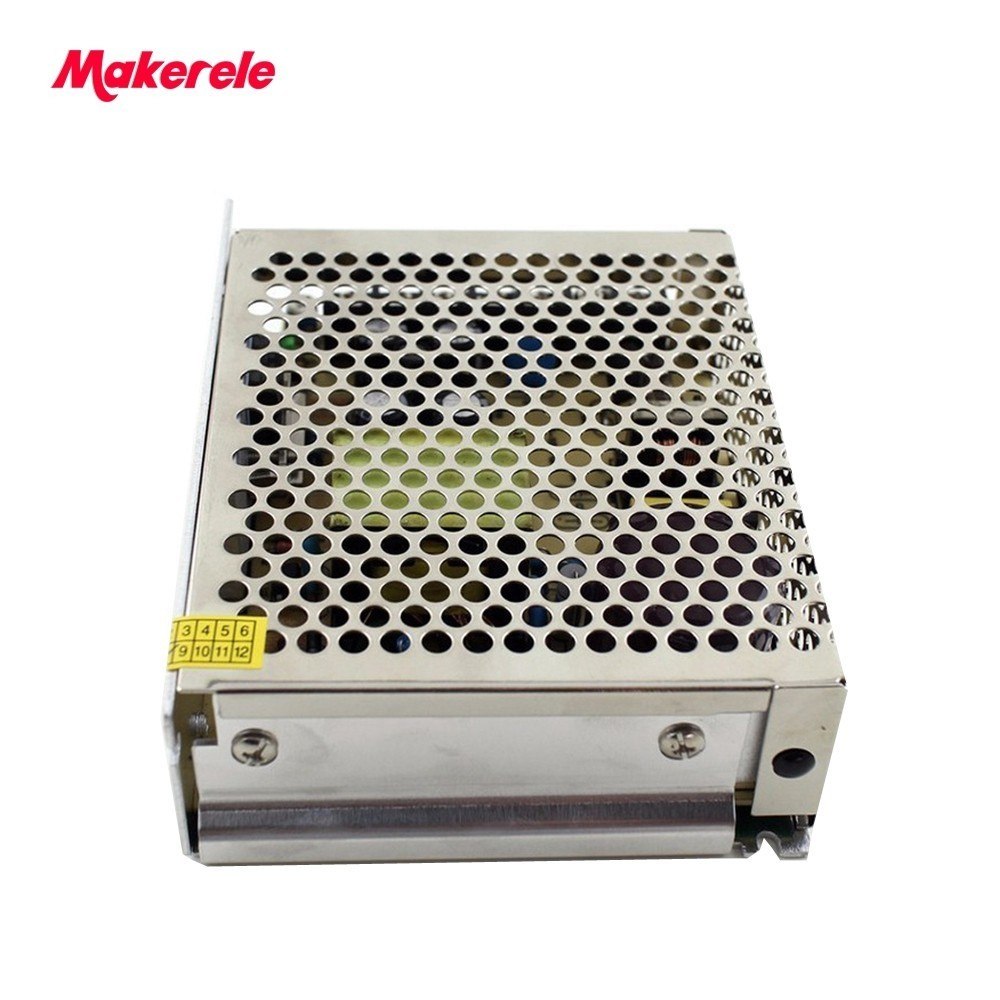

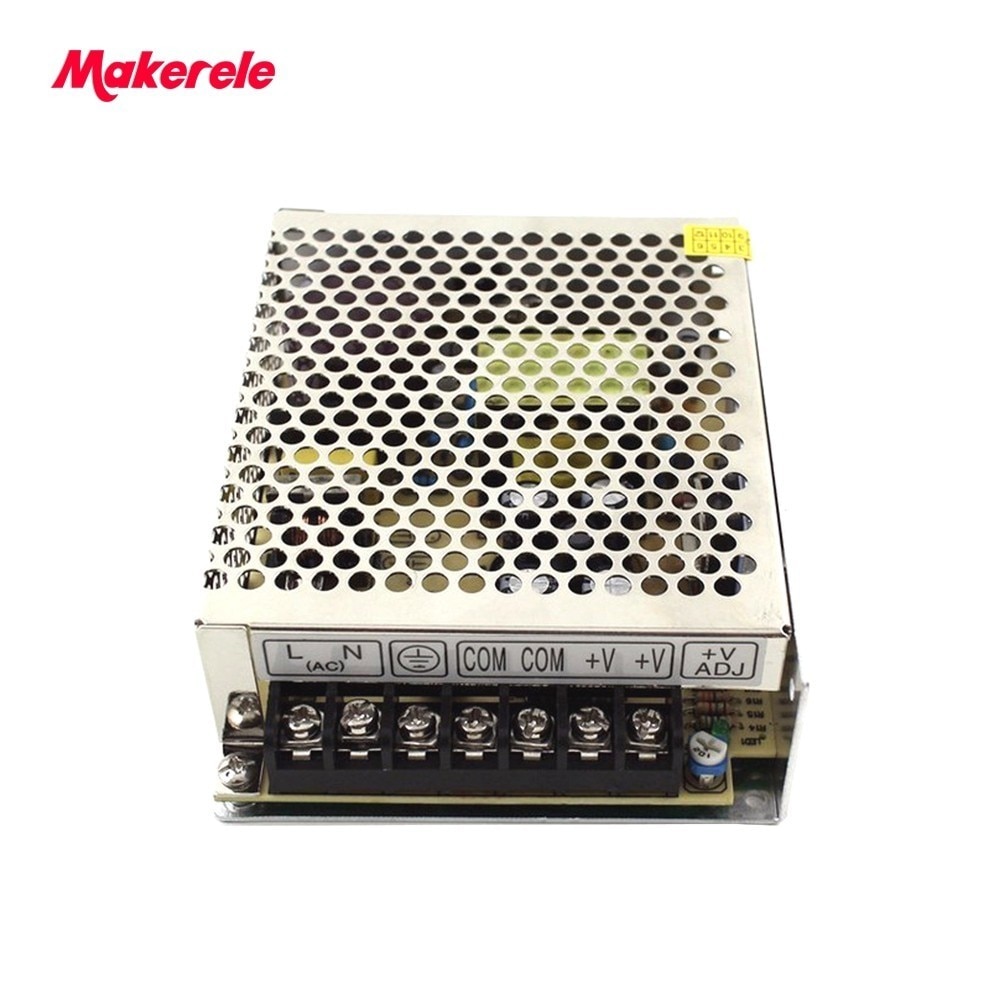

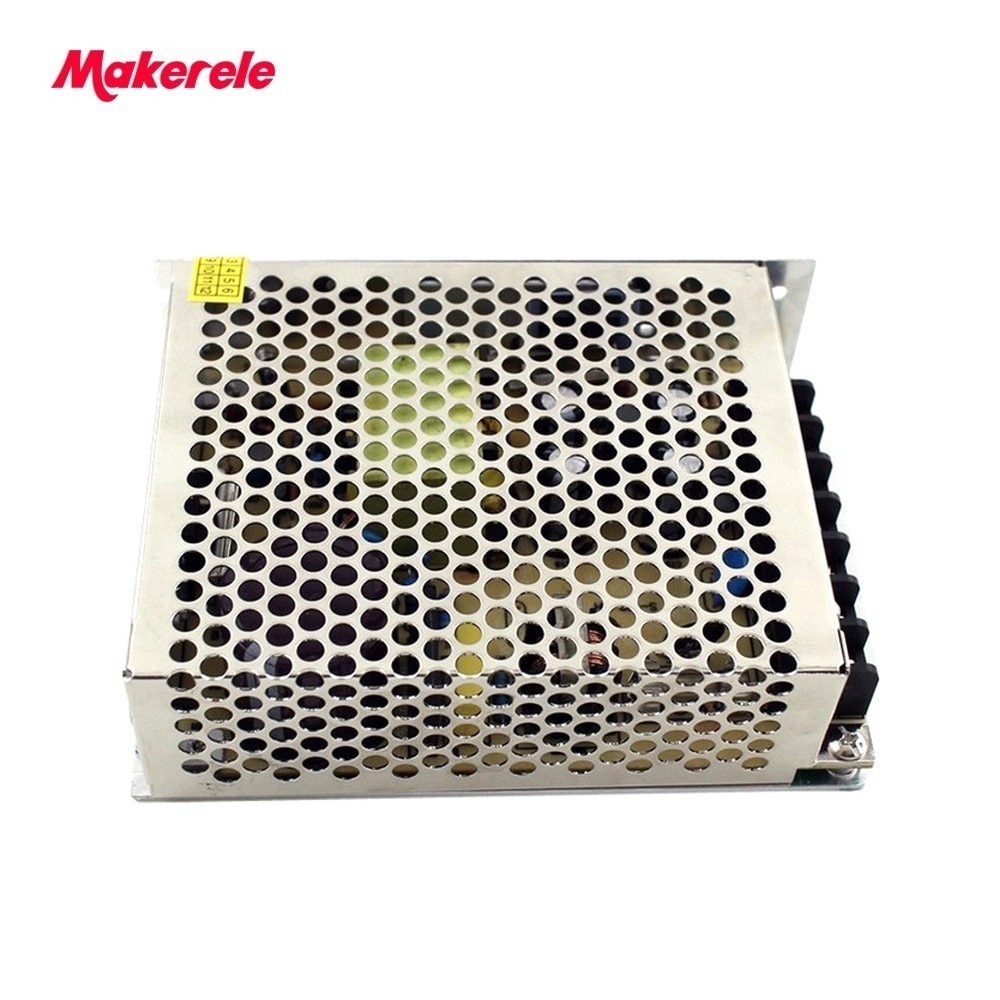

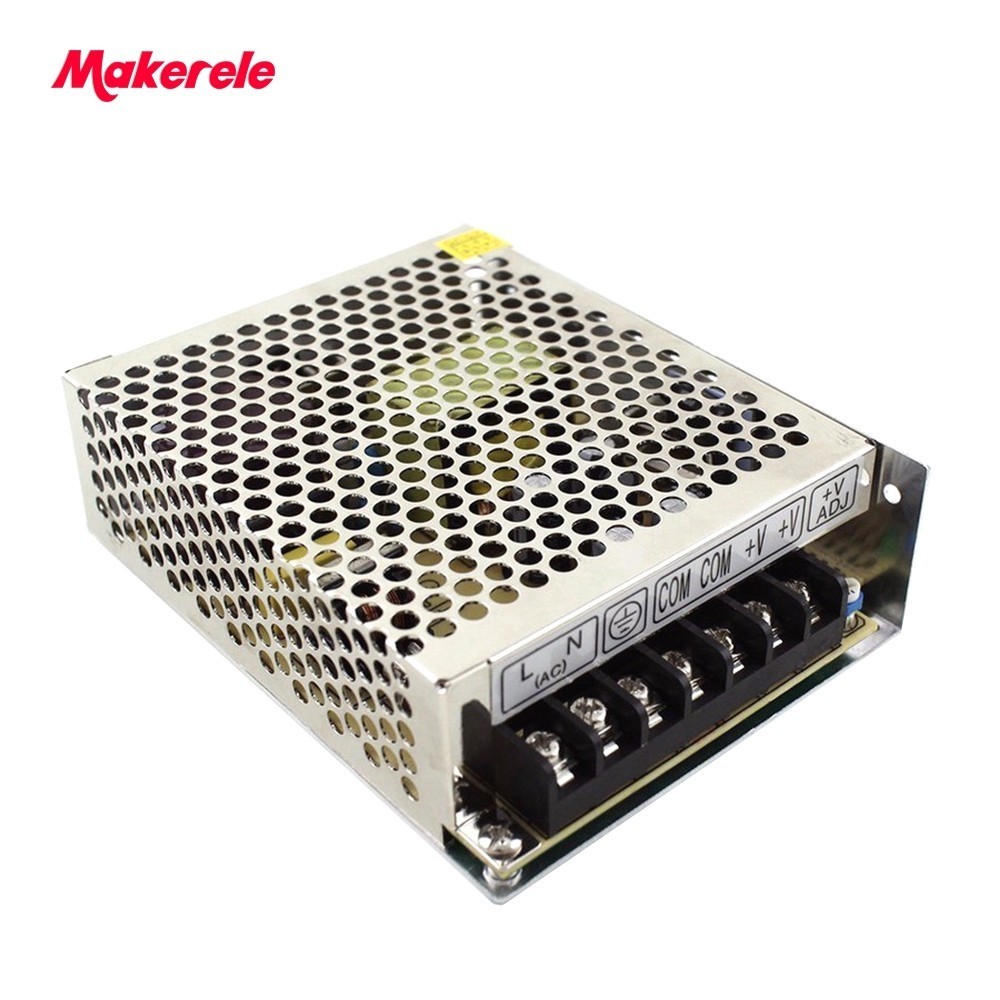

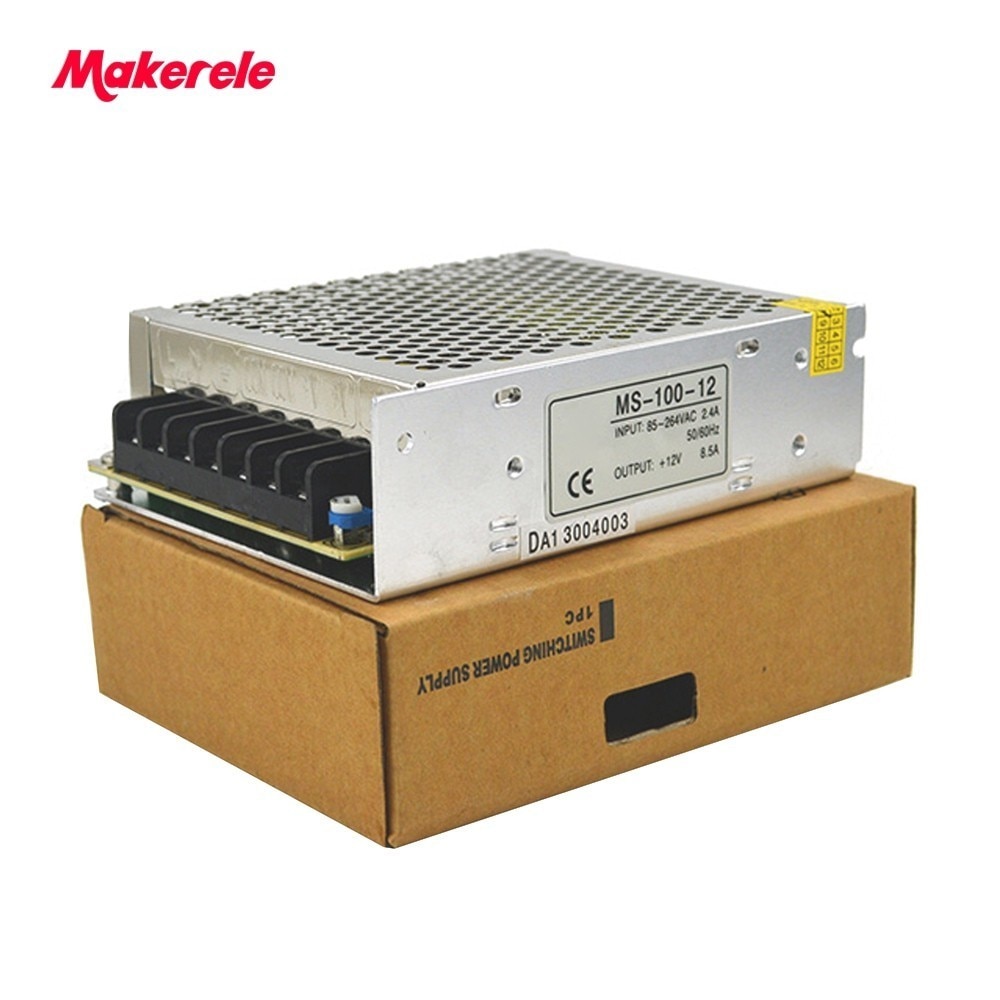

100w dc-ac Single Output Switching Power Supply 110V 220V AC to 3/5/7.5/12/15/24/27/48VDC Driver for LED light Strip

Name: 100w dc-ac Single Output Switching Power Supply 110V 220V AC to 3/5/7.5/12/15/24/27/48VDC Driver for LED light Strip
SKU: 36518
Availability: InStock

0 Review(s)

$17.14 – $17.52

Product by: MAKERELE

Description

Output Power: 1 – 50W
Model Number: MS-100
Output Type: Single
Output Frequency: 47~63Hz
is_customized: Yes
Brand Name: makerele
Output Current: 20A 20A 13.6A 8.3A 6.7A 4.2A 3.7A 2A
Input Voltage: 85 ~ 264VAC
Place of Origin: Zhejiang China (Mainland)
Rated Power: 100W dc-ac
VOLTAGE: 3V 5V 7.5V 12V 15V 24V 27V 48V
Certification: CE ROHS
Voltage Tolerance: 1%
AC CURRENT: 0.5A/115VAC 0.25A/230VAC
Switching Power WORKING TEMP: -10-+60
Setup,Rise,Hold Time: 200ms,100ms,30ms at full load
Over Load: 110%-160%

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.

Product Description

Model MS-100-3 MS-100-5 MS-100-7.5 MS-100-12 MS-100-15 MS-100-24 MS-100-27 MS-100-48

DC Voltage 3V 5V 7.5V 12V 15V 24V 27V 48V

Rated current 20A 20A 13.6A 8.3A 6.7A 4.2A 3.7A 2A

Current range 0-20A 0-20A 0-13.6A 0-8.3A 0-6.7A 0-4.2A 0-3.7A 0-2A

DC power 60W 100W 100W 100W 100W 100W 100W 100W

Voltage ADJ.range10% +10,-5% 10% 10% 10% 10% 10% 10%

Voltage tolerance 2% 2% 1% 1% 1% 1% 1% 1%

Ripple and noise 70mVp-p 70mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p

Intet stability 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%

Load stability 1% 1% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%

INPUT

AC voltage range 85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC

Current 1.3A/115V 0.65/230V

Effi ciency 77% 81% 82% 82%

AC Inrush current Cold-start current 18A/115V 36A/230V

Leakage current < 0.5mA/240VAC

PROTECTION

Overload 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery

Over voltage 115%~135%

5.75~6.75 13.8~16.2V 27.6~32.4V 55.2~64.81

ENVIRONMENT

Temperature coeffi cient 0.03%/C (0~50C )

Working temperature and humidity -10C ~+60C,20%~90%RH

Store temperature and humidity -20C ~+85C,10%~95%RH

Overall dimension 160×98×38mm 40PCS/CARTON

SAFETY

Setup,rise,hold up time

200ms,100ms,30ms

Vibration 10~500Hz,2G 10min,/1 cycle

Withstand voltage Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc

Isolation resistance Input and output internal:Input and enclosure,Output and enclosure:500VDC/100M

STANDARD

Safety standards Meet UL1012 requirement(Not qpply for the mark)

EMC standards

OTHERS

Weight: 0.50Kg

Packing: According to your order,we can provide different cartons for you.

NOTE:

1.The testing condition for the paramenter above is ,230VAC input,rated load,25C70% RH.Humidity.

2.Error.include the setting error,line stability and load stability.(Note:5).

3.Wave test:adopting “A12″double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.

4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.

5.Load stability test:the load is from 0% to 100%.

Product Size:

Packaging & Shipping

aeProduct.getSubject()

1. Item will be shipped within 5-7 business days.
2. Delivery Time:
—-Via Air: Generally 1-3 working days
—-Via Express: Generally 3-7 working days.
—-Via China Post Air Mail: Generally 15-25 working days
—-Via Sea: According to the order.
3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.

Shipping:

· We Ship to Worldwide, except APO/FPO.

· Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.

· Delivery time depends on destination and other factors, it may takes up to 20 business days

· Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.

Payment:

payment options are available at checkout.

Warranty and Guarantee:

· 12 months Warranty. Buy with confidence!

· If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.

· If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.

· If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee

Other Policies:

· We are not responsible for any custom duty or import tax.

· We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.

· All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.

Serious Buyer Only! Please place bid only if you agree with all the terms

Our Services

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Custom Product Design
OEM/ODM
Profession in export service from Maker Electric
High quality Product, Affordable Price

FAQ

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

What are switching power supplies?
Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
