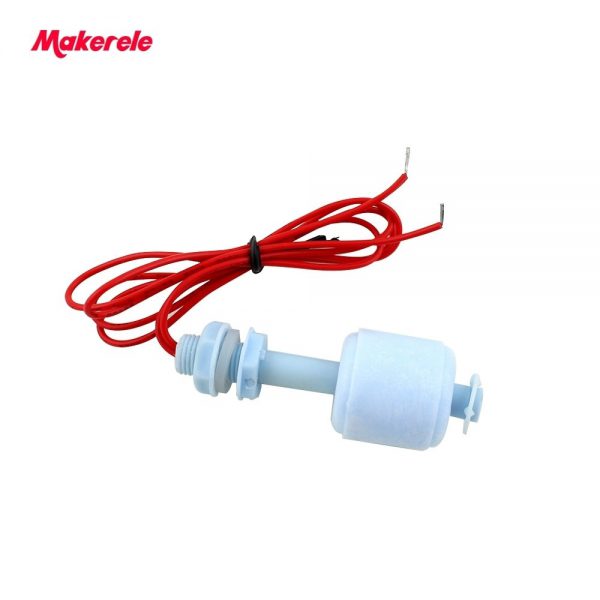

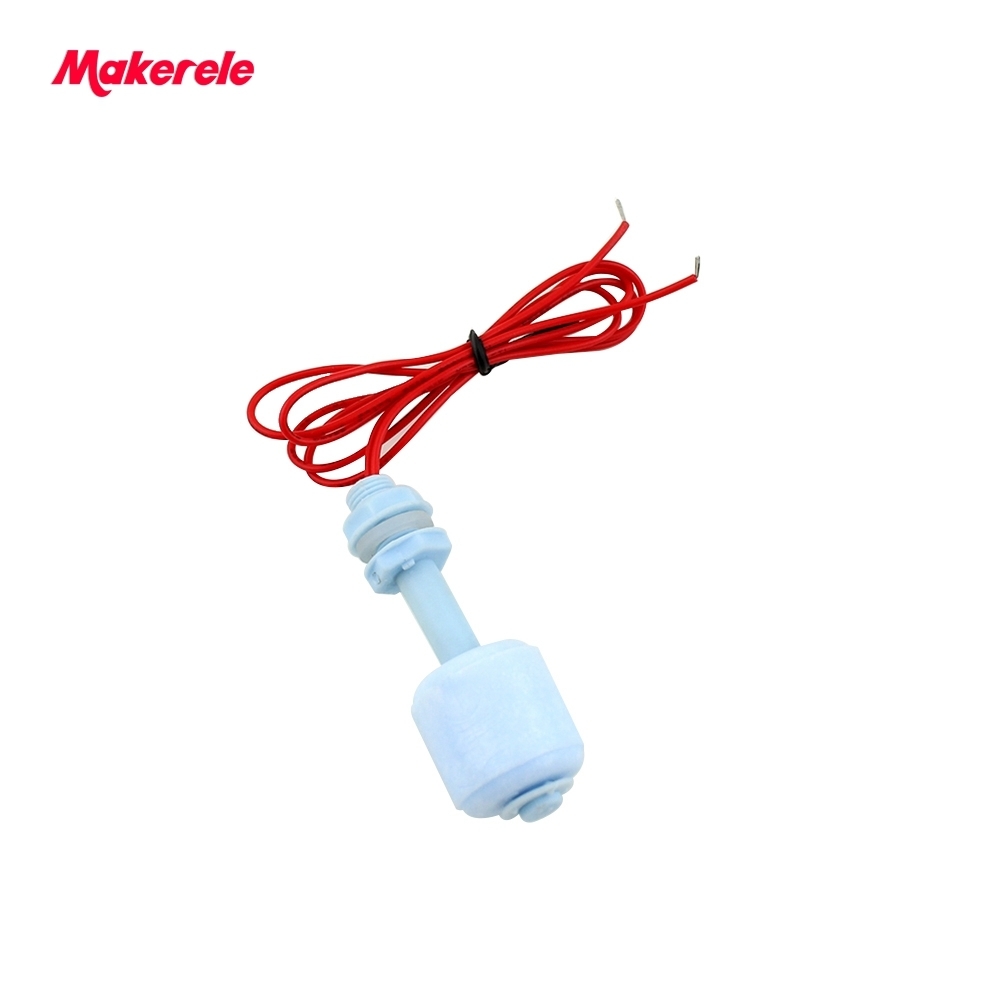

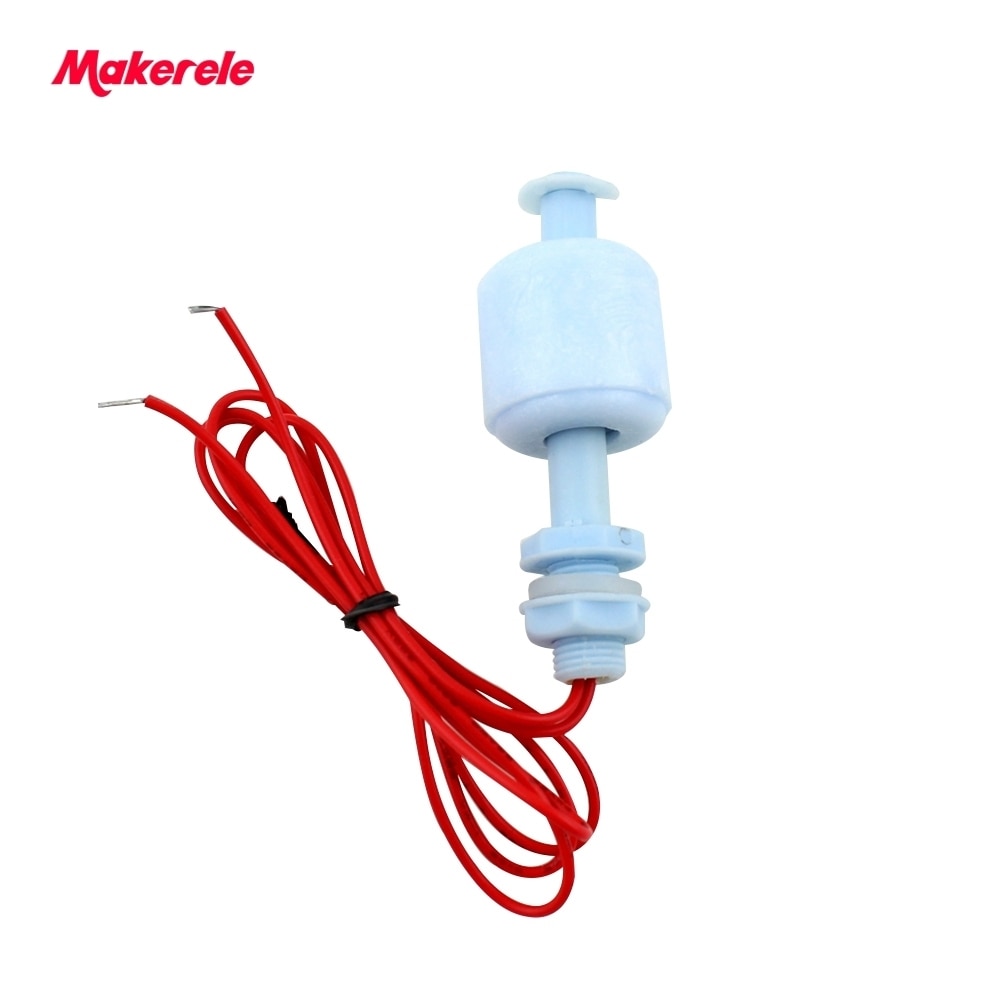

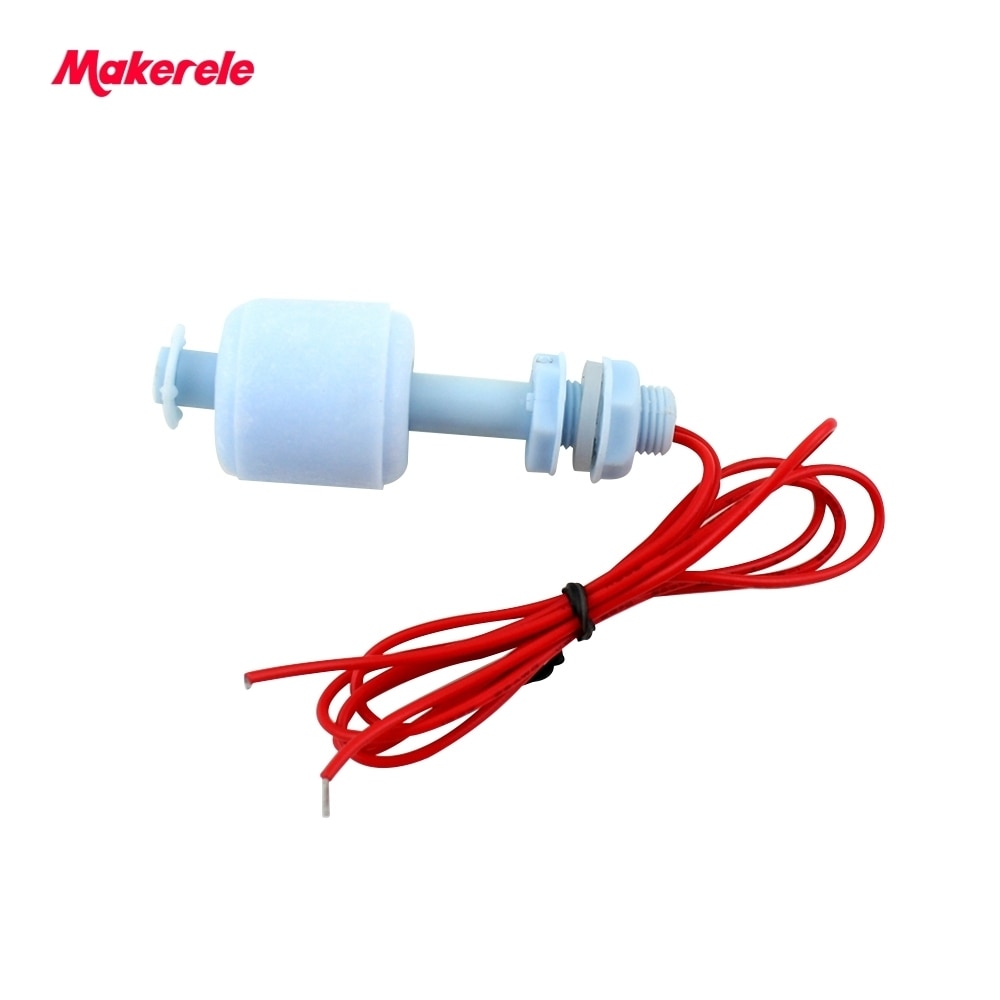

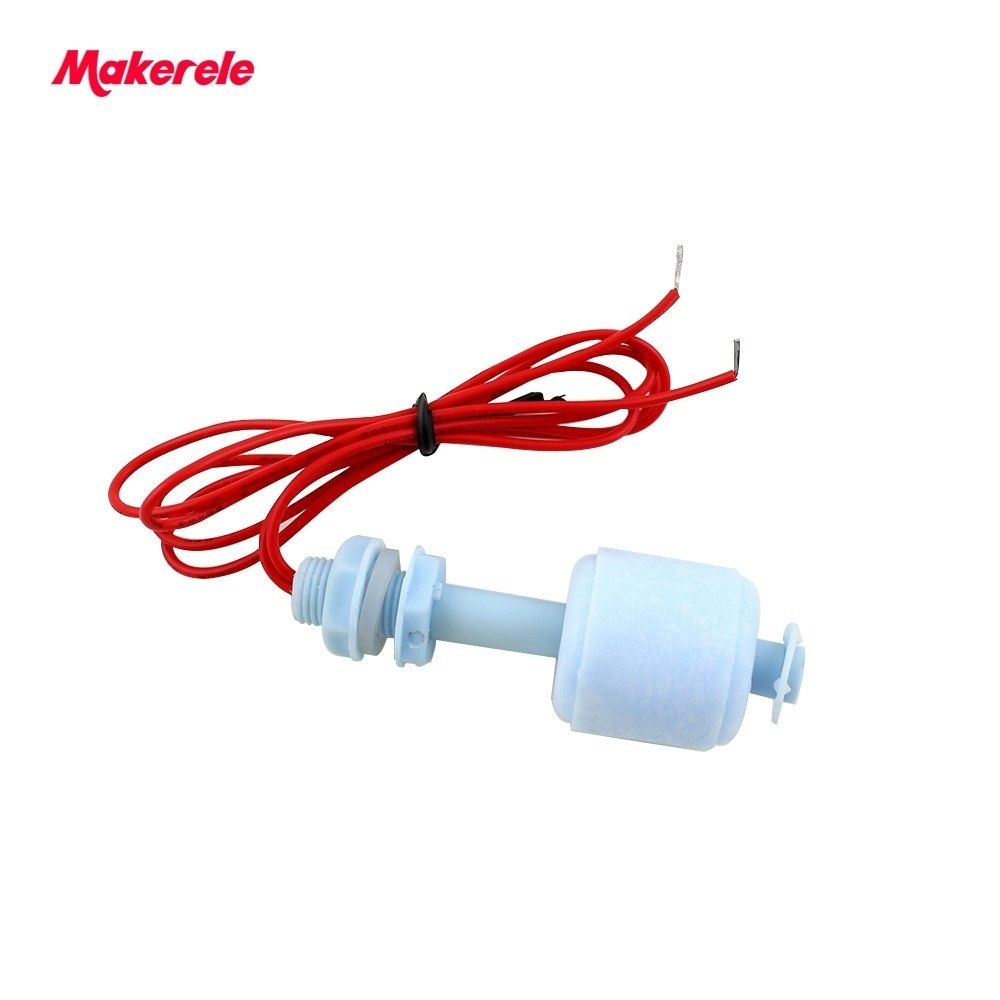

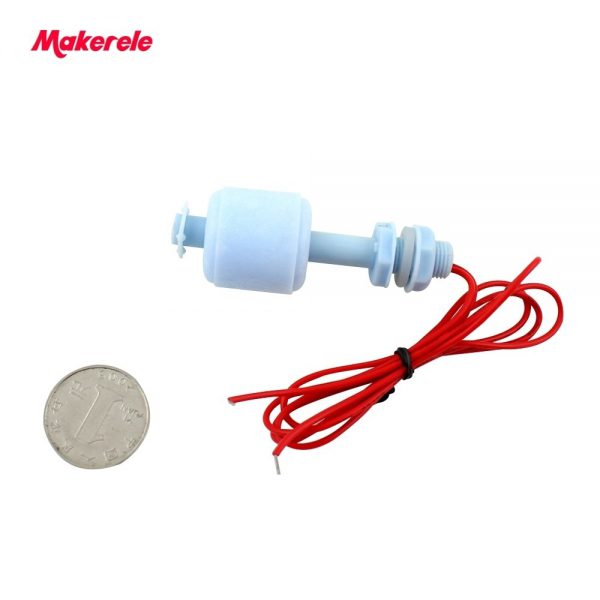

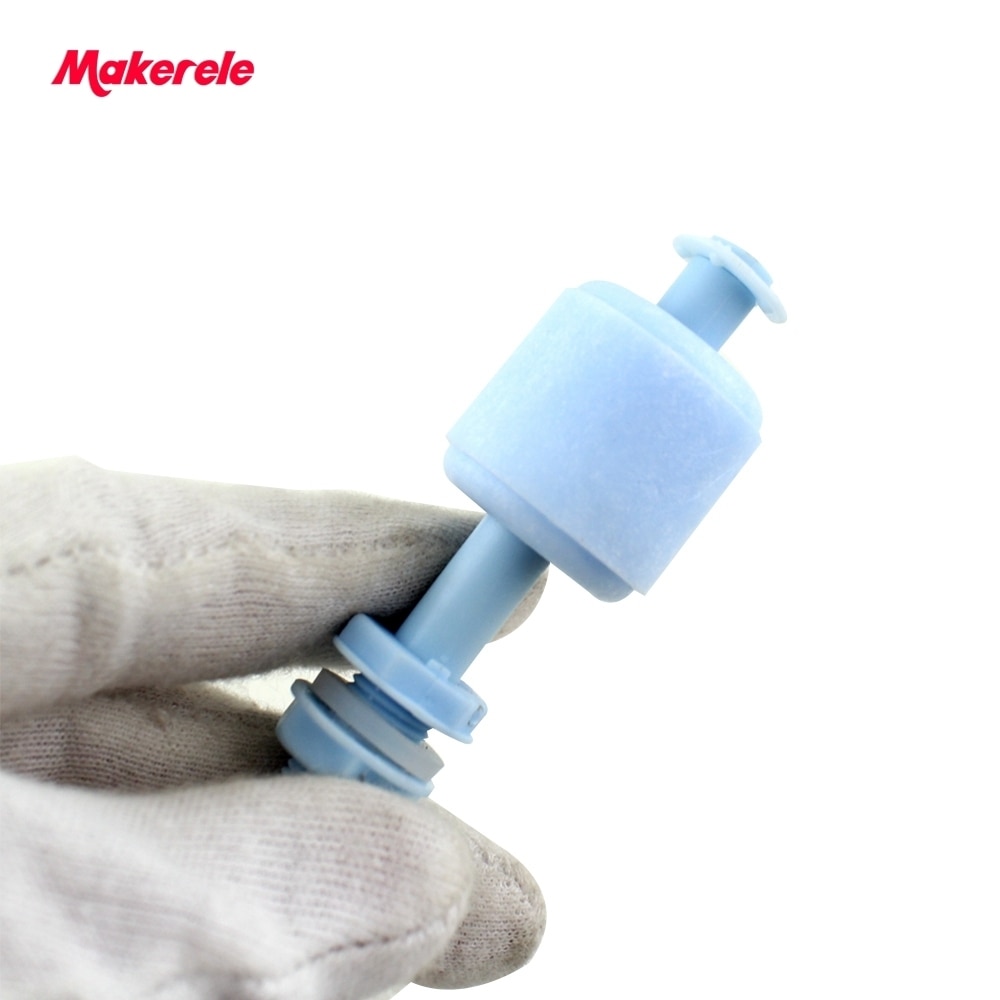

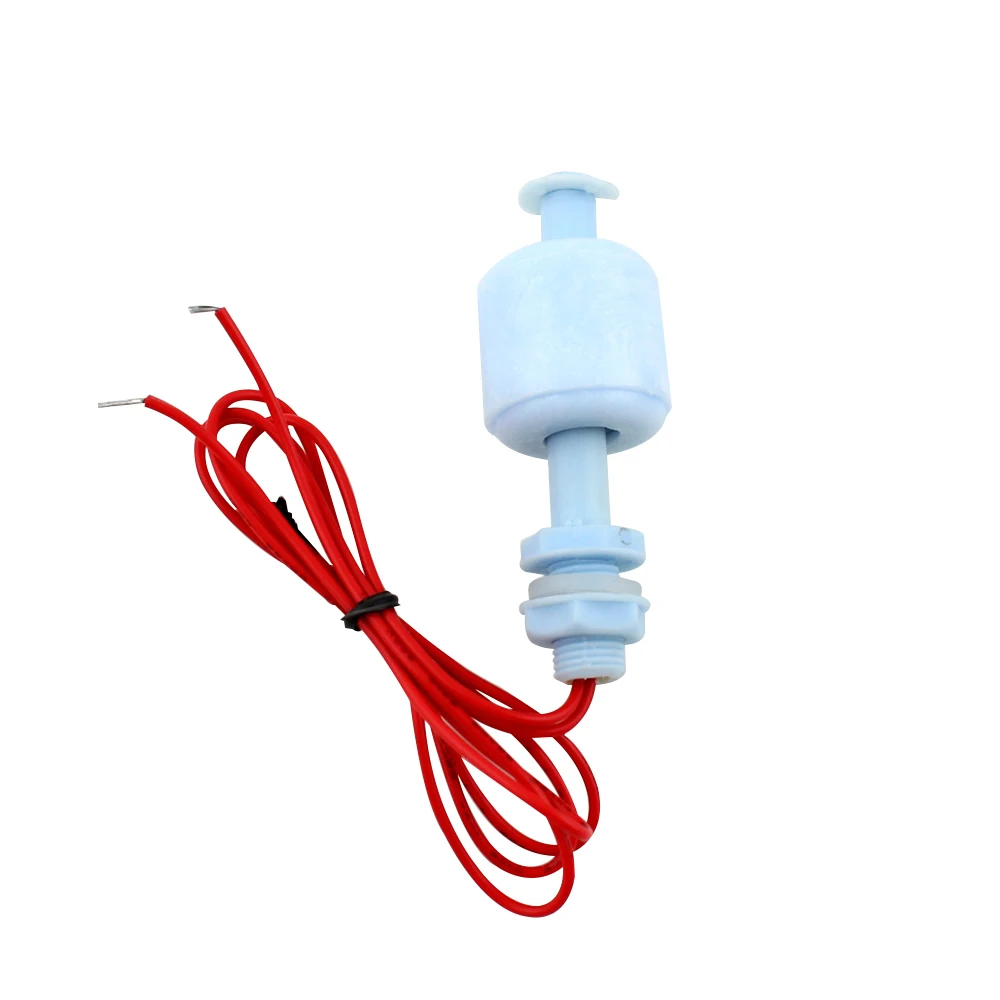

110/220V Water Level Liquid Sensor Float Switch MK-PFS5210 For Tank Pool Dropshipping PP Plastic Float Switch
$4.14 – $4.67
Description
- Brand Name: makerele
- DIY Supplies: Plumbing
- Model Number: MK-PFS5210
- Output: Switching Transducer
- Material: Polymer
- Usage: Level Sensor
- Theory: Current Sensor
- Place of Origin: Zhejiang China (Mainland)
- Contact Capacity: AC100V
- Working Pressure: 0.5MPa
- Working Temperature: -10~85
- Ambient temperature range: -10~+60
- Contact form: A(Normally Open)
|
||||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
|
Max Contact Rating:10W
pp magnetic float level switch
1.Professional manufacturer
2.Installed on top or bottom of tank.
3.Good appearence
pp magnetic float level switch MK-PFS5210 Introduction:
A float switch is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices.
Float switches range from small to large and may be as simple as a mercury switch inside a hinged float or as complex as a series of optical or conductance sensors producing discrete outputs as the liquid reaches many different levels within the tank. Perhaps the most common type of float switch is simply a float raising a rod that actuates a microswitch.
pp magnetic float level switch MK-PFS5210 Specification :
Magneti reed type |
1A1 |
2A1 |
Max Contact Rating |
10W |
50W |
Max Switching Voltage |
100V DC |
220V DC |
Max Switching Current |
0.5A |
1.5A |
Max Breakdown Voltage |
220V DC |
300V DC |
Max Carry Voltage |
1.0A |
3.0A |
Max Contact Resistance |
100m |
100m |
Ambient temperature range |
PP material |
-10~+60C |
Stainless steel material |
-30~+125C |
|
Liquid temperature range |
PP material |
-10~+85C |
Stainless steel material |
-30~+125C |
pp magnetic float level switch MK-PFS5210 Applications:
Drinking fountains, water heaters, solar energy, air conditioners, humidifiers, water, bathroom equipment, vending machines, tanks, chemical liquid level control, automotive, industrial equipment, agricultural equipment, household appliances widespread application prospect.
pp magnetic float level switch MK-PFS5210 Size:

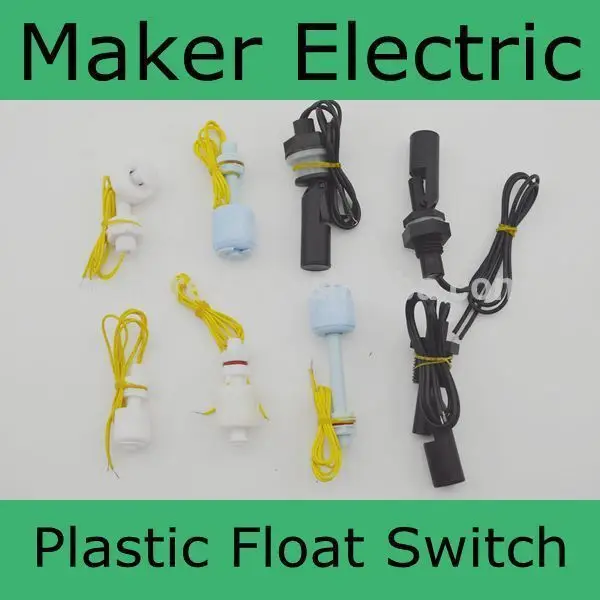

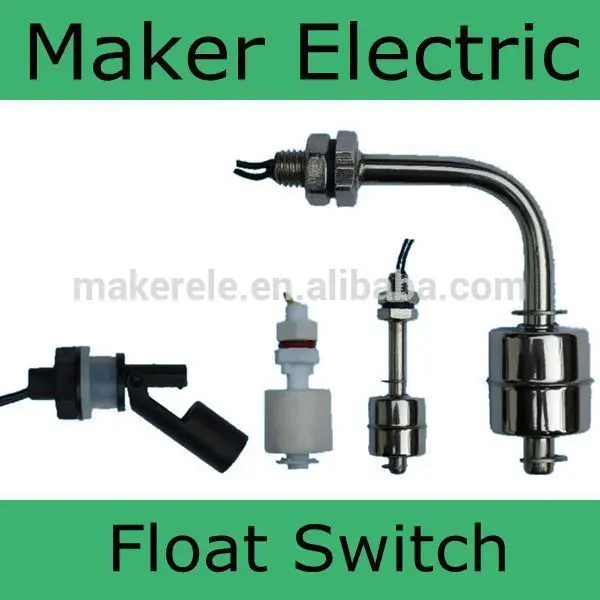

Other types we can supply:
How to choose suitable float for different liquid?
pp magnetic float level switch MK-PFS5210 package
-
1. Item will be shipped within 5-7 business days.
-
2. Delivery Time:
-
—-Via Air: Generally 1-3 working days
-
—-Via Express: Generally 3-7 working days.
-
—-Via China Post Air Mail: Generally 15-25 working days
-
—-Via Sea: According to the order.
-
3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
Transportation:
Why Choose Us ?
1.Product development and special customized ability for clients
2.The independent intellectual property rights and the international certification authority
3.Higher cost performance – product quality exceed international counterparts
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.
-
Custom Product Design
-
OEM/ODM
-
Profession in export service from Maker Electric
-
High quality Product, Affordable Price
