- Brand Name: makerele
- Output Power: 201 – 300W
- Output Type: Single
- Model Number: S-201-7.5 rainproof
- Output Frequency: 47~63Hz
- is_customized: Yes
- Output Current: 26.5A
- Input Voltage: 90-132 VAC/180-264VAC
- Rated Power: 201W
- Current Range: 0-26.5A
- Certification: CE ROHS
- Over Load: 115%-135%
- Voltage Range: 90-132 VAC/180-264VAC
- Inrush Current: 50A/115V50A/230V
- Setup,Rise,Hold Time: 200ms,100ms,20ms at full load
- DC Adjustment Range: 20%
- AC Current: 3.2A/115 V 1.6A/ 230 V
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.

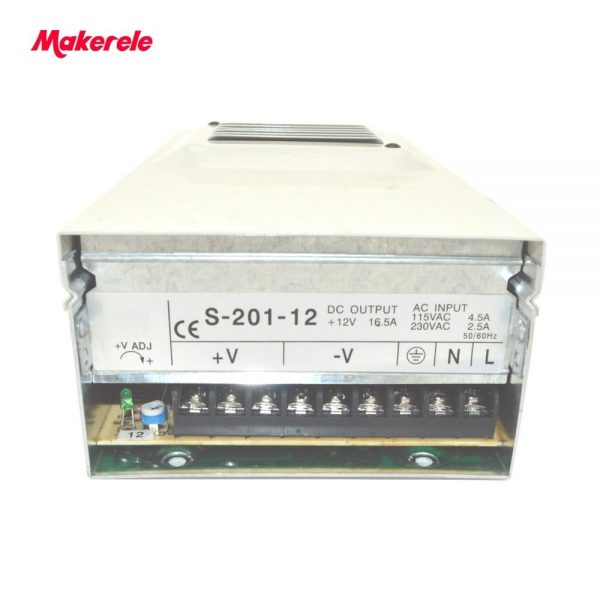

Model S-201-5 S-201-7.5 S-201-12 S-201-13.5 S-201-15 S-201-24 S-201-27 S-201-48
DC Voltage 5V 7.5V 12V 13.5V 15V 24V 27V 48V
Voltage Tolerance 2% 2% 1% 1% 1% 1% 1% 1%
Rated Current 40A 26.5A 16.5A 14.7A 13A 8.3A 7.4A 4.2A
Current Range 0-40A 0-26.5A 0-16.5A 0-14.7A 0-13A 0-8.3A 0-7.4A 0-4.2A
Rated Power 200W 198.75W 198W 198.45W 198W 199.2W 199.8 201.6W
Ripple & Noise 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 200 mVp-p 240 mVp-p
Range -10%,+12% 20% -16%,+10% -12%,+11% -10%,+20% -16%,10% -4%,+18% -15%,+17%
Setup,Rise,Hold Time 200ms,100ms,20ms at full load
Voltage Range 90~132 VAC/180~264VAC47~63 Hz;selected by switch 254~370VDC
AC Current 4.5A/115VAC2.5A/230VAC
Efficiency 74%(S-201-5); 79%(S-201-7.5); 80%(S-201-12); 80%(S-201-13.5);
81%(S-201-15); 83%(S-201-24); 83%(S-201-27); 84%(S-201-48);
Inrush Current 50A/115V50A/230V
Leakage Current <3.5 mA/240VAC
Over Load 115%~135%
Protection type: shut down o/p voltage, recovers automatically after fault condition is removed
Over Voltage 115%~135%
Protection: hiccup mode, recovers automatically after fault condition is removed
Over Temp. RTH390C,shut down o/p voltage, recovers automatically after temperature goes down
Working Temp., Humidity -10C~+50C;20%~90 %RH
Storage Temp., Humidity -20C~+85C;10%~95 %RH
Vibration 10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Safety Standard Design refer to UL1950
EMC Standard Drsign refer to FCC Part15 J Conduction Class A
Packing:12pcs/11.71kg/box. According to your order,we can provide different cartons for you.
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47
3.Tolerance: includes set up tolerance, line regulation and load regulation
· We Ship to Worldwide, except APO/FPO.
· Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
· Delivery time depends on destination and other factors, it may takes up to 20 business days
· Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html
Warranty and Guarantee:
· 12 months Warranty. Buy with confidence!
· If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
· If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.
· If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee
· We are not responsible for any custom duty or import tax.
· We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
· All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies?
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
- What about production process of switching power supply?
