- Brand Name: makerele
- Output Power: 301 – 400W
- Output Type: Single

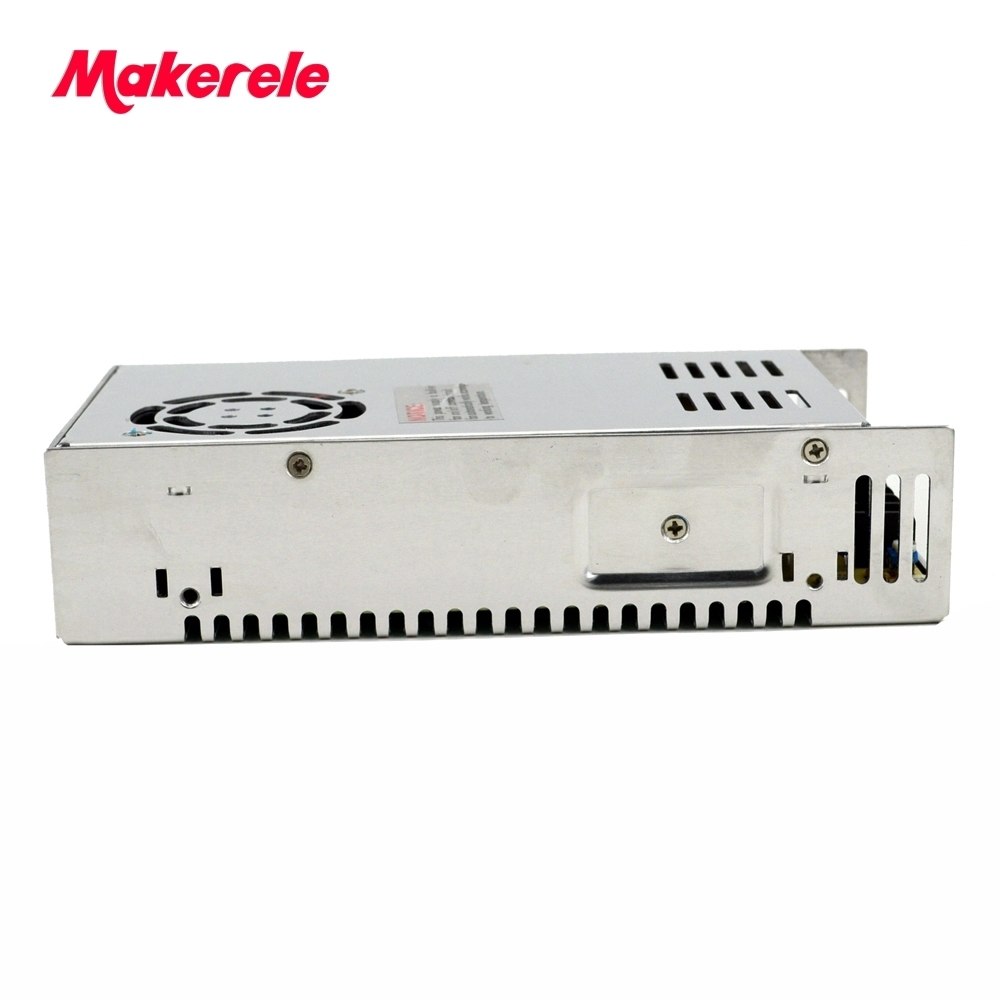

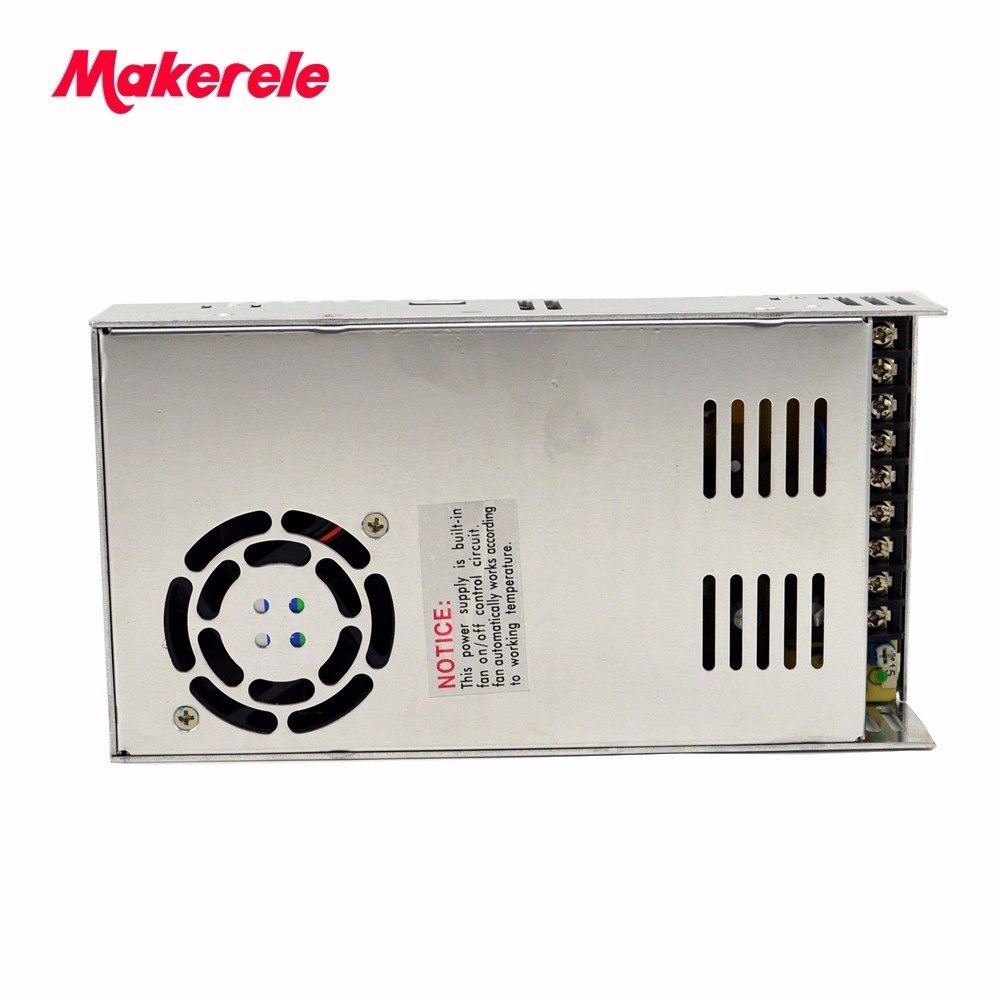

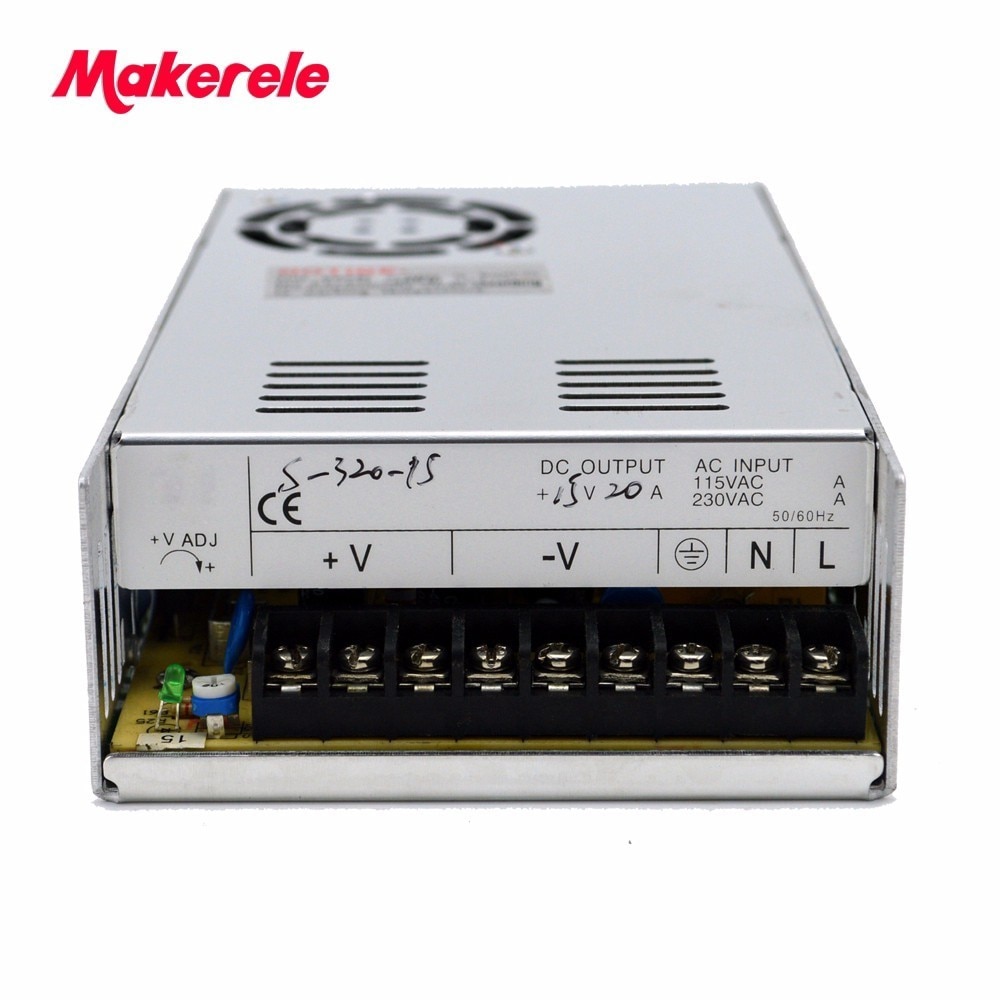

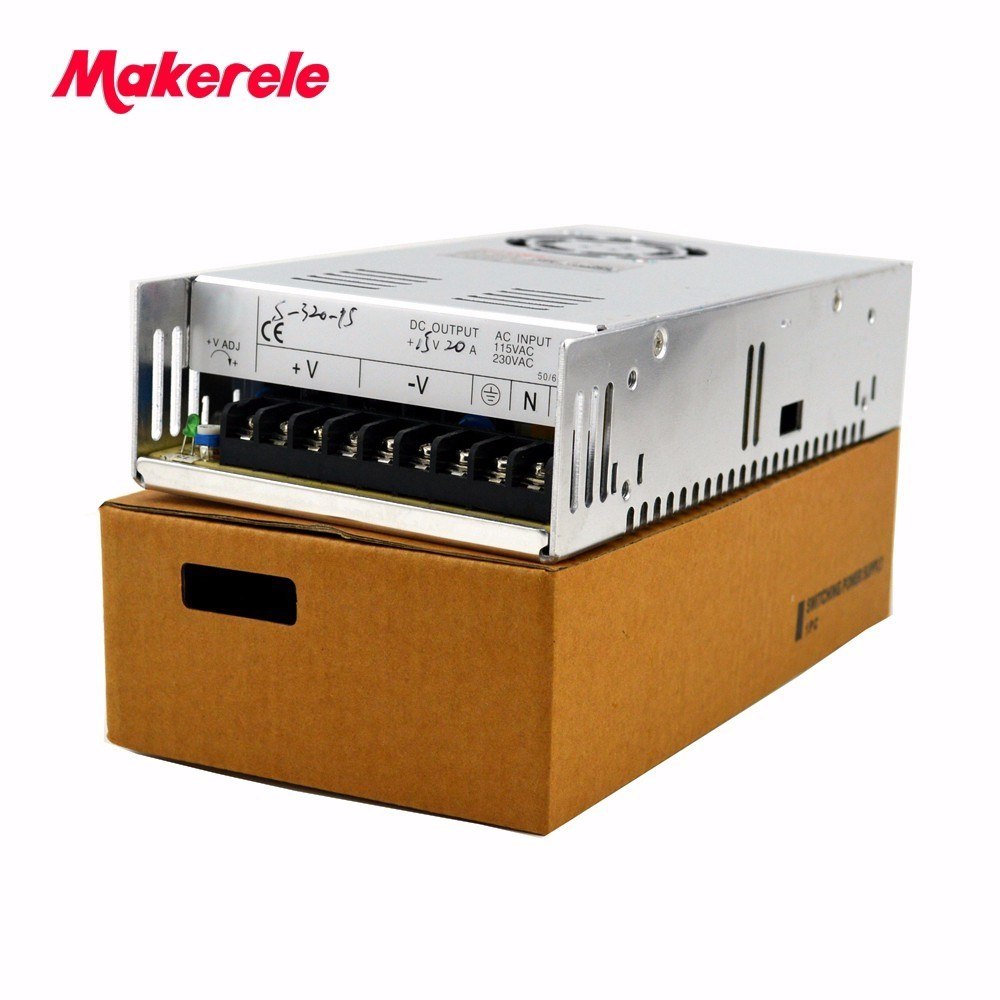

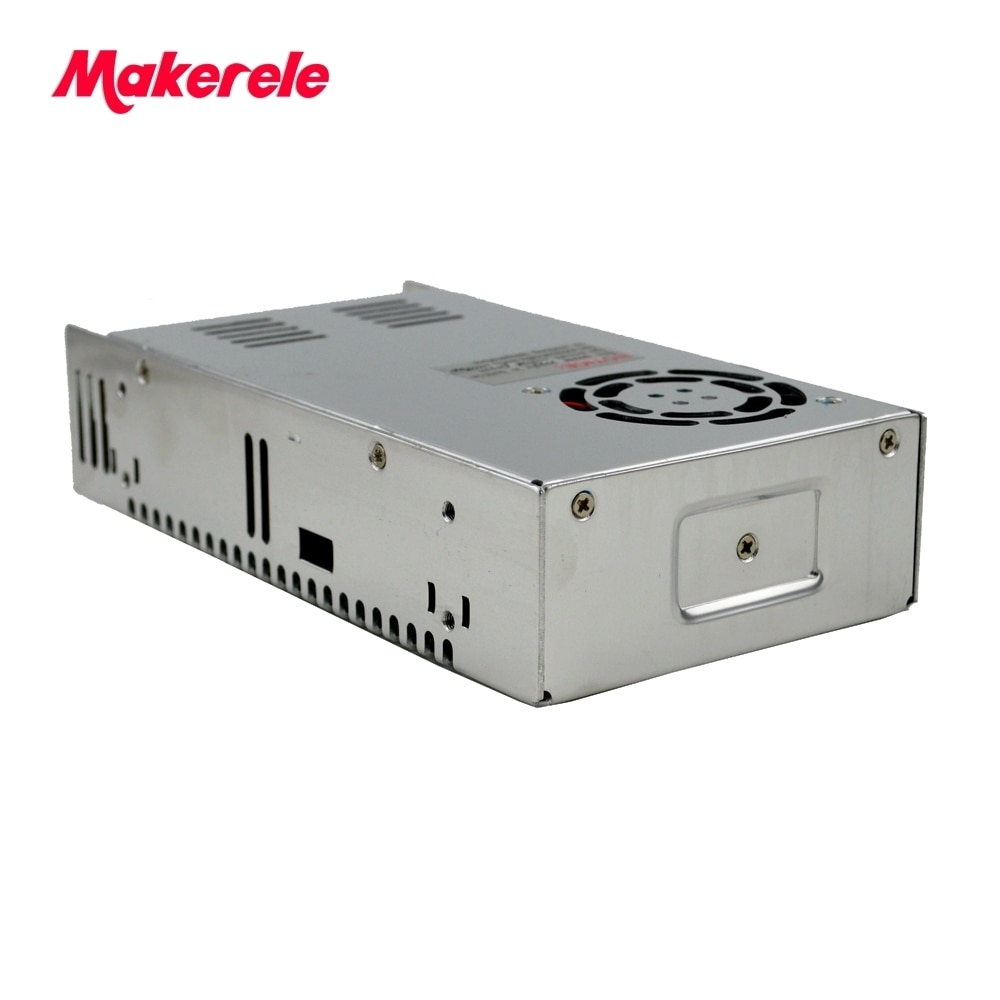

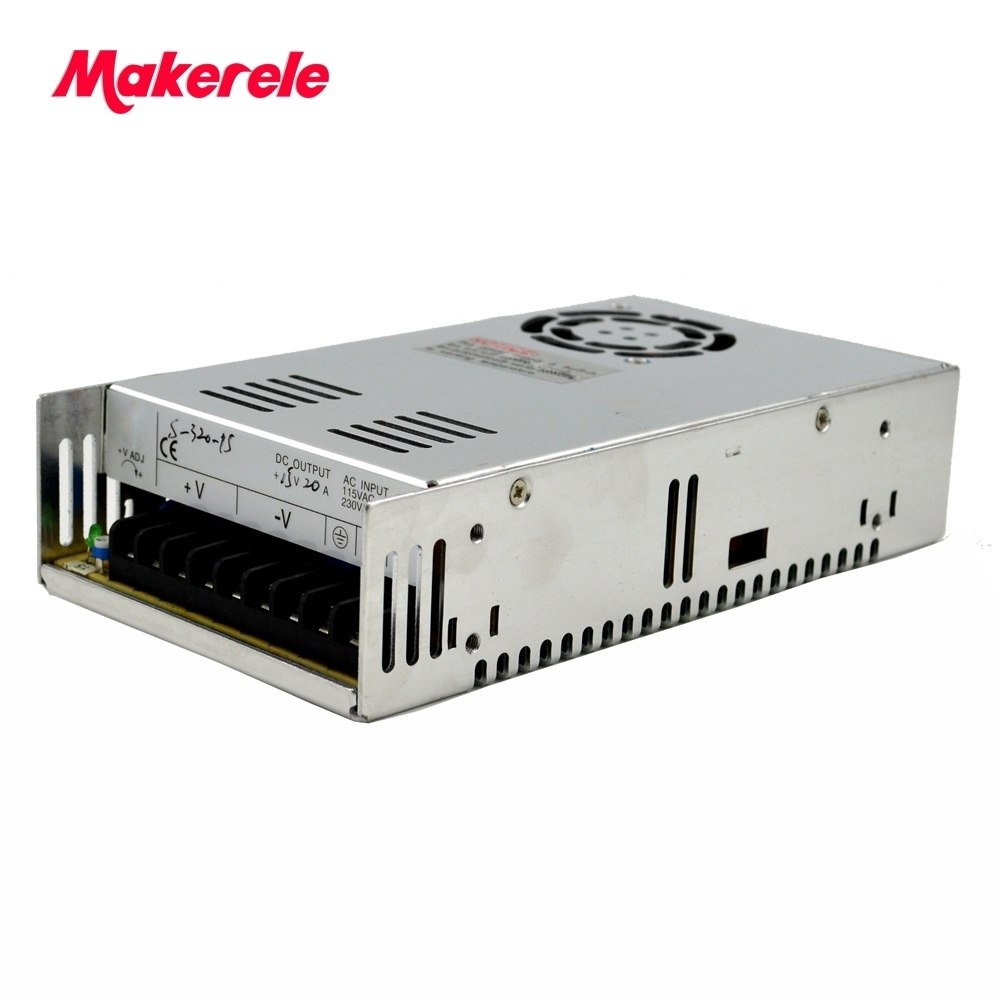

- Model Number: S-320-15/24/36/48
- Output Frequency: 47~63Hz
- is_customized: Yes
- Input Voltage: 90-132 VAC/180-264VAC
- Rated Power: 320W
- Certification: CE ROHS
- Voltage Range: 90-132 VAC/180-264VAC
- Over Load: 115%-135%
- Inrush Current: 50A/115V50A/230V
- Setup,Rise,Hold Time: 200ms,100ms,20ms at full load
- DC Adjustment Range: 20-26.4V
- AC Current: 6A/115V 3.5A/230V
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
Model S-320-5 S-320-7.5 S-320-12 S-320-13.5 S-320-15 S-320-24 S-320-27 S-320-48
DC output voltage 5V 7.5V 12V 13.5V 15V 24V 27V 48V
Output voltage error 2% 2% 1% 1% 1% 1% 1% 1%
Rated output current 50A 36A 25A 22A 20A 12.5A 11A 6.5A
Output current rage 0-50A 0-36A 0-25A 0-22A 0-20A 0-12.5A 0-11A 0-6.5A
Wave and noise 150mVp-p 150mVp-p 180mVp-p 180mVp-p 180mVp-p 180mVp-p 240mVp-p 240mVp-p
Inlet stability 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%
Load stability 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%
DC output power 250W 270W 300W 297W 300W 300W 297W 312W
Efficiency 77% 80% 82% 83% 84% 86% 86% 87%
for DC voltage 4.5-5.7V 6-9V 10-13.2V 12-15V 13.5-18V 20-26.4V 26-32V 41-56V
AC input voltage range 88~132VAC/176~264VAC SELECTED BY JUMPER OR SWTCH 47~63Hz;248~370VDC
Input current 6A/115V 3.5A/230V
AC impulse current 20A/115V 40A/230V
Leakage current <3.5mA/240VAC
Overload proctection 105%~135% Type:PULSING HICCUP SHUTDOWN AUTO RECOVERY
Over-voltage protection 5.75-6.75V 9.4-10.9V 13.8-16.2V 15.5-18.2V 18-21V 27.6-32.4V 33.7-39.2V 57.6-67.2V
High-temperature protection RTH1>=65C FAN ON<=55C FAN OFF>=70C (5~15V)OUTPUT SHUTDOWN
Temperature coefficient 0.03%C(0~50C)
Setup rise hold up time 2s,20ms,20ms
Working temperature and humidity
Store temperature and humidity
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage Input and output interval:3KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
Isolation resistance Input and output interval,Input and enclosure,Output and enclosure:500VAC/100M Ohms
Safety standards Meet UL1950
Packing:12pcs/15.98kg/box. According to your order,we can provide different cartons for you.
1.The testing condition for the parameter above is:230VAC input, rated load,25C 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adoptingA12double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2,3,11must be knocked down.
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies?
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
