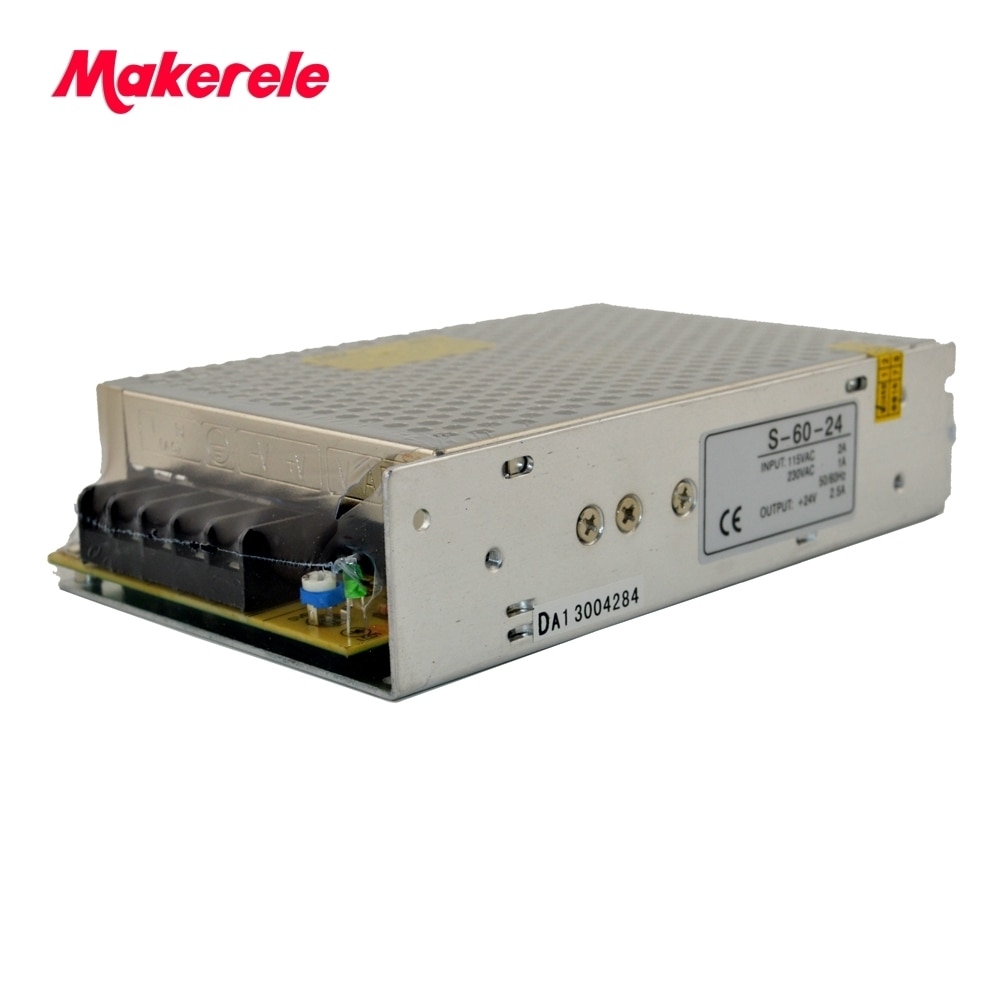

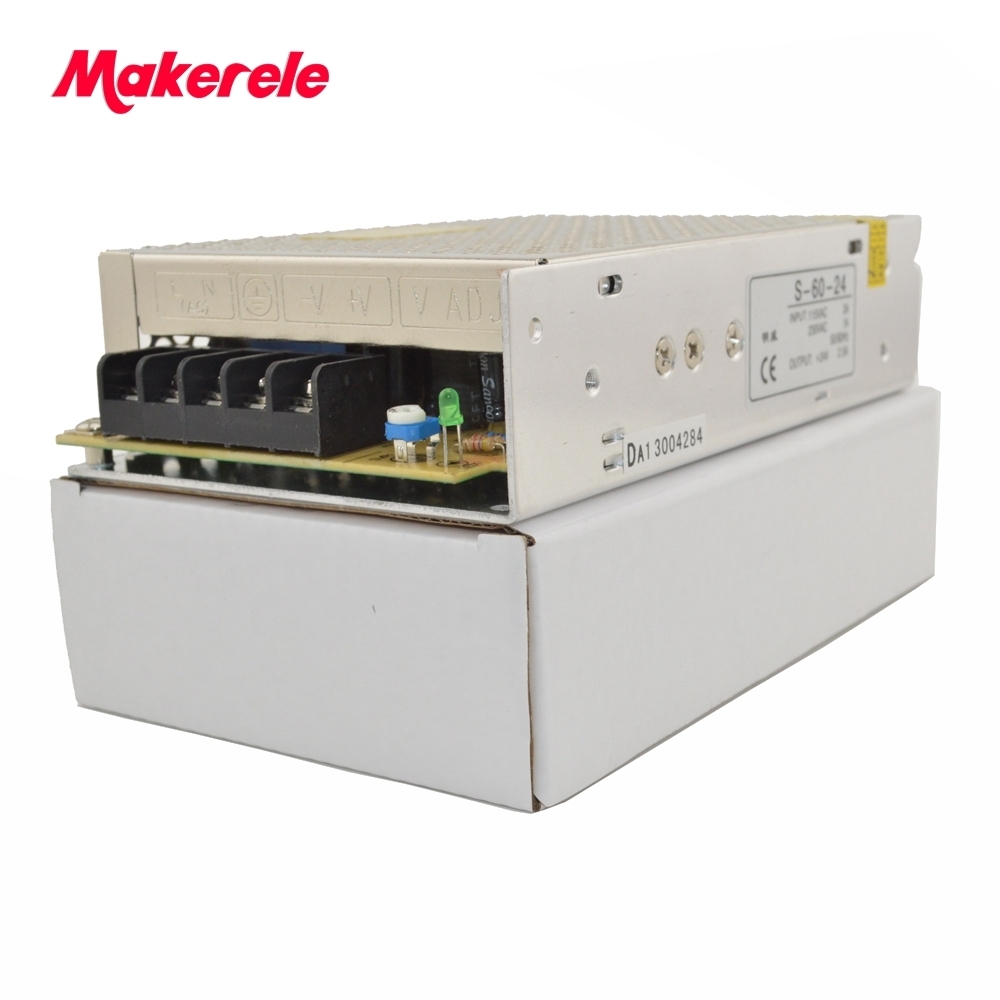

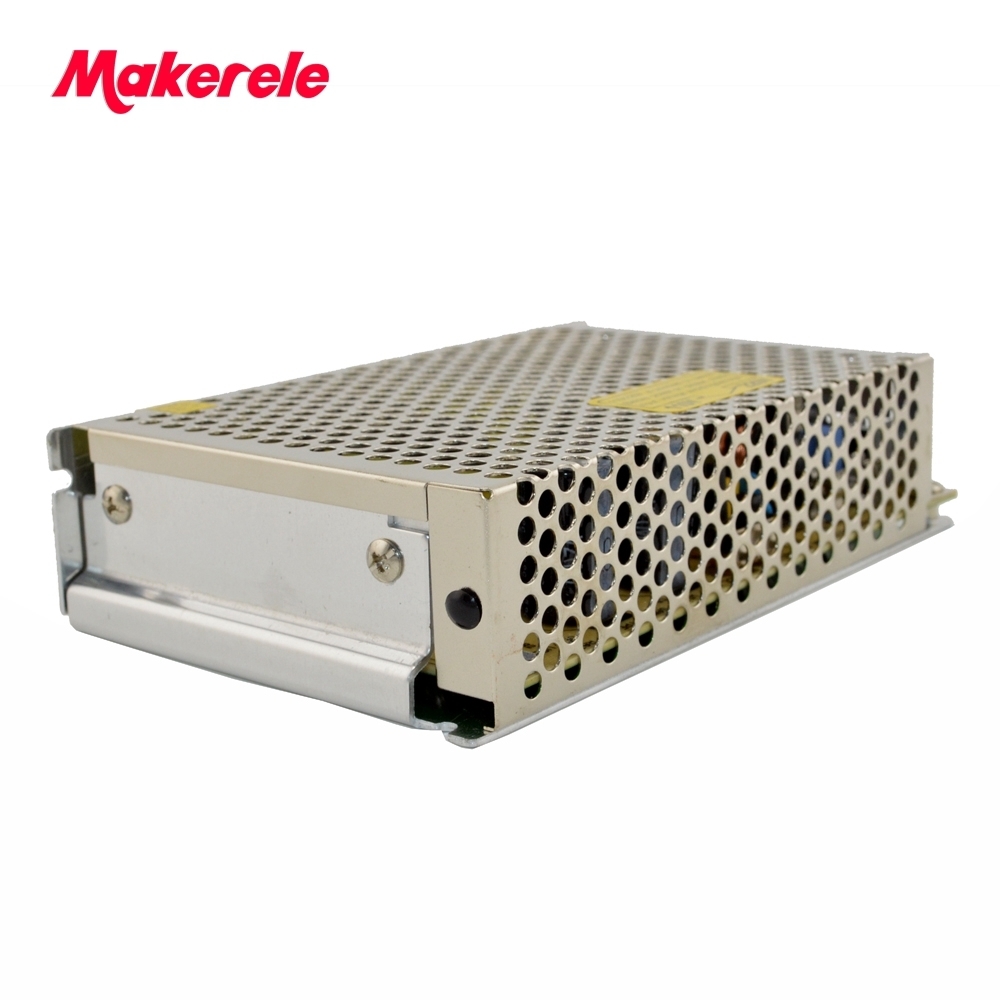

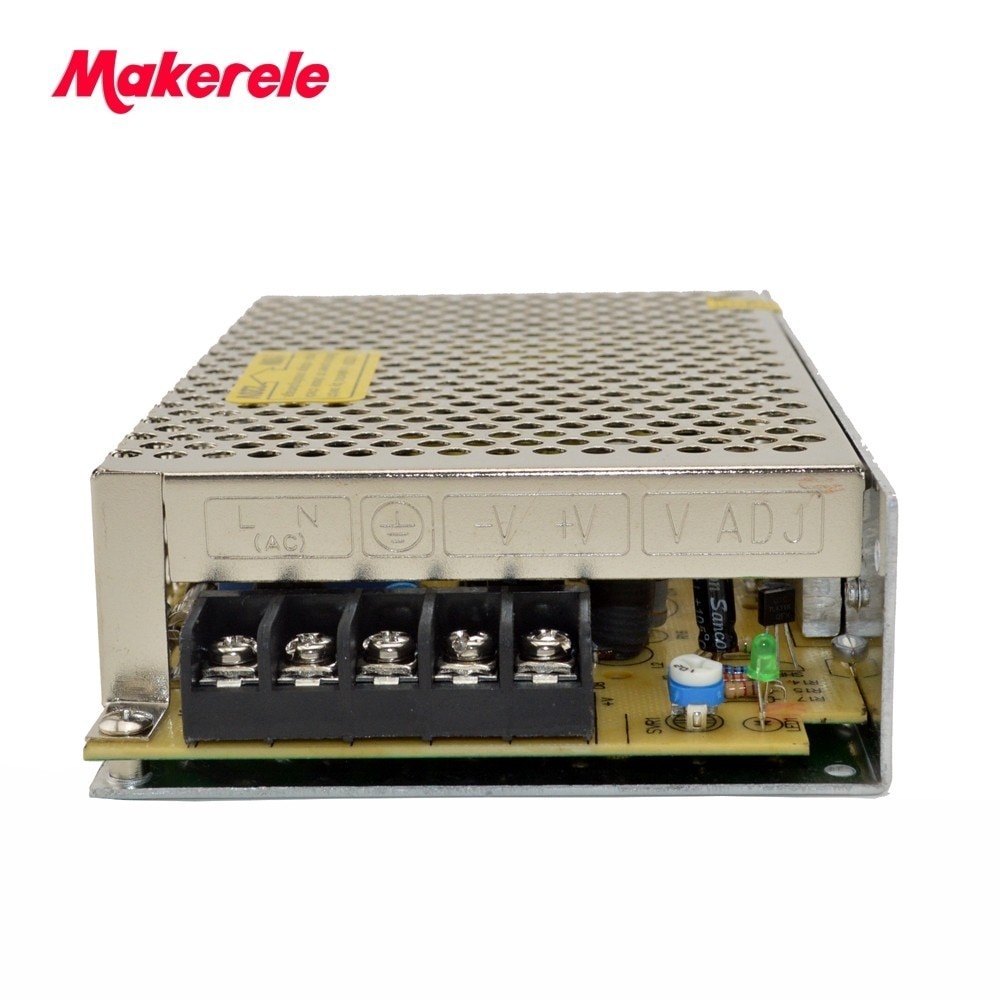

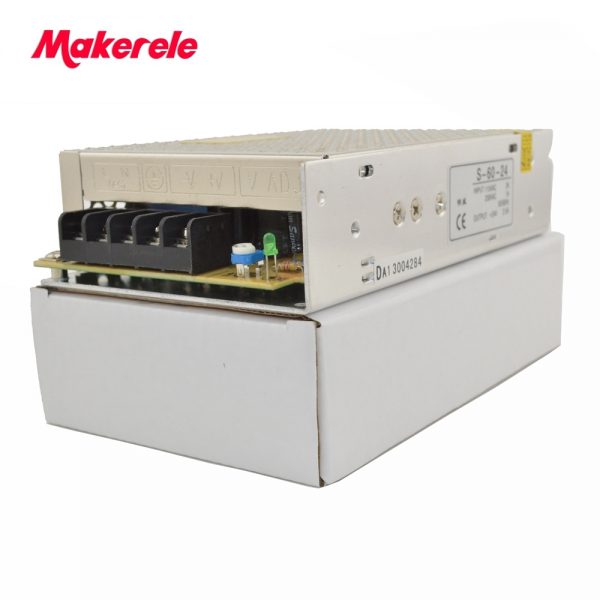

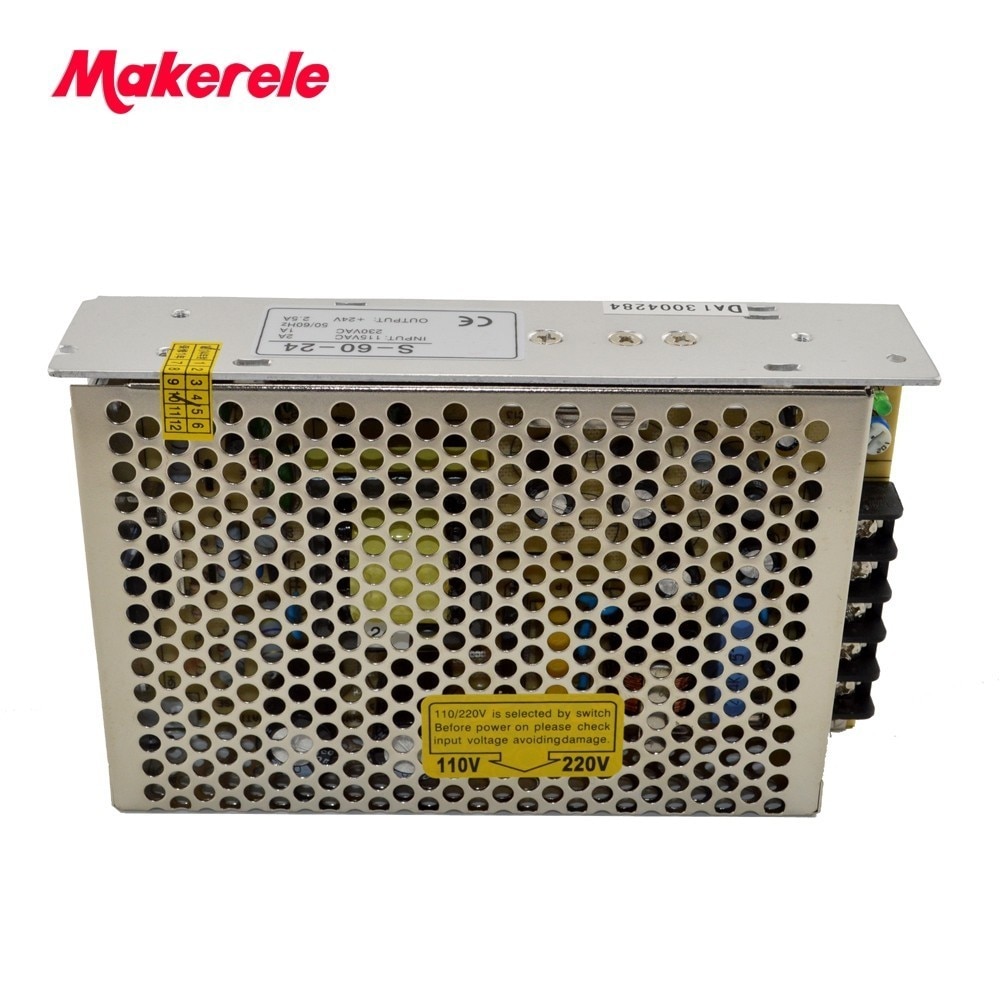

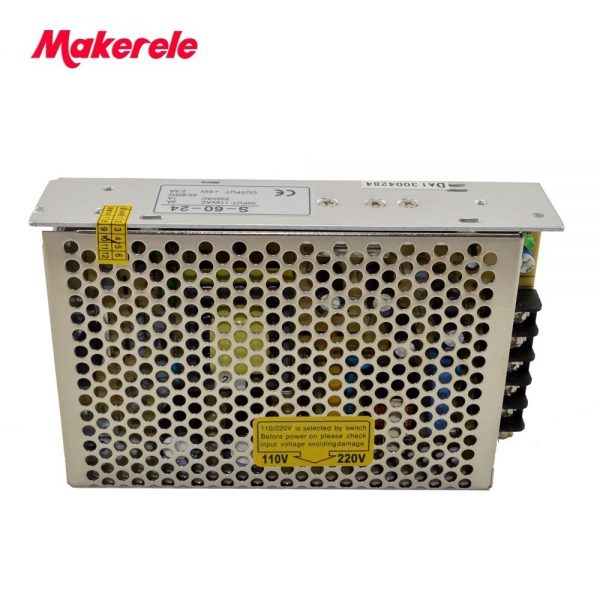

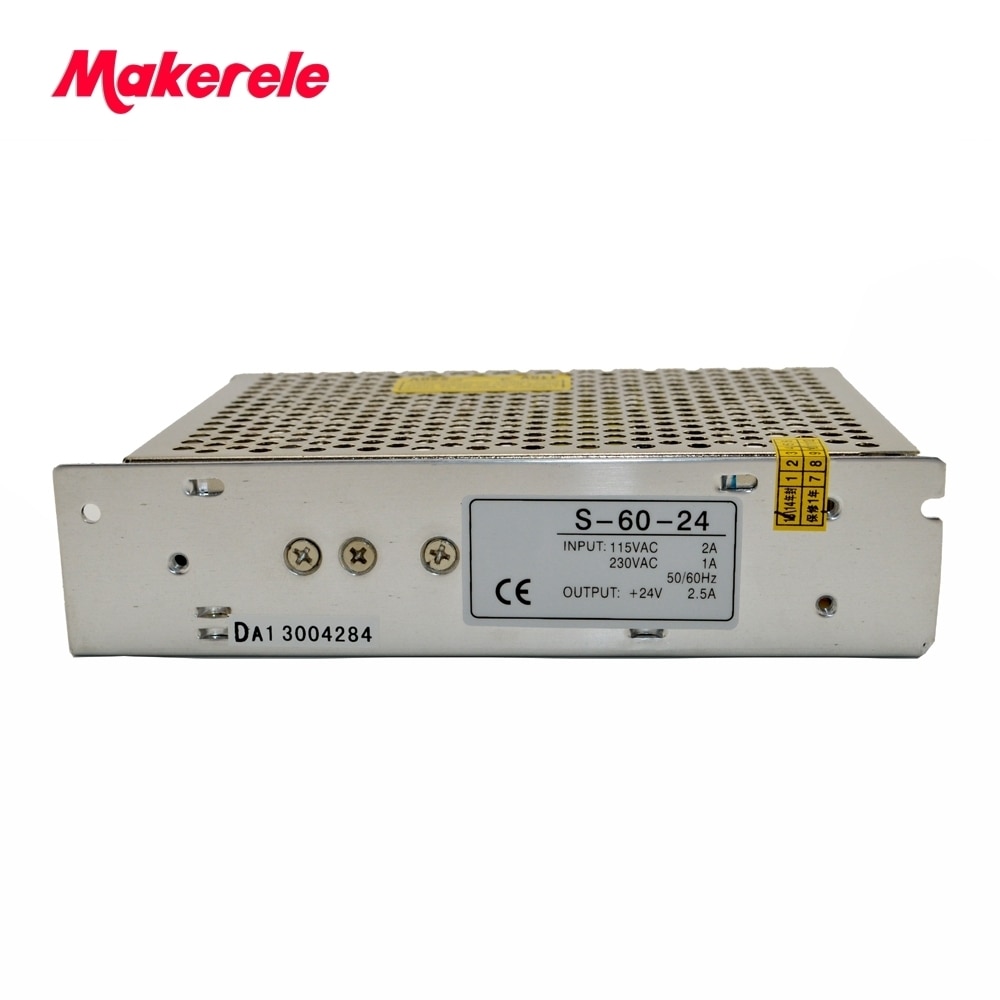

60w 12 5 2.5 1.3A input110-240V AC to 5 12 24 48V LED switching Power Supply For led strip light driver RoHS CE
$16.40 – $18.18
Description
- Brand Name: makerele
- Output Power: 51 – 100W
- Output Type: Single
- Model Number: S-60-5/12/24/48
- Output Frequency: 47~63Hz
- Output Current: 0-12/5/2.5/1.3A
- is_customized: Yes
- Input Voltage: 85-132 VAC / 170-264 VAC
- Rated Power: 60W
- Inrush Current: Cold start 30A/115VAC 60A/230VAC
- AC Current: 0.8 A/115 V 0.45A/ 230 V
- Certification: CE ROHS
- Setup,Rise,Hold Time: 200ms,100ms,30ms at full load
- Safety Standard: Design refer to UL1012
- Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
- Efficiency: 79%
|
||||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
DC Adjustment Range:+-10%
Notice:
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
|
Model |
S-60-5 |
S-60-12 |
S-60-15 |
S-60-24 |
S-60-48 |
|
DC Voltage |
5V |
12V |
15V |
24V |
48V |
|
Voltage Tolerance |
2% |
1% |
1% |
1% |
1% |
|
Rated Current |
12A |
5A |
4A |
2.5A |
1.3A |
|
Current Range |
0-12A |
0-5A |
0-4A |
0-2.5A |
0-1.3A |
|
Rated Power |
60W |
60W |
60W |
60W |
62W |
|
Ripple & Noise |
120mVp-p |
120 mVp-p |
150 mVp-p |
150 mVp-p |
200 mVp-p |
|
DC Adjustment Range |
-5%, +10% |
10% |
10% |
10% |
10% |
|
Setup,Rise,Hold Time |
800ms,50ms,10ms/115VAC300ms,50ms,80ms/230VAC |
|
|||
INPUT
Voltage Range 85-264 VAC47-63 Hz;120-370VDC
AC Current 2A/115 V 1A/ 230 V
Efficiency 73%(SKS-60-5); 76%(SKS-60-12); 77%(SKS-60-15); 79%(SKS-60-24); 80%(SKS-60-48);
Inrush Current Cold start 30A/115VAC 60A/230VAC
Leakage Current
PROTECTION
Over Load 135%-165%
Protection type: Fold back current limiting, recovers automatically after fault condition is removed.
Over Voltage 115%-135%
Protection type: hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT
Working Temp., Humidity -10C-+60C;20%-90 %RH
Storage Temp., Humidity -20C-+85C;10%-95 %RH
Vibration 10~500Hz,2G 10min./1cycle,period for 60min, each long X, Y, Z, axes
SAFETY
Withstand Voltage I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
OTHERS
Weight 0.51Kg
Packing 30pcs/15.87Kg . According to your order,we can provide different cartons for you.
NOTE
NOTE 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47
parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must
be re-confirmed that it still meets EMC directives.
Product Size:
- 1. Item will be shipped within 5-7 business days.
- 2. Delivery Time:
- —-Via Air: Generally 1-3 working days
- —-Via Express: Generally 3-7 working days.
- —-Via China Post Air Mail: Generally 15-25 working days
- —-Via Sea: According to the order.
- 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- OEM/ODM
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
What are switching power supplies?
Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
What about production process of switching power supply?
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:
Yueqing Maker electric Co., Ltd. concentrates on Import and Export.
Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
|
