- Brand Name: makerele
- Output Power: 301 – 400W
- Output Type: Single

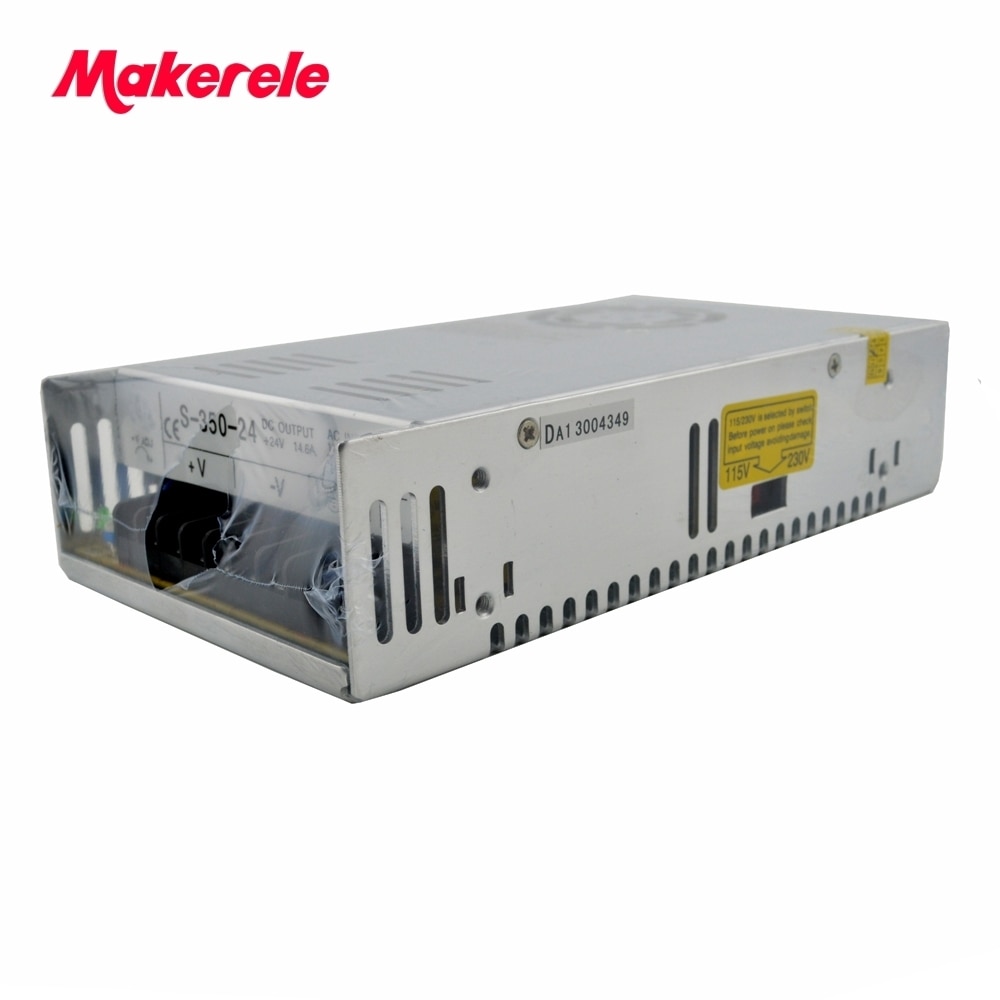

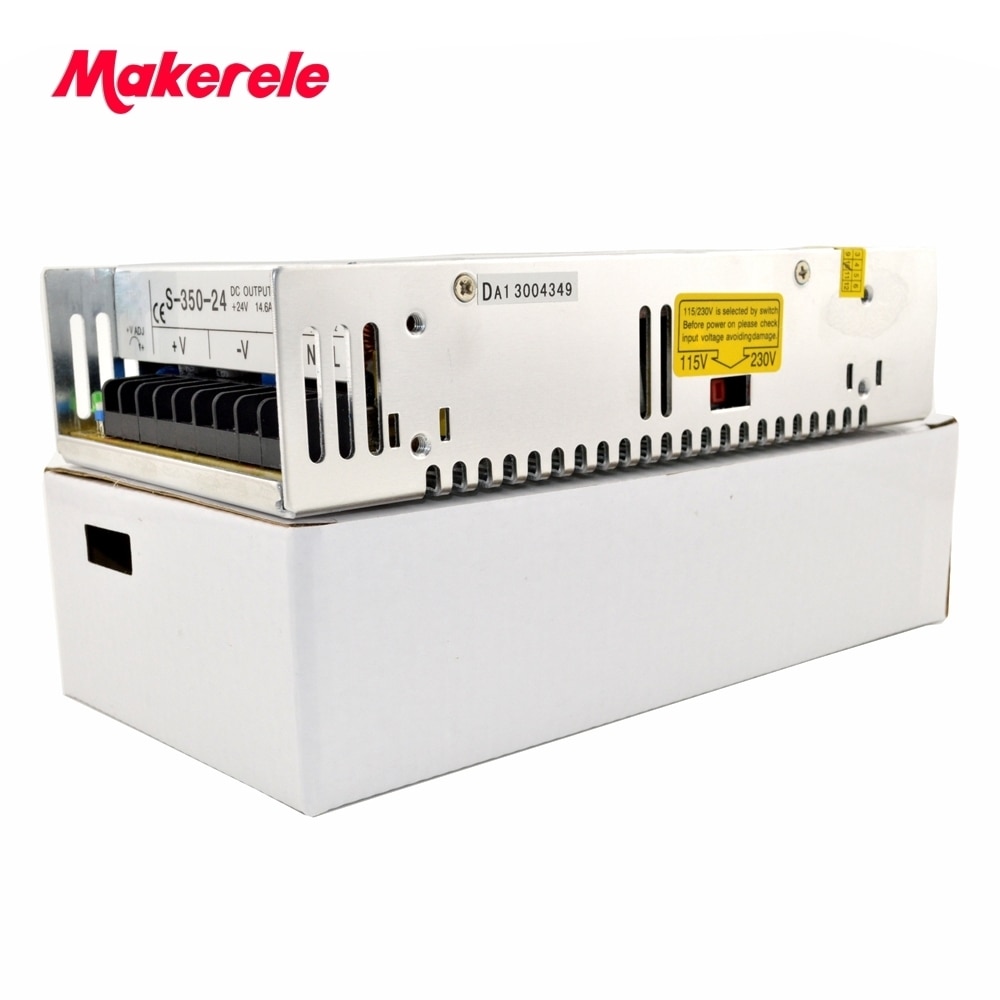

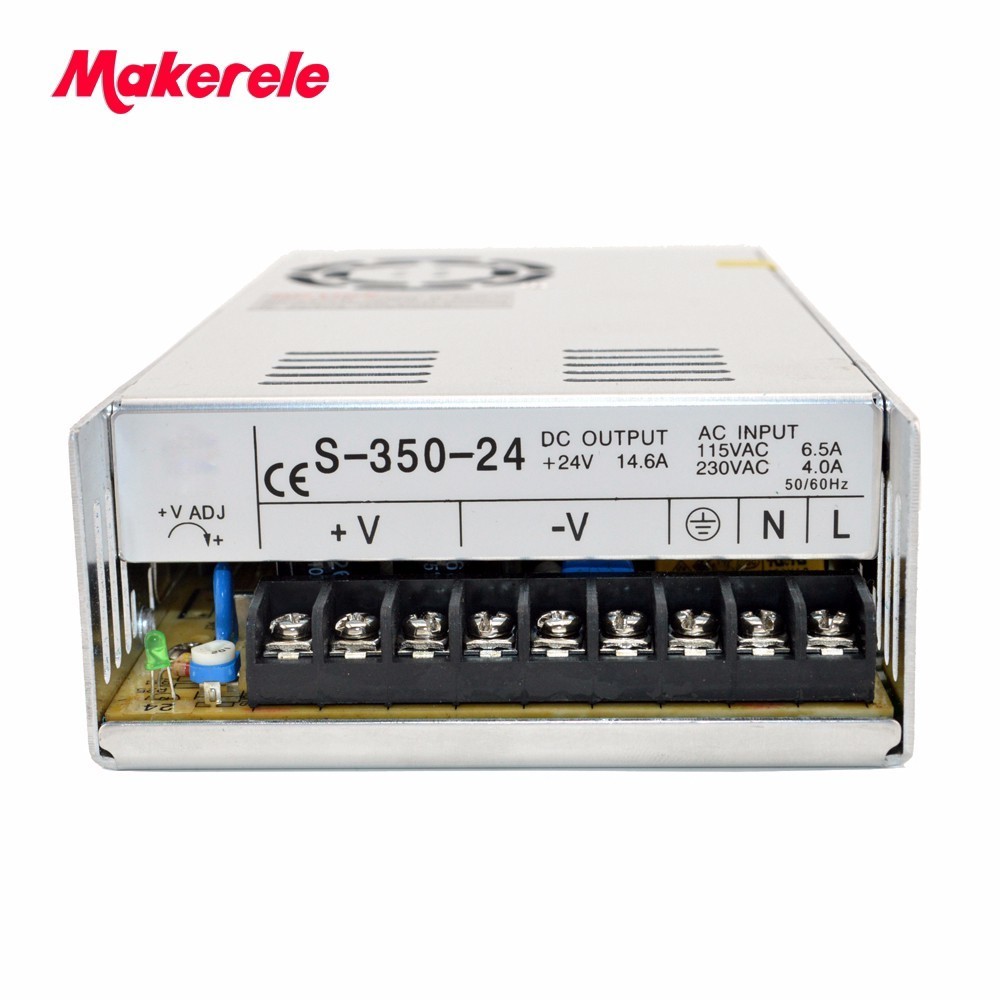

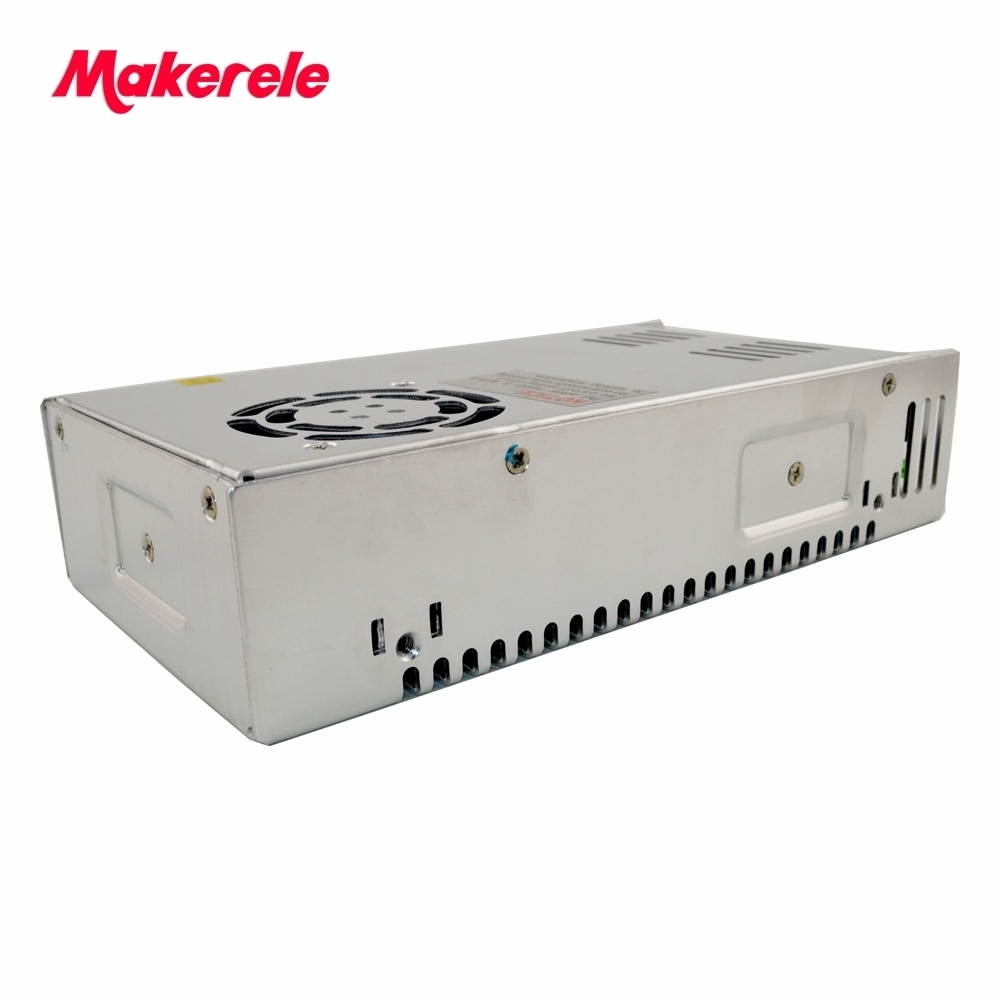

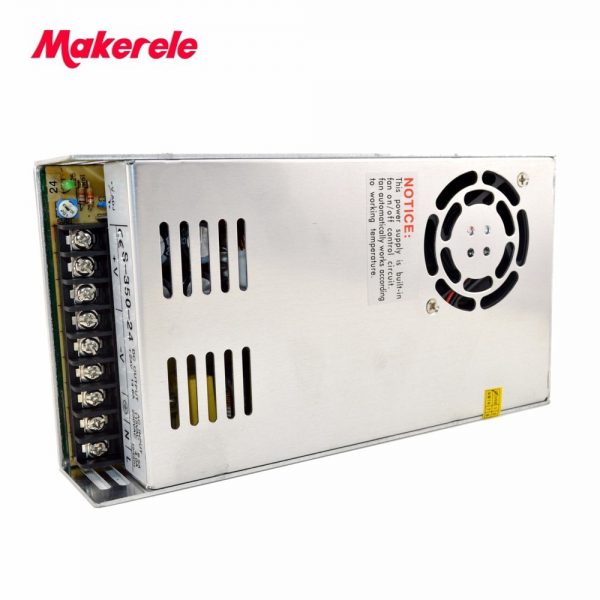

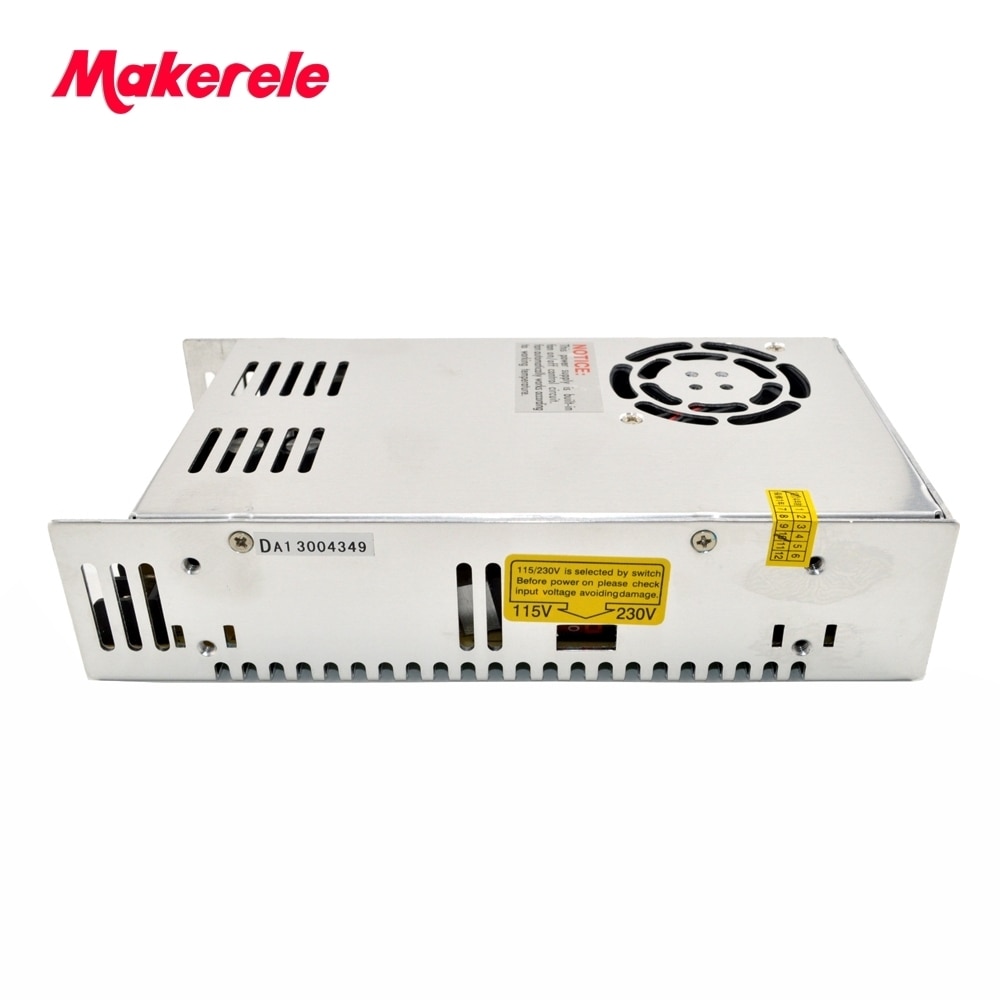

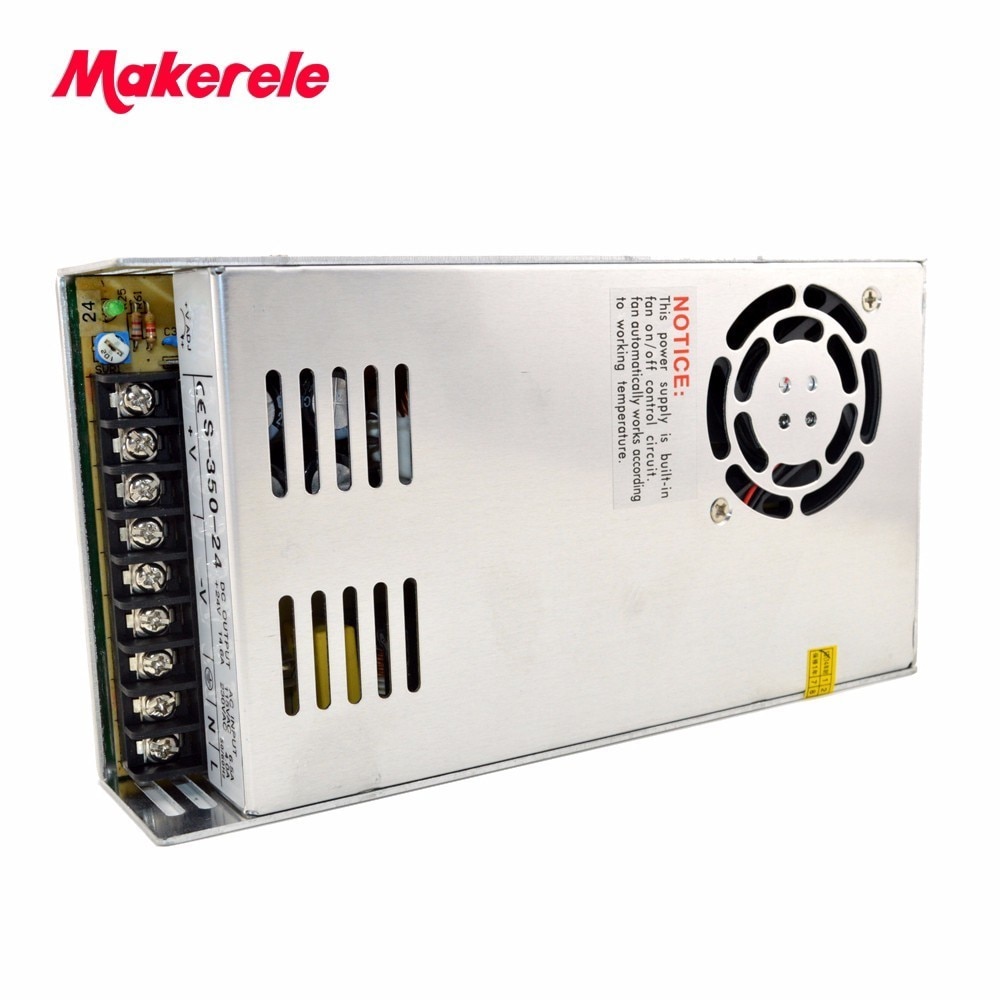

- Model Number: S-350-5/12/24/48
- Output Frequency: 47~63Hz
- Output Current: 0-50/29/14.6/7.3A
- is_customized: Yes
- Input Voltage: 90-132 VAC/180-264VAC
- Rated Power: 350W
- Certification: CE ROHS
- Voltage Range: 90-132 VAC/180-264VAC
- Over Load: 115%-135%
- Inrush Current: 50A/115V50A/230V
- Setup,Rise,Hold Time: 200ms,100ms,20ms at full load
- DC Adjustment Range: -16%,+10%
- AC Current: 6.5A/115 V 4A/ 230 V
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
DC Voltage 5V 7.5V 12V 13.5V 15V 24V 27V 48V
Voltage Tolerance 2% 2% 1% 1% 1% 1% 1% 1%
Rated Current 50A 40A 29A 25.8A 23.2A 14.6A 13A 7.3A
Current Range 0-50A 0-40A 0-29A 0-25.8A 0-23.2A 0-14.6A 0-13A 0-7.3A
Rated Power 250W 300W 348W 348.3W 348W 350.4W 351W 350.4W
Ripple & Noise 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p 200 mVp-p 240 mVp-p
Range -10%,+12% 20% -16%,+10% -12%,+11% -10%,+20% -16%,10% -4%,+18% -15%,+17%
Setup,Rise,Hold Time 200ms,50ms,20ms at full load
Voltage Range 90~132 VAC/180~264VAC47~63 Hz;selected by switch 254~370VDC
AC Current 6.5A/115 V 4A/ 230 V
Efficiency 73%(S-350-5); 76%(S-350-7.5); 74%(S-350-12); 79%(S-350-13.5);
78%(S-350-15); 81%(S-350-24); 82%(S-350-27); 83%(S-350-48);
Inrush Current Cold start 50A/115V50A/230V
Over Load 105%~135%
Protection type: Fold back current limiting, recovers automatically after fault condition is removed.
Over Voltage 115%~135%
Protection type: hiccup mode, recovers automatically after fault condition is removed.
Over Temp. RT355C FAN ON,45C FAN OFF,80C output shutdown (5~7.5V)
RT365C FAN ON,55C FAN OFF,80C output shutdown (12~15V)
RT370C FAN ON,60C FAN OFF,85C output shutdown (24~48V)
Working Temp., Humidity -10C~+50C;20%~90 %RH
Storage Temp., Humidity -20C~+85C;10%~95 %RH
Vibration 10~500Hz,2G 10min./1cycle,period for 60min, each along X, Y, Z axes
Withstand Voltage I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Safety Standard Design refer to UL1950
EMC Standard Design refer to EN55022,EN55024,EN61000
Packing:12pcs/13.23kg/box. According to your order,we can provide different cartons for you.
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47
3.Tolerance: includes set up tolerance, line regulation and load regulation
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies?
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
- What about production process of switching power supply?
