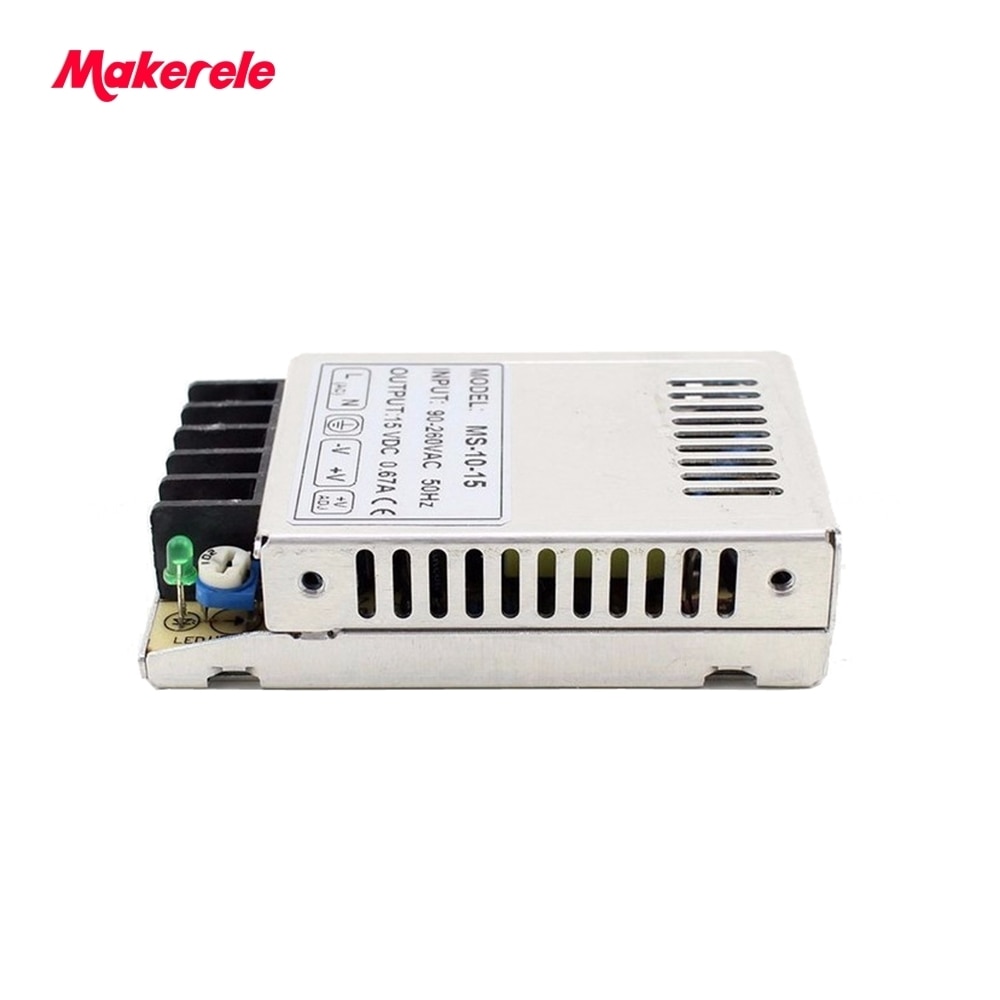

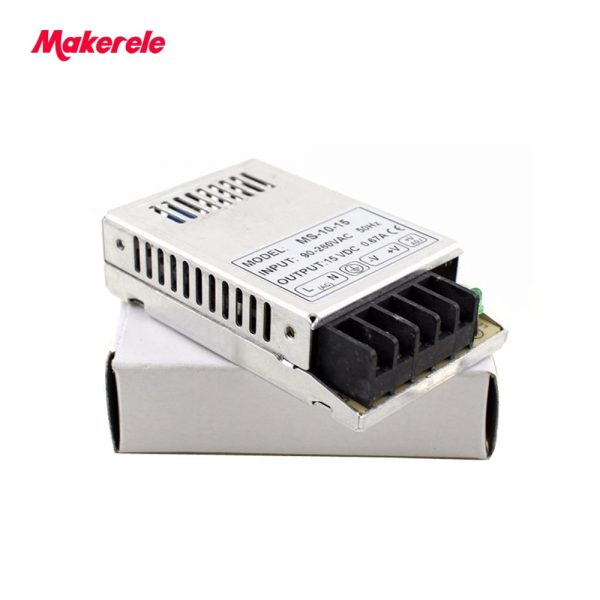

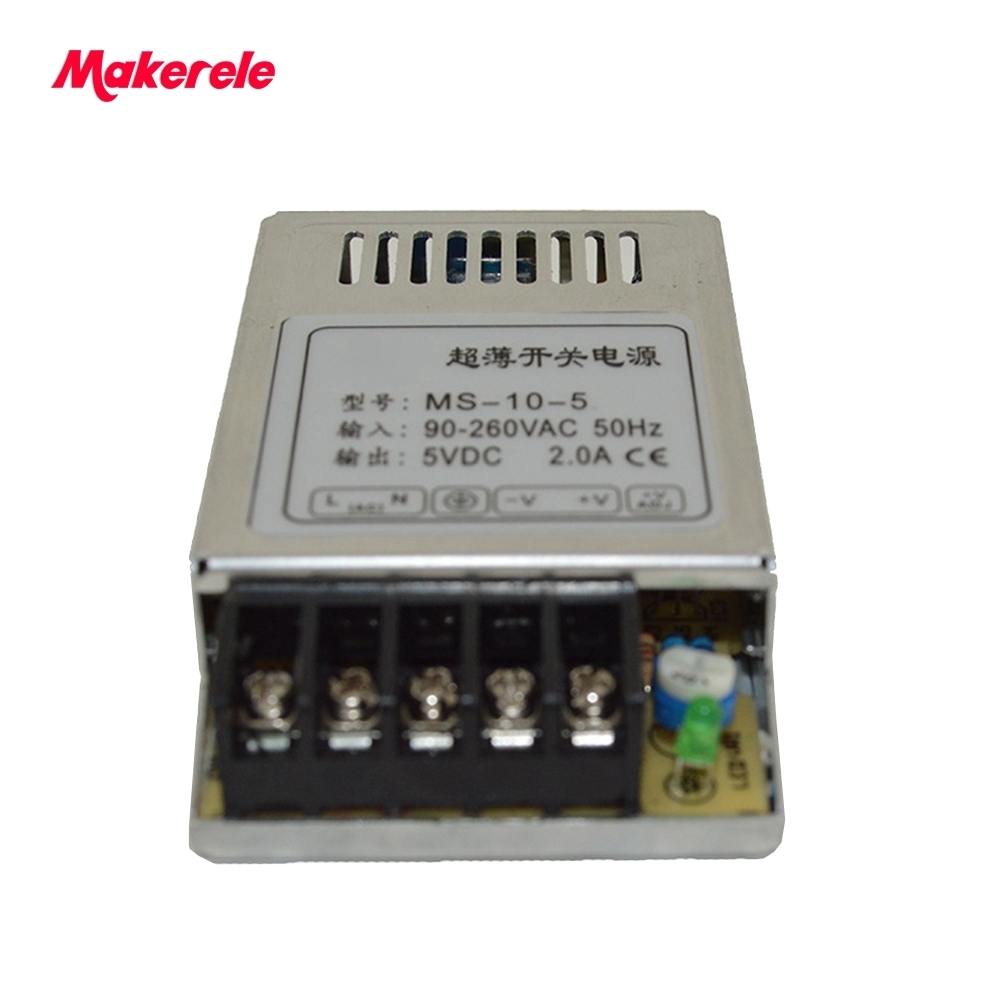

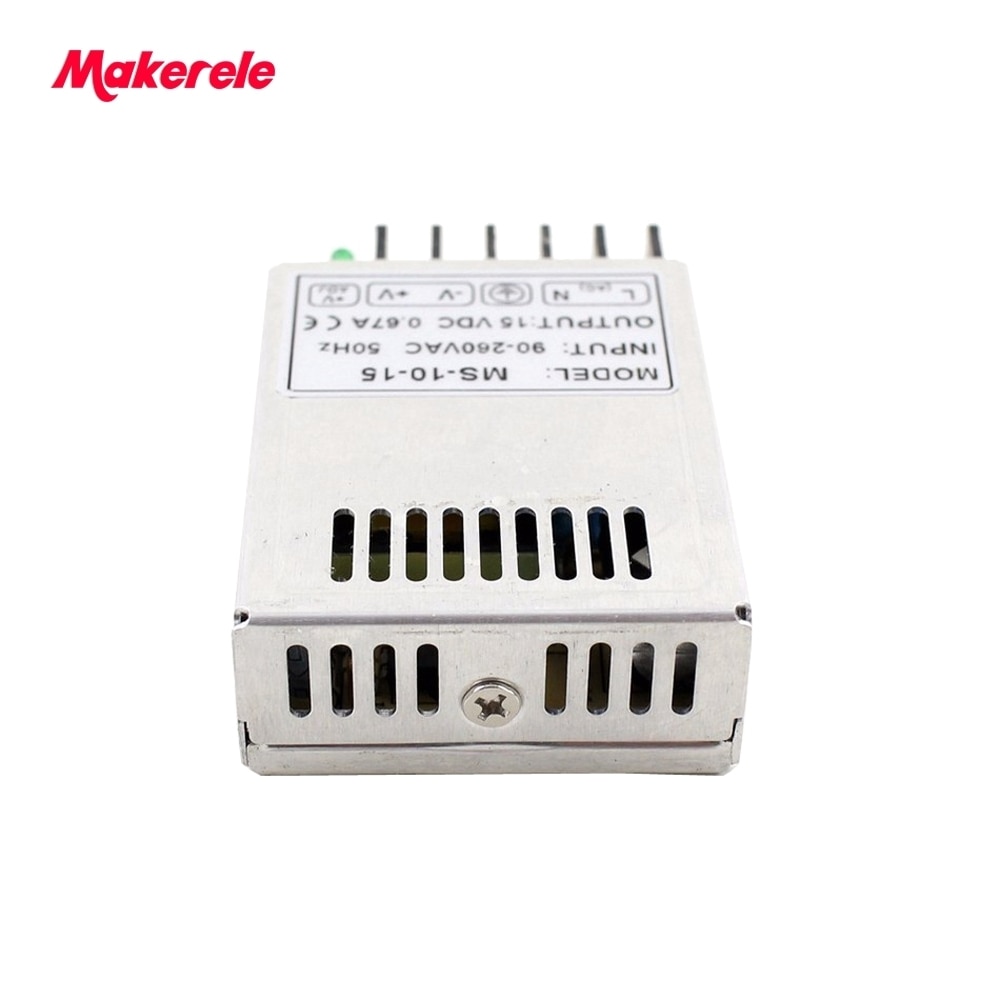

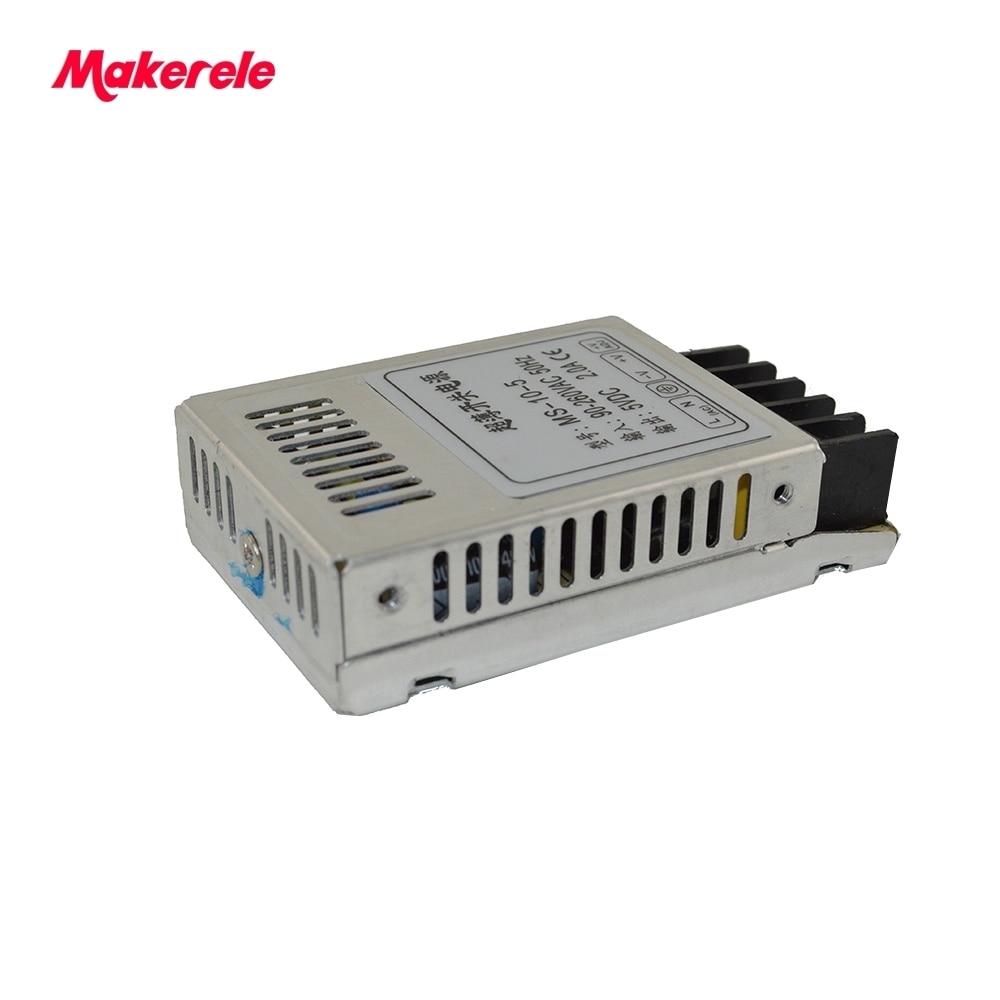

Free shipping 10w micro mini size switching power supply ultrathin compact for led 110V 220v AC to 5V 12V 15V 24v 48VDC
$7.01 – $7.48
Description
- Brand Name: makerele
- Output Power: 1 – 50W
- Output Type: Single
- Model Number: MS-10
- Output Frequency: 47~63Hz
- is_customized: Yes
- Output Current: 2A 0.83A 0.67A 0.42A 0.25A
- Input Voltage: 85 ~ 264VAC
- Place of Origin: Zhejiang China (Mainland)
- Rated Power: 10W
- VOLTAGE: 5V/12V/15V/24V/48V
- Certification: CE ROHS
- Voltage Tolerance: 1%
- AC CURRENT: 0.5A/115VAC 0.25A/230VAC
- Switching Power WORKING TEMP: -10-+60
- Setup,Rise,Hold Time: 200ms,100ms,30ms at full load
- Over Load: 110%-160%
|
||||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
Notice:
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
power supply 24v 0.5a led
MODEL MS-10-5 MS-10-12 MS-10-15 MS-10-24 MS-10-48
OUTPUT DC VOLTAGE 5V 12V 15V 24V 48V
RATED CURRENT 2A 0.83A 0.67A 0.42A 0.25A
CURRENT RANGE 0 ~ 2A 0~0.83A 0~0.67A 0~0.42A 0~0.25A
RATED POWER 10W 10W 10W 10W 10W
RIPPLE & NOISE(max) 50mVp-p 50mVp-p 100mVp-p 100mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 21.6 ~ 26.4V 43.2~52.8V
VOLTAGE TOLERANCE 2.0% 1.0% 1.0% 1.0%
LINE REGULATION 0.5% 0.5% 0.5% 0.5%
LOAD REGULATION 1.0% 0.5% 0.5% 0.5%
SETUP, RISE, HOLD TIME 200ms, 100ms, 30ms at full load
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 72% 75% 80%
AC CURRENT 0.5A/115VAC 0.25A/230VAC
INRUSH CURRENT (max.) COLD START 15A/115VAC 30A/230VAC
LEAKAGE CURRENT <0.5mA/240VAC
PROTECTION
OVERLOAD 105 ~ 135% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
ENVIRONMENT
WORKING TEMP. -10 ~ +60ºC
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85ºC, 10 ~ 95% RH
TEMP. COEFFICIENT 0.02%/ºC (0 ~ 50ºC)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY
SAFETY STANDARDS Design refer to UL1012
WITHSTAND VOLTAGE I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION Design refer to FCC Part15 J Conduction Class B
STANDARD
Safety Standard Design refer to UL1012
EMC Standard Design refer to FCC Part15 J Conduction Class B
OTHERS
Weight: 0.08Kg
Packing: According to your order,we can provide different cartons for you.
NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
Product Size:
-
1. Item will be shipped within 5-7 business days.
-
2. Delivery Time:
-
—-Via Air: Generally 1-3 working days
-
—-Via Express: Generally 3-7 working days.
-
—-Via China Post Air Mail: Generally 15-25 working days
-
—-Via Sea: According to the order.
-
3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
-
Custom Product Design
-
OEM/ODM
-
Profession in export service from Maker Electric
-
High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
-
-
-
What are switching power supplies?
-
-
Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
What about production process of switching power supply?
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:
Yueqing Maker electric Co., Ltd. concentrates on Import and Export.
Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
Shipping:
· We Ship to Worldwide, except APO/FPO.
· Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
· Delivery time depends on destination and other factors, it may takes up to 20 business days
· Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Payment:
Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html
Warranty and Guarantee:
· 12 months Warranty. Buy with confidence!
· If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
· If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.
· If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee
Other Policies:
· We are not responsible for any custom duty or import tax.
· We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
· All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms
