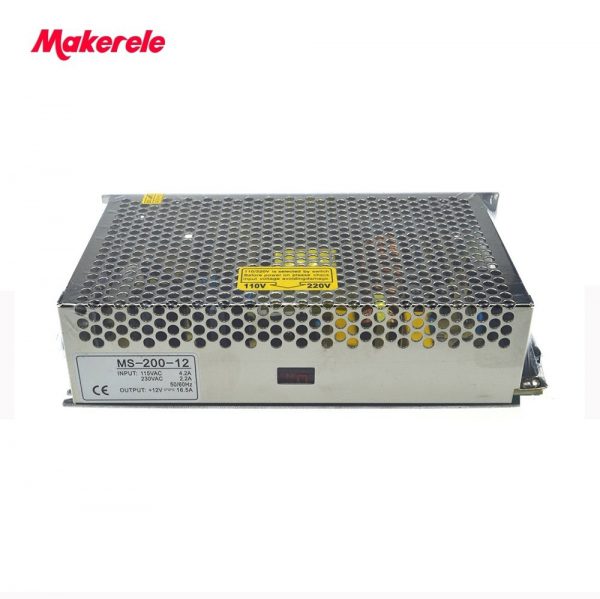

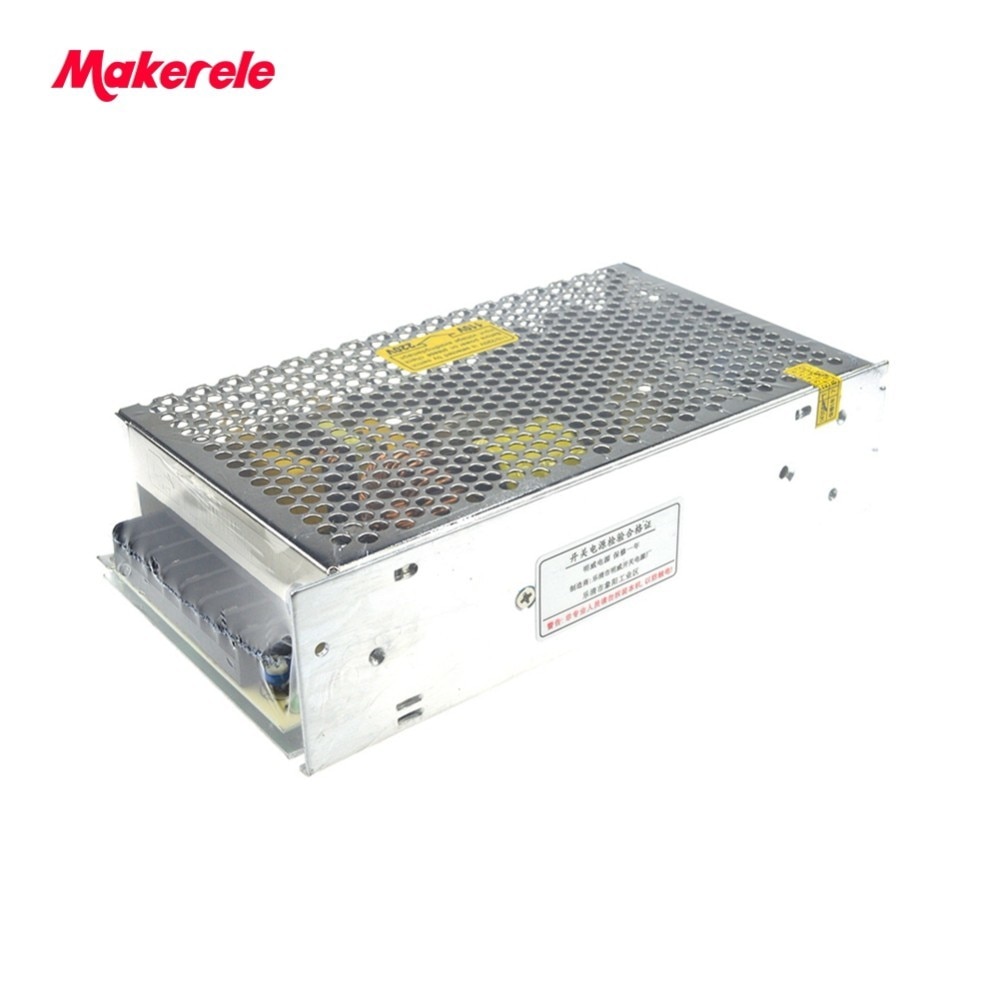

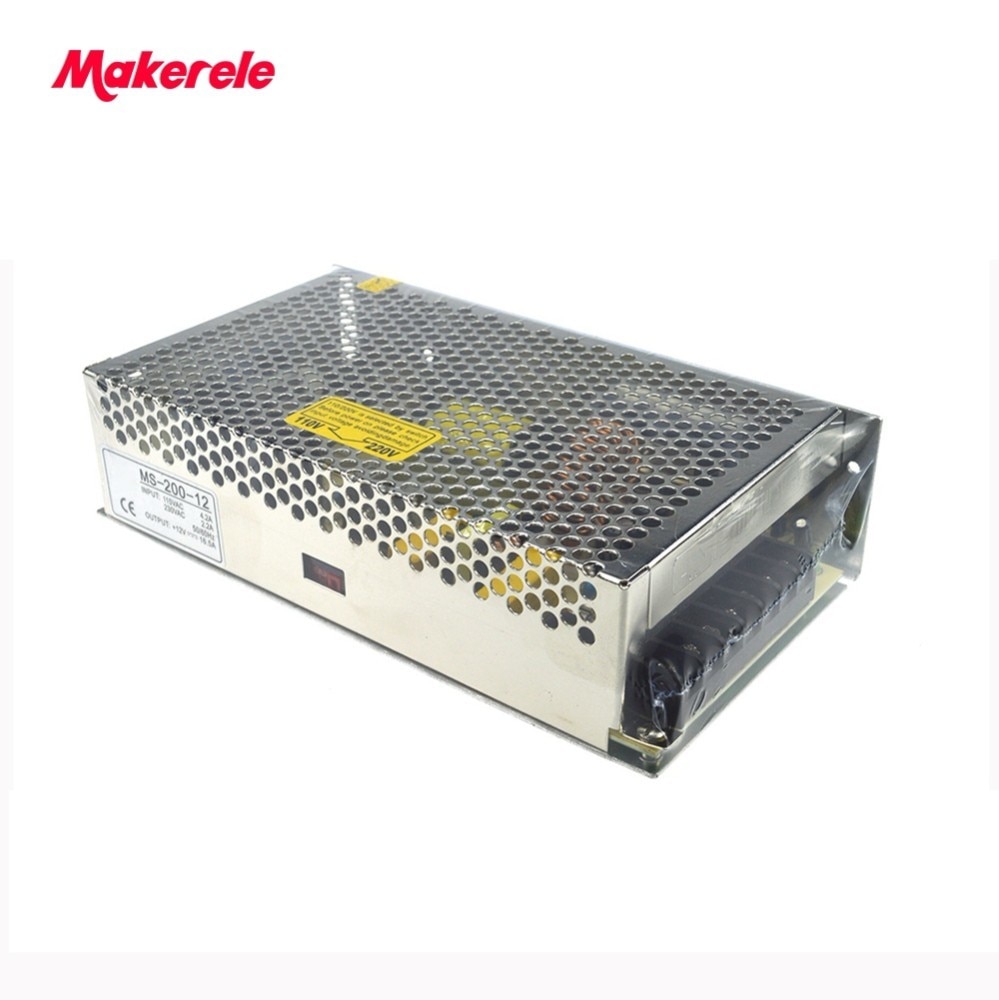

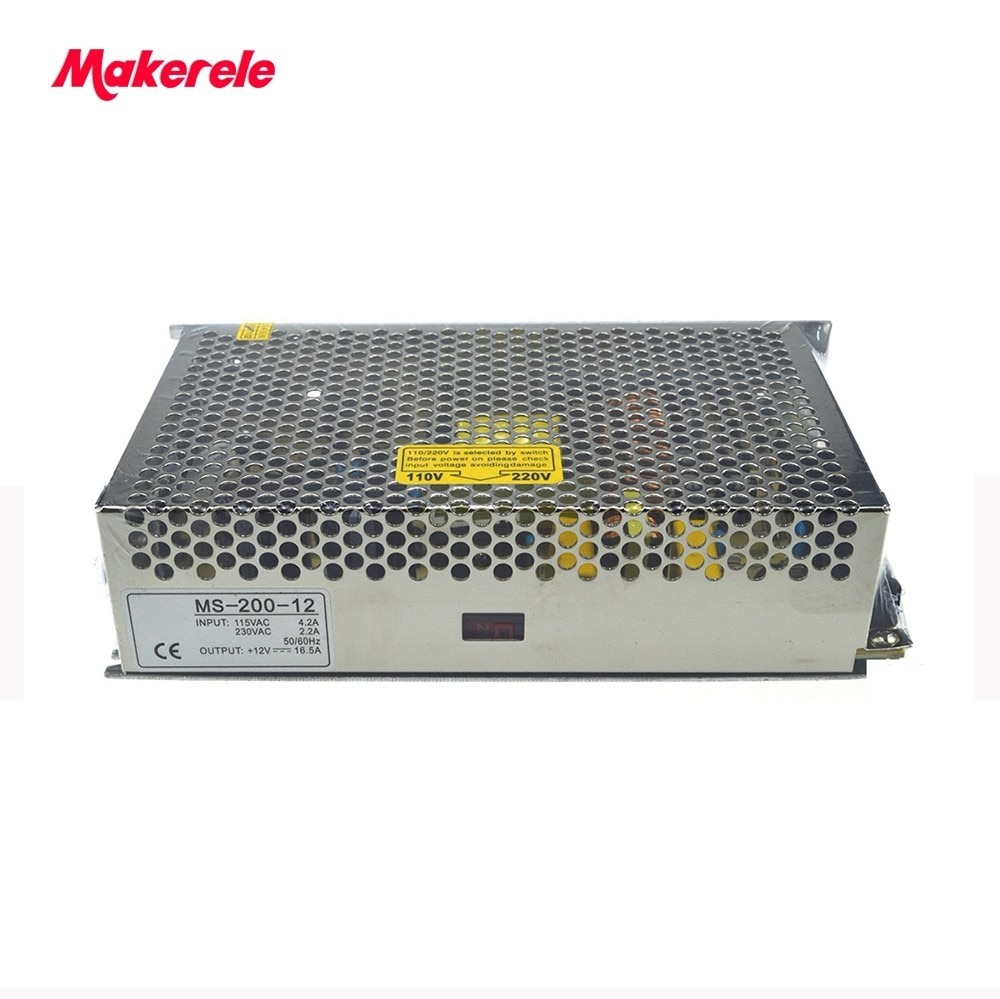

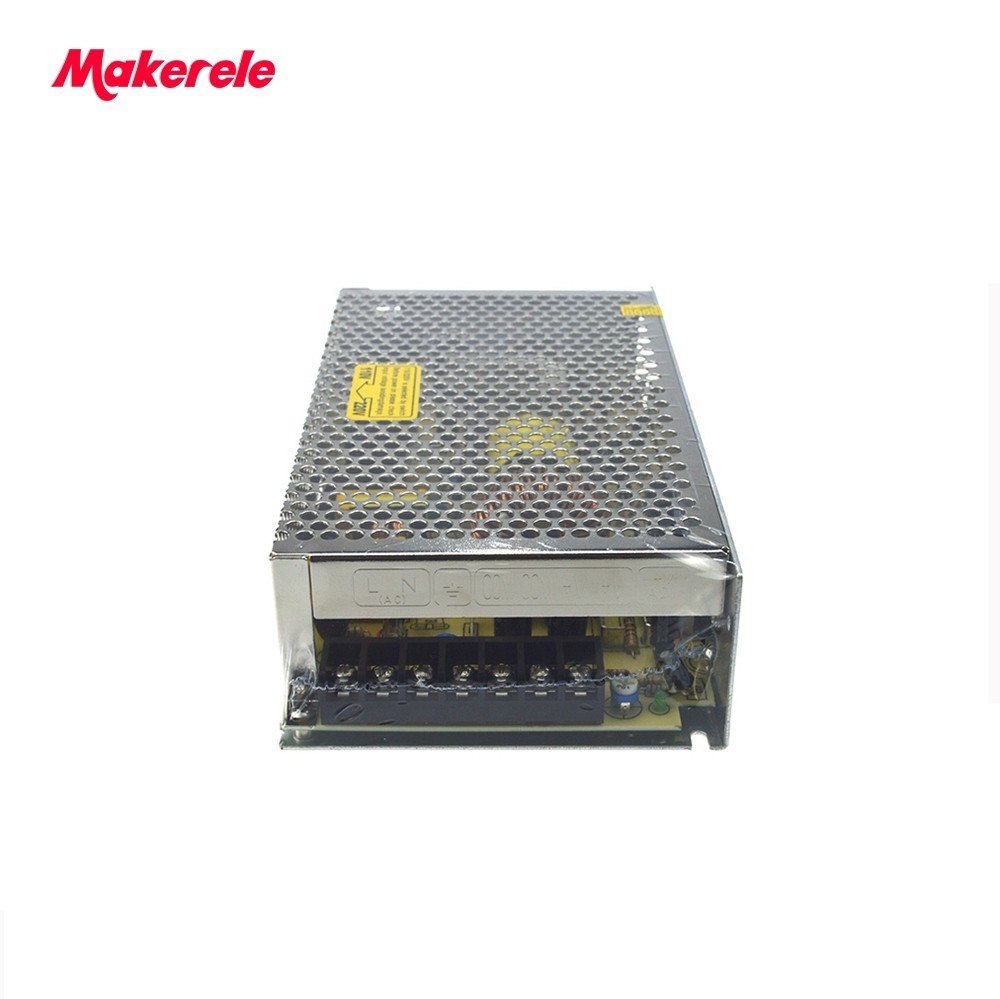

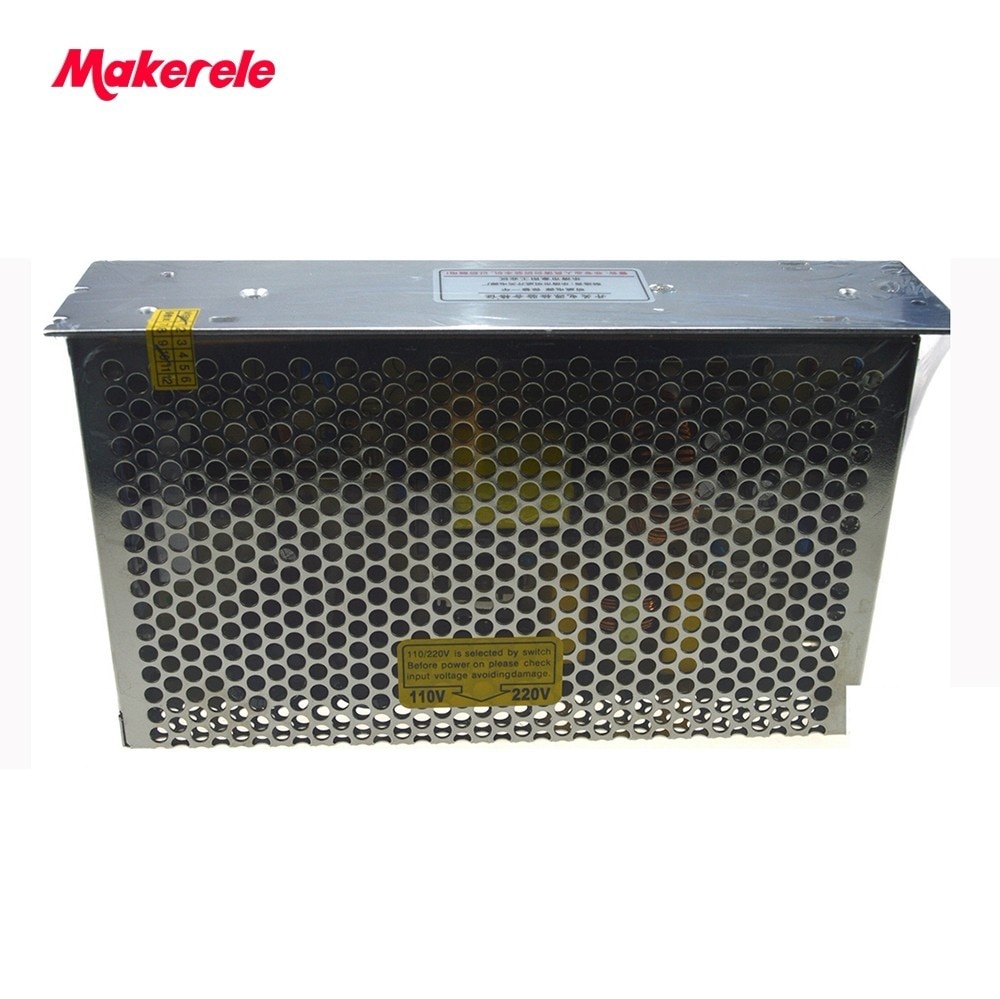

Power Supplies Input 110V 220V Mini Size Single Output Switching Power Supply 5V 12V 15V 24V 48V 200W Smps With Metal Case

Name: Power Supplies Input 110V 220V Mini Size Single Output Switching Power Supply 5V 12V 15V 24V 48V 200W Smps With Metal Case
SKU: 34895
Availability: InStock

0 Review(s)

$38.92 – $39.11

Product by: MAKERELE

Description

Brand Name: makerele
Output Power: 101 – 200W
Output Type: Single
Model Number: MS-200
Output Frequency: 47~63Hz
is_customized: Yes
Output Current: 40A 16.5A 8.3A 13.3A 4.2A
Input Voltage: 88-132/170-264VAC selected
Place of Origin: Zhejiang China (Mainland)
Rated Power: 200W
VOLTAGE: 5V 12V 15V 24V 48V
Certification: CE
Voltage Tolerance: 1%
AC CURRENT: 0.5A/115VAC 0.25A/230VAC
Switching Power WORKING TEMP: -10-+60
Setup,Rise,Hold Time: 200ms,100ms,30ms at full load
Over Load: 110%-160%

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.

Product Description

	MODEL	MS-200-5	MS-200-12	MS-200-24	MS-200-15	MS-200-48
Output	DC Voltage	5V	12V	24V	15V	48V
	Rated current	40A	16.5A	8.3A	13.3A	4.2A
	Current range	0-40A	0-16.5A	0-8.3A	0-13.3A	0-4.2A
	DC power	200W	200W	200W	200W	200W
	Voltage ADJ.range	10%	10%	10%	10%	10%
	Voltage tolerance	2%	1%	1%	1%	1%
	Ripple and noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	Intet stability	0.5%	0.5%	0.5%	0.5%	0.5%
	Load stability	0.5%	0.5%	0.5%	0.5%	0.5%
Intput	AC voltage range	85~132V/170~264V 47~63Hz ; 240~370VDC
	Current	3.2A/115V 1.6/230V
	Effi ciency	76%	81%	82%	80%	83%
	AC Inrush current	Cold-start current 18A/115V 36A/230V
	Leakage current	< 1mA/240VAC
Protection	Overload	105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
	Over voltage	5.75~6.75	13.8~16.2V	27.6~32.4V	13.5-16.5v	55.2~64.81
	Over voltage	100ms,50ms,20ms
Safety	Setup,rise,hold up time	100ms,50ms,20ms
	Vibration	10~500Hz,2G 10min,/1 cycle
	Withstand voltage	Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
	Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100M
		0.03%/C (0~50C )
Environment	Temperature coeffi cient	0.03%/C (0~50C )
	Working temperature and humidity	-10C ~+60C,20%~90%RH
	Store temperature and humidity	-20C ~+85C,10%~95%RH
	Overall dimension	200×110×50mm 20PCS/CARTON
Other	Weight	0.84Kg
Certificate	CE EMC Authenticate	EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
	CE EMC Authenticate	EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009

Product Size:
