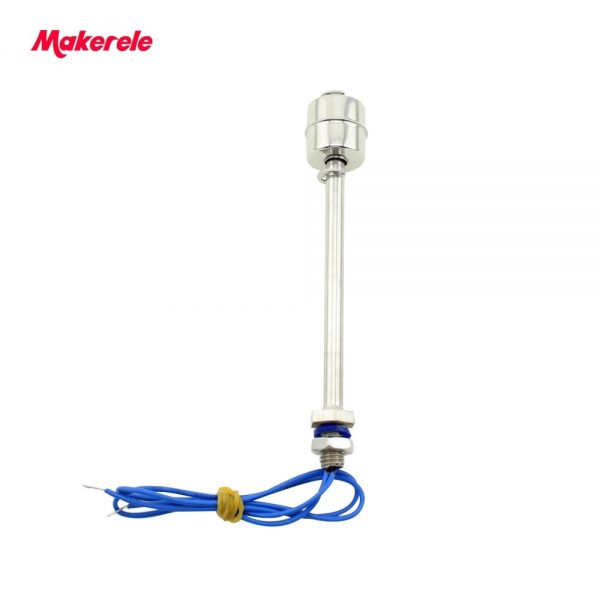

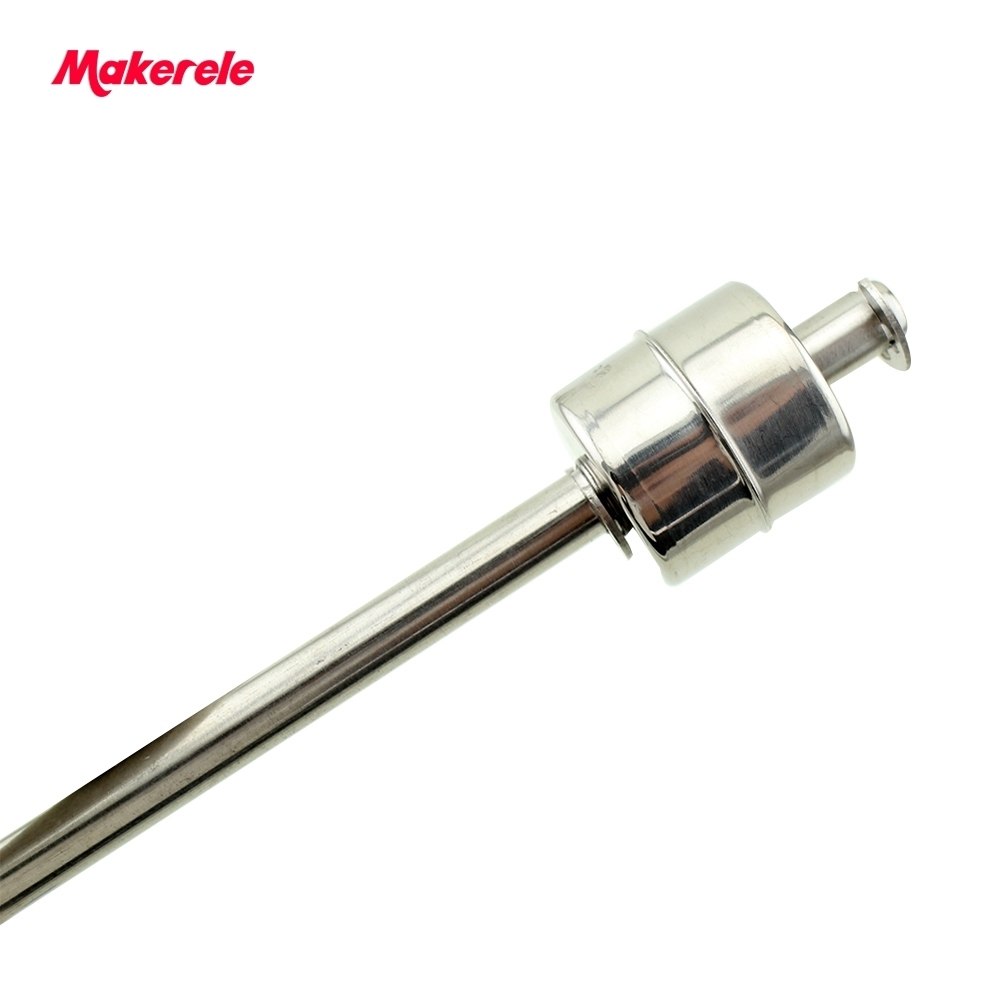

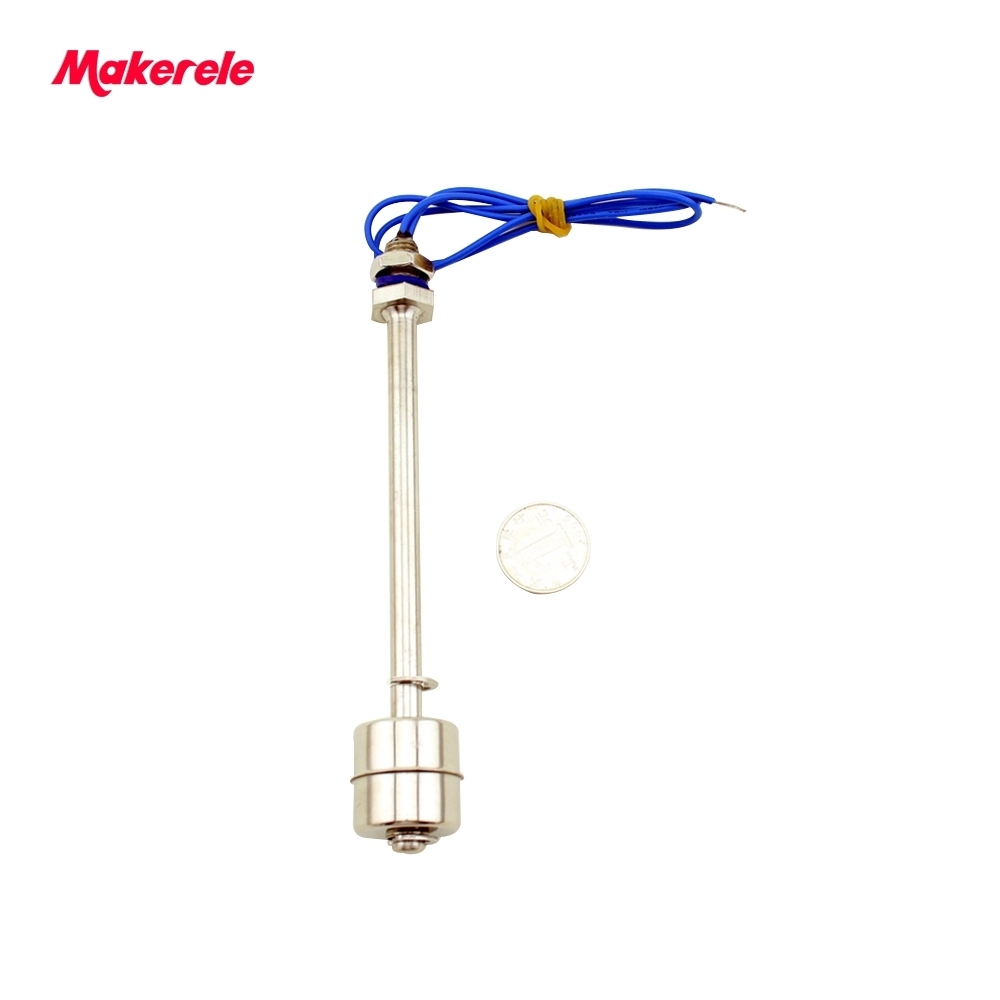

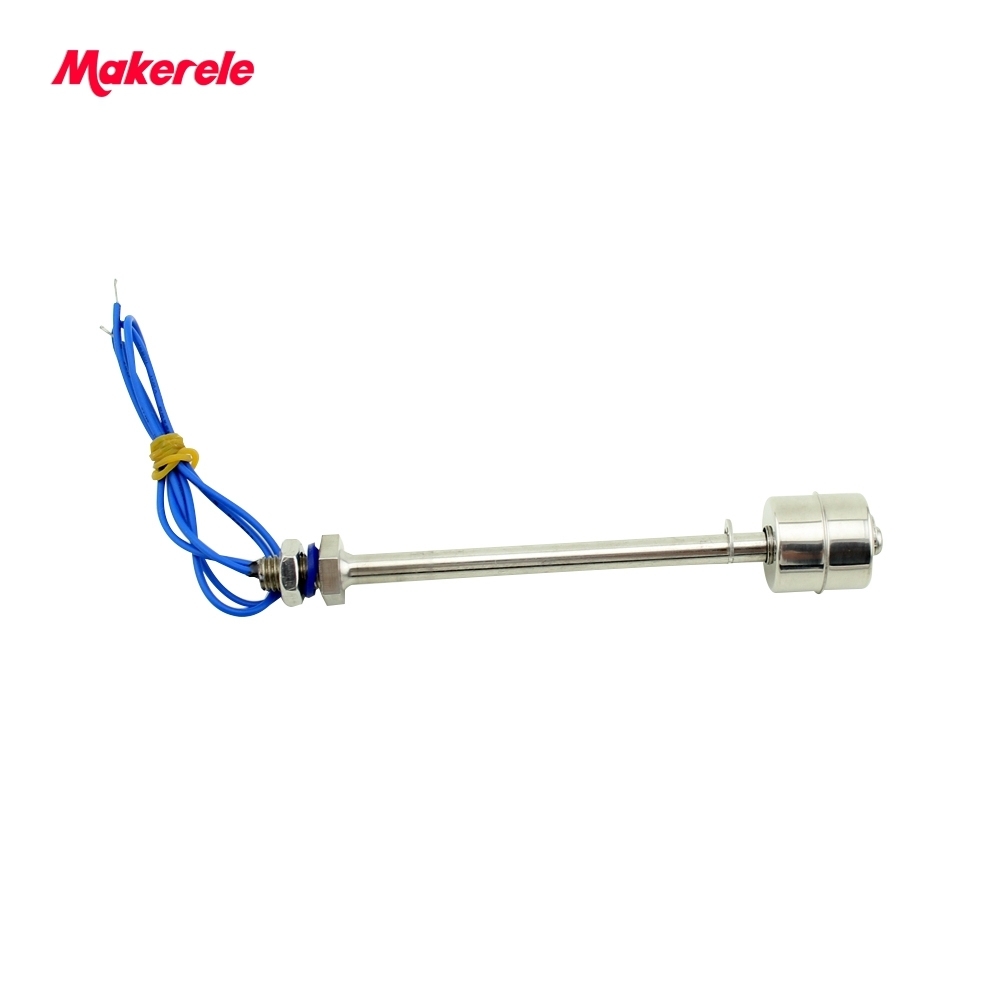

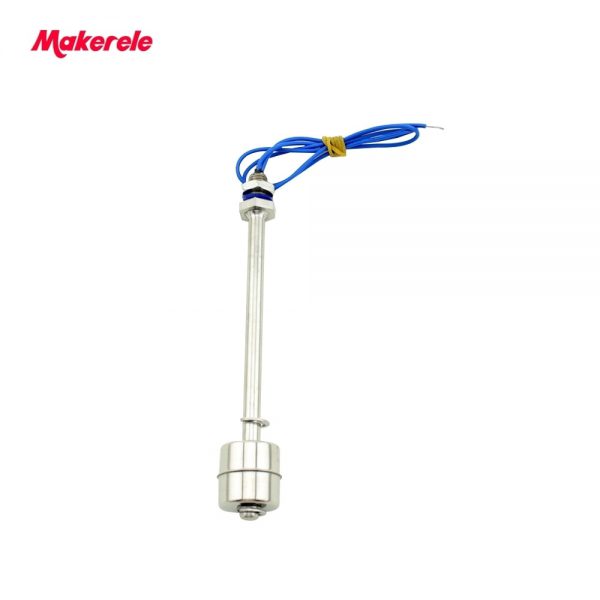

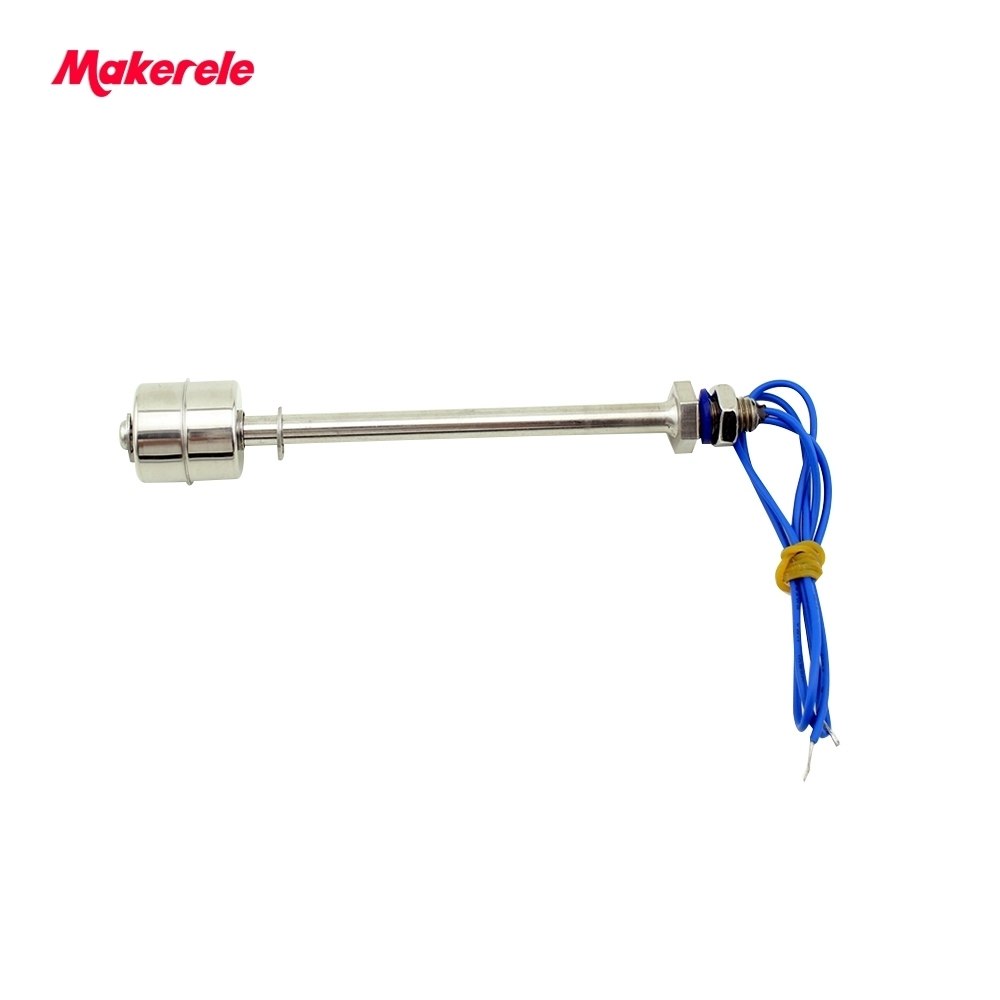

Free Shipping Mini Stainless Steel Tank Pool Liquid Water Level Sensor 110/220V MK-SFS15010 Horizontal Float Switch
$4.82 – $5.19
Description
- Brand Name: makerele
- DIY Supplies: Plumbing
- Model Number: MK-SFS15010
- Place of Origin: Zhejiang China (Mainland)
- Type: Stainless float ball switch
- Temperature rating: -20 to 160
- Power Input: 220v 1A 50w,110v 0.5A 10w
- Output: SPST NO/NC
- Protection Ratings: IP68
- Probe material: SUS304/SUS316L
- Cable length: 50010mm
- Color: Metallic Stainless float ball switch
<li class="property-item" data-attr="" data-title=" Pressure rating: <=1.5 Mpa
|
||||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
Certificates:CE ROHS Stainless float ball switch
MK-SFS15010 high stainless steel float switches From stainless steel tank supplier Feature
(1)Choice of normal open or normal close
(2)No standby power requirement.
(3)Customer can define activated distance, cable length and connector.
(4)Hermetically sealed, suit to tough environment and long life.
MK-SFS15010 high stainless steel float switches From stainless steel tank supplier Working principle
When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.
MK-SFS15010 high stainless steel float switches From stainless steel tank supplier Specification
|
Product Name |
Stainless float ball switch |
|
Contacts |
NO+NC |
|
Max Contact Rating |
10/50W |
| Max Switch Voltage | 110/220V |
| Max Switch Current | 0.5/1A |
|
Max Contact Resistance |
100m ohm |
| Temperature Rating | -10 – +85C |
|
Float Ball Material |
Stainless Steel |
|
Float Body Material |
Stainless Steel |
| Screw Thread Diameter | 9.5mm/0.27″ |
| Color | Silver Tone |
MK-SFS15010 high stainless steel float switches From stainless steel tank supplier Packing
MK-SFS15010 high stainless steel float switches From stainless steel tank supplier Operating
-
Our ServicesOur advantages
1. A professional float ball switch manufacturer ;
2. High reliability and good stability, through the use of test from 3000 customers;
3. Complete certification, CE, RoHS, EMC etc., which small factory often lack of;
4. After-sale guaranteed, real integrity transactions, 100% replace the faulty items;
5. Flexible and fast delivery.Company InformationMaker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.
FAQ1.Q:Float ball point can move?
A:NO,Float point is fixed, a circlip is limited up and down. Circlip can’t move, the dry reed pipe inside contact can’t move2.Q:Float ball switch can directly control pump, electromagnetic valve or alarm?
A:NO,Because the inside of the float switch reed tube small contact current, control of load will burn out. Control solenoid valve, the alarm will be added small relay, control the water pump to add small relays and ac contactor.
3.Q:The application of Float ball switch?:
-
Custom Product Design
-
OEM/ODM
-
Profession in export service from Maker Electric
-
High quality Product, Affordable Price
-
