- Brand Name: makerele
- Output Power: 401 – 500W
- Output Type: Single

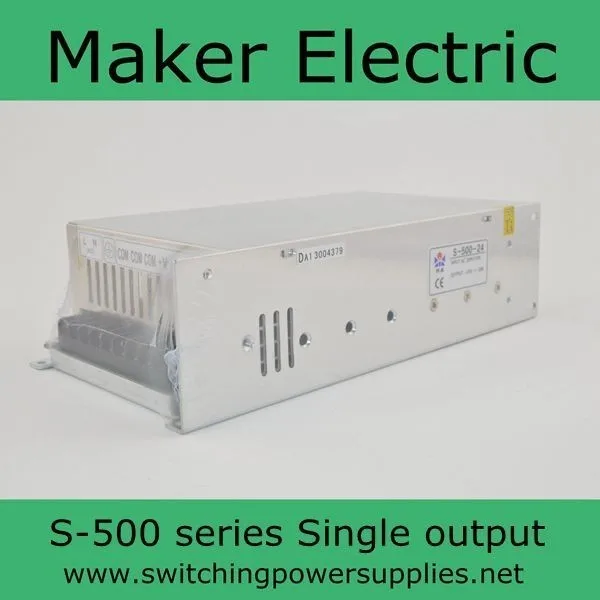

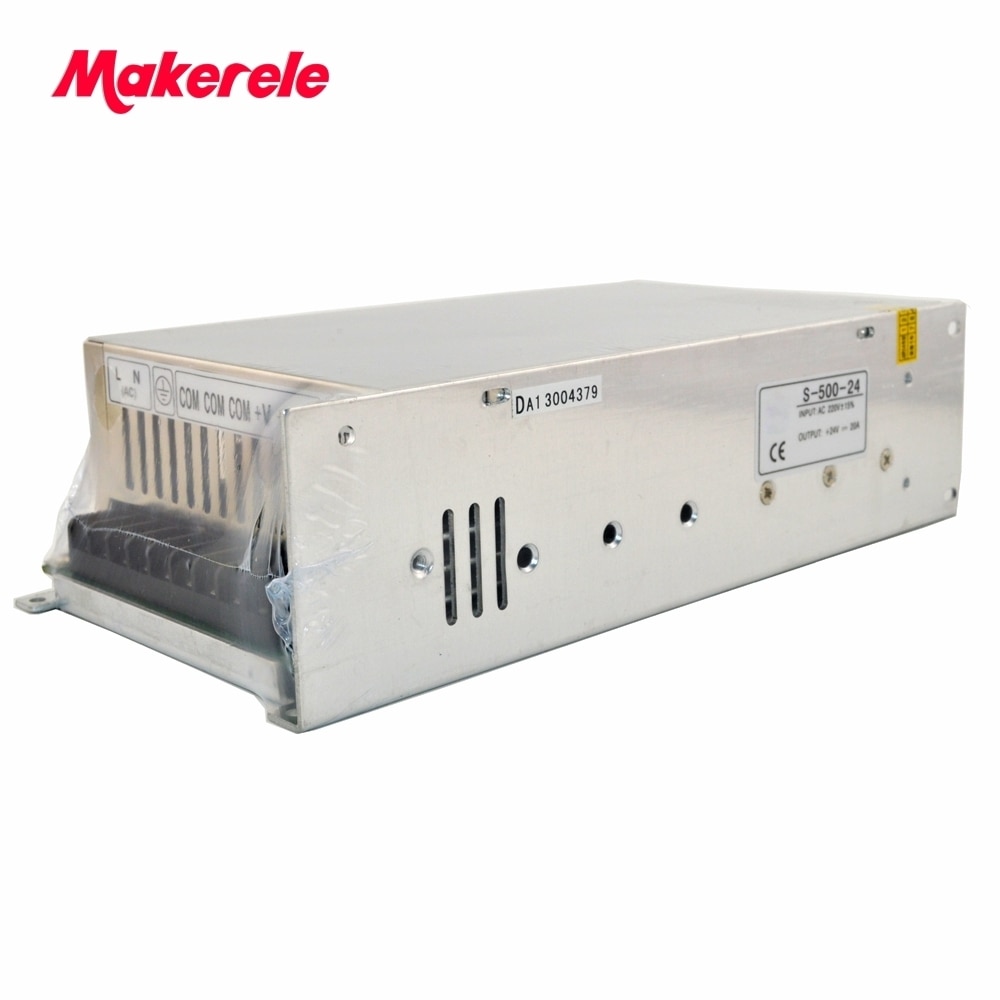

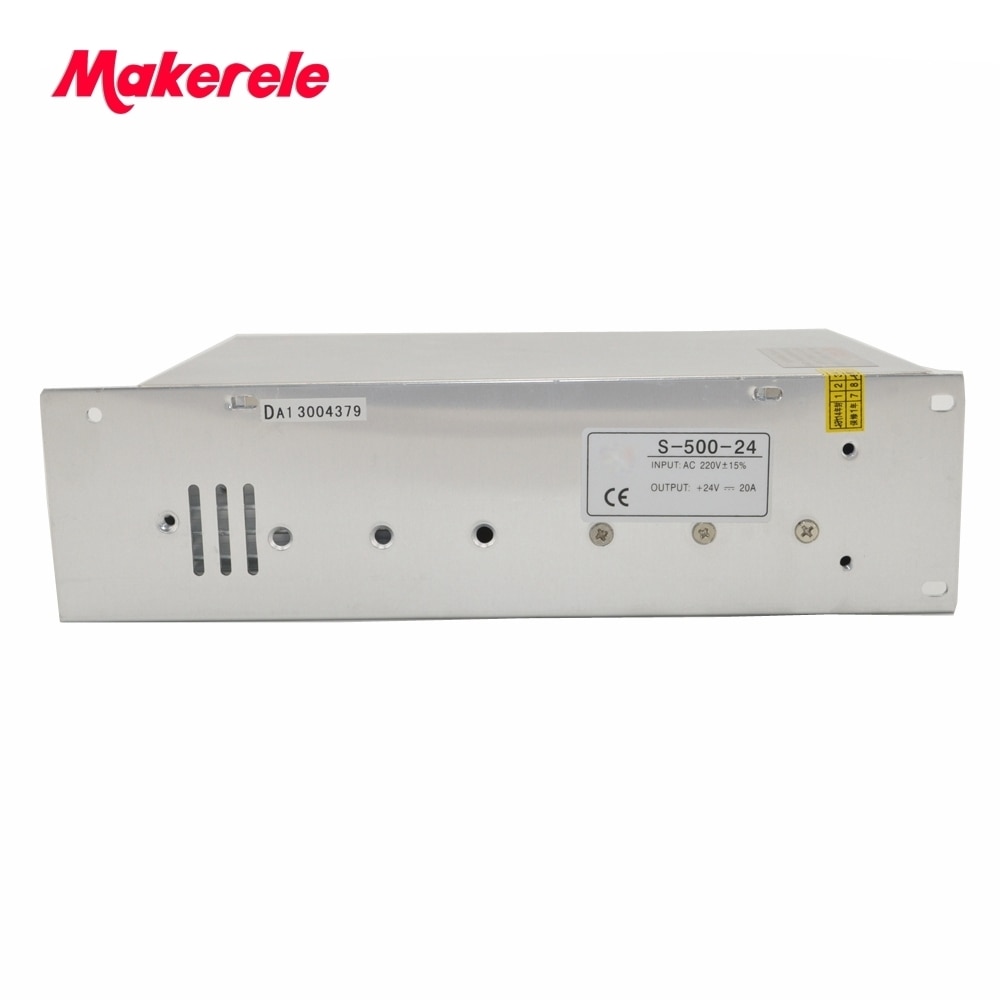

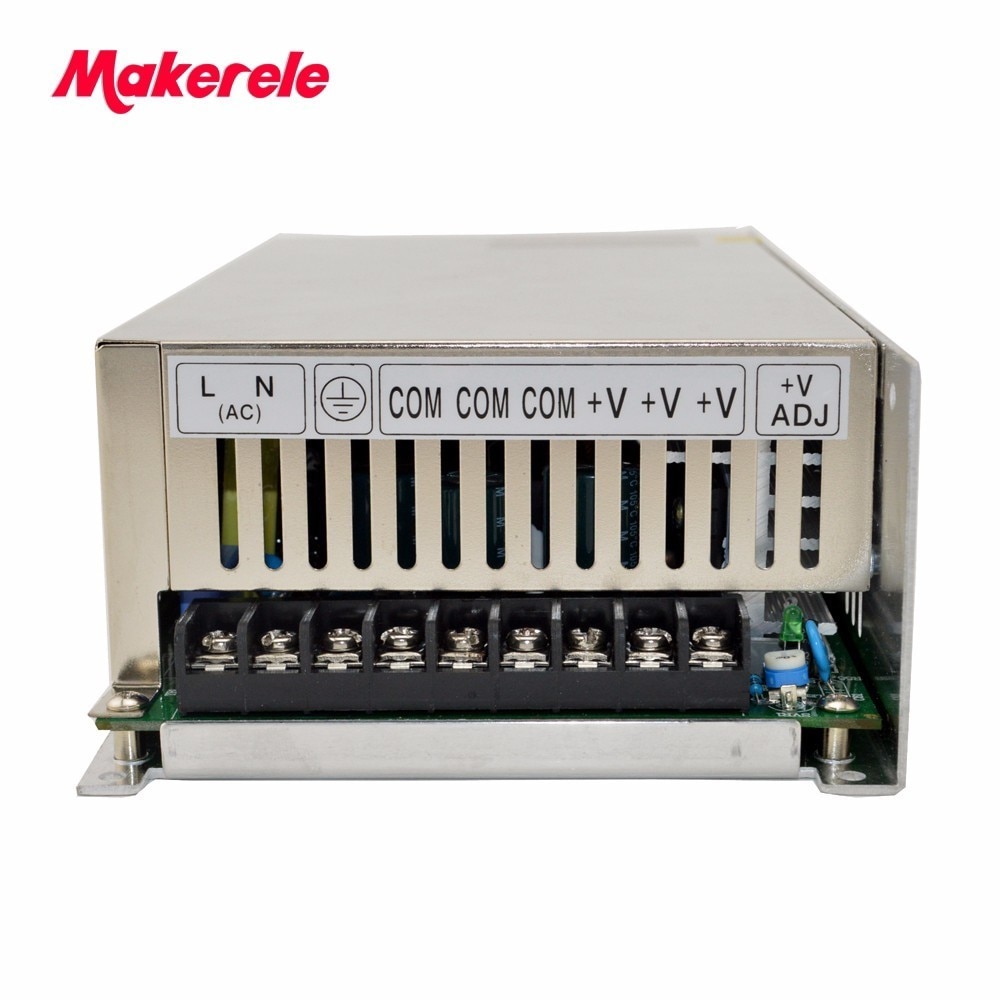

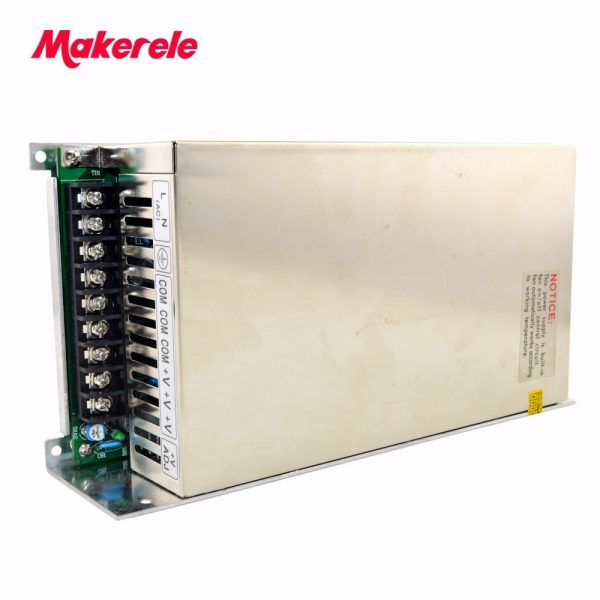

- Model Number: S-500-12/24/48
- Output Frequency: 47~63Hz
- Output Current: 0-40/20/10A
- is_customized: Yes
- Input Voltage: 176-264VAC
- Rated Power: 500W
- Certification: CE ROHS
- DC Adjustment Range: 10%
- Setup,Rise,Hold Time: 1.5s,50ms, 20ms
- Over Load: 110%-160%
- AC Current: 3.2A/115 V 1.6A/ 230 V
- AC inrush current: 18A/115V 36A/230V
- Temperature coefficient: +-0.03%/centidegree(0-50centidegree)
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
Model S-500-12 S-500-13.5 S-500-15 S-500-24 S-500-27 S-500-48
DC output voltage 12V 13.5V 15V 24V 27V 48V
Output voltage range 1% 1% 1% 1% 1% 1%
Rated output current 40A 36A 32A 20A 18A 10A
Output current range 0-40A 0-36A 0-32A 0-20A 0-18A 0-10A
Wave and noise 240mVp-p 240mVp-p 240mVp-p 240mVp-p 200mVp-p 300mVp-p
Inlet stability 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%
Load stability 1% 0.5% 0.5% 0.5% 0.5% 0.5%
DC output power 480W 486W 480W 480W 486W 480W
Efficiency 84% 84% 83% 86% 87% 87%
for DC voltage 10~13.2V 12~15V 13.5~18V 20~26.4V 24~30V 41~56V
Input current : 3.5A/230V
AC inrush current : 36A/230V
Leakage current :<0.35mA/240VAC
105%~150% Type: pulsing hiccup shutdown Reset: auto recovery

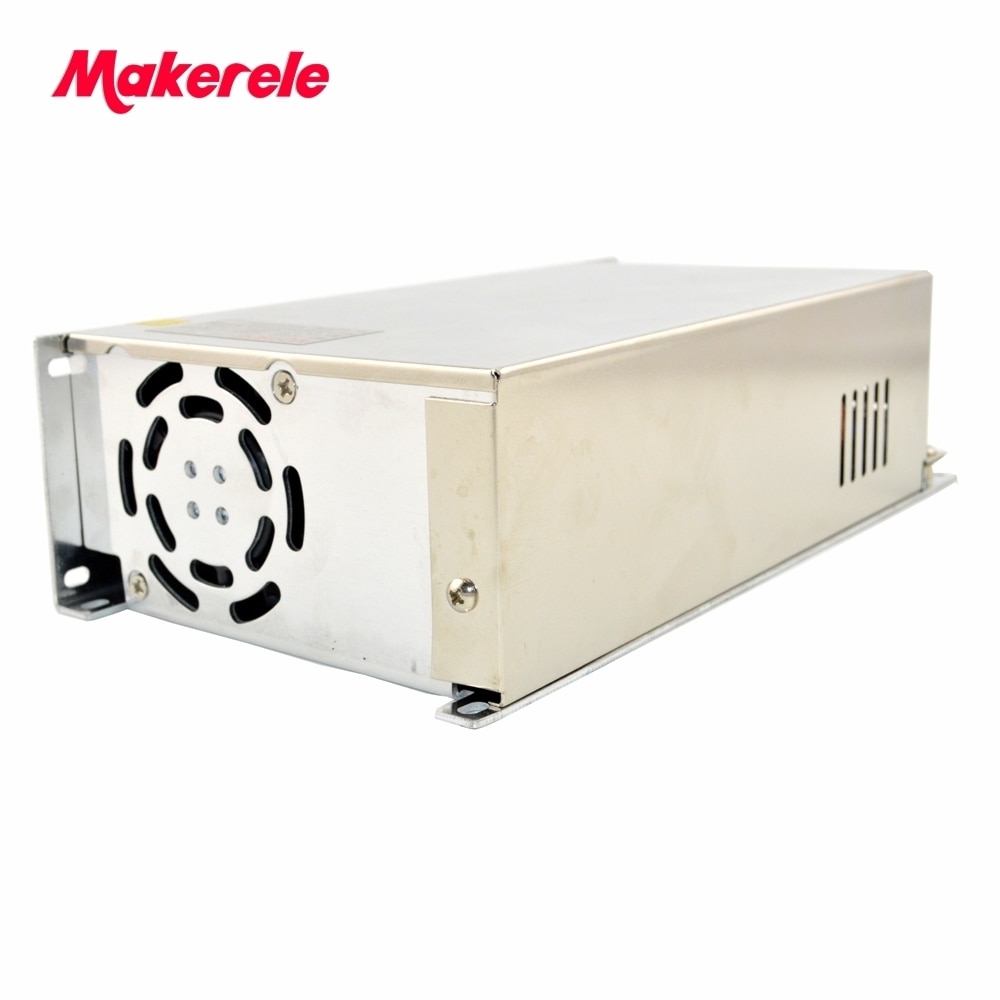

High-temperature protection ERH3 > =55c Fan on, < =45c Fan off, > =70 c,Cut off output(5~15V)
Temperature coefficient 0.03%/c(0~50c)
Setup, rise , hold up time 1.5s,50ms, 20ms
Vibration:10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity -10c~+60c(Refer to output derating curve), 20%~90%RH
Meet UL 1950 requirement (Not apply for the mark)
CISPR22(EN55022), IEC1000-4,2,3,4,5,6,8,99 IEC1000-3-2

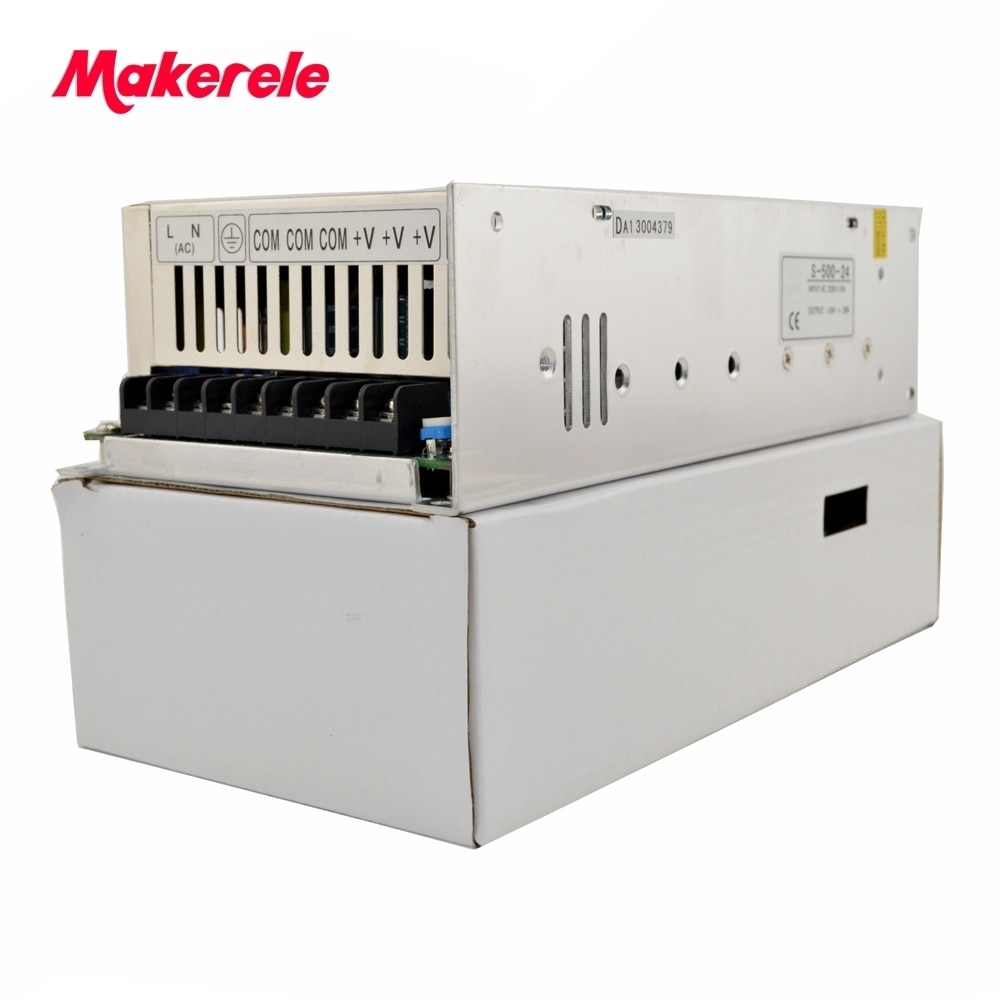

Packing:12pcs/18.99kg/box. According to your order,we can provide different cartons for you.
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies?
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
- What about production process of switching power supply?
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:
Yueqing Maker electric Co., Ltd. concentrates on Import and Export.
