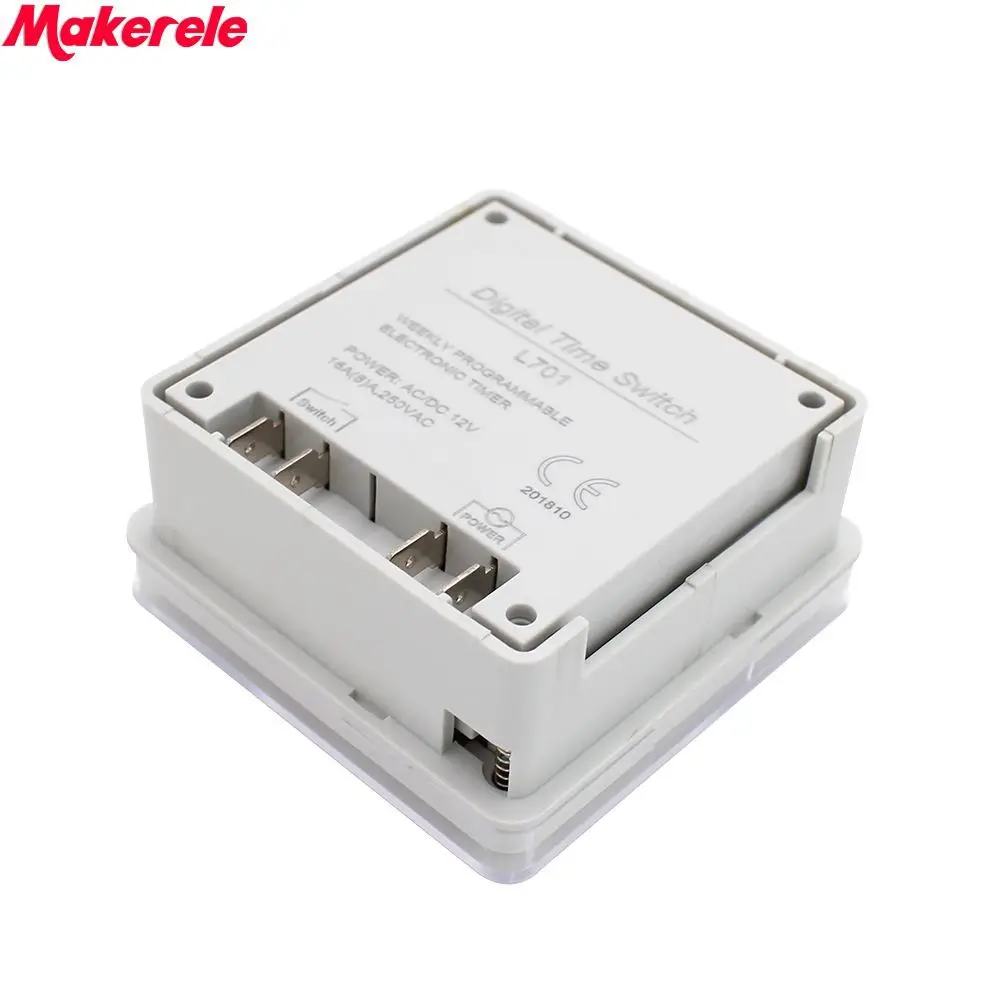

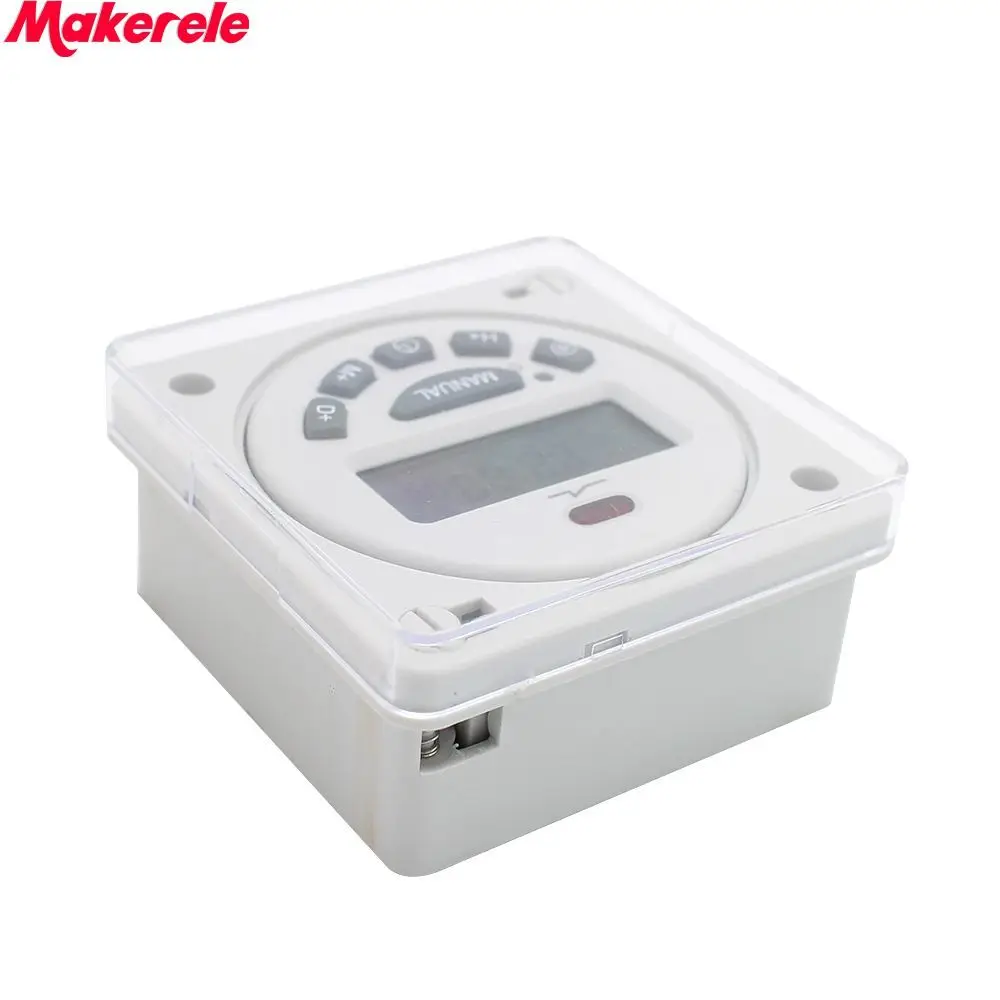

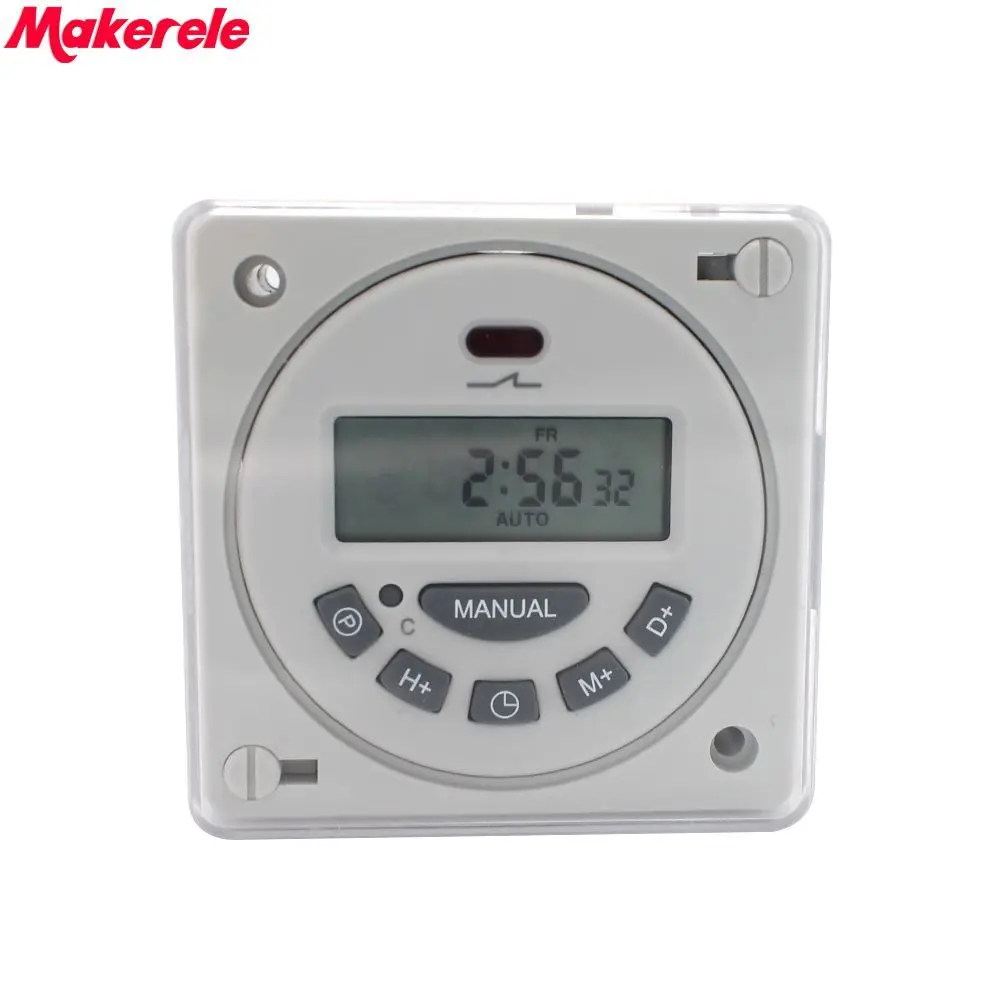

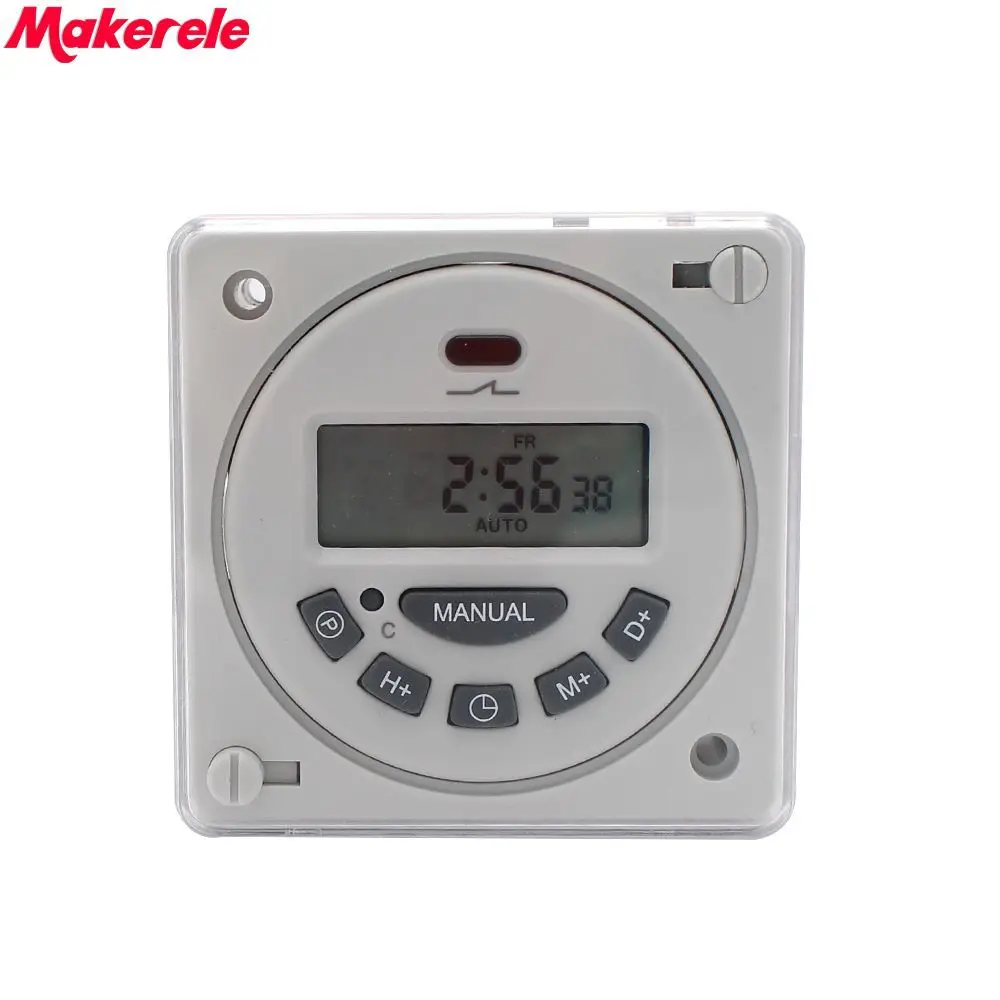

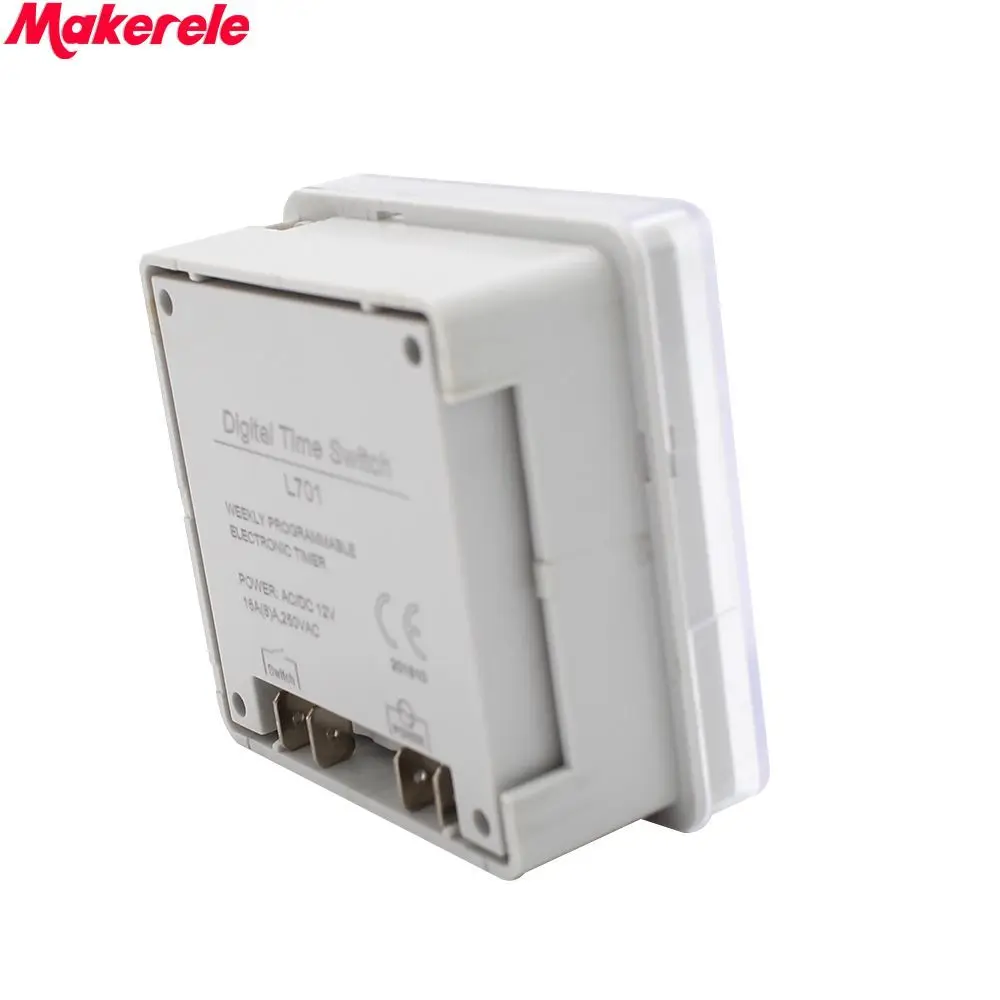

L701 with Shell 16A Digital Time Switch Weekly Programmable Electronic Timer AC 220V 110V AC/DC 24V 12V Makerele
$11.11
Product by:
MAKERELE
Description
- Brand Name: makerele
- Model Number: Time Switch L701
- Theory: Counter
- Usage: Time switch
- Voltage: 12V/24V/110V/220V
|
||||||||||||||||||
|
L701 with Shell 16A Digital Time Switch Weekly Programmable Electronic Timer AC 220V 110V AC/DC 24V 12V Makerele
Description:
Model number | L701 |
Supply voltage | 220Vac, 110Vac, 50/60Hz; 12Vdc/ac, 24Vdc/ac |
Power consumption | 2W max |
Error correction | 1s/days (25°C) |
Setting method | Touch switch |
Indication method | LCD |
Time range | 1min to 168h |
Power reserve | 60 days (When you receive it, it don’t show digits, you can connect it to power, will display again) |
Inner battery | 1.2V40Ma (Rechargeable) |
ON/OFF operation | 16 ON/OFF (day/week) |

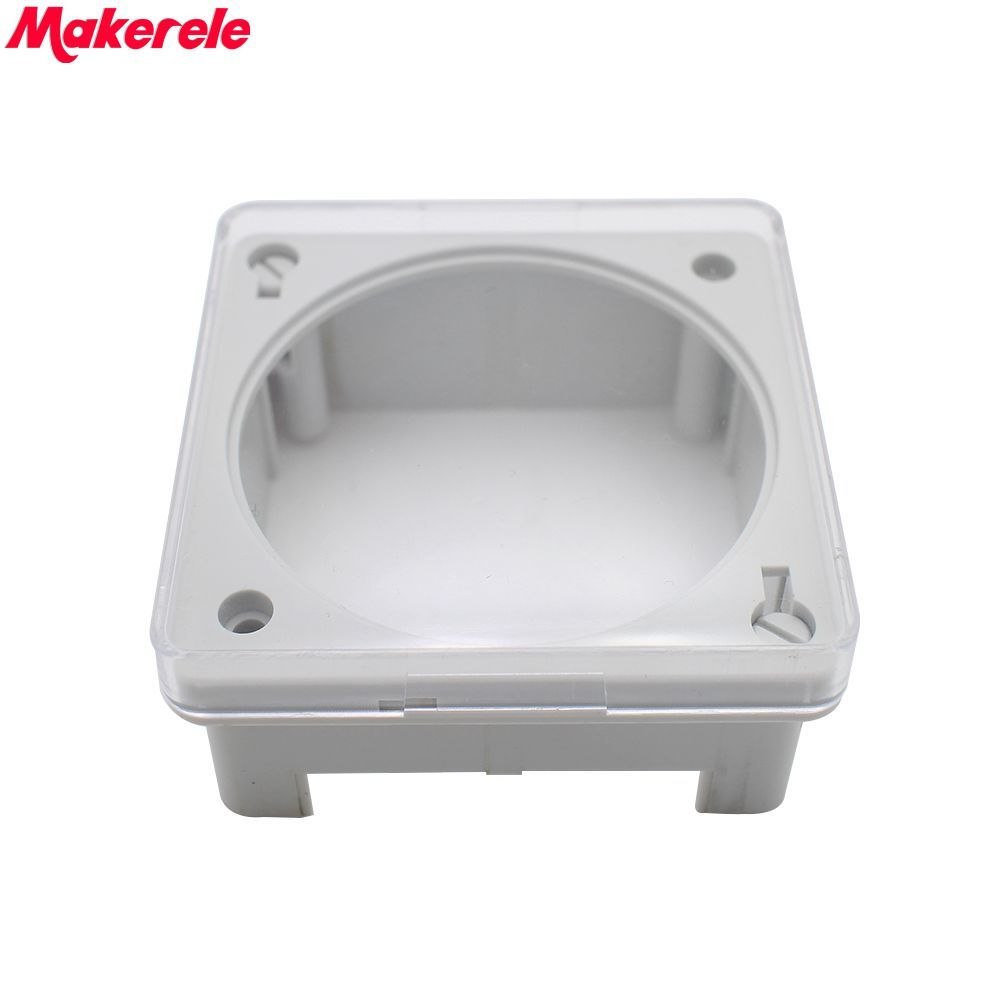

Matched accessories | Terminal wires, Mounting panel |
External dimensions | 60x60x32 mm |
Mechanical life | 1×107 |
Electrical life | 1×107 |
Operating temperature | -20 to 55 °C |
Operating humidity | 35-85% RH max, non-condensing |
Alias name | L701 electronic timer |
Additional information
size | 110V, 12V, 220V, 24V |
---|
