LP Series Din Rail single output switching power supply 25W 50W 100W 150W 300W 500W Digital Display 12/24V ac dc with Ce Approve
$15.08 – $63.82
Description
- Brand Name: makerele
- Output Type: Single
- Model Number: LP Series Din Rail single output Digital Display
- Output Frequency: 47~63Hz
- is_customized: Yes
- Output Power: 25W 50W 100W 150W 300W 500W
- Output Current: 0-37.5A
- Input Voltage: 88~264VAC 47~63Hz; 124~370VDC
- Place of Origin: Zhejiang China (Mainland)
- Rated Power: 25W 50W 100W 150W 300W 500W
- DC Voltage: 12/24V
- Voltage Tolerance: 1%
- AC Current: 0.05A/115V 0.35A/ 230V
- Inrush Current: Cold start 20A/115V 40A/230V
- Ripple & Noise: 150mVp-p
- Output current(12V):: 2.1A 4.2A 8.3A 12.5A 25A 37.5A
- Output current(24V):: 1A 2.1A 4.2A 6.25A 12.5A 20.8A
|
|||||||||
|
|||||||||
|
Notice:
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
Product Description
Input Voltage:AC88-132VAC/176-264VAC
Rated Power:25W 50W 100W 150W 300W 500W
Output current(12V):2.1A 4.2A 8.3A 12.5A 25A 37.5A
Output current(24V):1A 2.1A 4.2A 6.25A 12.5A 20.8A
Output Voltage:DC12/24V
47-63HZ

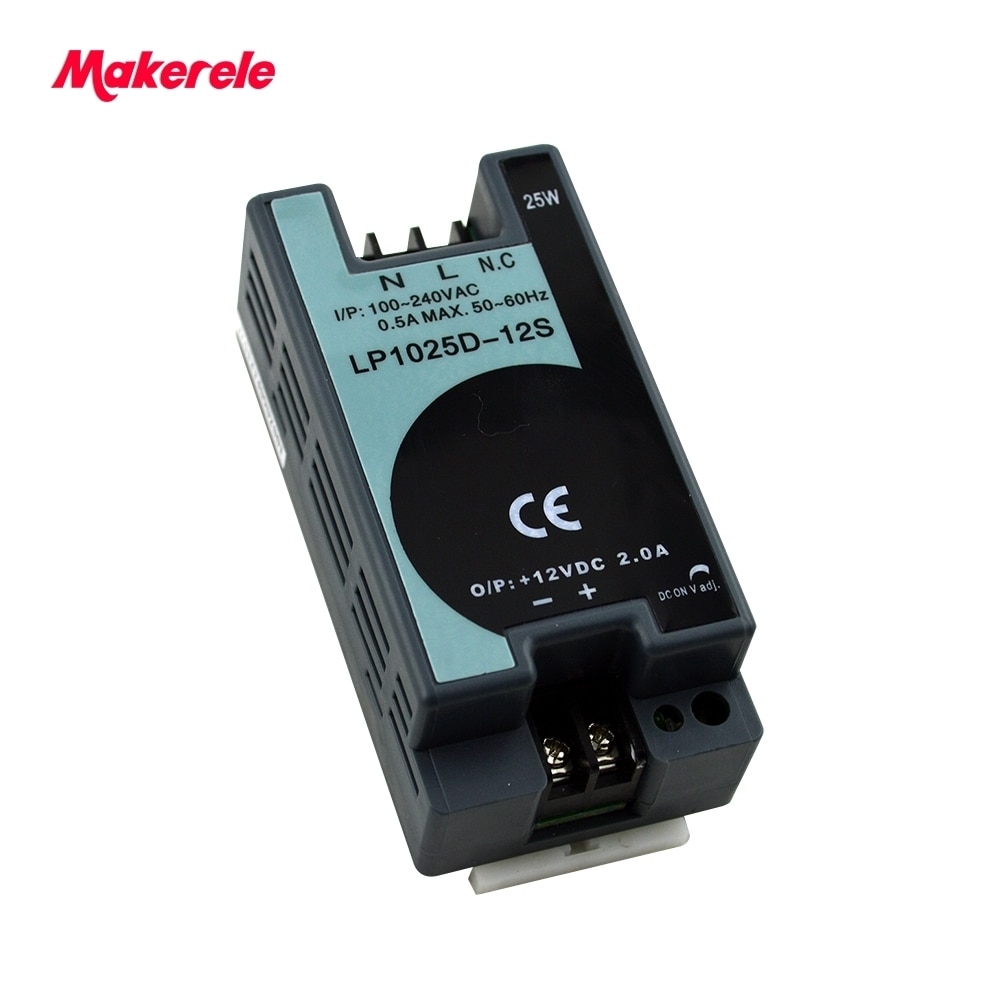

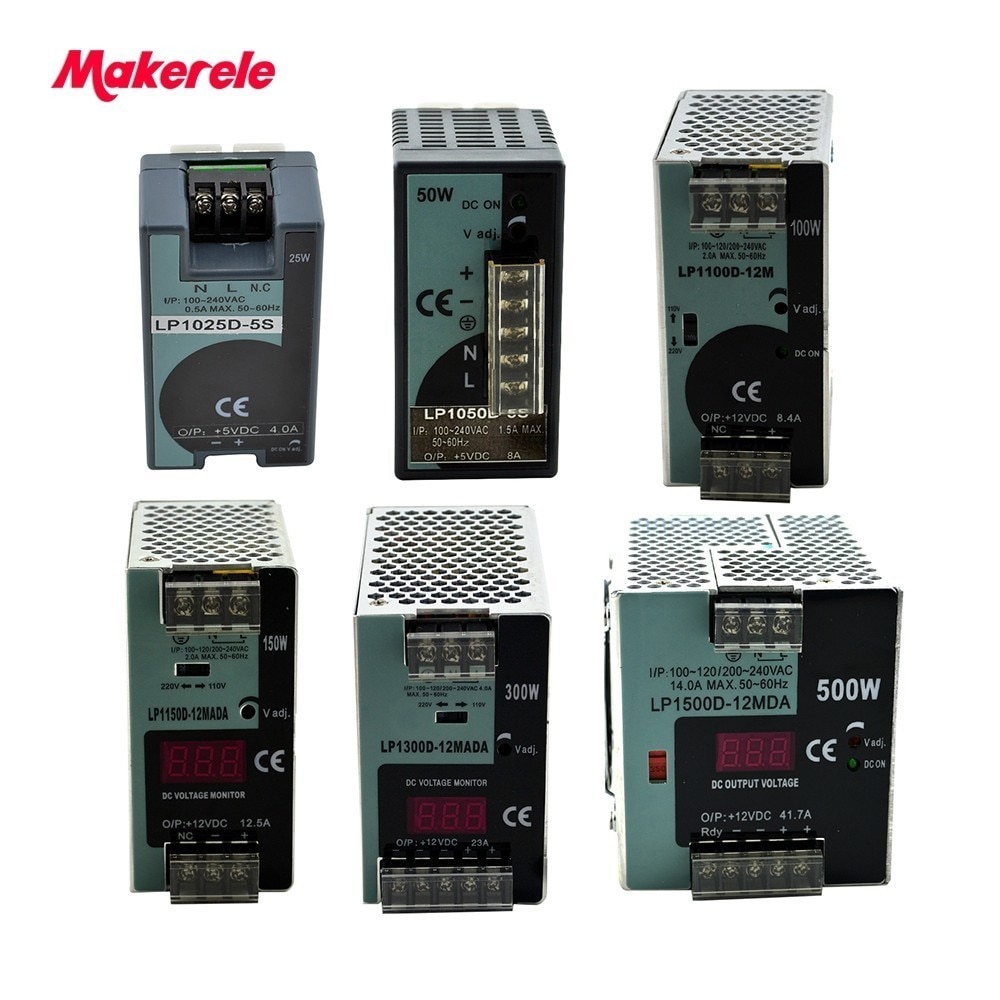

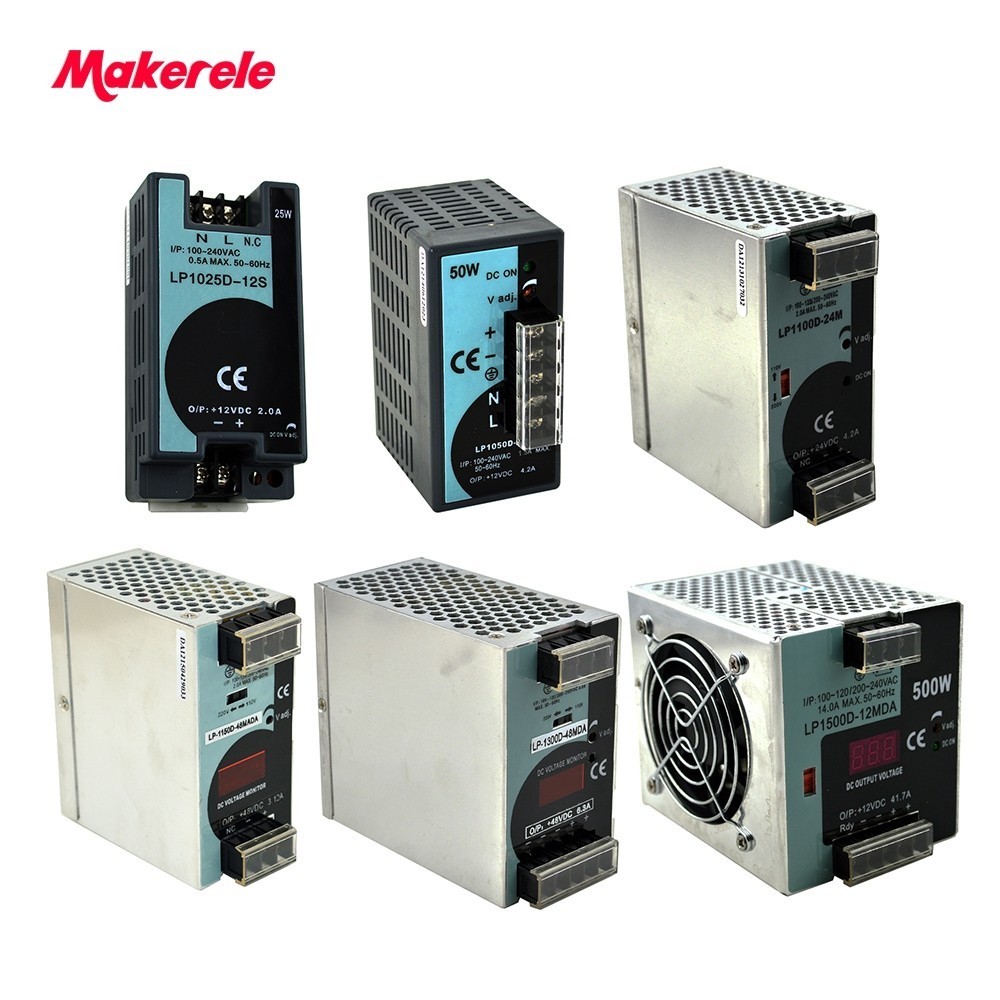

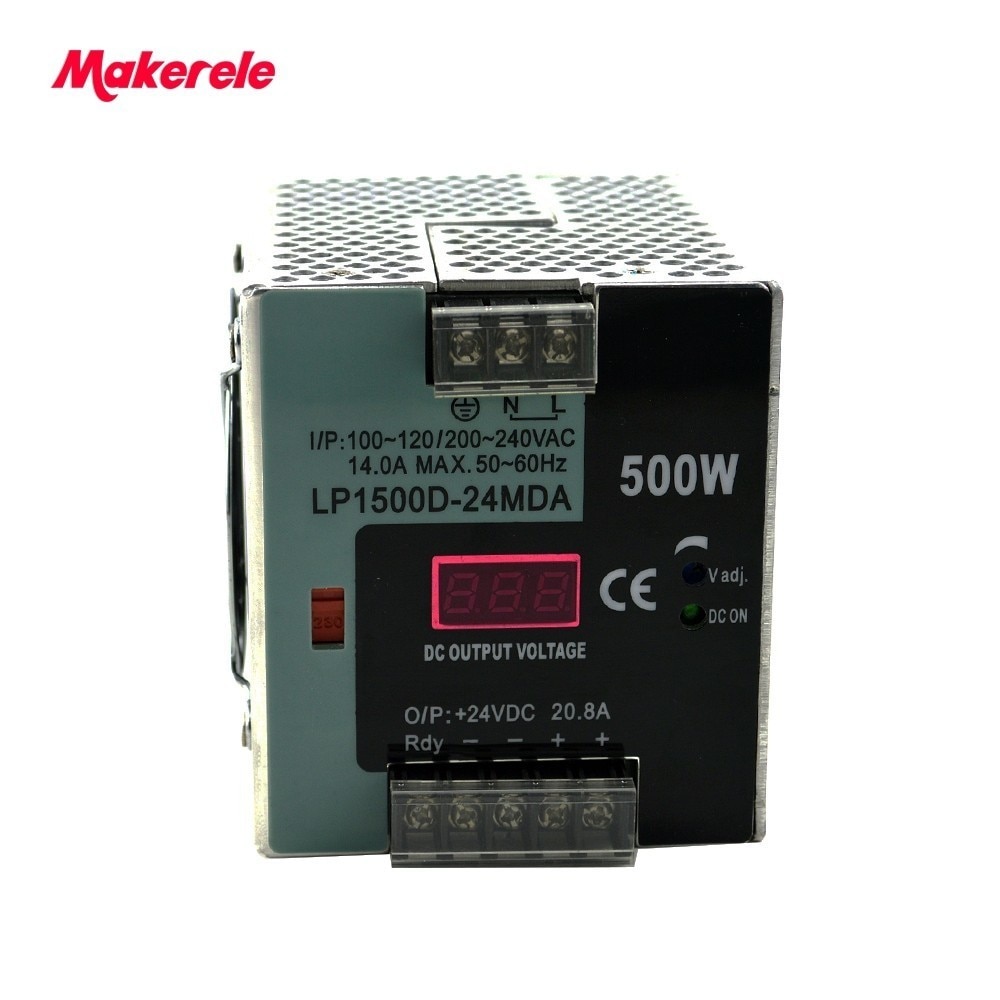

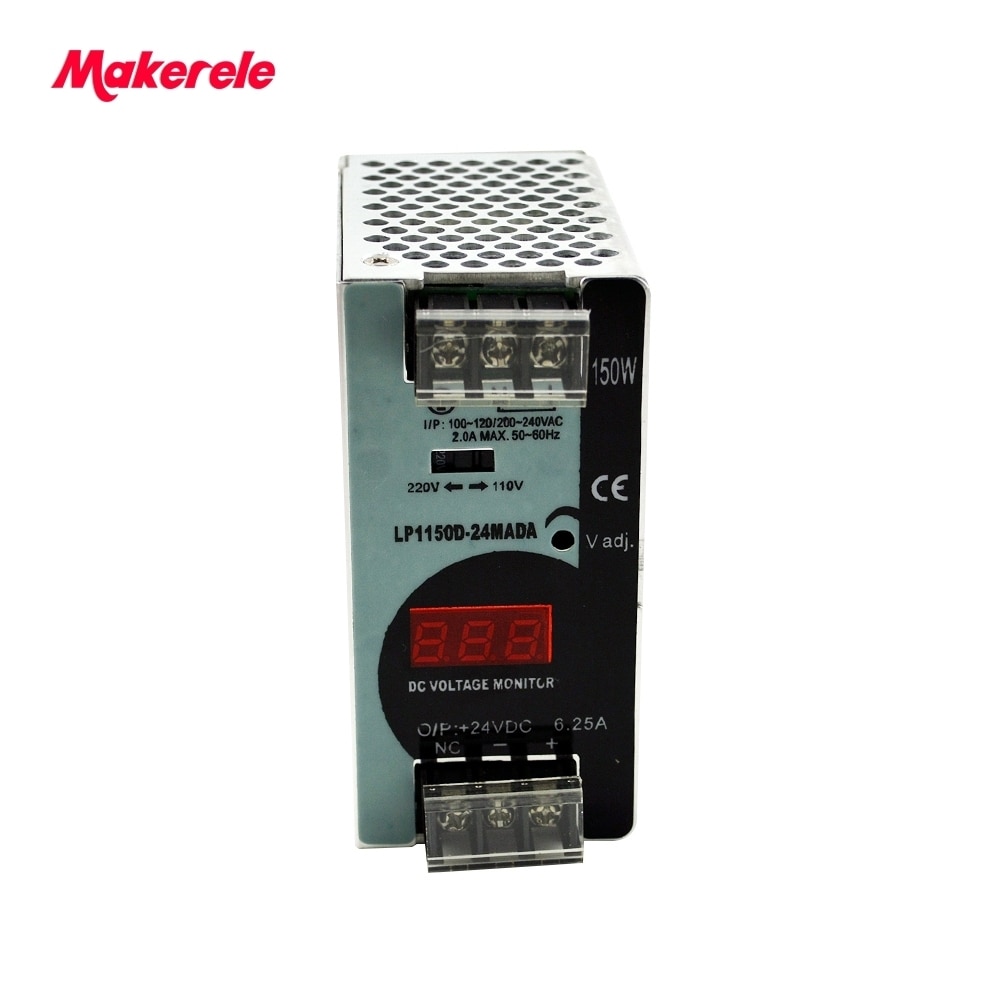

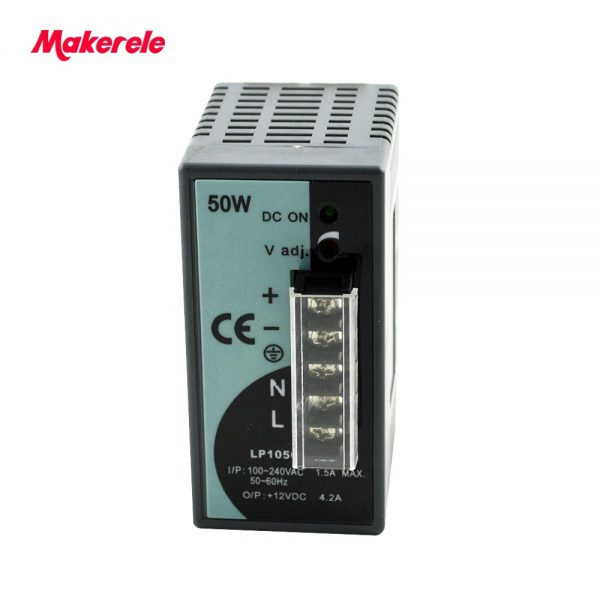

LP Series Din Rail single output switching power supply Digital Display
Product Size:
-
1. Item will be shipped within 5-7 business days.
-
2. Delivery Time:
-
—-Via Air: Generally 1-3 working days
-
—-Via Express: Generally 3-7 working days.
-
—-Via China Post Air Mail: Generally 15-25 working days
-
—-Via Sea: According to the order.
-
3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
-
Custom Product Design
-
OEM/ODM
-
Profession in export service from Maker Electric
-
High quality Product, Affordable Price
-
What are switching power supplies?
-
Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
What about production process of switching power supply?
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:
Yueqing Maker electric Co., Ltd. concentrates on Import and Export.
Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
|
