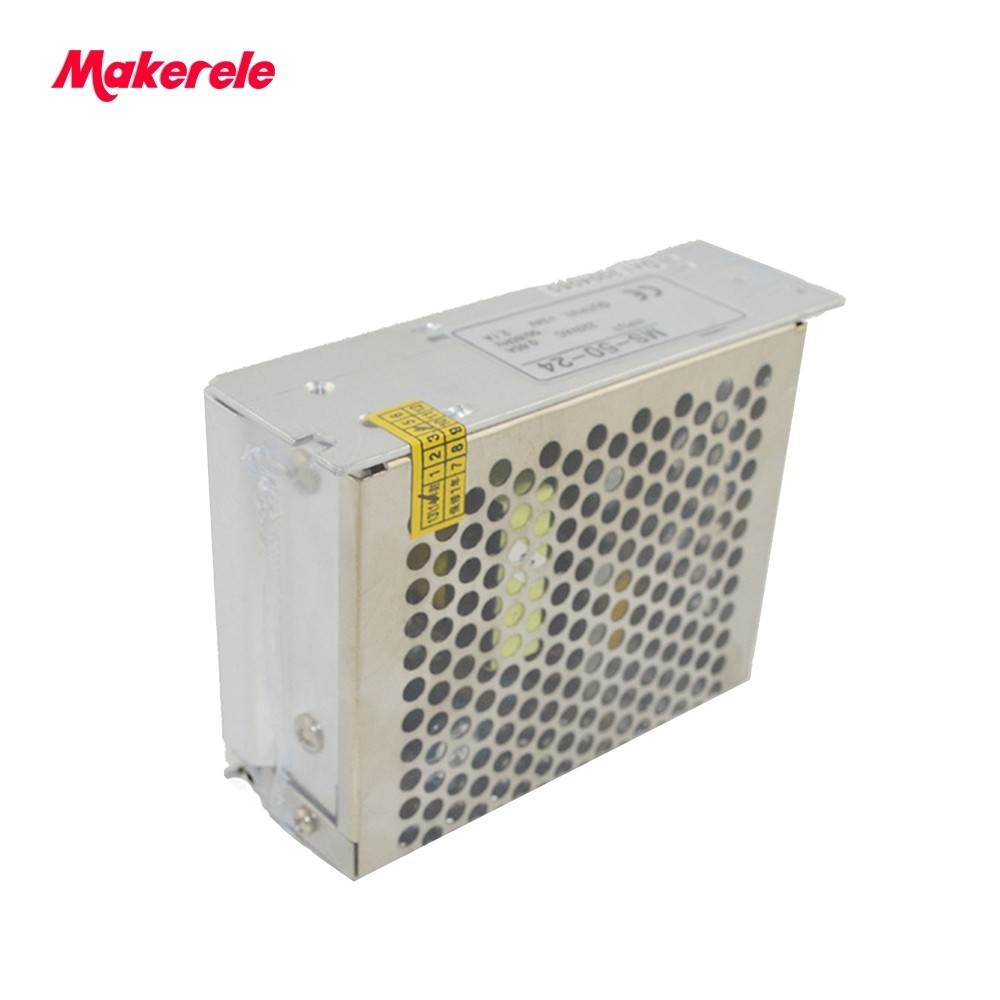

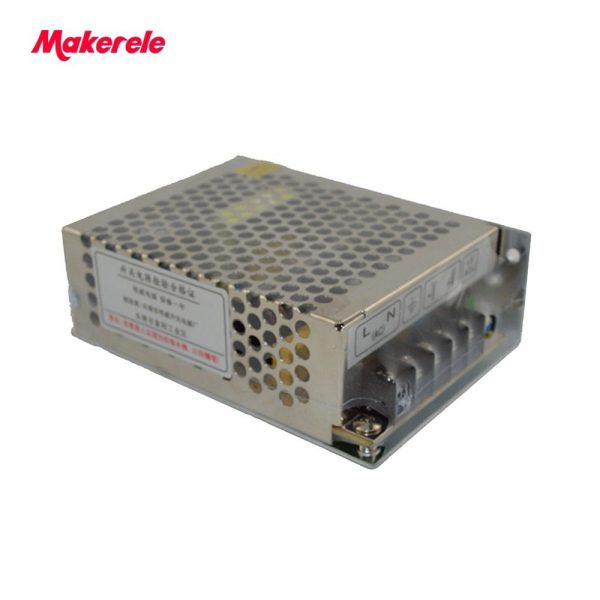

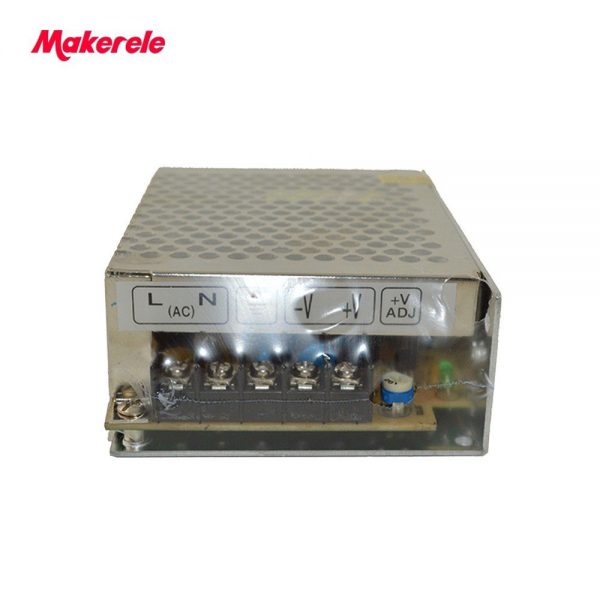

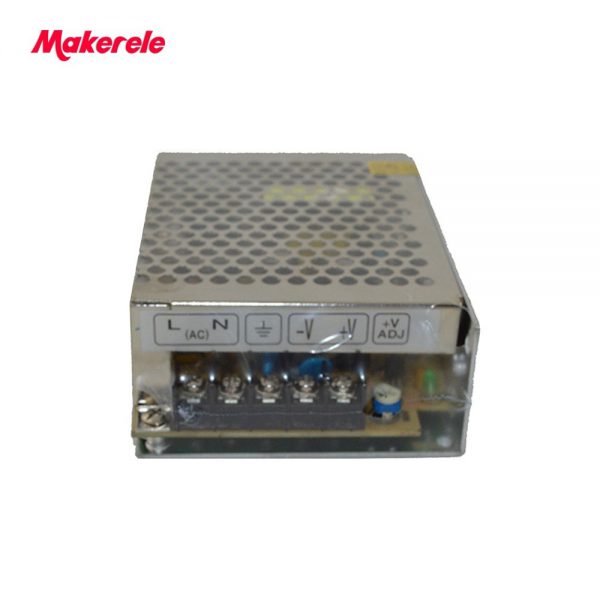

Mini Power Supply 110V 220V AC To 15V DC 50w MS-50-15 CE Approved Single Output Switching Power Supply For LED AC To DC Smps
$20.99
100 in stock
Description
- Brand Name: makerele
- Output Power: 1 – 50W
- Output Type: Single
- Model Number: MS-50-15
- Output Frequency: 47~63Hz
- is_customized: Yes
- Input Voltage: 85 ~ 264VAC
- Place of Origin: Zhejiang China (Mainland)
- Rated Power: 50W
- VOLTAGE ADJ. RANGE: 13.5~ 16.5V
- Certification: CE ROHS
- Voltage Tolerance: 1%
- AC CURRENT: 0.5A/115VAC 0.25A/230VAC
- Switching Power WORKING TEMP: -10-+60
- Setup,Rise,Hold Time: 200ms,100ms,30ms at full load
- Over Load: 110%-160%
Notice:
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
0w power supply constant current
Model MS-50-5 MS-50-12 MS-50-15 MS-50-24
DC output voltage 5V 12V 15V 24V
Output voltage error 2% 1% 1% 1%
Rated output current 10A 4.2A 3.4A 2.1A
Output current rage 0-10A 0-4.2A 0-3.4A 0-2.1A
Wave and noise 75mVp-p 100mVp-p 100mVp-p 100mVp-p
Inlet stability 0.5% 0.5% 0.5% 0.5%
Load stablity 1% 0.5% 0.5% 0.5%
DC output power 50W 50.4W 51W 50.4W
Efficiency 75% 78% 78% 82%
Adjustable range
for DC voltage +10,-5% 10% 10% 10%
AC input voltage range AC100~240V 47~63Hz;240~370VDC
Input current 1.3A/115V 0.65A/230V
AC INnrush current Cold-start current 18A/115V 36A/230V
Leakage current <0.5mA/240VAC
PROTECTION
Overload proctection 105%~150% Tpye,Foldback current limiting Reset, auto recovery
Over-voltage protection
High-temperature protection
ENVIRONMENT
Temperature coefficient 0.03%/C(0~50%)
Setup rise hold up time 200s,100ms,30ms
Vibration 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes
SAFETY
Withstand voltage Input and output internal,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC
Isolation resistance Input and output internal,Input and enclosure,Output and enclosure,500VDC/100M
Working temperature and humidity -10C~+60C(Refer to output derating curve),20%~90%RH
Store temperature and humidity -20C~+85C,10%~95%RH
STANDARD
Safety standards Meet UL1012 requirement(Not qpply for the mark)
EMC standards
OTHERS
Weight: 0.30Kg
Packing: According to your order,we can provide different cartons for you.
NOTE:
1.The testing condition for the paramenter above is ,230VAC input,rated load,25C70% RH.Humidity.
2.Error.include the setting error,line stability and load stability.(Note:5).
3.Wave test:adopting “A12″double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.
4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
5.Load stability test:the load is from 0% to 100%.
Product Size:
-
1. Item will be shipped within 5-7 business days.
-
2. Delivery Time:
-
—-Via Air: Generally 1-3 working days
-
—-Via Express: Generally 3-7 working days.
-
—-Via China Post Air Mail: Generally 15-25 working days
-
—-Via Sea: According to the order.
-
3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
· We Ship to Worldwide, except APO/FPO.
· Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
· Delivery time depends on destination and other factors, it may takes up to 20 business days
· Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Payment:
Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html
Warranty and Guarantee:
· 12 months Warranty. Buy with confidence!
· If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
· If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.
· If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee
Other Policies:
· We are not responsible for any custom duty or import tax.
· We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
· All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
-
Custom Product Design
-
OEM/ODM
-
Profession in export service from Maker Electric
-
High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
-
-
-
What are switching power supplies?
-
-
Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
What about production process of switching power supply?
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:
Yueqing Maker electric Co., Ltd. concentrates on Import and Export.
Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
Packaging
Items per Carton: | According to your order |
Gross Weight per Unit: | 0.27 kg |
Package Size per Unit: | 12X9X4 cm |
