MK-PFS5 Stainless Steel Piston Flow Sensor Magnetic Liquid Piston Flow Switch From Makerele
$14.80
Product by:
MAKERELE
200 in stock
Description
- Brand Name: makerele
- DIY Supplies: Electrical
- Model Number: MK-PFS5
- Place of Origin: Zhejiang China (Mainland)
- Type: piston flow switch
|

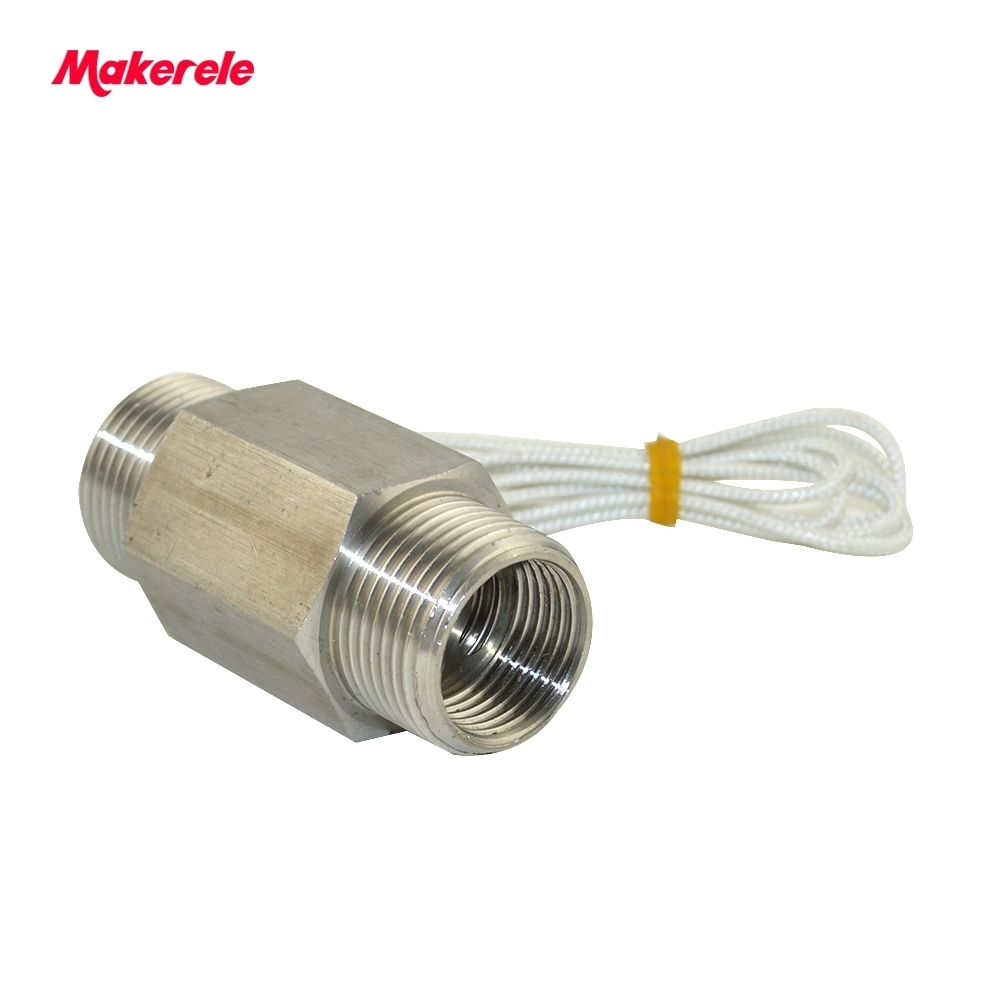

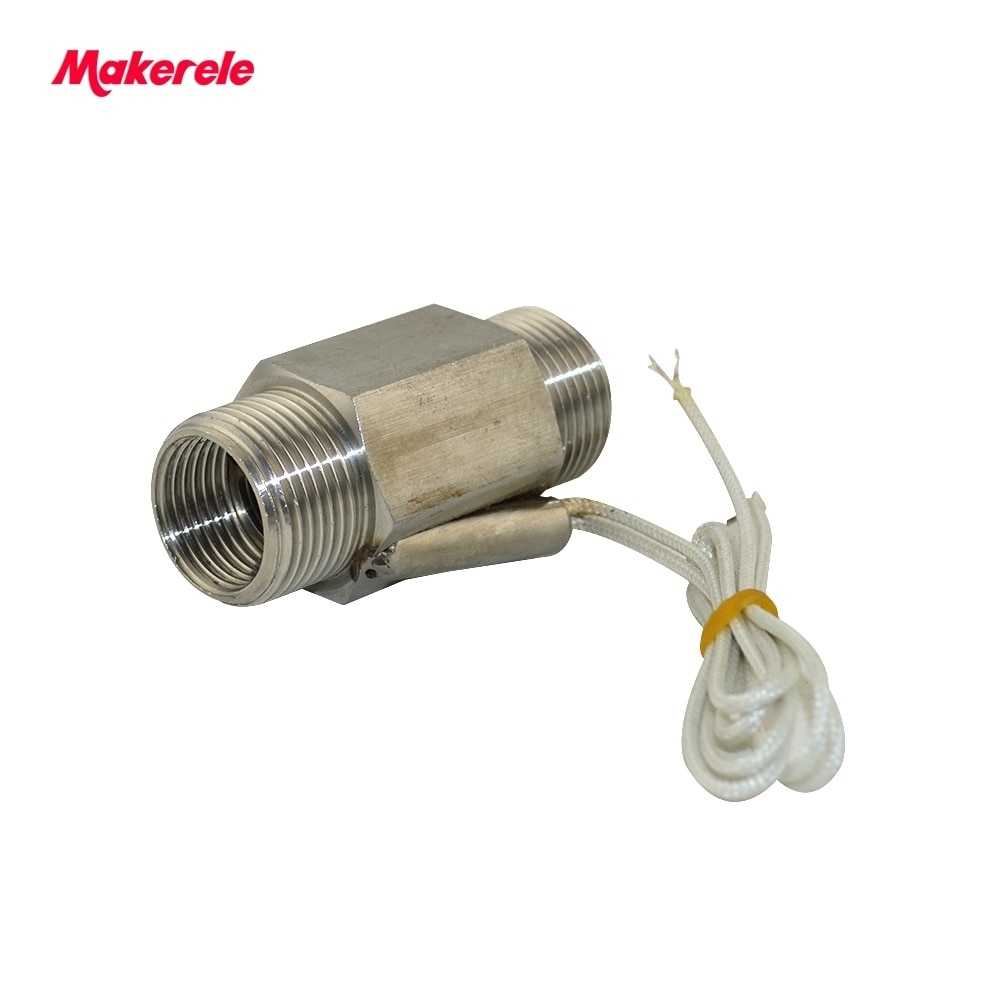

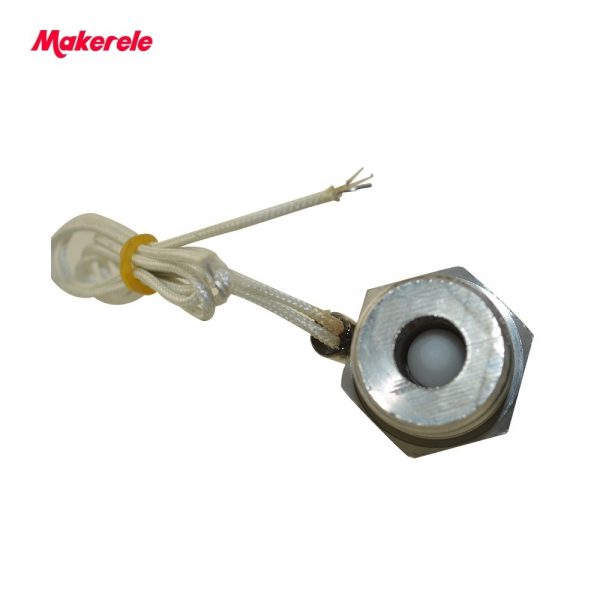

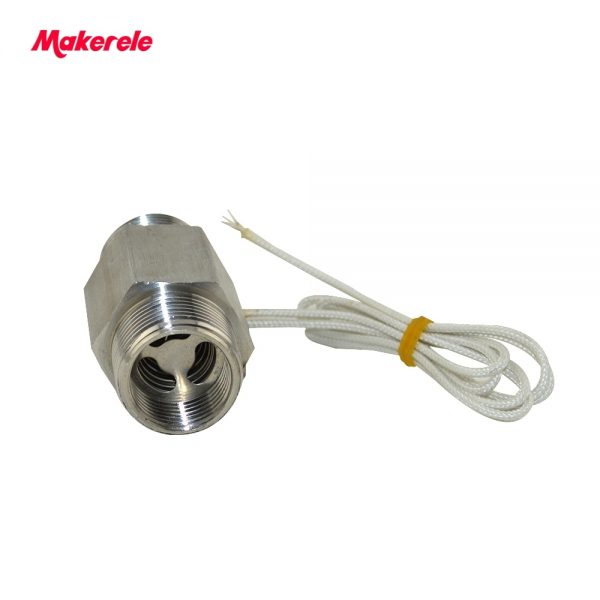

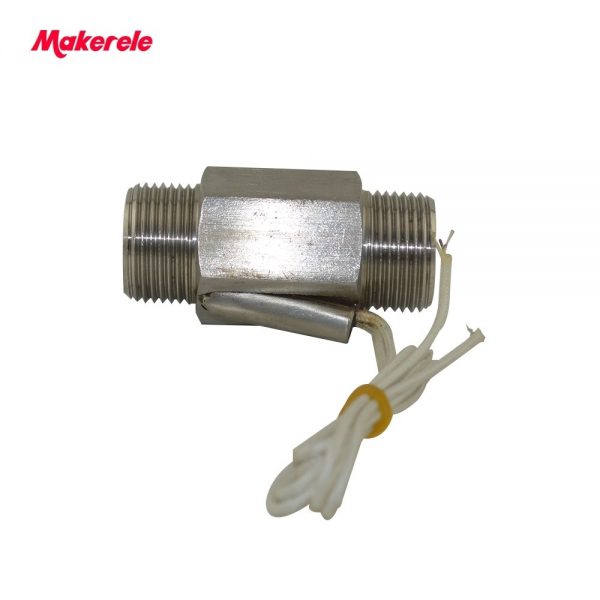

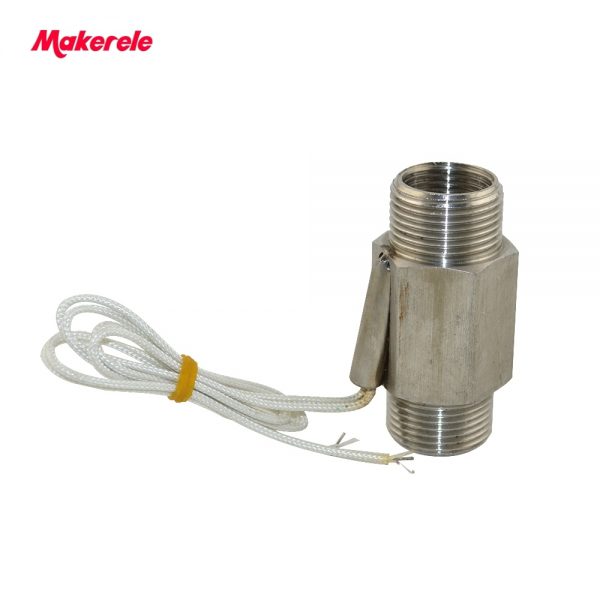

MK-PFS5 water control piston type ,water ,stainless steel piston flow switch
current: 0.8 A ,voltage: 110VDC
Product Description
water control piston type ,water ,stainless steel piston flow switch Parameters:
The shell material: stainless steel
Working temperature: -20 to 125 C
Liquid medium: clean water or liquids
Set the flow rate: 0.75 to 3 L/MIN
Set flow accuracy: + / – 10%
Switch current: 0.8 Amax
Switch voltage:110VDC
All Piston flow switch:
Our Services
- 1. Item will be shipped within 5-7 business days.
- 2. Delivery Time:
- —-Via Air: Generally 1-3 working days
- —-Via Express: Generally 3-7 working days.
- —-Via China Post Air Mail: Generally 15-25 working days
- —-Via Sea: According to the order.
- 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
Company Information
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.
- Custom Product Design
- OEM/ODM
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
water control piston type ,water ,stainless steel piston flow switch Producing department:
FAQ
stainless steel piston flow switch
At flow rates below the actuation point, the fluid passes around the piston and metering disc within the metering bore. As fluid flow increases past the actuation point, the metering disc enters the flow bypass bore where the increased diameter provides generous flow paths. The result is a low pressure drop for high flow rates and less susceptibility to fouling.
|
||||||||||||
