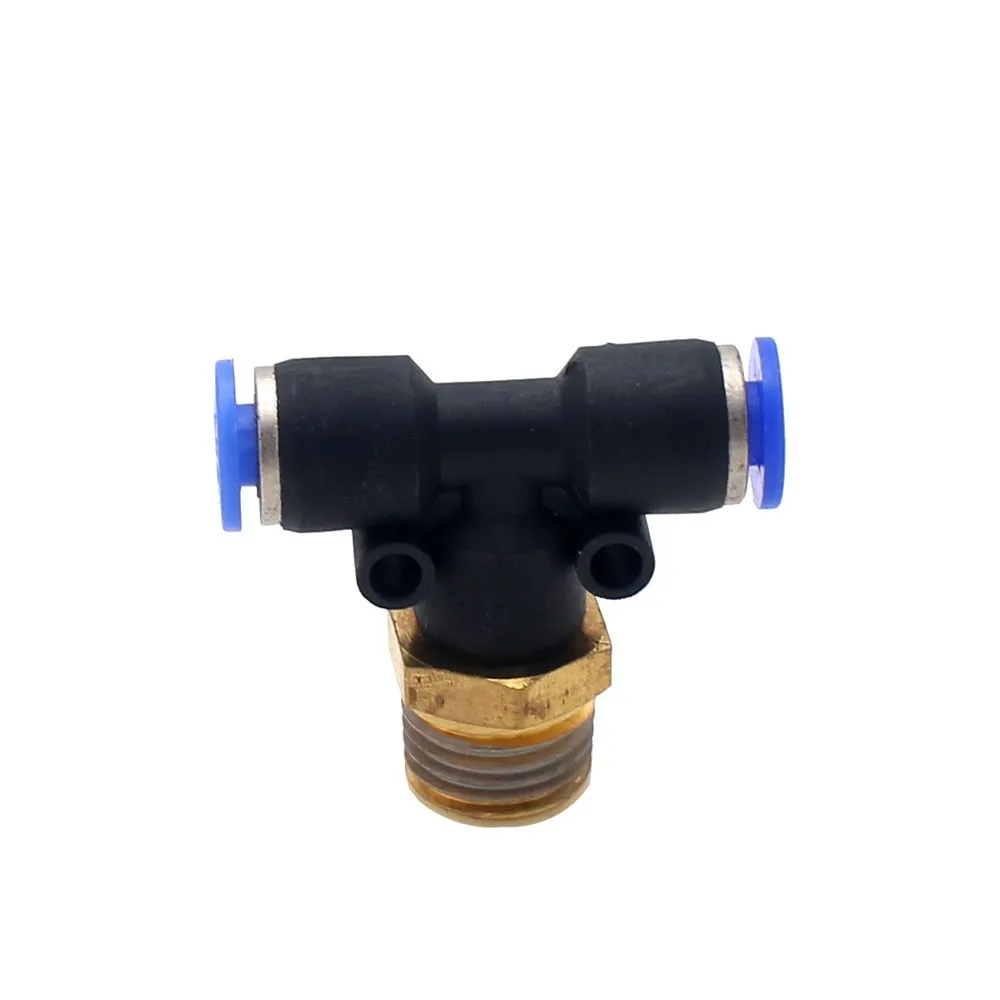

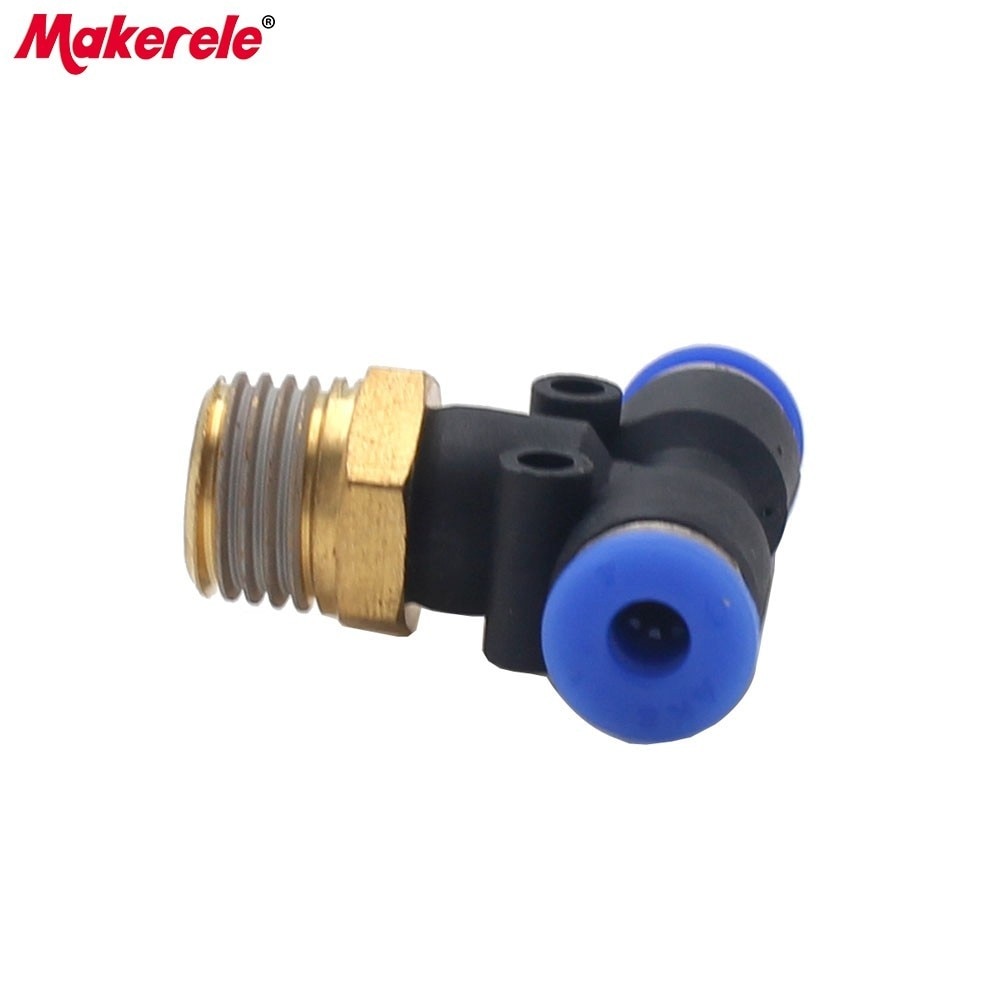

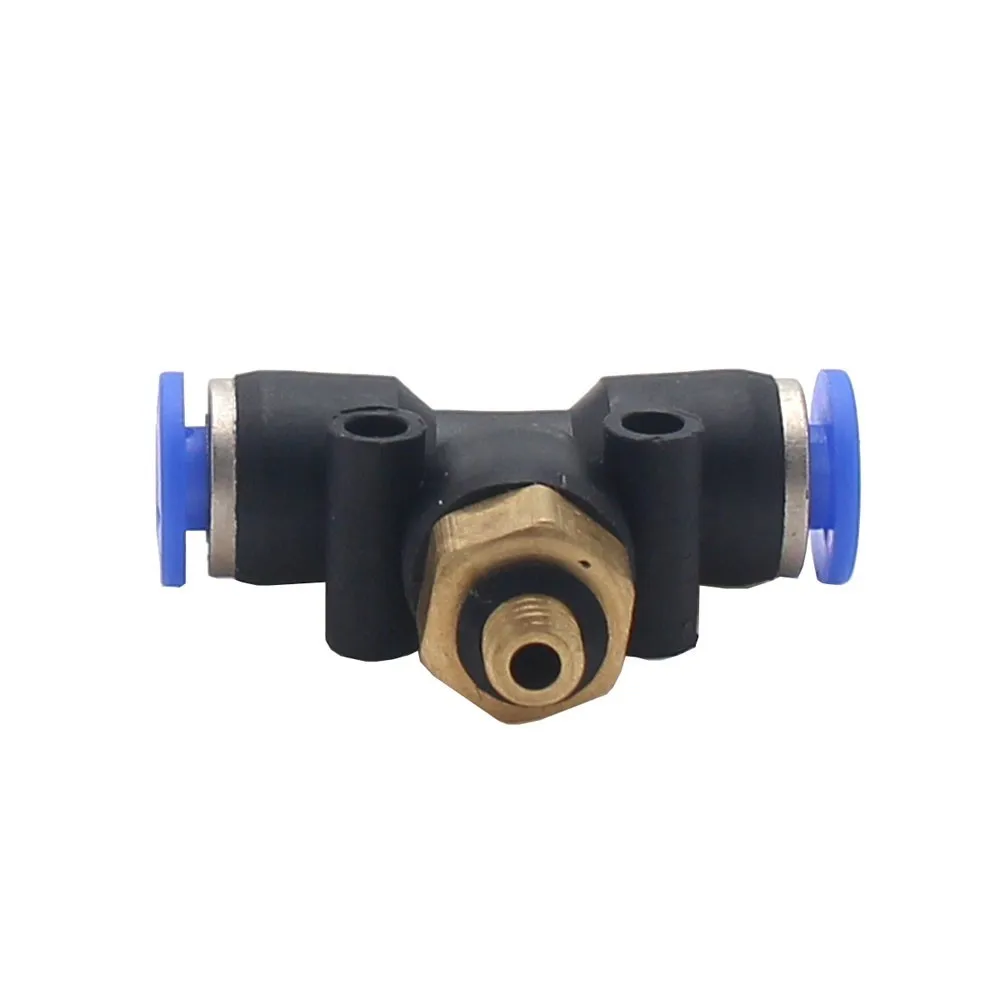

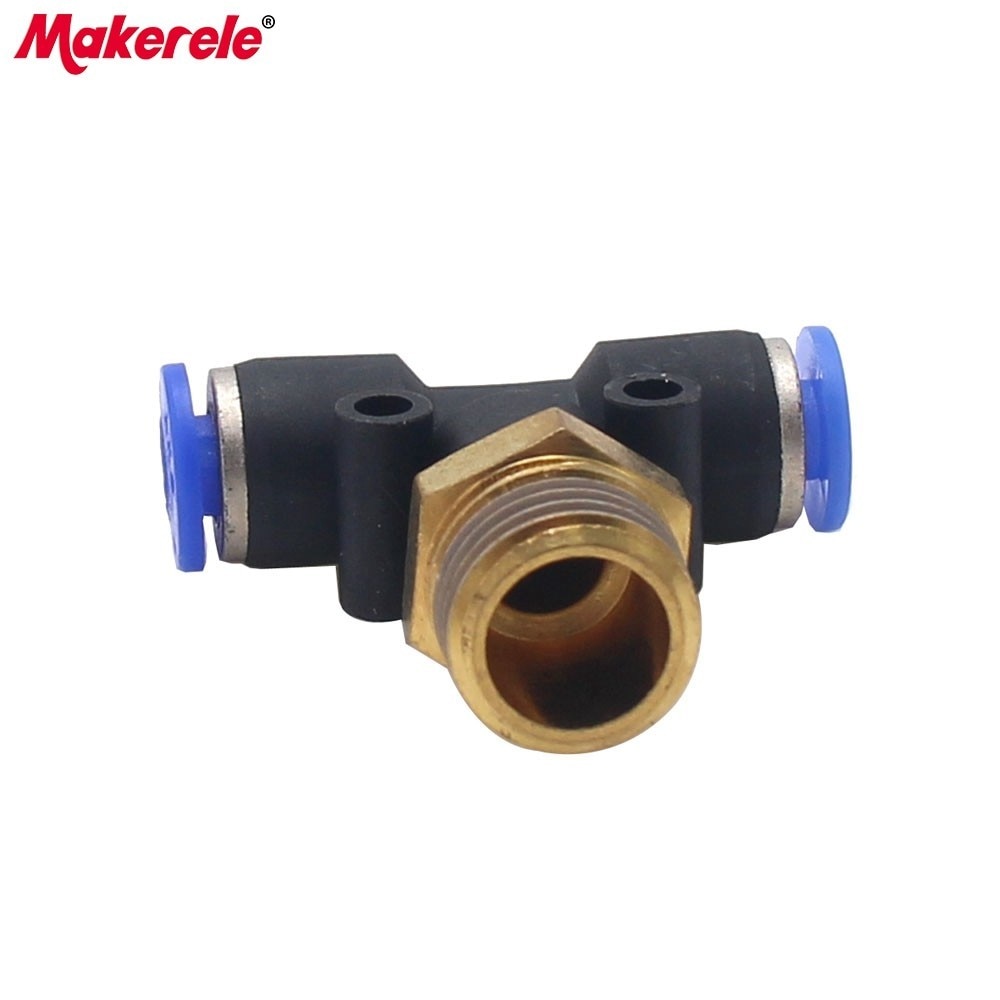

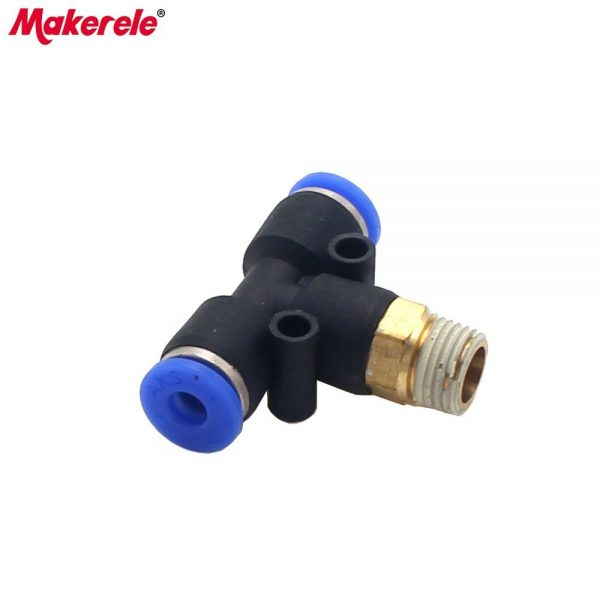

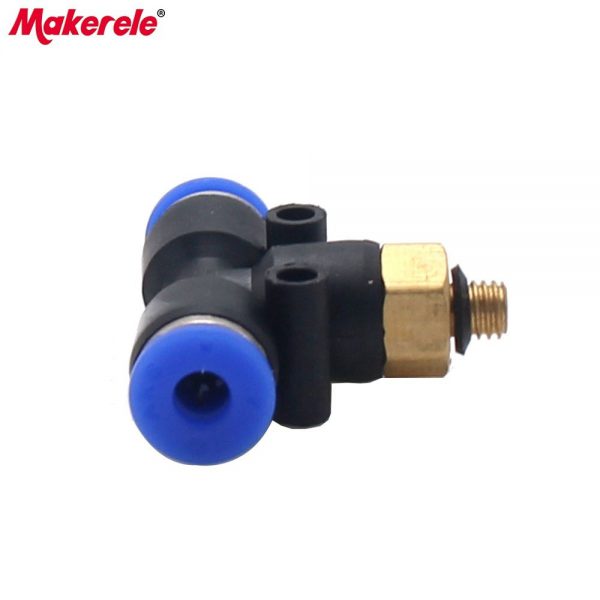

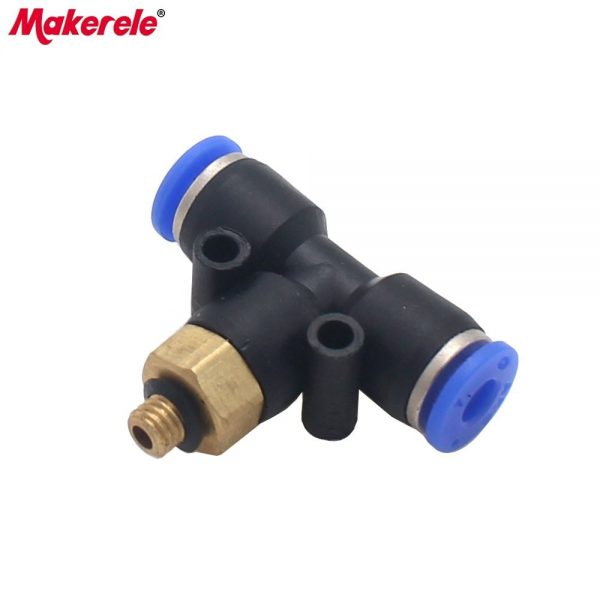

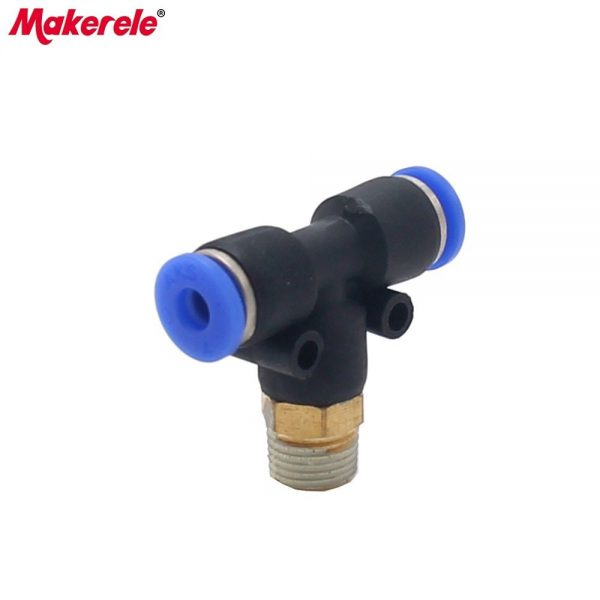

Pneumatic fittings 3-way PB4-01/02/m5 T-shaped external thread pneumatic outer diameter hose gas quick connector 1pcs
$1.69 – $1.82
Description
- Brand Name: makerele
- Type: Fittings
- Model Number: PB4-01/02/m5
- type: quick connector
- Fluid Type: Air / Vacuum
- Product Type: PB Pneumatic fittings
- material: Copper and PU plastics
- Top diameter: 4mm
- Package Weight: 8-12g
- Operating Temperature Range: 0-60C
- Quick Fitting Color: Blue
- Fit For Tube Material: PU / Nylon ,Pol
- Operating Pressure: 0~1.0Mpa
- Installation Form: Quick insert
|
||||||
|
1.Product Name Regulations
PB4-01
PB: T-type positive three links
4: pneumatic diameter(mm)
Thread Size 01: 01=1poin(9.7mm)
02: 02=2poin (12.7mm)
M5: M5*0.8 Thread Size
This product is T type positive three connection, used to transfer two branch pipe to thread interface.
For example: PB4-01, that is, two 4mm outer diameter trachea transfer to 1 point(outer diameter is approximately 9.7 mm) thread interface
2.Model: PB
External Thread Size: M5 1/8″ 1/4″
Male Thread Outer Diameter: 5mm/9.7mm/12.7mm
Fit For Tube Outer Diameter: 4
Fluid Type: Air / Vacuum
Operating Pressure: 0~10.2kgf/cm2 (0~1.0Mpa)
Operating Temperature Range: 0~60°C
Fit For Tube Material: PU / Nylon ,Polyurethane
Quick Fitting Material: Brass Plastic
Package Content: 1Pcs Quick Fitting
