Small Air Compressor Pressure Switch Control Heavy Duty Control Valve 1Port MK-ACPS02 High Quality 240V 20A 50Hz 8.0 Kgf/cm3
$13.82
198 in stock
Description
- Brand Name: makerele
- Certification: CCC,CE,RoHS
- Warranty: pressure switch
- Switch Type: Pressure Switch
- Model Number: MK-ACPS02
- Features: pressure switch
- Material: Aluminium Alloy
- Current: 20A
- Item Type: Switches
- Place of Origin: Zhejiang China (Mainland)
- Frequency: 50Hz
- Port: one / four
- Contact Arrangement: Normally Open(NO)
- Operating Temperature Range: -30~55C C
- Operating Pressure Range: 0.5~1.2Mpa
- Differential Pressure: 0.2Mpa
- Factory Setting: 0.6~0.8 Mpa
|
||||||||||||||||||
|
Please Care for the Voltage,Phase,Joint Screw,Starting pressure setting and So on. If not problem,we will send regular Product to you.
air compressor pressure regulator switch
Model: MK-ACPS02
used for air compressor
240V, 20A, 50Hz
Port:one / four
Air Compressor Pressure Regulator Switch MK-ACPS02 TECHNICAL DATA
MODEL | MK-ACPS02-1 |
Medium | Air |
Operating Pressure Range | 0.5~1.2Mpa |
Differential Pressure | 0.2Mpa |
Factory Setting | 0.6~0.8 Mpa |
Operating Temperature Range | -30~55C C |
Electrical Rating | 240V, 20A, 50Hz |
Contact Arrangement | Normally Open(NC) |
Port | one/ four port |

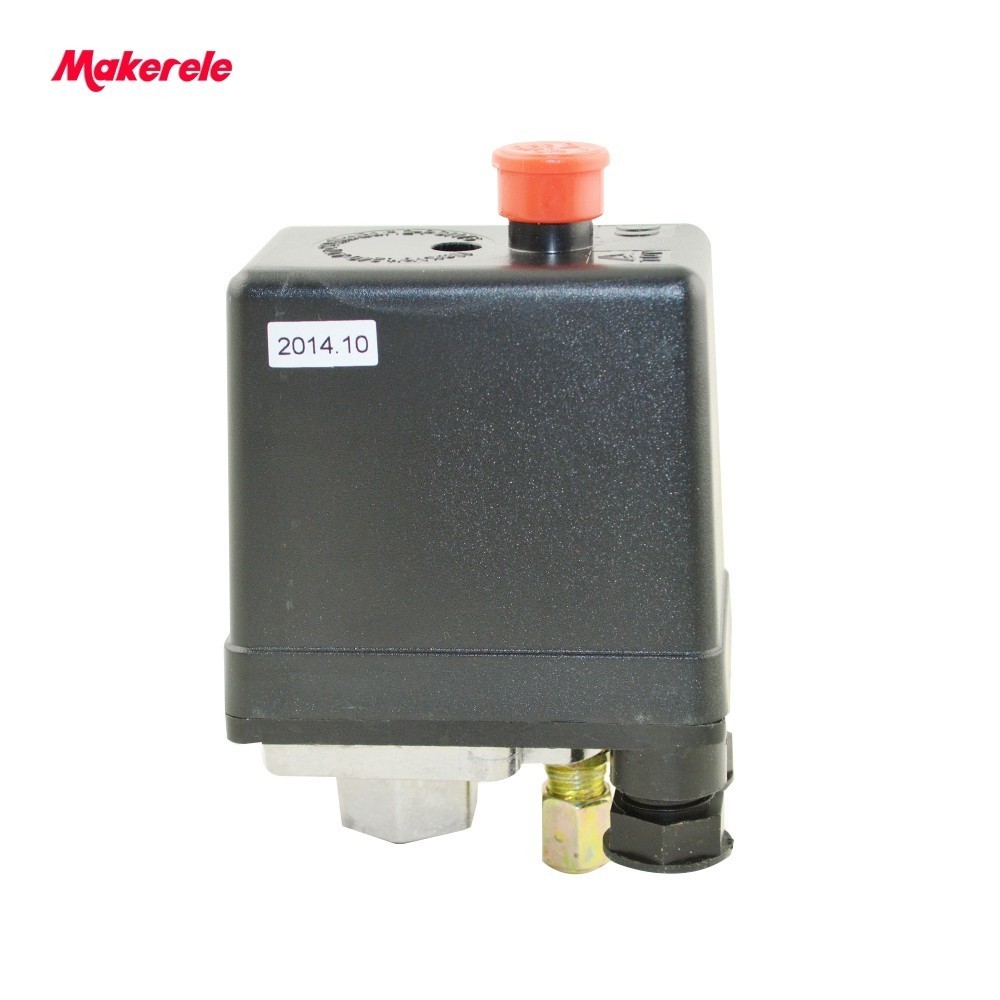

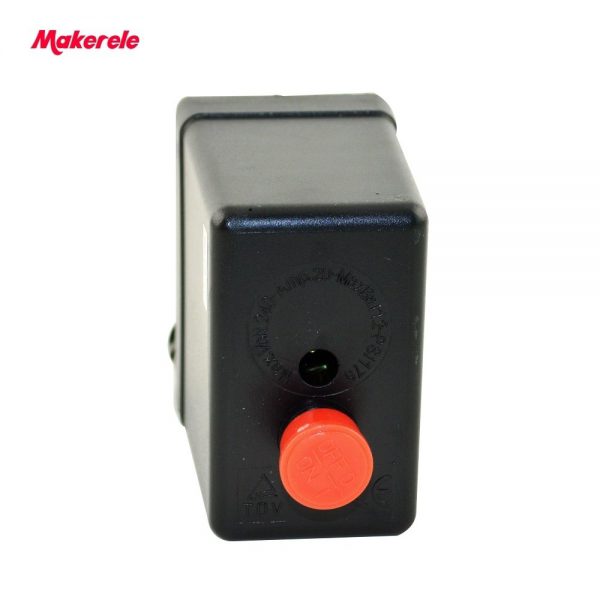

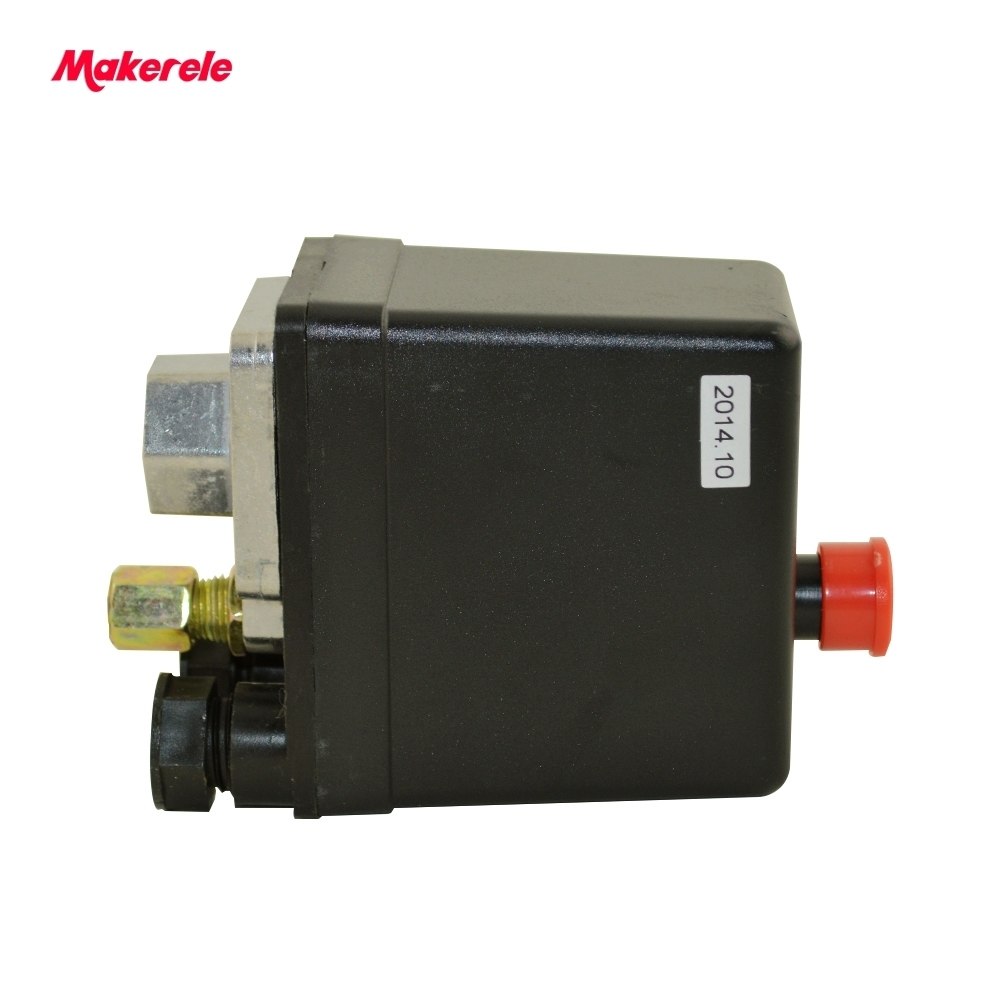

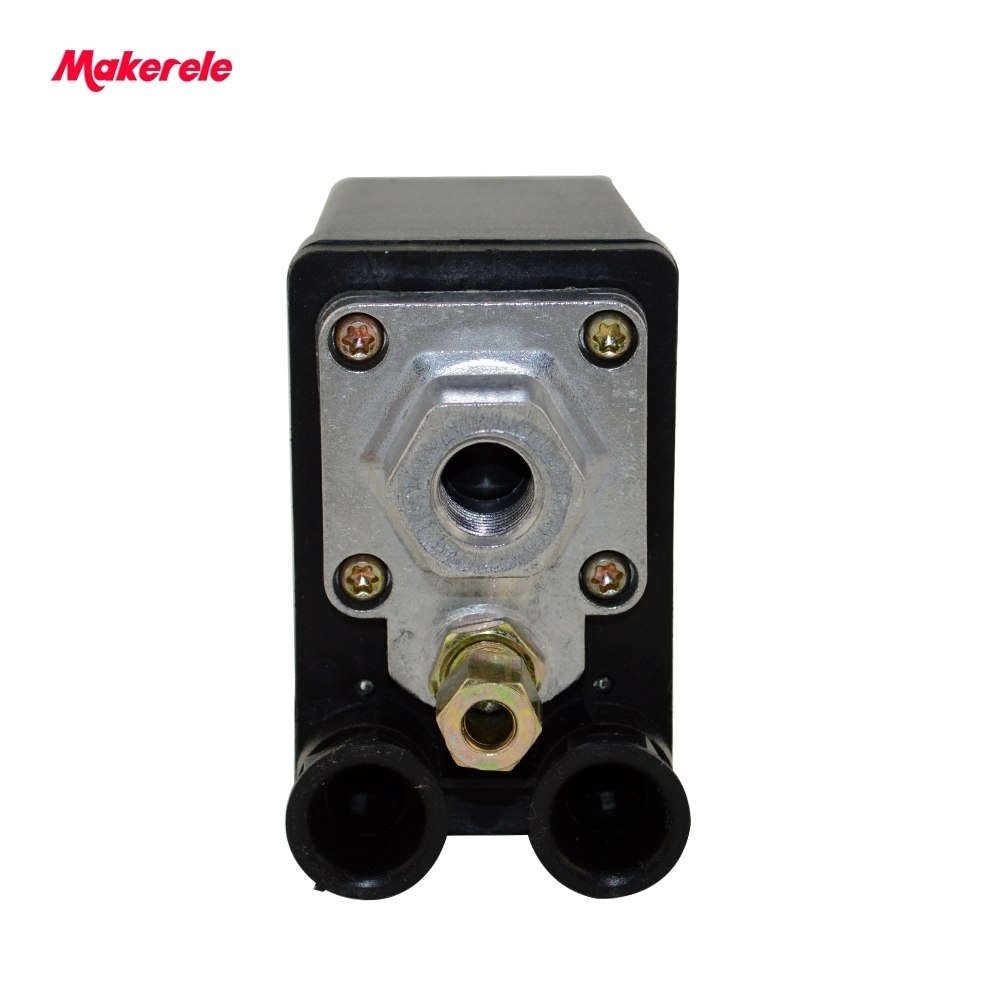

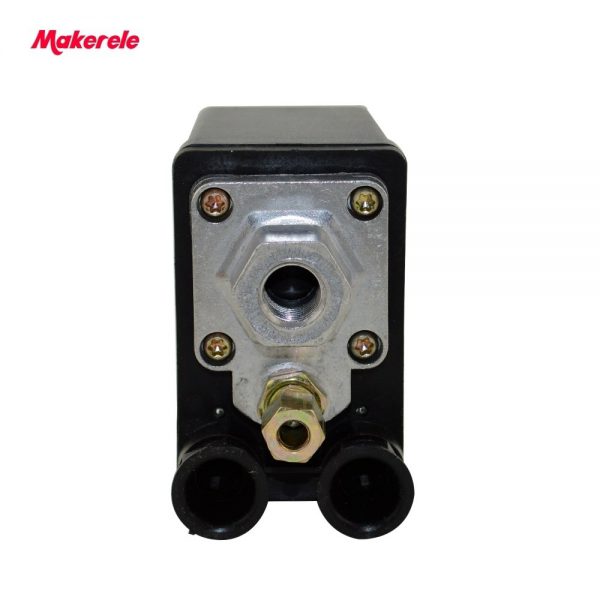

Air Compressor Pressure Regulator Switch pictures:
All Air Compressor Pressure Regulator Switch :
- 1. Item will be shipped within 5-7 business days.
- 2. Delivery Time:
- —-Via Air: Generally 1-3 working days
- —-Via Express: Generally 3-7 working days.
- —-Via China Post Air Mail: Generally 15-25 working days
- —-Via Sea: According to the order.
- 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.
- Custom Product Design
- OEM/ODM
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
How to Control Pressure in an Air Compressor?
While using your air compressor, controlling the air compressor pressure is important for operating efficiency and safety. While your air compressor is equipped with a pressure switch that shuts it down when the compressor reaches maximum pressure, operating at too much pressure for the given tool causes the machine to operate inefficiently. An air compressor is equipped with a pressure regulator, typically located between two gauges, one for tank pressure and one for line pressure. While watching your gauges for your desired psi, adjusting this regulator is the key to controlling pressure.
Air Compressor Pressure Regulator Switch Instructions
1.Connect your desired tool to the air compressor.
2.Fill your air compressor tank to its maximum rated pressure.
3.Adjust the pressure regulator down to 0 psi while you are running the connected tool.
4.Adjust the pressure upward toward the tools rated running pressure while the tool is still running. Read the air line pressure gauge to determine when the desired psi has been reached. This is the gauge closest to the connected tool.
5.Lock the regulator when the air line pressure gauge displays your desired pressure reading.
Tips & Warnings
Use protective goggles when dealing with pneumatic tools to protect your eyes from projectiles.
Use caution with any power tool.
|
