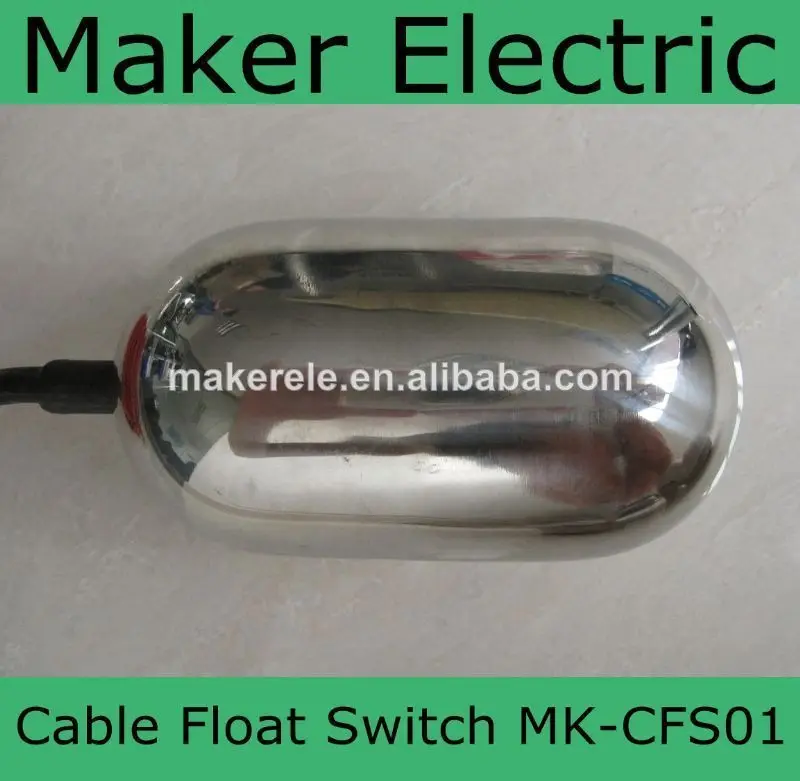

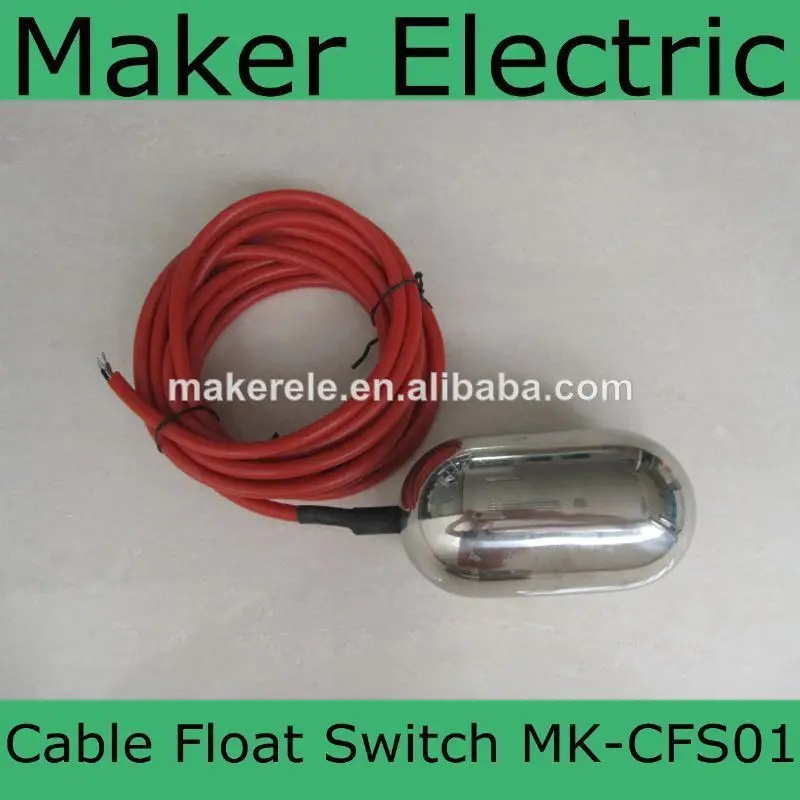

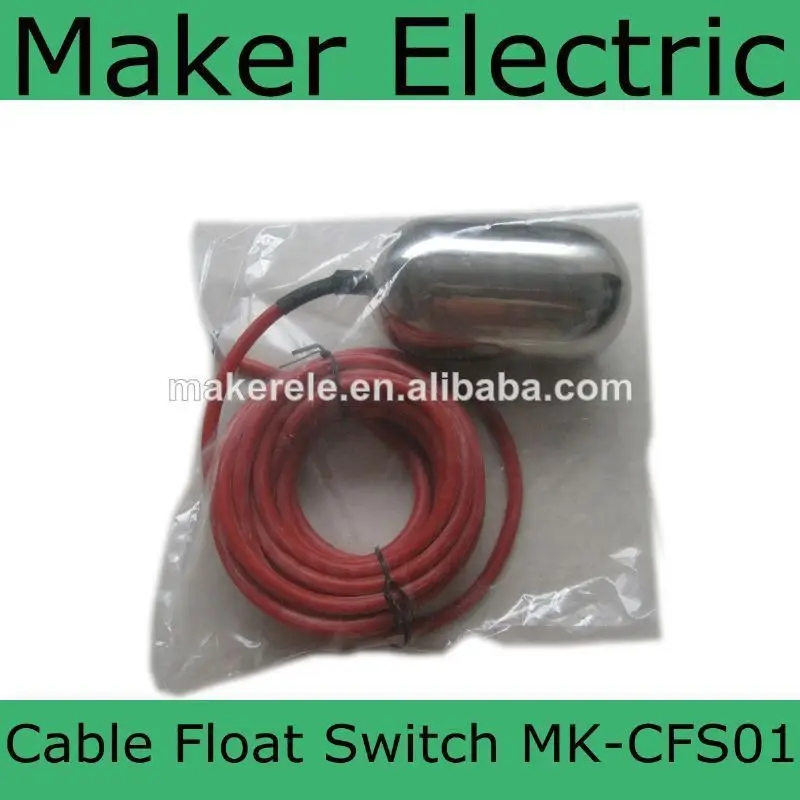

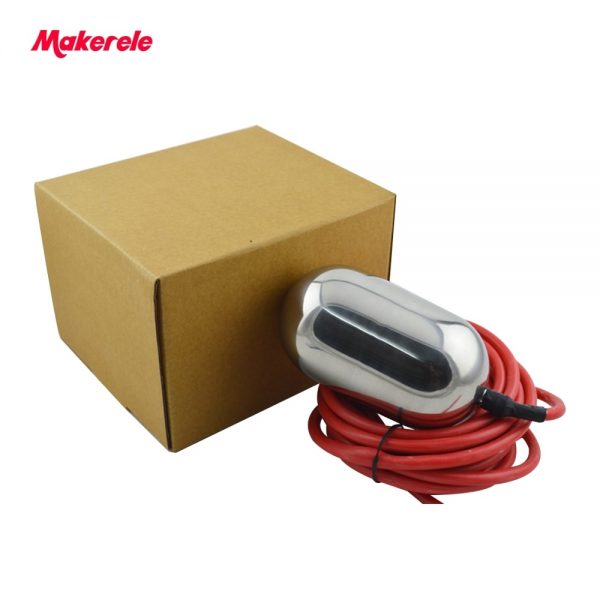

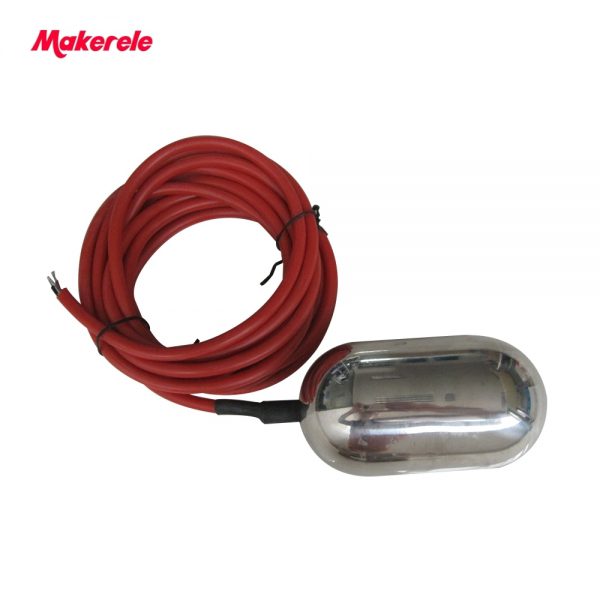

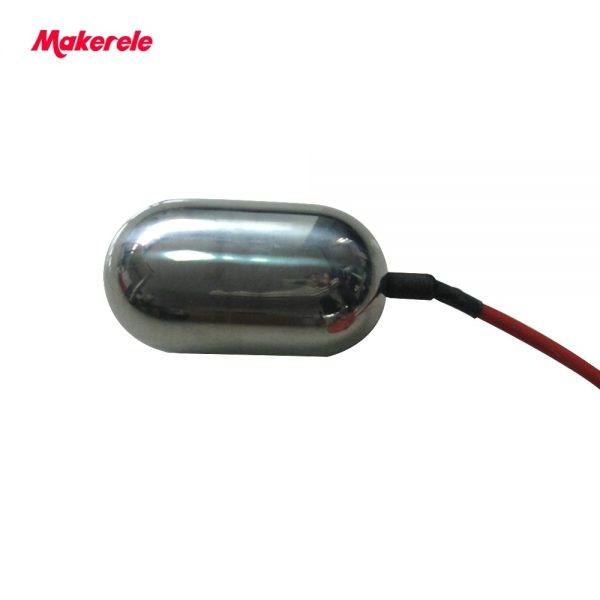

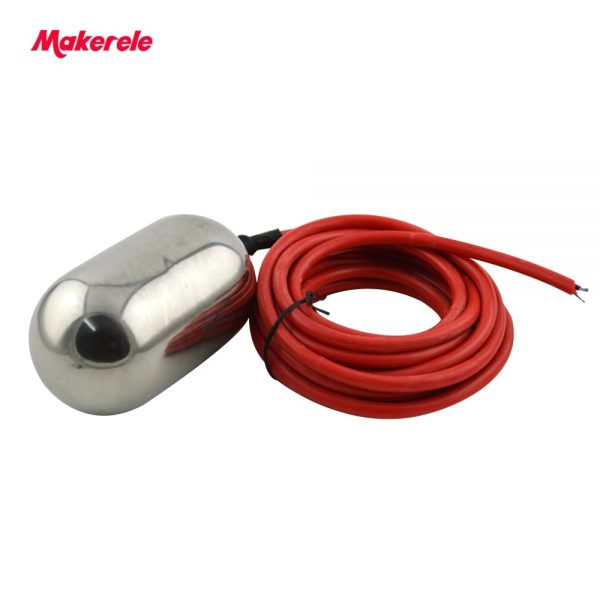

Stainless Steel Cable Float Switch, Liquid Level Controller MK-CFS01 5 Meter Stainless Steel Cable Suspended Float Level Switch

• 1. Item will be shipped within 5-7 business days.
• 2. Delivery Time:
• —-Via Air: Generally 1-3 working days
• —-Via Express: Generally 3-7 working days.
• —-Via China Post Air Mail: Generally 15-25 working days
• —-Via Sea: According to the order.
• 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.

• Custom Product Design
• OEM/ODM
• Profession in export service from Maker Electric
• High quality Product, Affordable Price

How to Wire a Stainless steel Cable Float Switch ?

A Stainless steel Cable Float Switch prevents flooding. An air conditioner includes a normally closed float switch, which turns off the system if the condensate drain clogs and water overfills the drip pan. A bilge or sump pump has a normally open Stainless steel Cable Float Switch , which turns on the pump when the water level rises above a set point. A float switchs wires connect in series with the appliances control circuit. Power flows to the appliance when the float switch closes, and the appliance turns off when the float switch opens.

1 Turn off the power to the appliance the Stainless steel Cable Float Switch protects. If the float switch operates in an air conditioners drain line, then turn off the air conditioner circuit beaker displaying a furnace or air handler label. If the float switch operates a pump, then either unplug the pump from its wall outlet or turn off the appropriate circuit breaker.

2 Remove 3/8 inch of insulation from the two Float Switchleads and the two wires to which the float switch connects. Use wire strippers for that task.

3 Twist the end of one Stainless steel Cable Float Switch lead around the end of the wire that connects to the power source. Then cover them with a wire nut. If the float switch protects an air-conditioning system, disconnect the furnaces transformer wire that connects to the red thermostat wire, and then connect the float switch lead to the transformers wire. If the Stainless steel Cable Float Switch operates a pump, connect the lead to the wall outlets plug wire or the wire connected to the circuit breaker.

4 Twist the end of the second Stainless steel Cable Float Switch lead to the appliances load wire. Then screw a wire nut over the ends of the wires. If the float switch protects an air-conditioning system, twist the float switch lead around the thermostats red wire. If the float switch operates a sump pump or bilge pump, wrap the second Stainless steel Cable Float Switch lead around the wire that connects to the pump motor.
