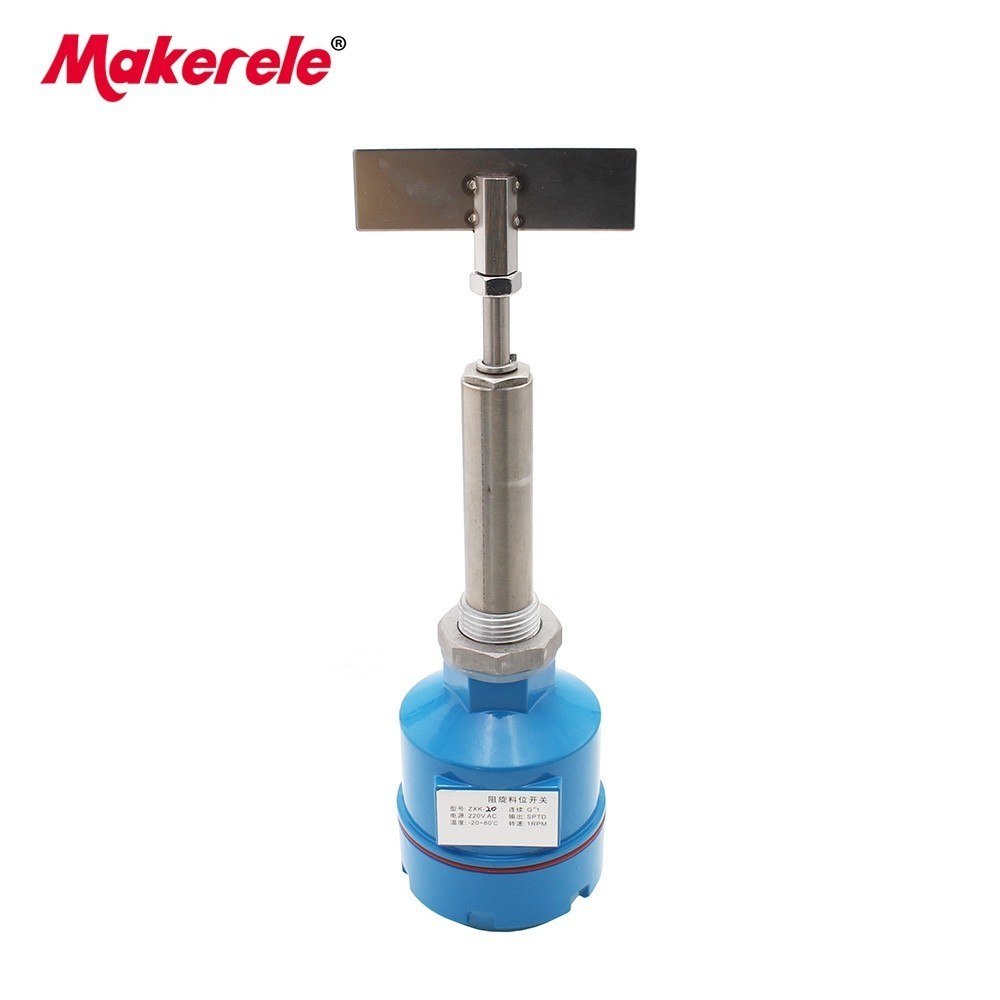

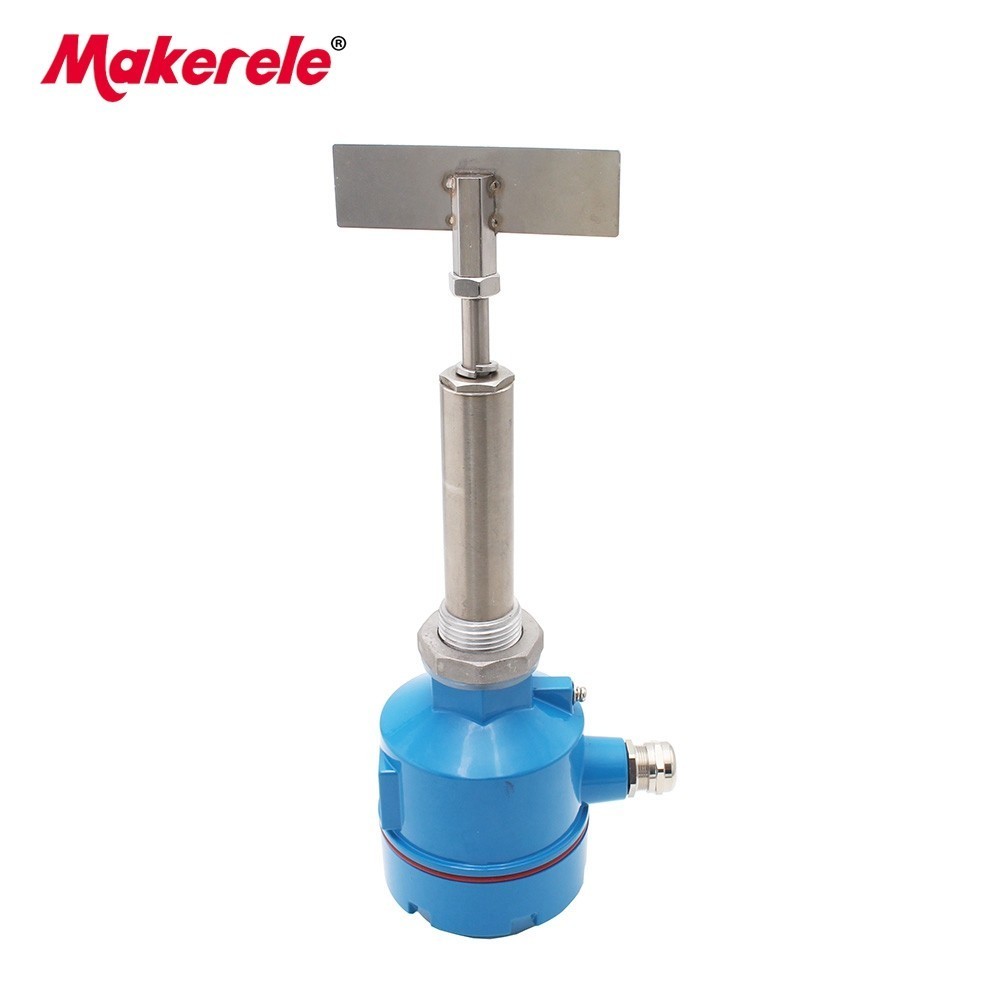

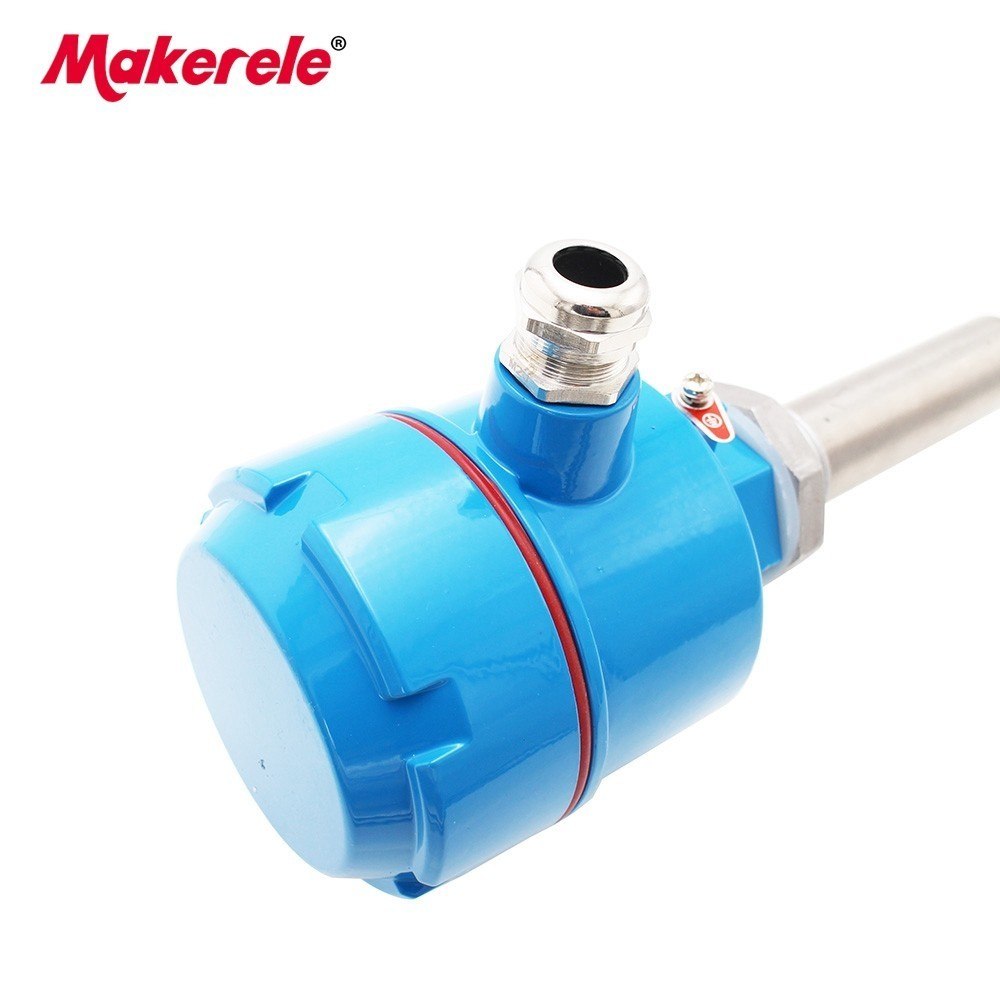

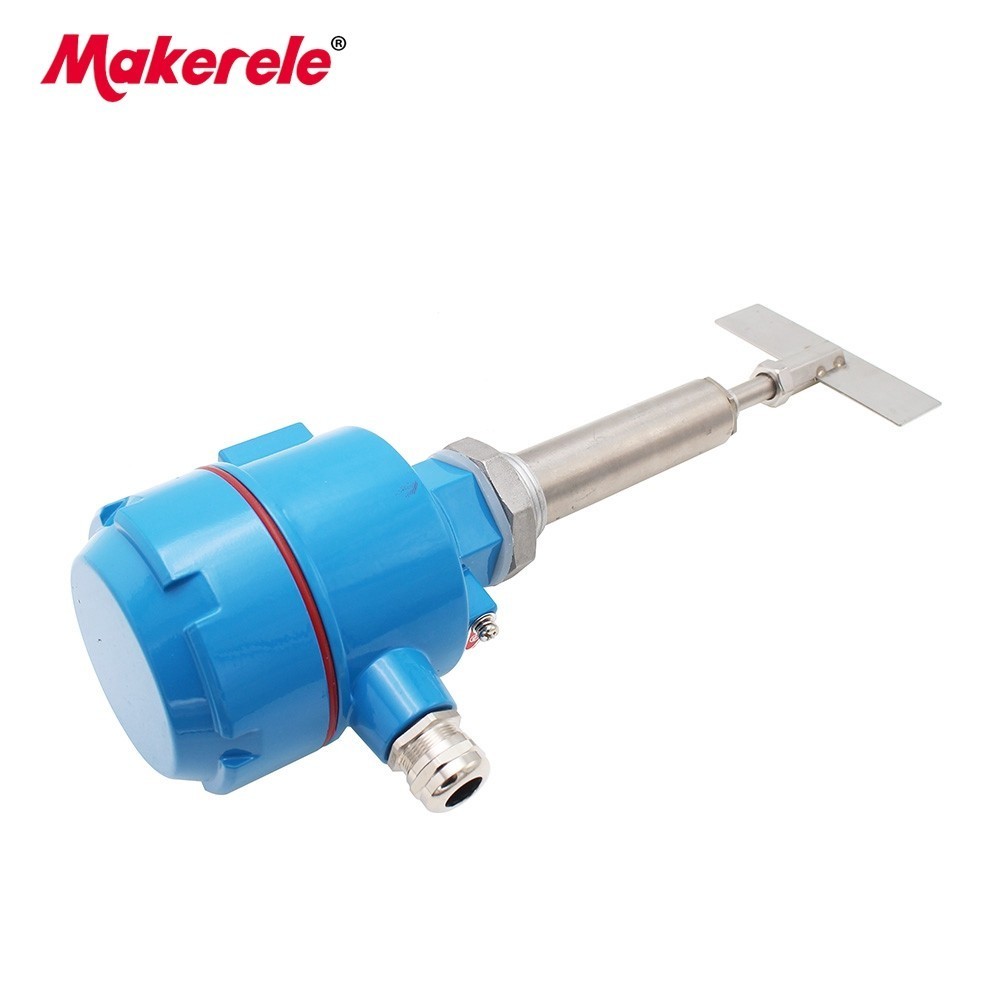

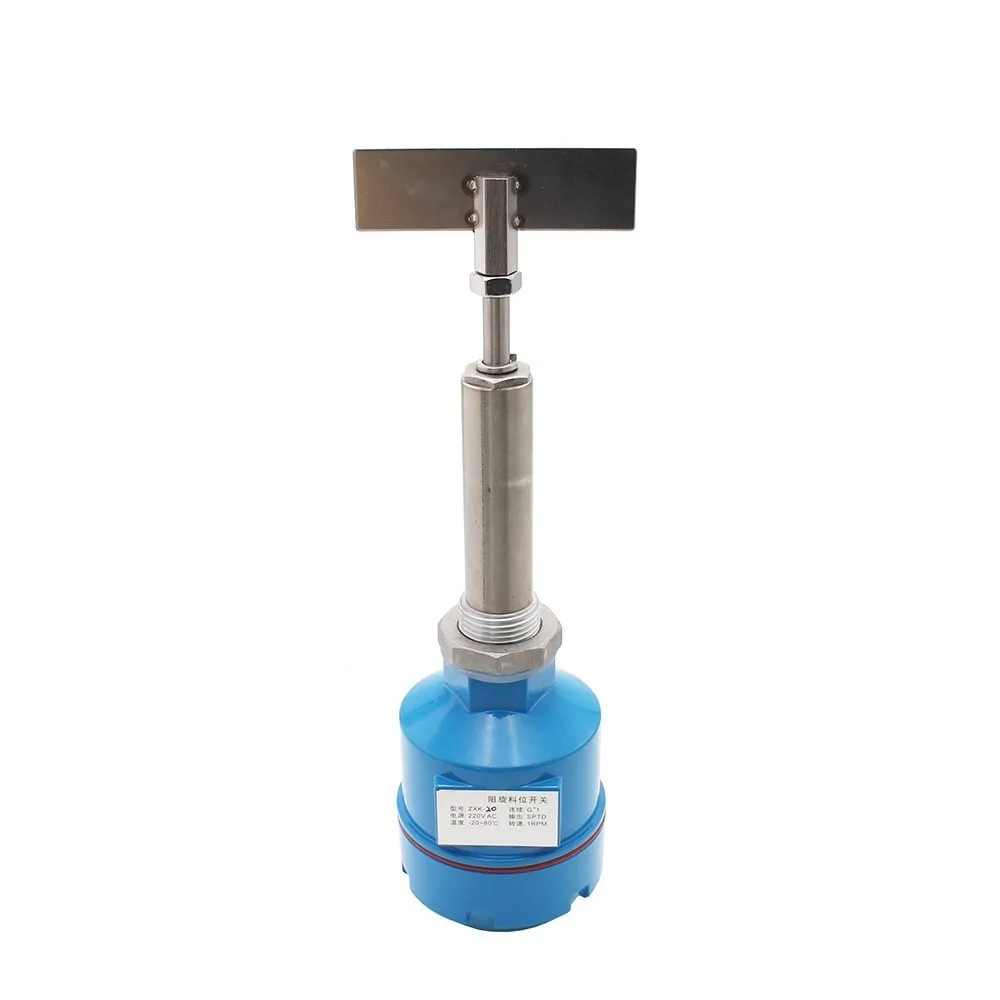

Thread Type Rotary Material Level Switch Shaft Protection Object Detector Limit Sensor B Type Blade Level Transfer Controller
$8.86 – $100.02
Description
- Brand Name: makerele
- Model Number: MKZXK-20B
- Power supply: 220VAC/24VDC
- Product Name: Rotary level switch
- Scope of application: Material machine
- Power: 4W
- Contact capacity: SPDT AC 5A/250V;DC 10A/24V
- Blade speed: 1RPM
- Withstand voltage: AC 1500V/Minute
- Operating temperature: -20~80℃(High temperature type 400℃)

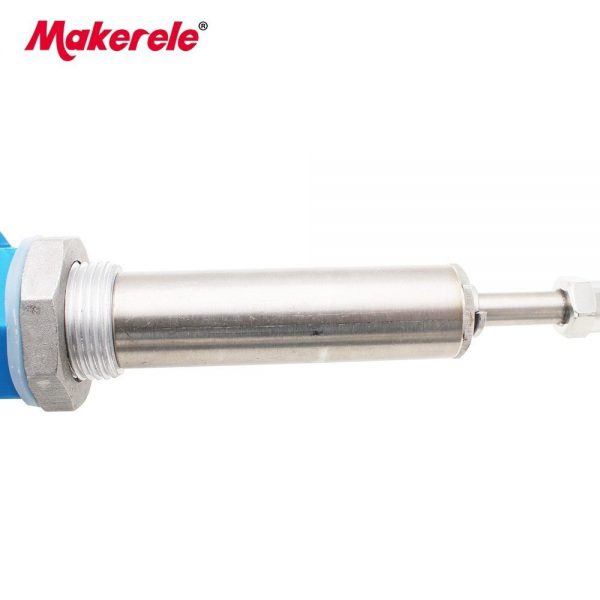

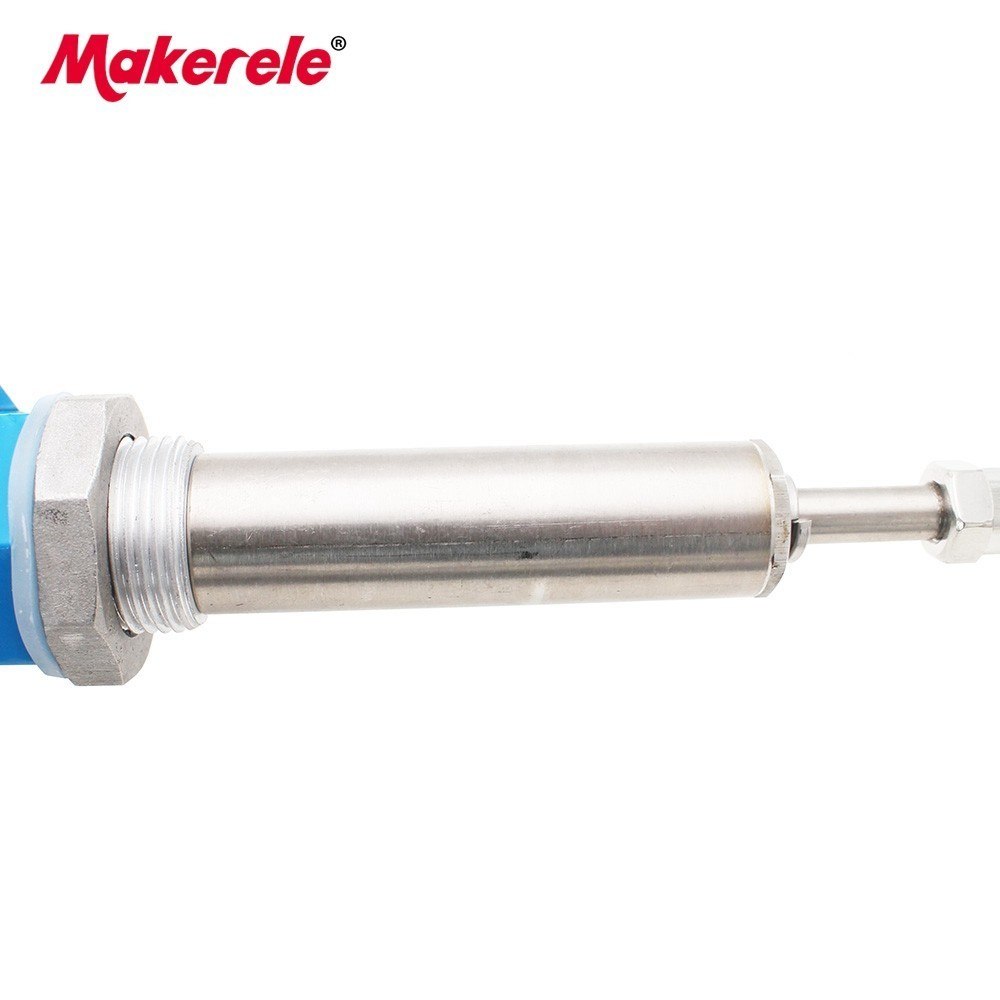

- Shaft protection tube length: 100mm
- Type: Thread Type with Shaft protection

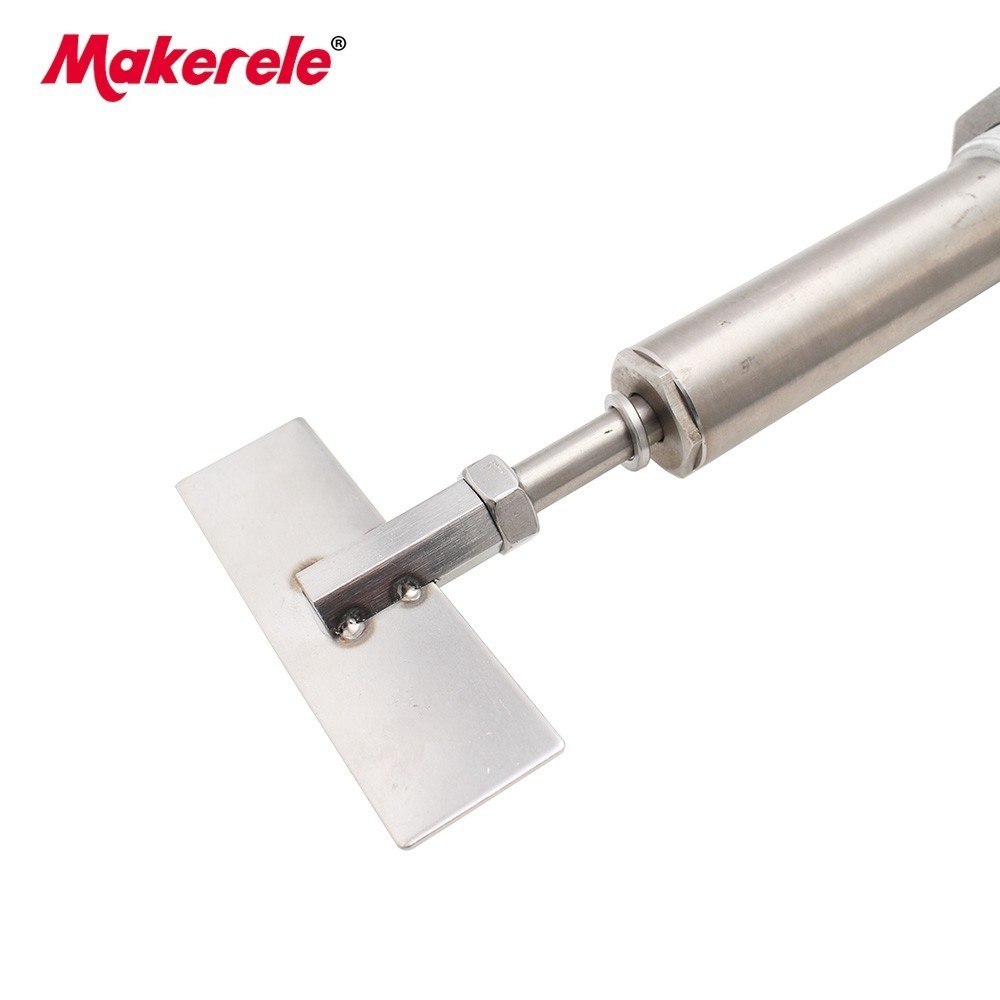

This product standard with B paddle, if you want other paddle (A, B, C, D, X) please leave a message.
General description:
MKZXK-20 Series full resistance rotary material level switch is a series of resistance rotary material level switches which are widely used at the moment. It is a material level switch based on the principle of machines to measure object height. In cement production, cement, concrete products, new wall, plastic production, chemical industry, food, feed, medicine, environmental protection and many other production areas.
It is widely used:
MKZXK-20B is the engine to drive the blade. When the measured medium rises to the position of the blade, the blade is stopped by the dielectric barrier, and then the contact signal of the opening (closed) and closed (open circuit) is output by the chain reaction of the related mechanical mechanism, And the mechanical structure is automatically reset after the medium drops from the blade. The blade continues to run to resume the detection state.
Common voltage:
220VAC, 24VDC
