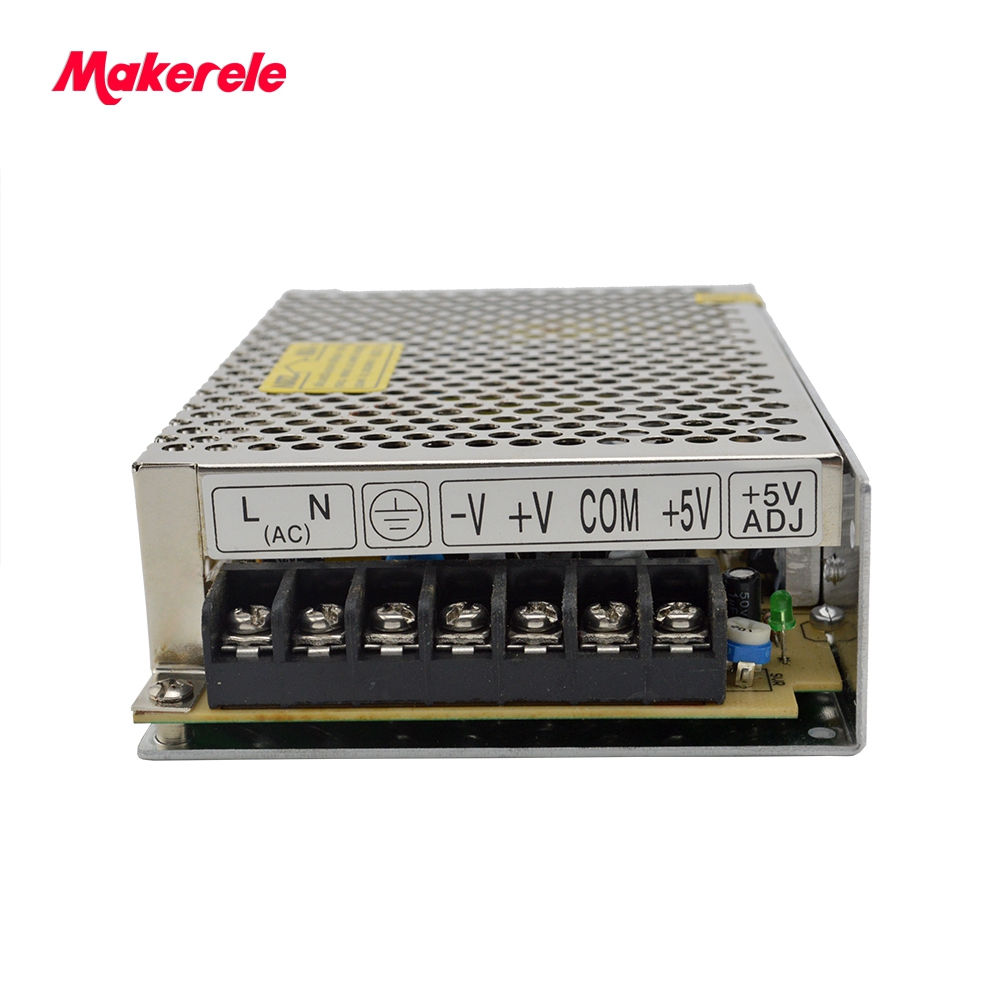

Triple output power supply 60w 5V 15V -15V 5A 2A 0.5A power suply switching T-60C ac dc converter good quality
200 in stock
- Brand Name: makerele
- Output Power: 51 – 100W
- Output Type: Triple
- Model Number: T-60C
- Output Frequency: 47~63Hz
- is_customized: Yes
- Output Current: 5A 2A 0.5A
- Input Voltage: 85~264VAC 120~370VDC
- DC Voltage: 5V15V -15V
- Rated Power: 60W
- AC Current: 1.6A/115 V0.8A/ 230 V
- Voltage Tolerance: 2% 6% 6%
- Voltage Adj. Range: CH1: -5%, +10%
- Inrush Current: Cold start 30A/115V 60A/230V
- Efficiency: 72%
- Safety Standard: Design refer to UL 1012
- Setup, Rise, Hold Up Time: 300ms,50ms,10ms/230VAC 800ms,50ms,10ms/115VAC at full load
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
Model T-60A T-60B T-60C
Output number CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3
DC Voltage 5V 12V -5V 5V 12V -12V 5V 15v -15V
Rated Current 5A 2.5A 0.5A 5A 2.5A 0.5A 5A 2A 0.5A
Current Range 0.5-7A 0.2-3.5A 0-1A 0.5-7A 0.2-3.5A 0-1A 0.5-7A 0.2-3A 0-1A
Rated Power 57.5W 57.5W 57.5W 61W 61W 61W 62.5W 62.5W 62.5W
Ripple & Noise 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p
Voltage Adj. Range CH1: -5%, +10% CH1: -5%, +10% CH1: -5%, +10%
Voltage Tolerance 2% 6% 6% 2% 6% 6% 2% 6% 6%
Setup, Rise, Hold Up Time 300ms,50ms,10ms/230VAC 800ms,50ms,10ms/115VAC at full load
Voltage Range 85~264VAC 47-63Hz; 120~370VDC
AC Current 2A/115V 1A/230V
Inrush Current Cold start 30A/115V 60A/230V
Leakage Current <3.5mA/240VAC
Over Load 105%~150%
Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed
Over Voltage 115%~135%
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Working Temp., Humidity -10C~+60C; 20%~90%RH
Storage Temp., Humidity -20C~+85C; 10%~95%RH
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Safety Standard Design refer to UL1012,UL60950, TUVEN60950
EMC Standard Design refer to EN55022,EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47 parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation
- 1. Item will be shipped within 5-7 business days.
- 2. Delivery Time:
- —-Via Air: Generally 1-3 working days
- —-Via Express: Generally 3-7 working days.
- —-Via China Post Air Mail: Generally 15-25 working days
- —-Via Sea: According to the order.
- 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies?
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
What about production process of switching power supply?
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:
Yueqing Maker electric Co., Ltd. concentrates on Import and Export.
Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
