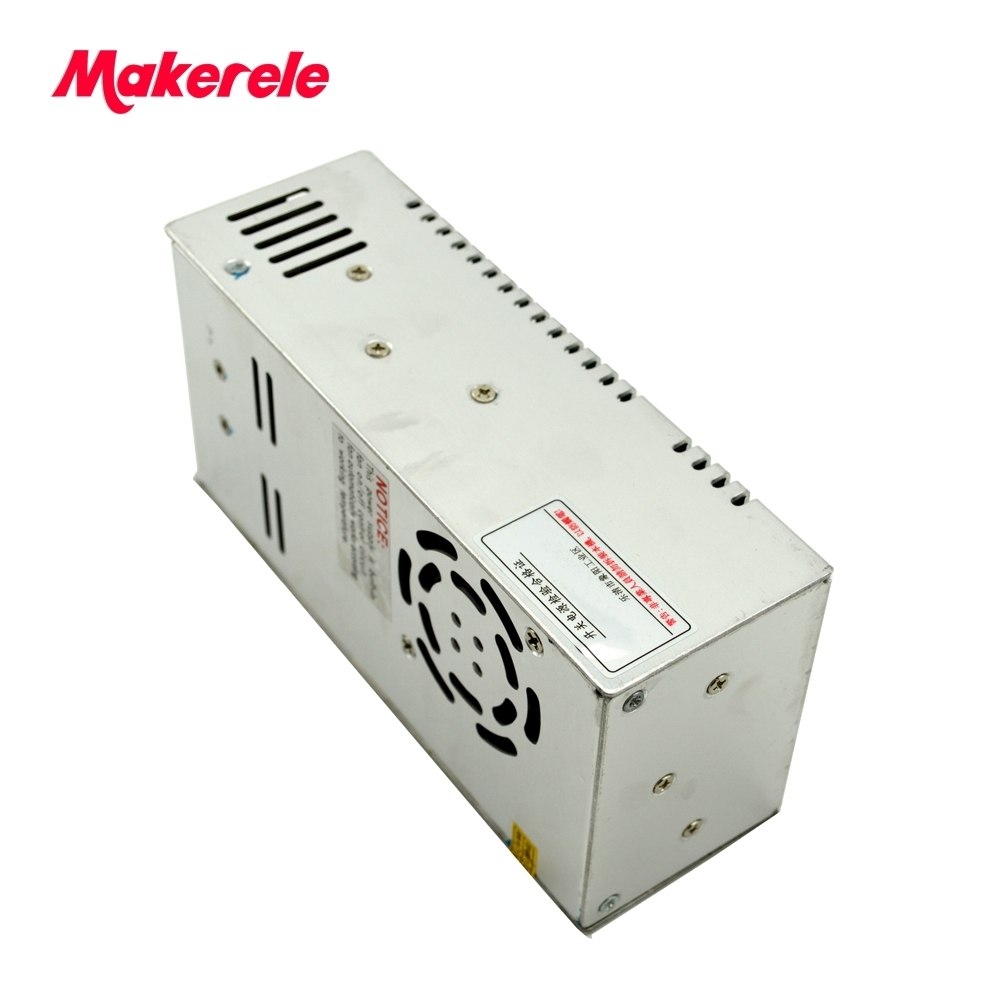

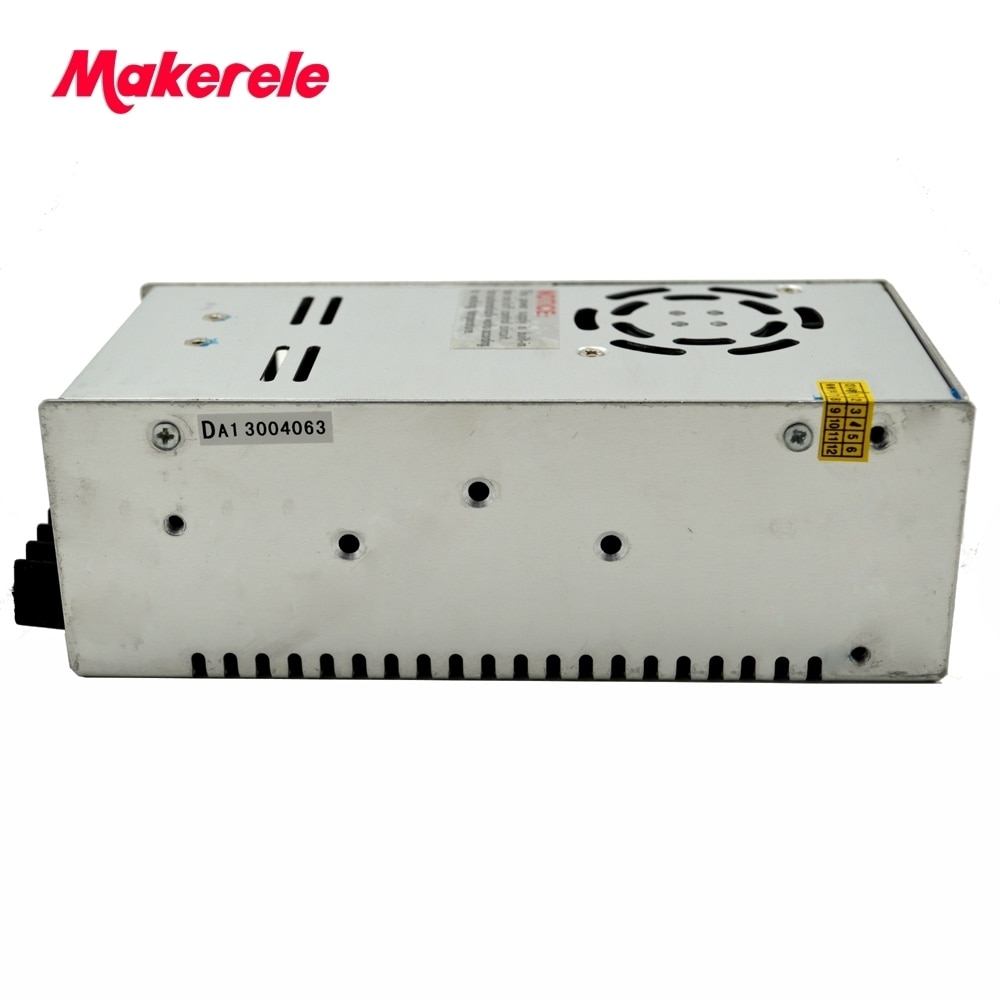

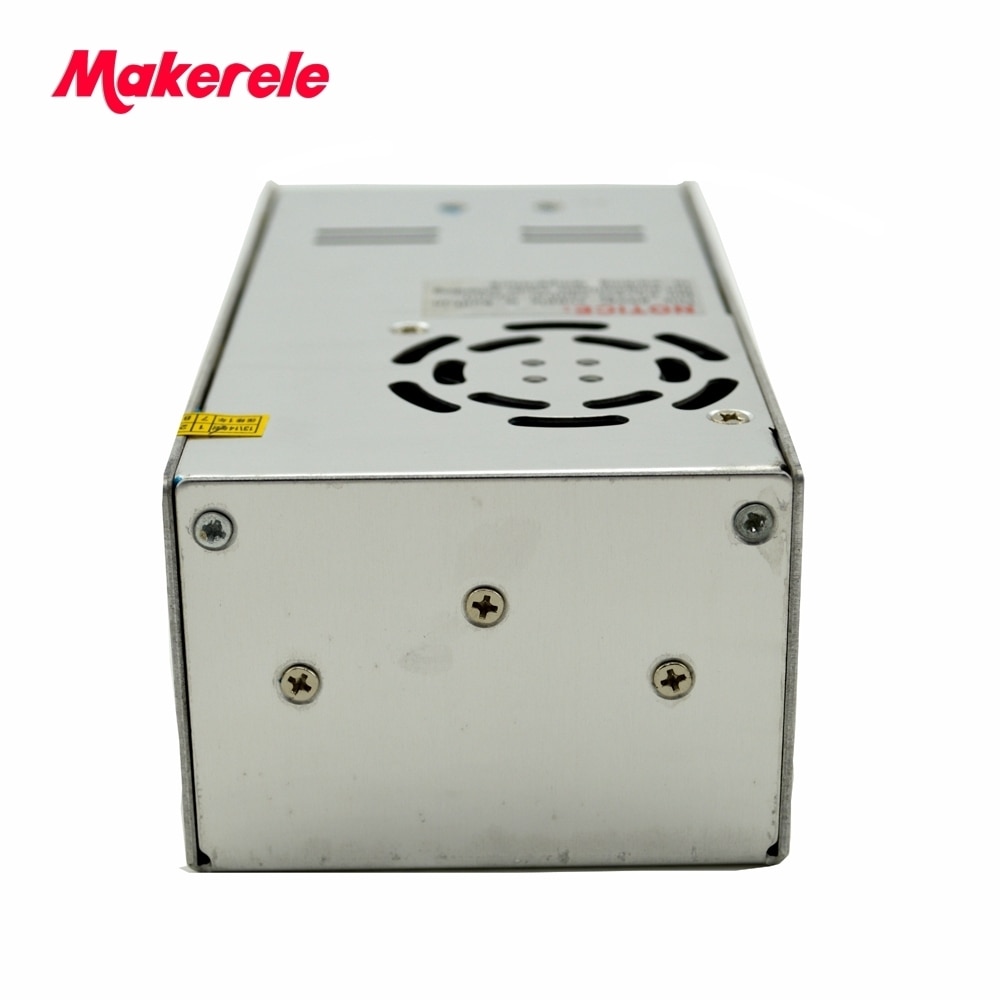

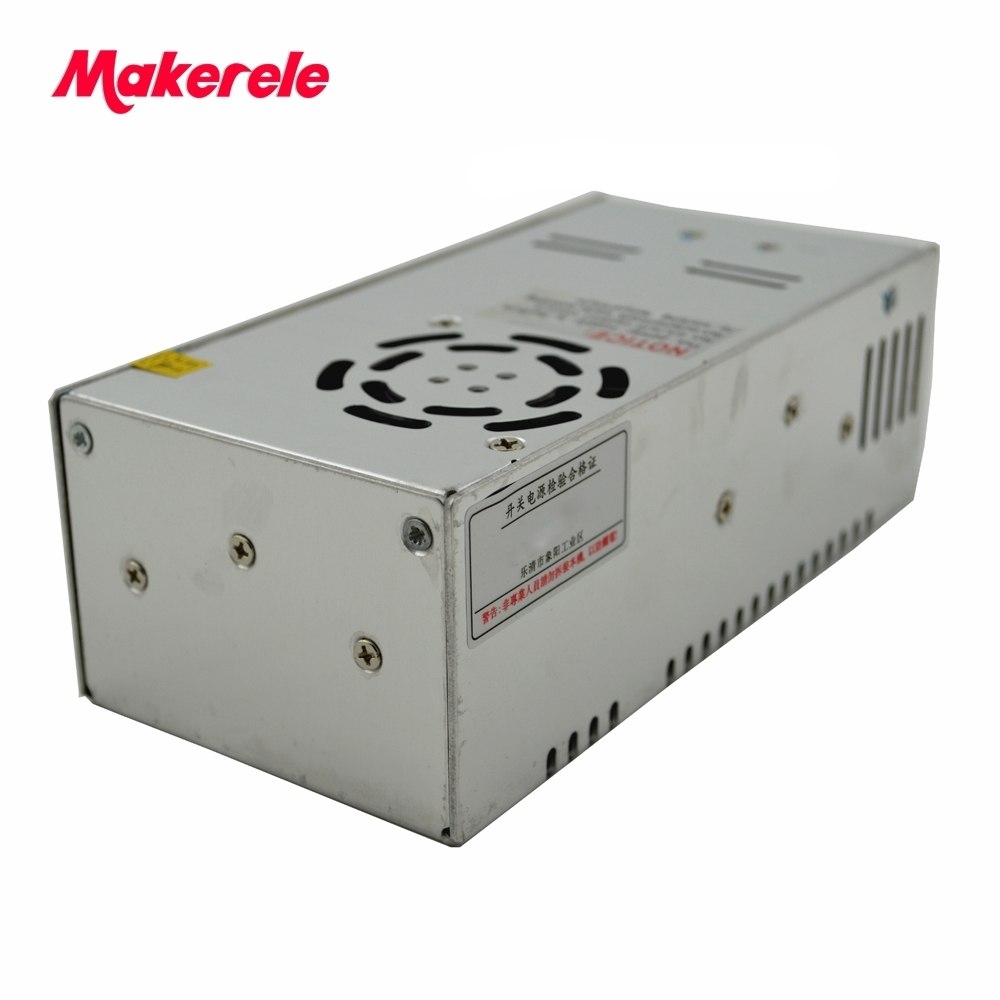

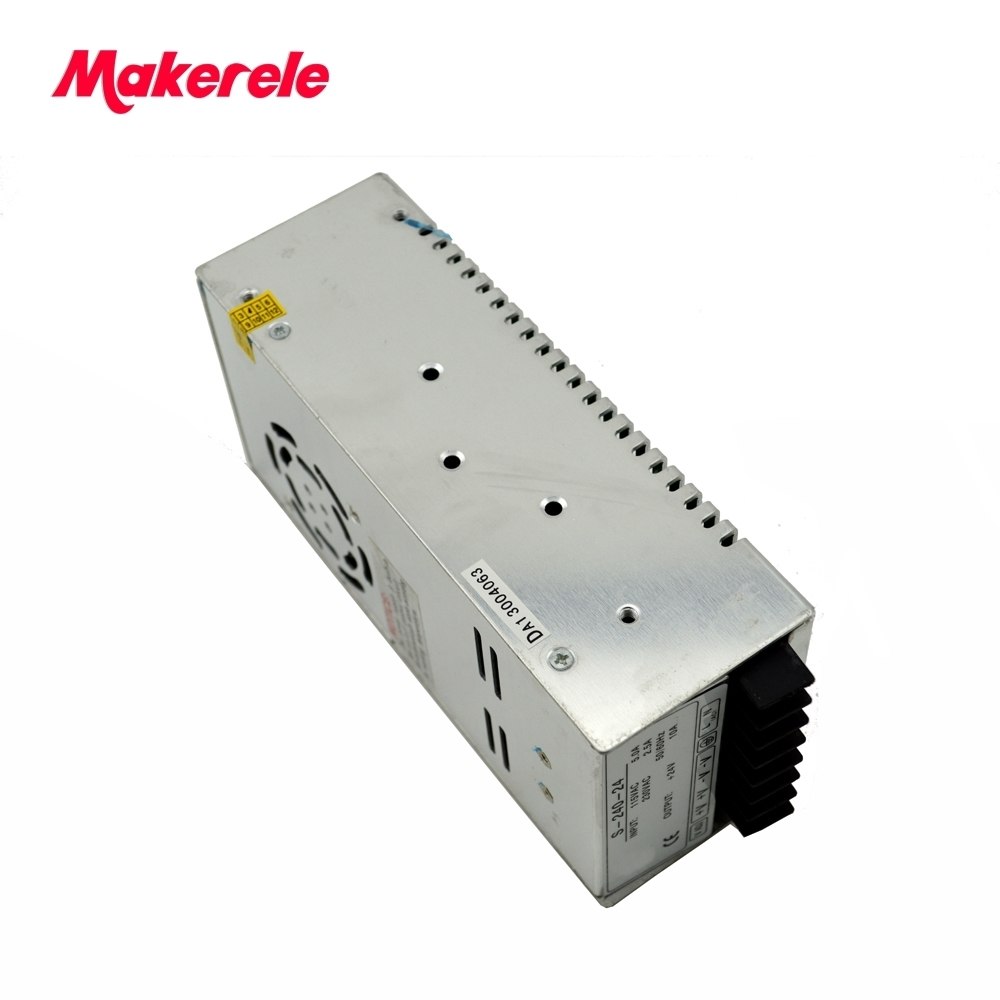

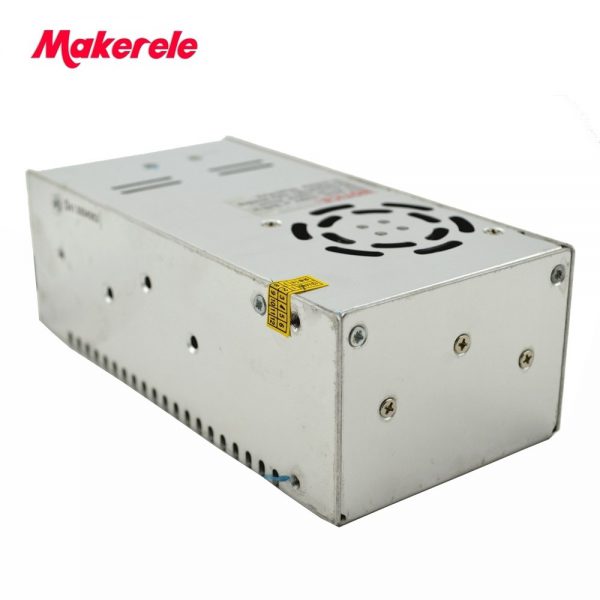

universal 0-43/20/10/5A 240w switching power supply adapter led strip light transformer 12v.. free shipping china post
$42.13 – $45.18
Description
- Brand Name: makerele
- Output Power: 201 – 300W
- Output Type: Single
- Model Number: S-240-5/12/24/48
- Output Frequency: 47~63Hz
- Output Current: 0-43/20/10/5A
- is_customized: Yes
- Input Voltage: 90-132 VAC/180-264VAC
- Rated Power: 240W
- Certification: CE ROHS
- Voltage Range: 90-132 VAC/180-264VAC
- Over Load: 115%-135%
- Inrush Current: 50A/115V50A/230V
- Setup,Rise,Hold Time: 200ms,100ms,20ms at full load
- DC Adjustment Range: 10.8~13.2V
- Efficiency: 80%
|
||||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
|
Notice:
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
Model S-240-5 S-240-7.5 S-240-12 S-240-15 S-240-24 S-240-30 S-240-48
DC output voltage 5V 7.5V 12V 15V 24V 30V 48V
Output voltage range 2% 2% 1% 1% 1% 1% 1%
Rated output current 43A 30A 20A 16A 10A 8A 5A
Output current ranqe 0-43A 0-40A 0-20A 0-16A 0-10A 0-8A 0-5A
Wave and noise 75mVp-p 75mVp-p 75mVp-p 75mVp-p 75mVp-p 75mVp-p 75mVp-p
Inlet stability 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%
Load stability 1% 1% 0.5% 0.5% 0.5% 0.5% 0.5%
DC output power 215W 225W 240W 240W 240W 240W 240W
Efficiency 80% 80% 84% 84% 87% 85% 87%
Adjustable range
for DC voltage 4.75~5.5V 6-9V 10.8~13.2V 13.5~16.5V 21.6~26.4V 27-33V 21.6~26.4V
INPUT
AC input voltage range 170~264VAC 47~63Hz,248~370VDC
Input current 4.2A/115V 2.2A/230V
AC Inrush current Cold-start current 30A/115V 60A/230V
Leakage current <0.5mA/240VAC
PROTECTION
Overload proctection 105%-150% Tvee:oulsina hiccup shutdown Reset: auto recoverv
Over-voltage protection 120%-140%
ENVIRONMENT
Working temperature and humidi -10C~+60C,20%~90%RH
Store temperature and humidity -20C~+85C,10%~95%RH
Temperature coefficient 0.03%/C(0~50C)
Setup, rise, hold up time 200ms,100ms,20ms
Vibration 10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes
SAFETY
Withstand voltage Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA
Isolation resistance input and output internahlnput and enclosure,Output and enclosure:500VDC/100M
STANDARD
Safety standards Meet UL 1012 requirement(Not apply for the mark)
EMC standards Meet FCC PART15 J Conduction class A
OTHERS
Weight:1.21Kgs
Packing:12pcs/15.32kg/box. According to your order,we can provide different cartons for you.
Product Size:
- 1. Item will be shipped within 5-7 business days.
- 2. Delivery Time:
- —-Via Air: Generally 1-3 working days
- —-Via Express: Generally 3-7 working days.
- —-Via China Post Air Mail: Generally 15-25 working days
- —-Via Sea: According to the order.
- 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- OEM/ODM
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies?
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
- What about production process of switching power supply?
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.We owns followed subsidiary corporations:
Yueqing Maker electric Co., Ltd. concentrates on Import and Export.
Yueqing MINGWEI Switching power supply FactoryMore than 20 years of production experience,focus on production and research and development of switch power supply.
|
