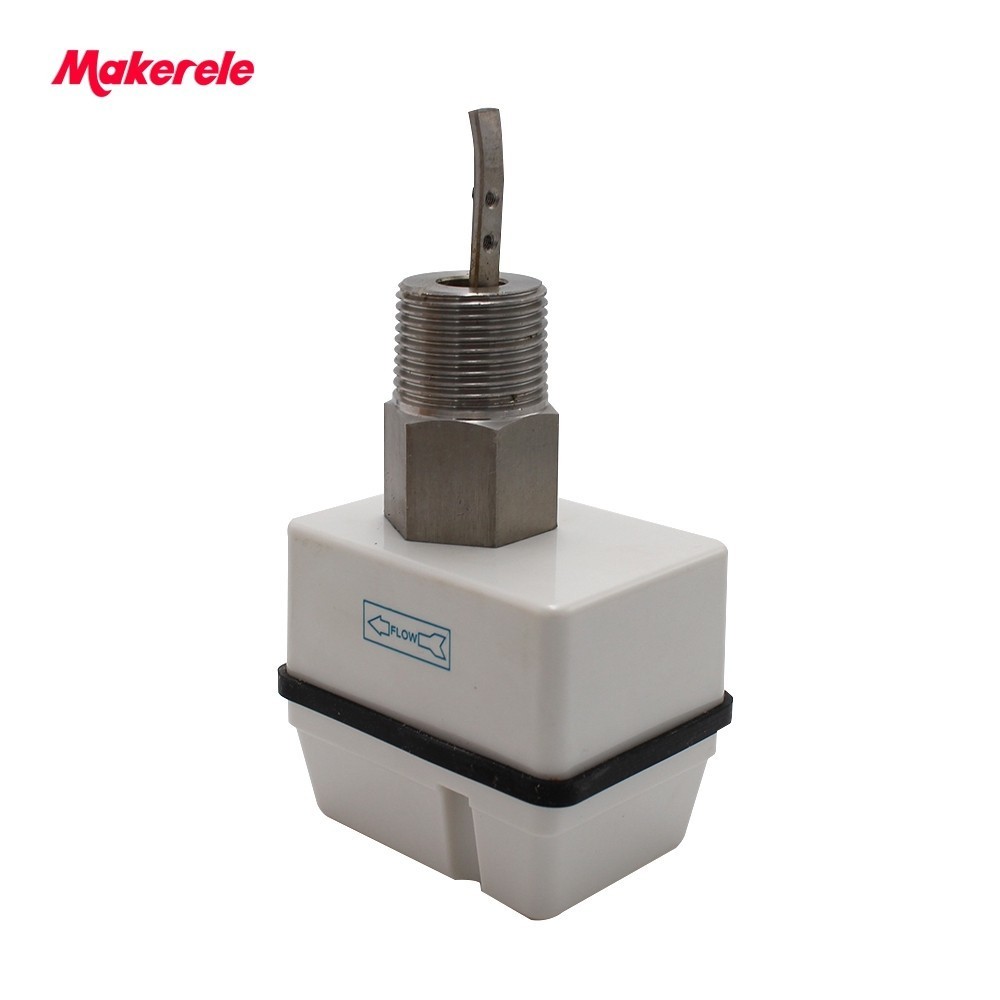

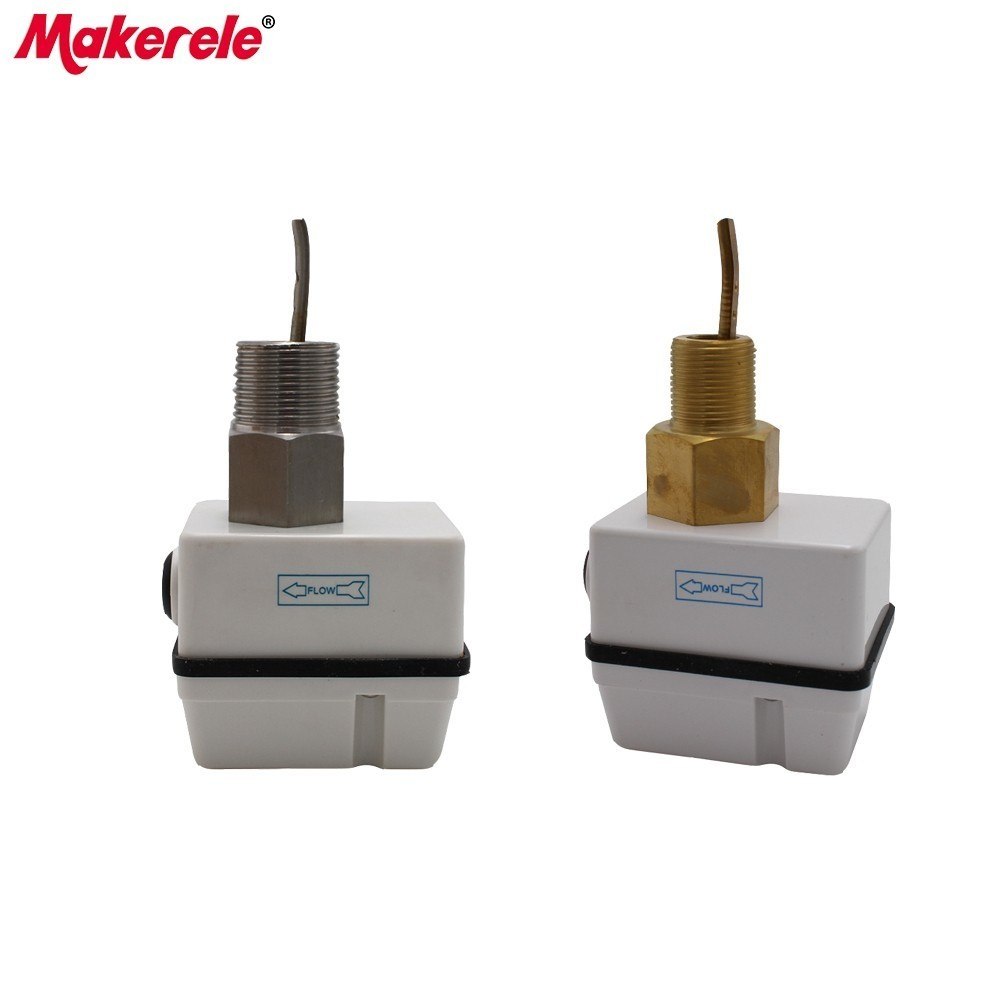

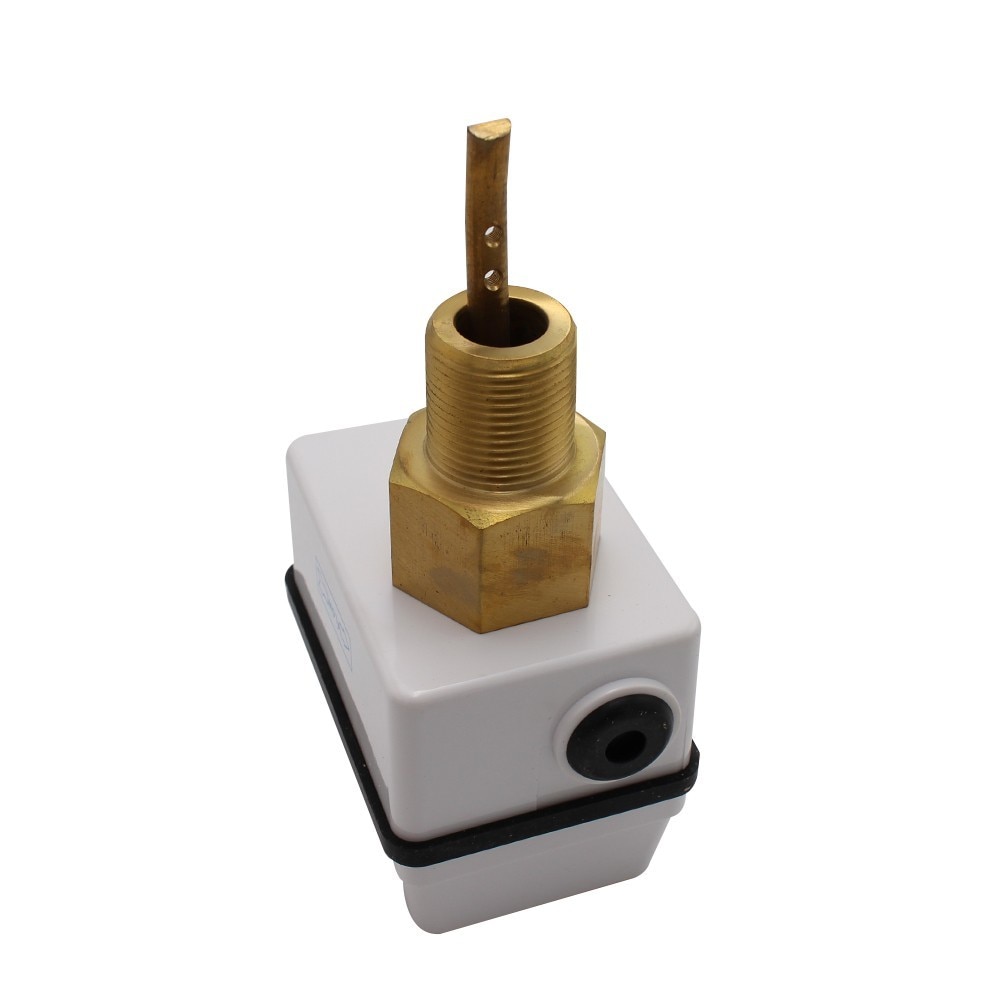

Brass/Stainless Paddle Flow Switches For Gas/Liquid Flow Sensor Air Conditioner Parts AC 250V 15A Liquid Flow Switch MK-FS01/2
$35.81 – $66.51
Description
- Brand Name: makerele
- DIY Supplies: Plumbing
- Model Number: Brass/stainless flow switch
- Place of Origin: Zhejiang China (Mainland)
- Flow switch Max working voltage: 1.5Mpa
- Flow switch Contact endurance: 100000 times
- Flow switch Max.Working Pressure: 13.5bar
- Flow switch certification: CE approved flow switch
Paddle Flow switch connector
Flow switch color:Red, Gold Tone flow switch
1.Paddle flow switches used for gas and liquid
2..Quick respond,high accuracy
3.Customized
Brass Paddle flow switch feature
1, With extremely small pressure loss
2, Good repeatability
3,With high anti-stain ability
4,Accurate switch setup through knob
5,The mechanical part isolate with electric part totally .

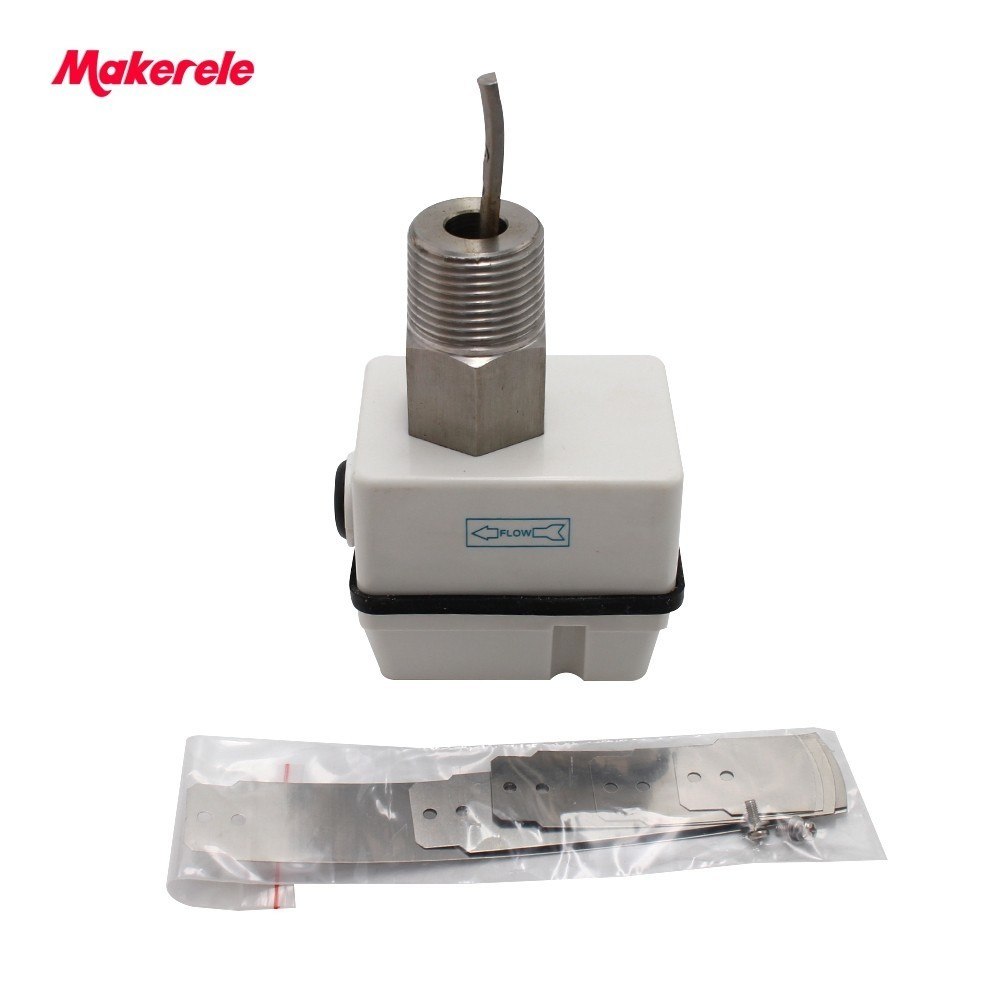

6,It will provide 5 kinds of baffle. When small flow rate in big diameter pipe or the pipe is not fulfill it , user can change it according to the field situation . Also , it make one type flow switch to suit for different size pipe .
Brass Paddle flow switch specification
Control Type |
Paddle |
Maximum Static Pressure |
10 / 20(kg/Cm*m) |
Ambient Temperature Limets |
0C – 60C |
Maximum Liquid Temperature |
100C |
Electrical Switch |
SPDT RATING:220VAC,8A |
Connection |
screw terminals |
Case |
Plastic cover witch 1/2 couduit opening |
Brass Paddle flow switch principle
Brass Paddle flow switch mounting
Mounting
Flow switch be mountedin a horizontal pipe line or vertical pipeline .
Mount the instrument in a section of pipe where there is a straight run of atleast 5pipe diameter on each side of the flow swhtch
Adjustment
Note :sealed adjustments are not field addjustable .
Adjust Setting
1,Remove switch cover
2,For higher flow rater-turn range adjusting screw clockwise
3,For lower flow rater-turn range adjusting screw counter clockwise.
4,Be sure flow swtich cover is replaced before leaving job.
Packaging & Shipping
Brass Paddle flow switch shipping
-
1. Item will be shipped within 5-7 business days.
-
2. Delivery Time:
-
—-Via Air: Generally 1-3 working days
-
—-Via Express: Generally 3-7 working days.
-
—-Via China Post Air Mail: Generally 15-25 working days
-
—-Via Sea: According to the order.
-
3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
Our advantages
1. A professional flow switch manufacturer ;
2. High reliability and good stability, through the use of test from 3000 customers;
3. Complete certification, CE, RoHS, EMC etc., which small factory often lack of;
4. After-sale guaranteed, real integrity transactions, 100% replace the faulty items;
5. Flexible and fast delivery.
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.
-
Custom Product Design
-
OEM/ODM
-
Profession in export service from Maker Electric
-
High quality Product, Affordable Price
Q:The application of flow switch?
A:Used for gas and liquid . Suitable for industrial automation / mechanical equipment/compressed air industry /refrigeration and air conditioning .
Q:The Classification of flow switch?
A: Baffle-type flow switch, thermal type flow switch, pressure gradient flow switch.
Additional information

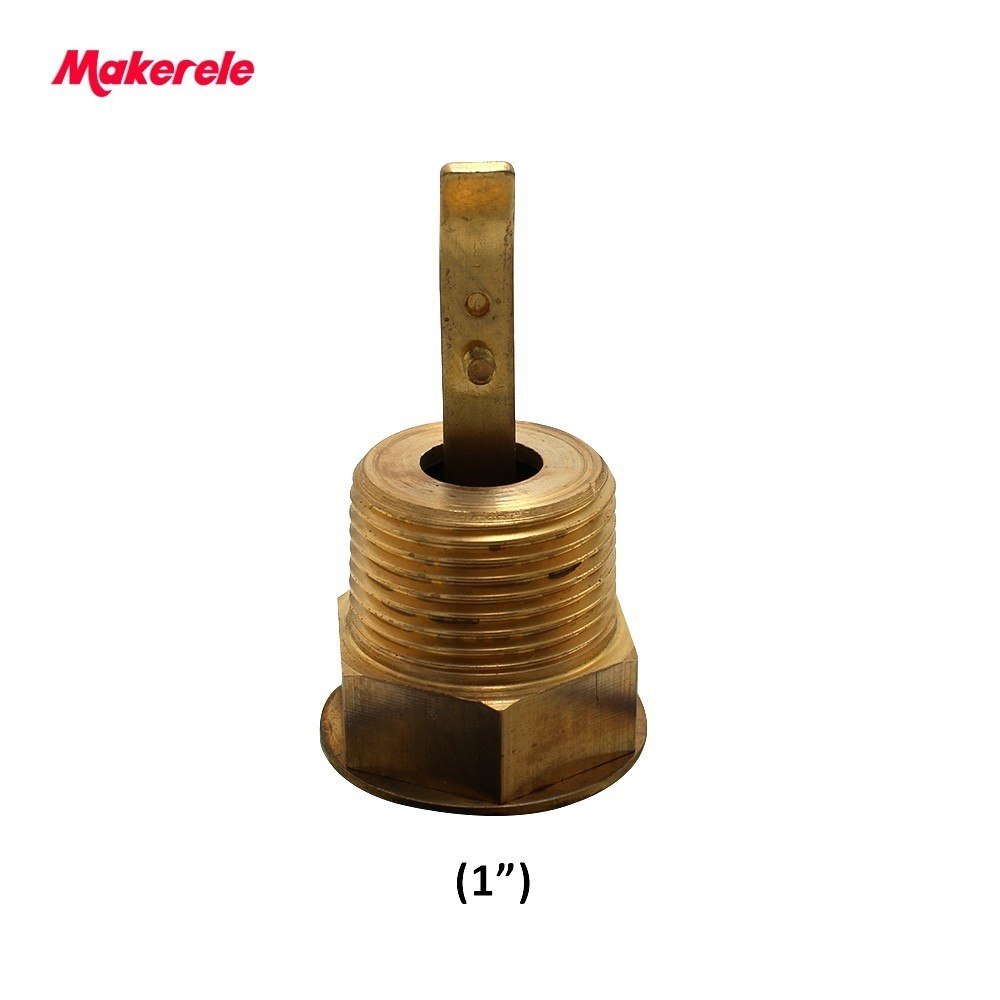

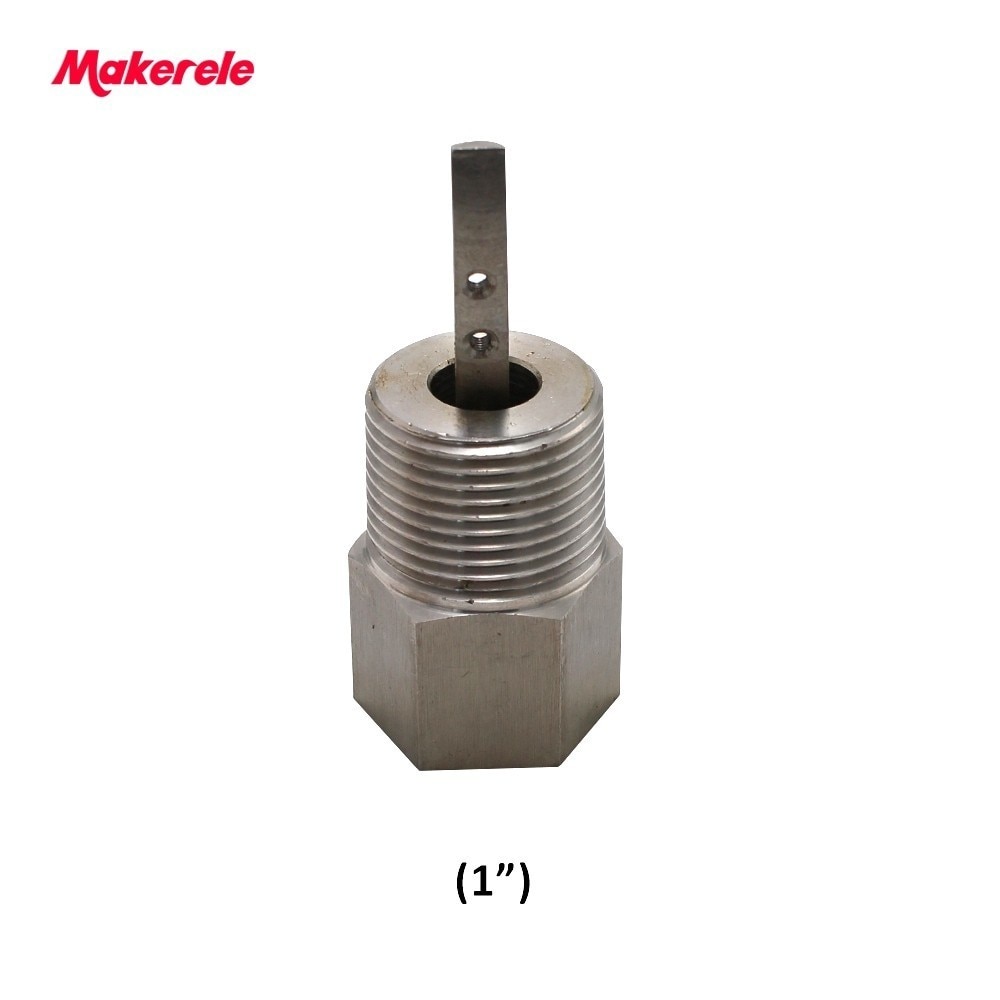

Voltage | 0.5Inch Brass, 0.5Inch Stainless, 0.75Inch Brass, 0.75Inch Stainless, 1Inch Brass, 1Inch Stainless |
---|
