China Cable Water Tank Level Float Switch MK-CFS03 4 Meter AC 250V Float Switch Cable Fluid Level Controller
$45.43
199 in stock
Description
- Brand Name: makerele
- Certification: CCC,CE,RoHS
- Warranty: 4m or customized
- Switch Type: Knob switch
- Model Number: IP 68
- Features: IP 68
- Material: Plastic
- Item Type: Switches
- Place of Origin: Zhejiang China (Mainland)
- Application: water, sewage, acid-bases liquid
- Conductor size: 3×0.5mm2 (standard) , 3×0.75mm2 ,3×1.0 mm2
|
||||||||
|
cable water tank level float switch MK-CFS03
It uses Micro Switch to make connection output.Customized length of cable.
cable water tank level float switch uses one-step shaping injection molding with substantial structure, cheap price and long lifetime. It has very good control effect for long distance, multiple level control, submerged pump or liquid with grain or block. Certainly it is also useful for normal liquid. It uses Micro Switch to make connection output. Connection point capacity 10A/250VAC can start the motor equipment directly. It can be regulated freely and easy to operate, convenient to install, safe and reliable, without maintenance, non-toxic and environment friendly. It can resist sewage so that widely used in pool in resident, factories and mines ect., and ponds, barrel, manger and pot with oil, acid and alkali as well as the vessel with high viscosity and suspended substance.
Product Name | cable water tank level float switch MK-CFS03 |
Electrical rate | 250VAC, 10(4)A/16(4)A |
Contact Mode | SPDT, NO, NC |
Working Temperature | 0~60C(PVC cable), 0~80C(Rubber cable) |
Protection grade | IP 68 |
Float Material | PP/PVC |
Application | water, sewage, acid-bases liquid |
Working Pressure | 0.5Mpa |
Cable | Material: PVC/rubber Length: 4m(standard); length could be customized Conductor size: 3×0.5mm2 (standard) 3×0.75mm2 3×1.0 mm2 |
Installation Method | throw-in type vertical installation |
Â
Â
Â
Â
Â
Â
Â

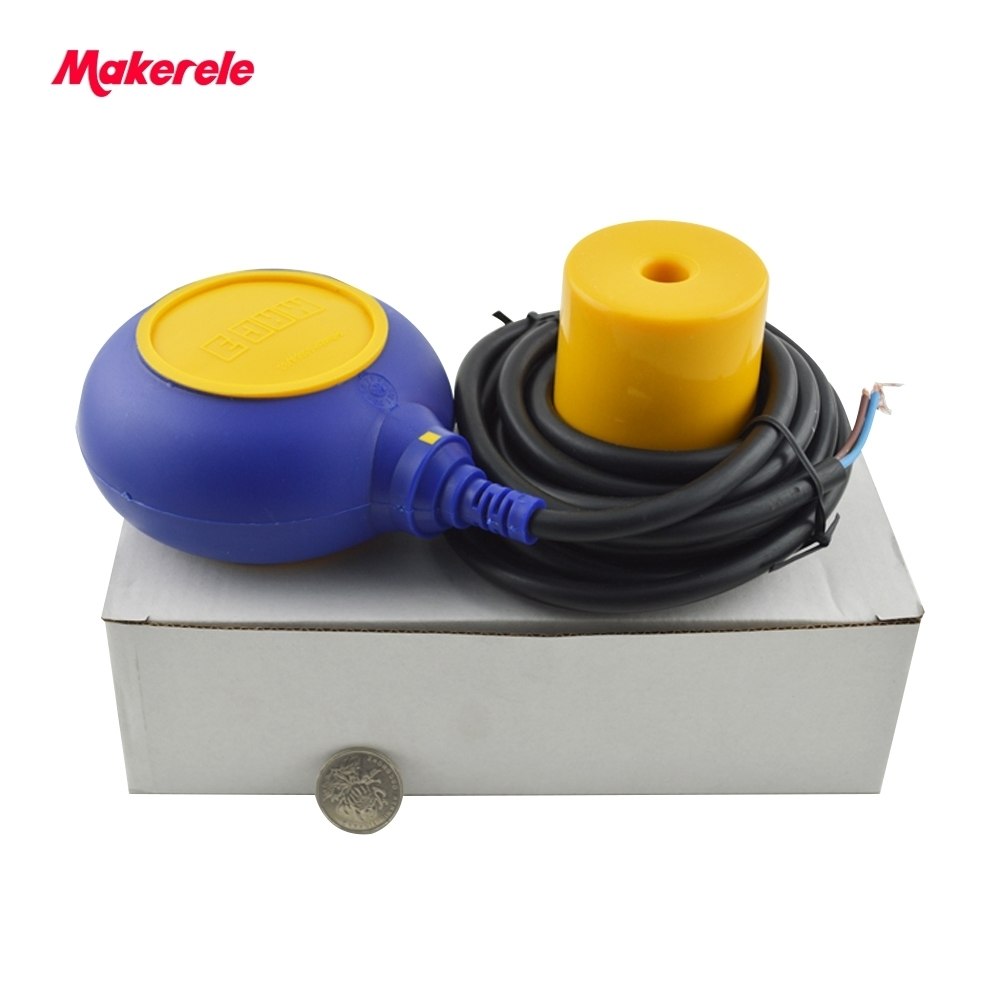

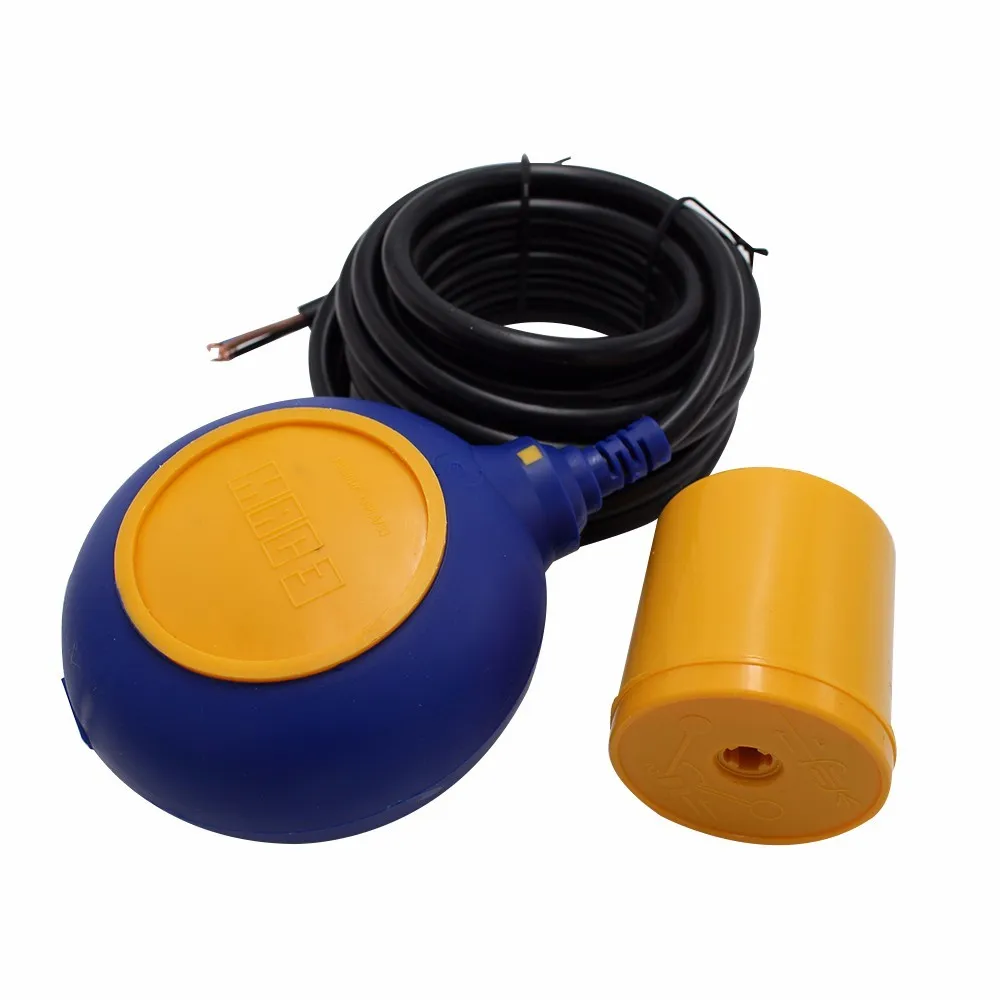

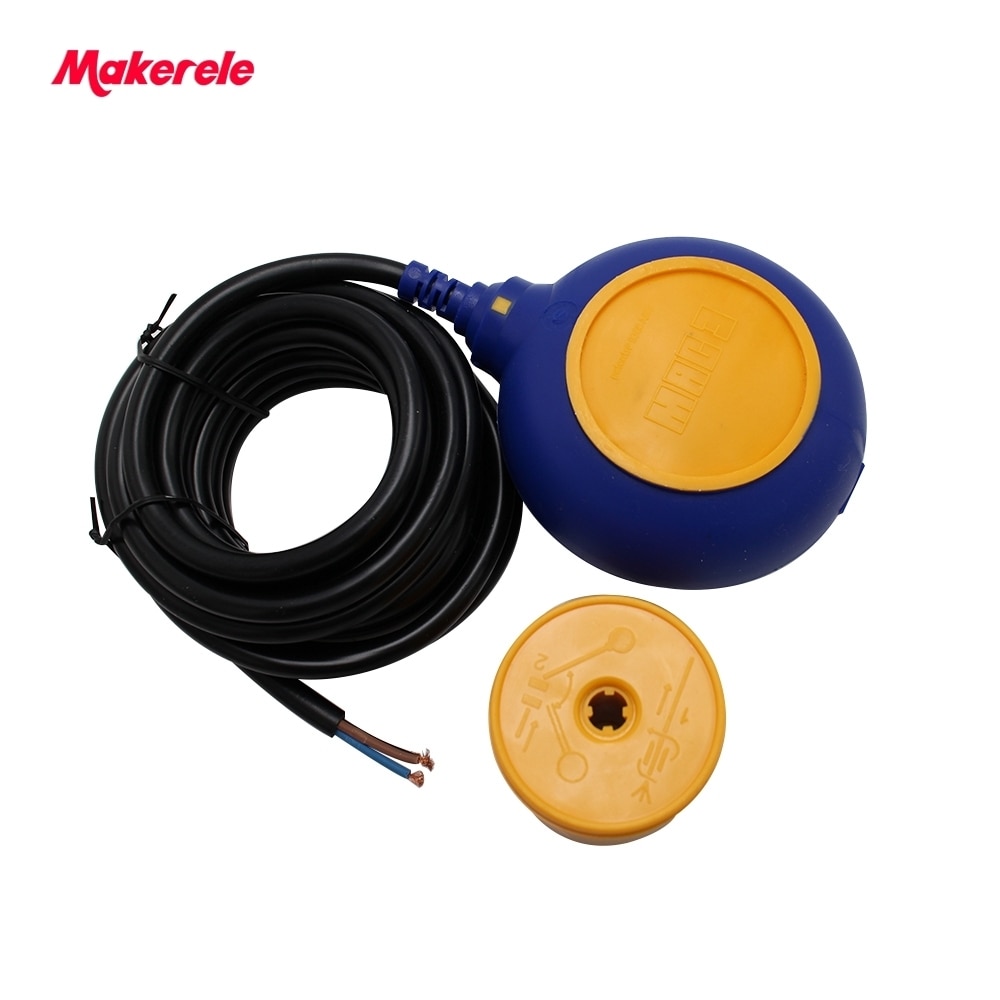

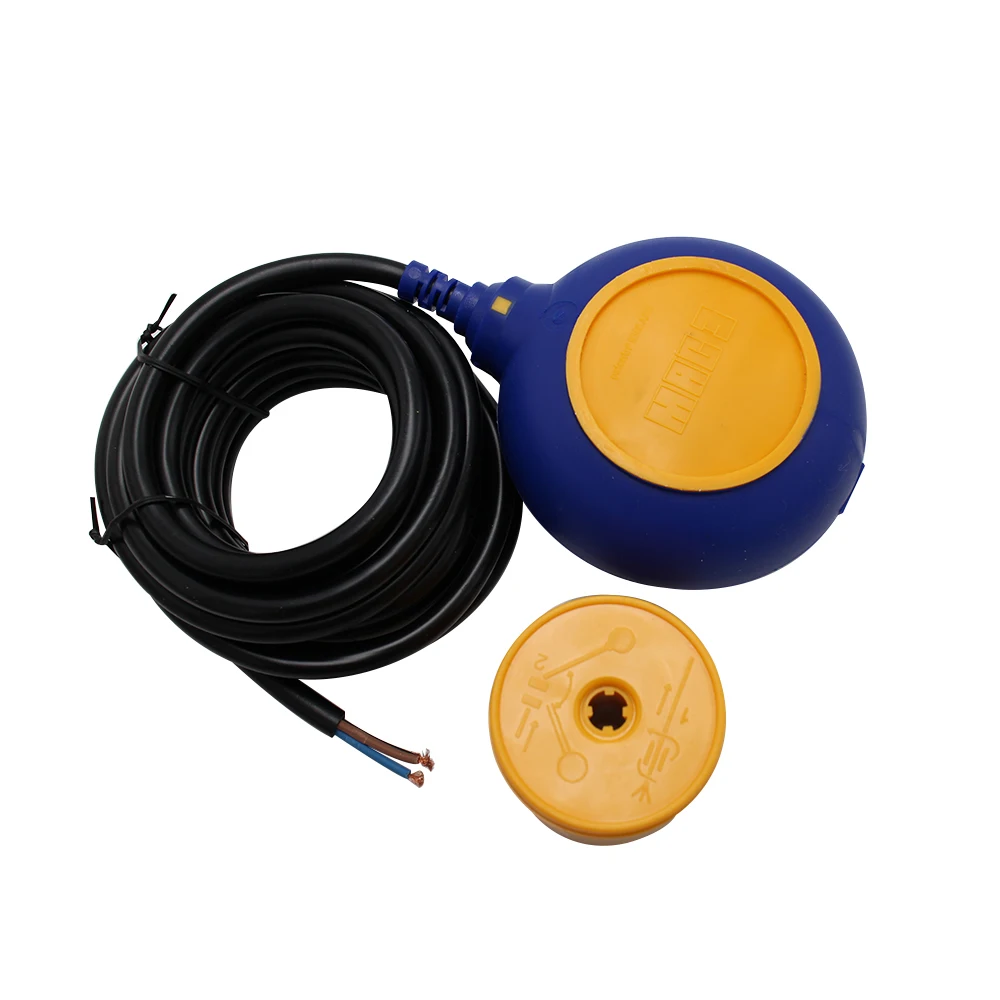

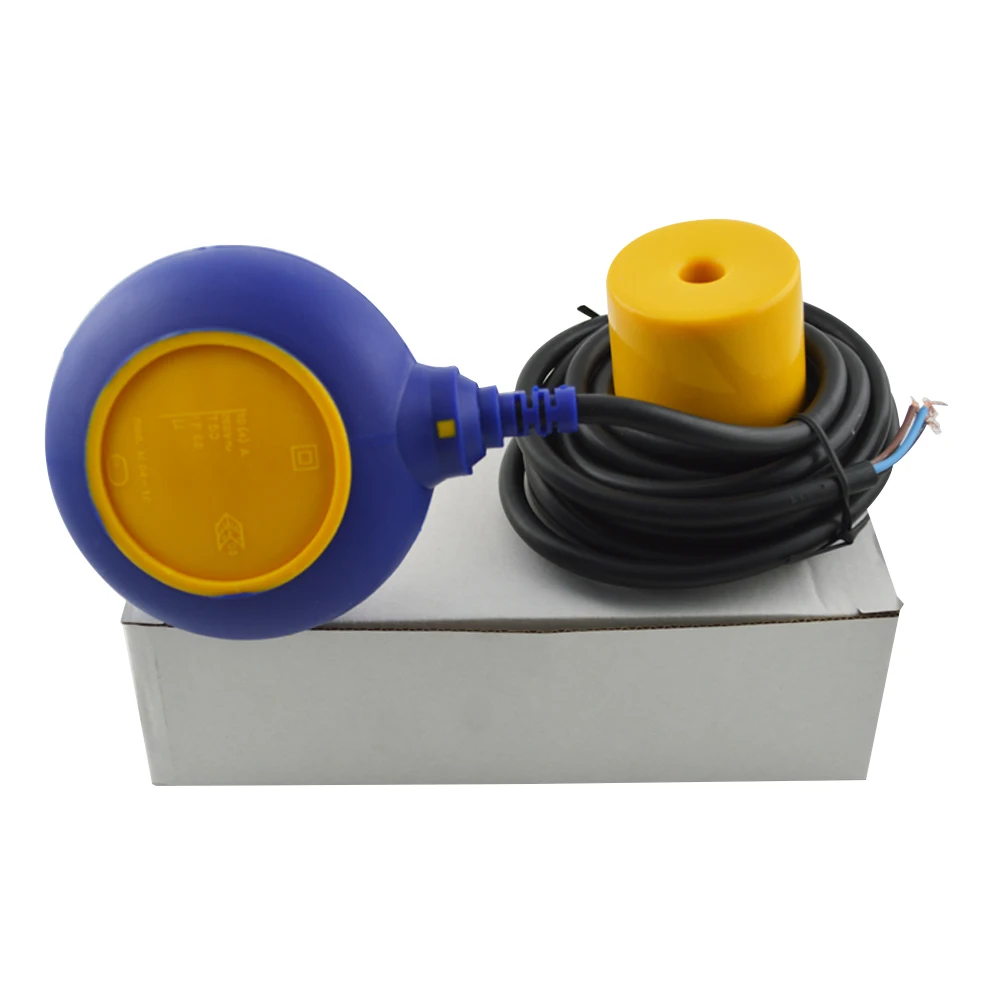

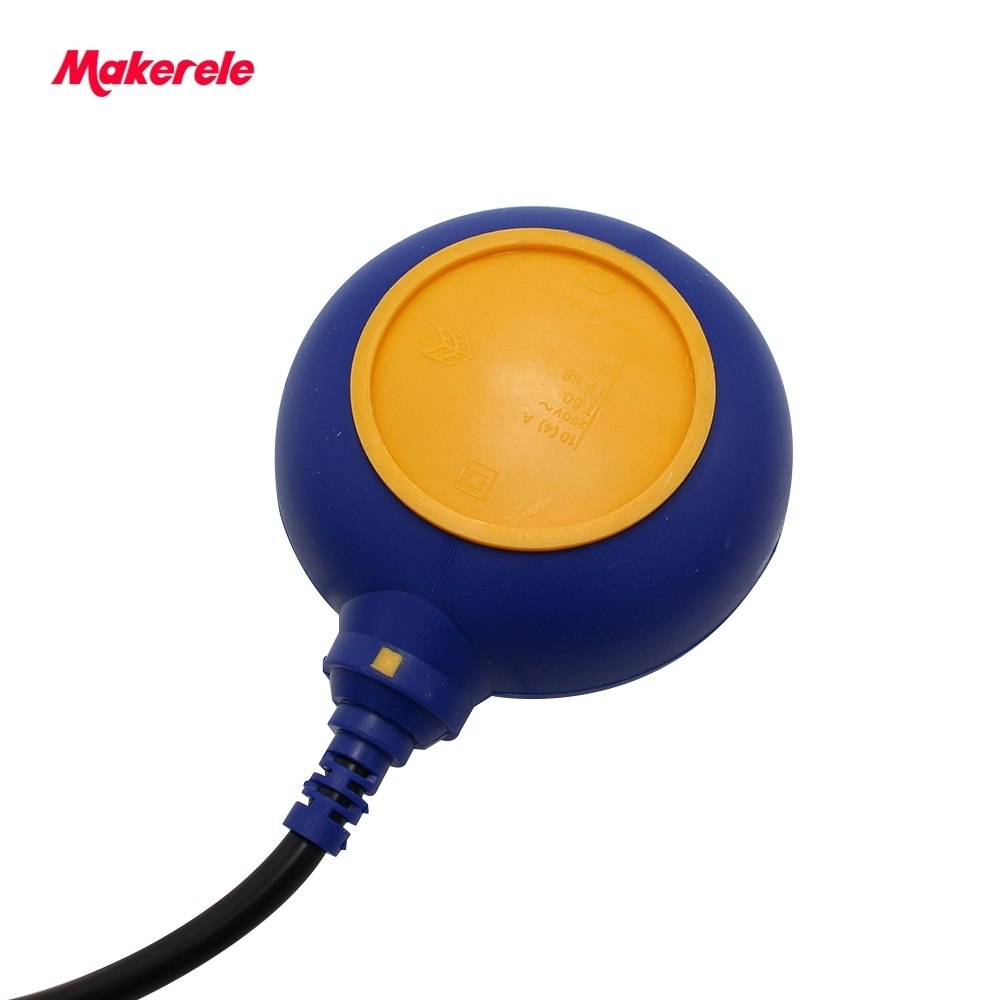

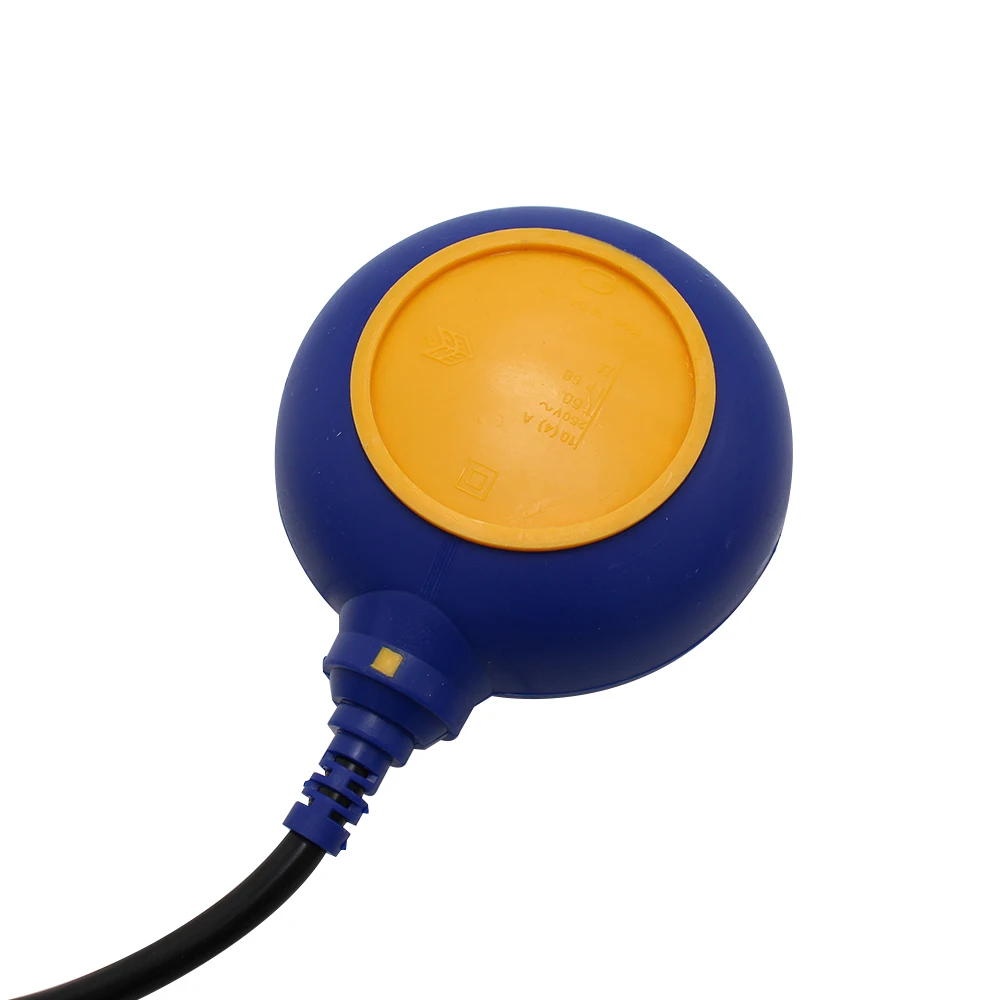

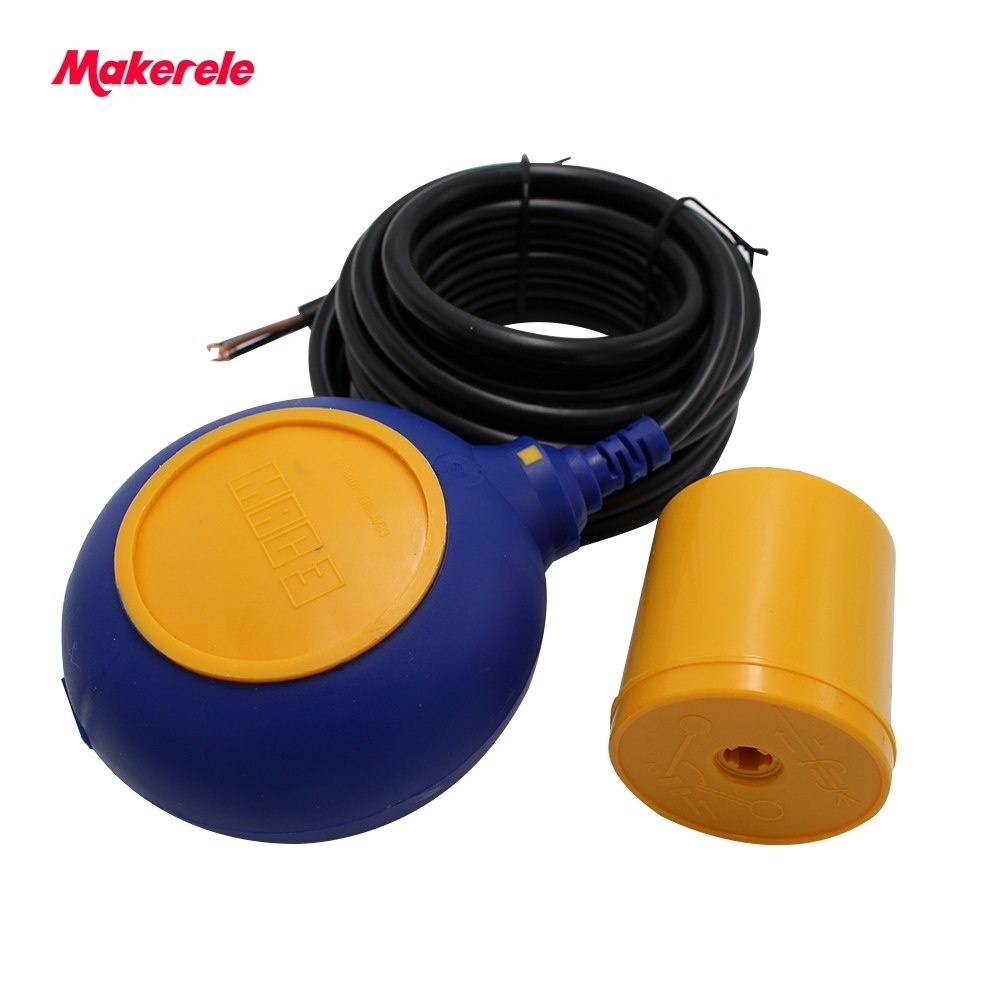

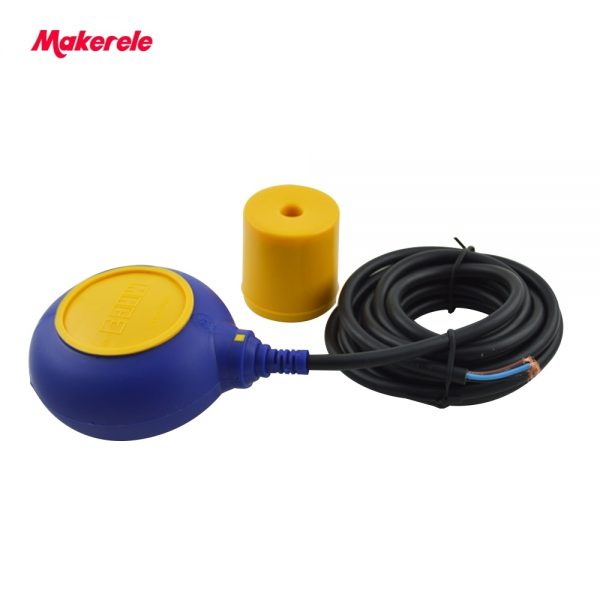

cable water tank level float switch pictures:
- 1. Item will be shipped within 5-7 business days.
- 2. Delivery Time:
- —-Via Air: Generally 1-3 working days
- —-Via Express: Generally 3-7 working days.
- —-Via China Post Air Mail: Generally 15-25 working days
- —-Via Sea: According to the order.
- 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.
- Custom Product Design
- OEM/ODM
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
What about Float Switch?
A float switch is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices.
Float switches range from small to large and may be as simple as a mercury switch inside a hinged float or as complex as a series of optical or conductance sensors producing discrete outputs as the liquid reaches many different levels within the tank. Perhaps the most common type of float switch is simply a float raising a rod that actuates a microswitch.
