- Brand Name: makerele
- Output Power: 1 – 50W
- Output Type: Single
- Model Number: MDR-20
- Output Frequency: 47~63Hz
- is_customized: Yes
- Output Current: 1-3A
- Input Voltage: 88~264VAC 47~63Hz; 124~370VDC
- Size: 22.5*90*100mm
- Rated Power: 15/20/24W
- DC Voltage: 5/12/15/24V
- Current Range: 0-3A
- Voltage Adj. Range: -8%,+10%
- Voltage Tolerance: 1%
- AC Current: 0.05A/115V 0.35A/ 230V
- Inrush Current: Cold start 20A/115V 40A/230V
- Ripple & Noise: 150mVp-p
Withstand Voltage:I/P-O/P: 3KVAC

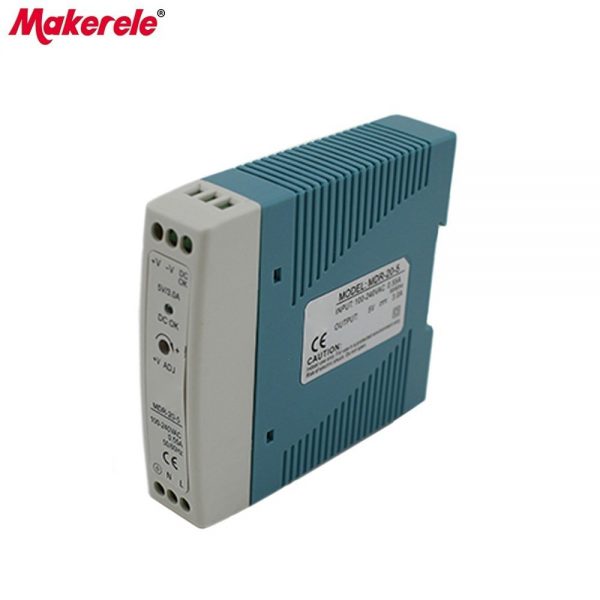

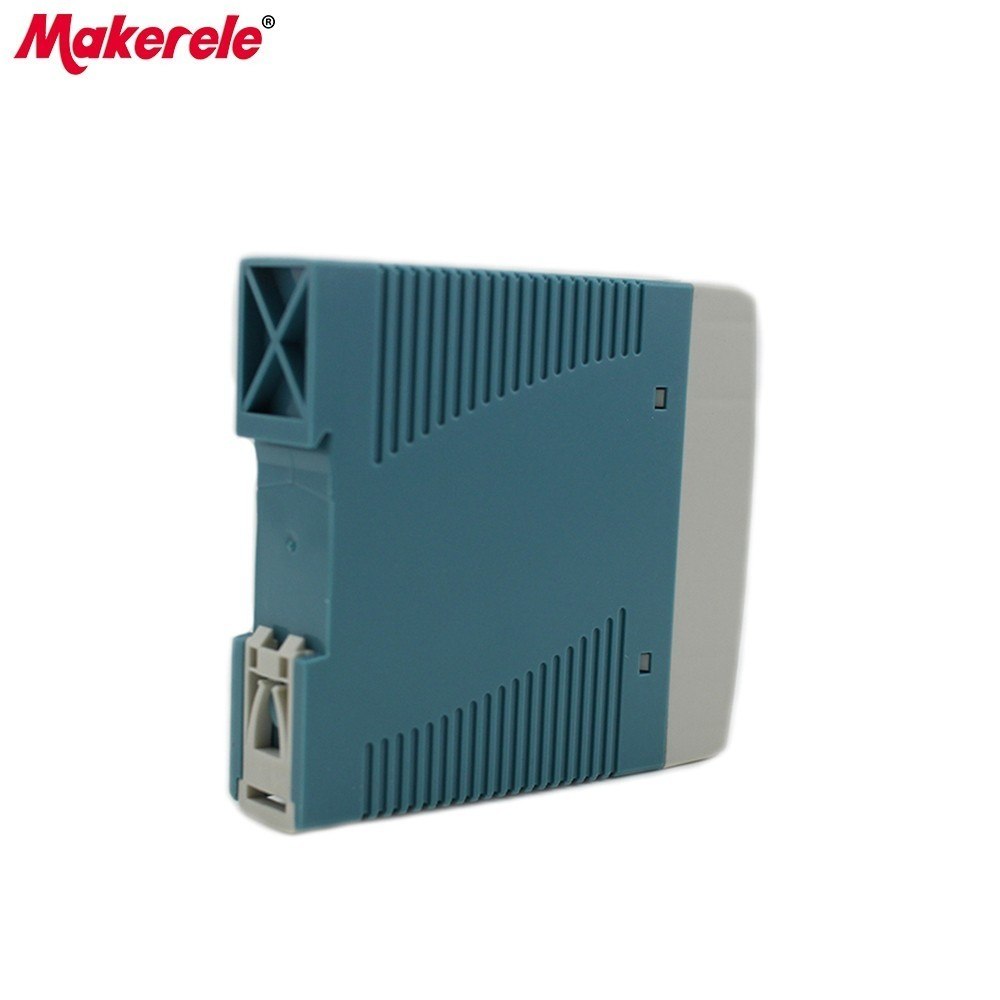

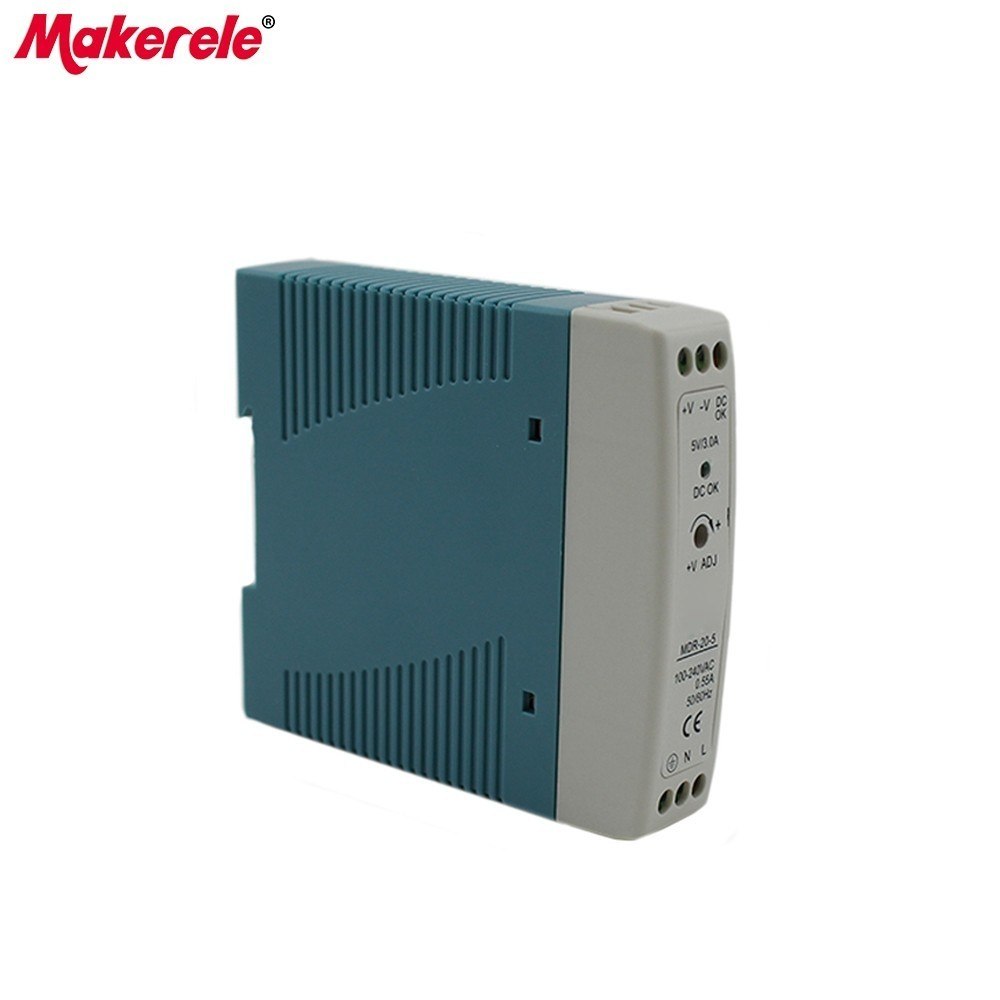

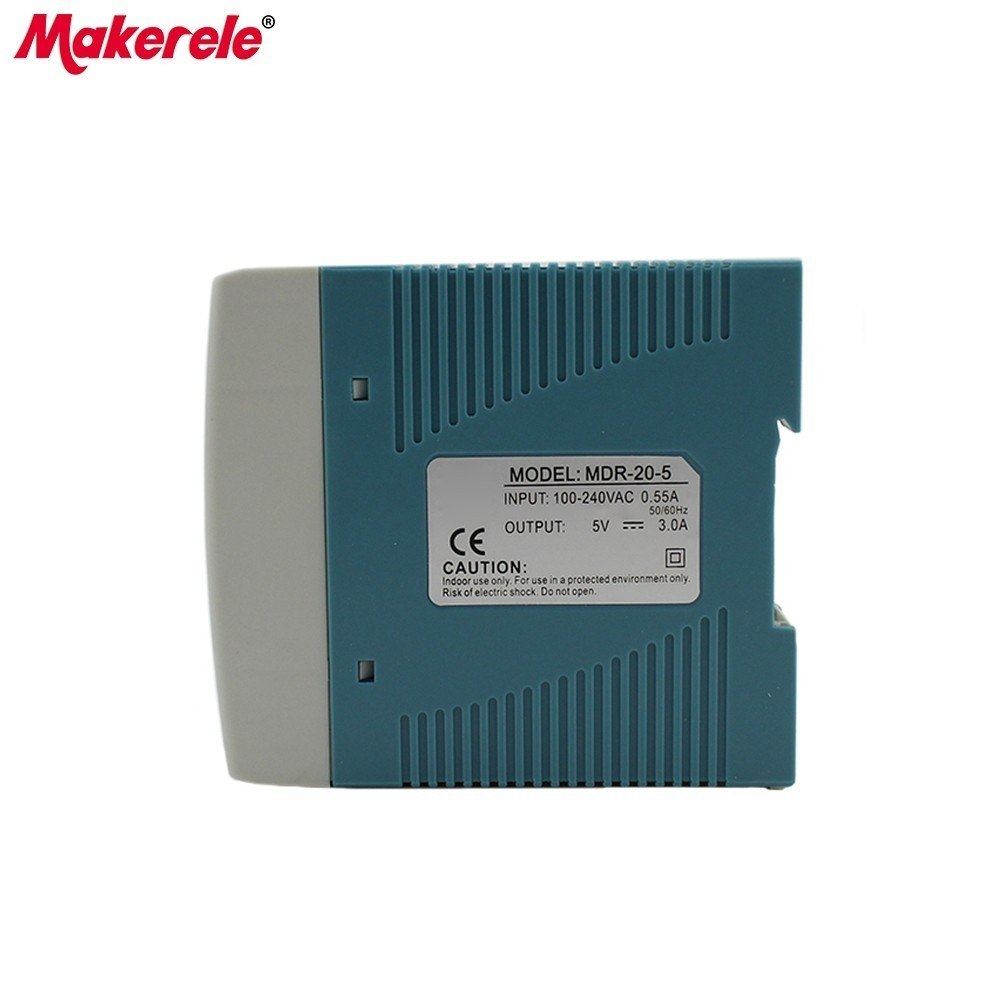

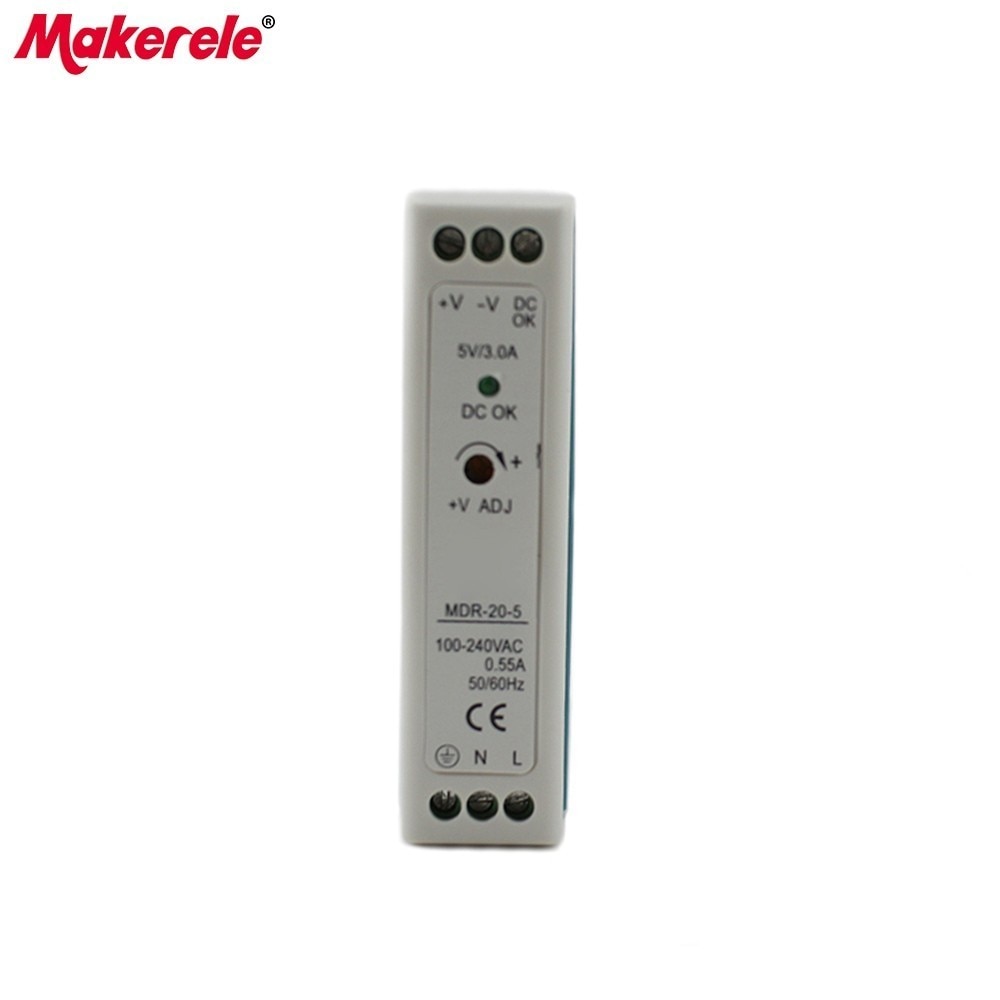

5V 12V 15V 24V din rail switch power supply
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Model MDR-20-5 MDR-20-12 MDR-20-15 MDR-20-24
DC Voltage 5V 12V 15V 24V
Rated Current 3A 1.67A 1.64A 1A
Current Range 0-3A 0-1.67A 0-1.64A 0-1A
Rated Power 15W 20W 20W 24W
Ripple & Noise 80mVp-p 120mVp-p 120mVp-p 150mVp-p
Voltage Adj. Range -5%,+10% -8%,+10% 10% 10%
Voltage Tolerance 2% 1% 1% 1%
Setup, Rise Time 500ms,30ms/230VAC 1000ms,30ms/115VAC at full load
Hold Up Time 50ms/230VAC 20ms/115VAC at full load
Voltage Range 88~264VAC 47~63Hz; 124~370VDC
AC Current 0.05A/115V 0.35A/ 230V
Efficiency 76% 80% 81% 84%
Inrush Current Cold start 20A/115V 40A/230V
Leakage Current <1mA/240VAC
Over Load 105%~160%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage 115%~135%
Protection type: Shut down o/p voltage, re-power on to recover
Working Temp., Humidity -20C~+60C; 20%~90%RH
Storage Temp., Humidity -40C~+85C; 10%~95%RH
Temp. Coefficient 0.03%/C(0~50C)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage I/P-O/P: 3KVAC
Isolation Resistance I/P-O/P: 100M Ohms / 500VDC
Safety Standard Design refer to UL60950-1,TUV EN60950-1,EN50178
EMC Standard Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3

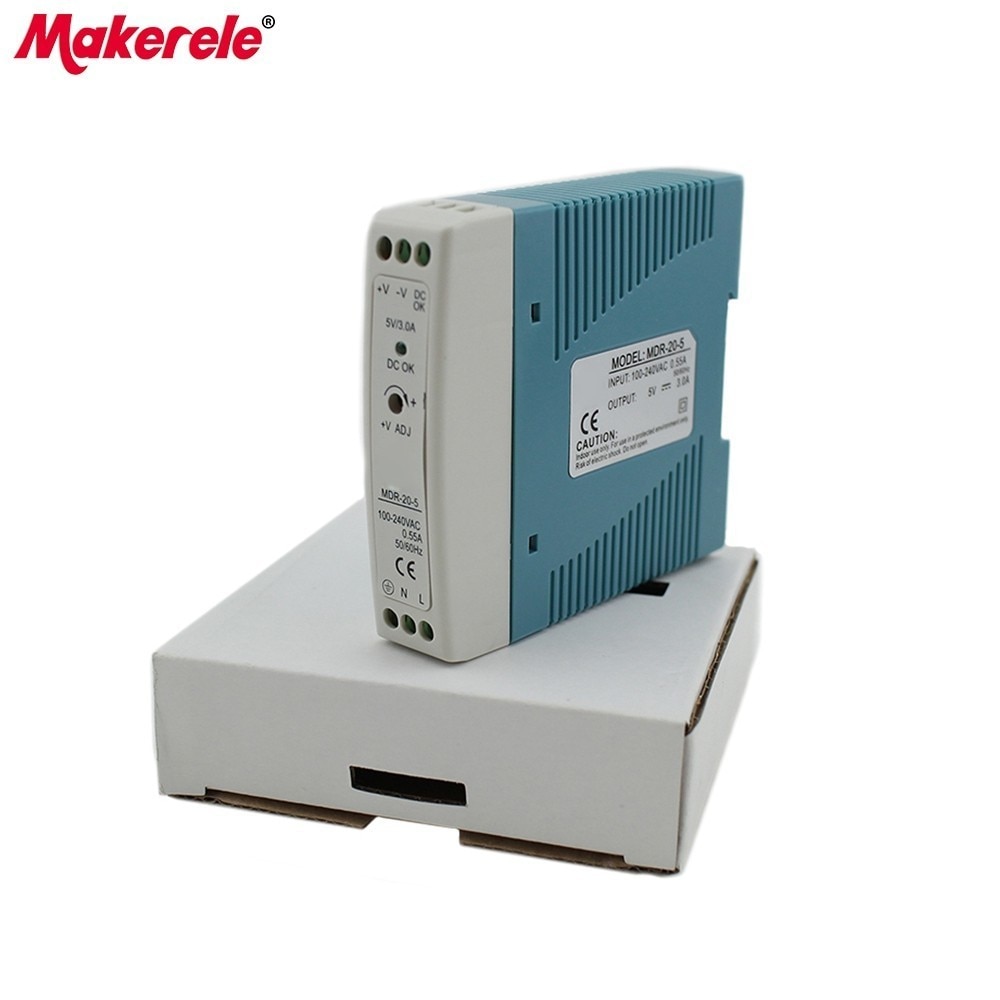

According to your order,we can provide different cartons for you.
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1 & 47 parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
Custom Product Design
Profession in export service from Maker Electric
High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
What are switching power supplies?
Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
