- Output Power: 51 – 100W
- Output Type: Single
- Model Number: MDR-60-24
- Output Frequency: 47~63Hz
- Output Current: 2.5A
- is_customized: Yes
- Brand Name: makerele
- Input Voltage: 88~264VAC 47~63Hz; 124~370VDC
- Rated Power: 60W
- DC Voltage: 24V
- Efficiency: 82%
- Voltage Adj. Range: 10%
- Voltage Tolerance: 1%
- AC Current: 1.8A/115V 1A/ 230V
- Inrush Current: Cold start 18A/115V 36A/230V
- Withstand Voltage: I/P-O/P: 3KVAC
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.
switch power supply 24v
Model MDR-60-5 MDR-60-12 MDR-60-15 MDR-60-24
DC Voltage 5V 12V 15V 24V
Rated Current 10A 5A 4A 2.5A
Current Range 0-10A 0-5A 0-4A 0-2.5A
Rated Power 50W 60W 60W 60W
Ripple & Noise 80mVp-p 120mVp-p 120mVp-p 150mVp-p
Voltage Adj. Range -5%,+10% -8%,+10% 10% 10%
Voltage Tolerance 2% 1% 1% 1%
Setup, Rise Time 500ms,30ms/230VAC 200ms,30ms/115VAC at full load
Hold Up Time 50ms/230VAC 20ms/115VAC at full load
Voltage Range 88~264VAC 47~63Hz; 124~370VDC
AC Current 1.8A/115V 1A/ 230V
Efficiency 76% 82% 83% 84%
Inrush Current Cold start 18A/115V 36A/230V
Leakage Current <1mA/240VAC
Over Load 105%~160%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage 115%~135%
Protection type: Shut down o/p voltage, re-power on to recover
Working Temp., Humidity -20C~+60C; 20%~90%RH
Storage Temp., Humidity -40C~+85C; 10%~95%RH
Temp. Coefficient 0.03%/C(0~50C)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage I/P-O/P: 3KVAC
Isolation Resistance I/P-O/P: 100M Ohms / 500VDC
Safety Standard Design refer to UL60950-1,TUV EN60950-1,EN50178
EMC Standard Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3

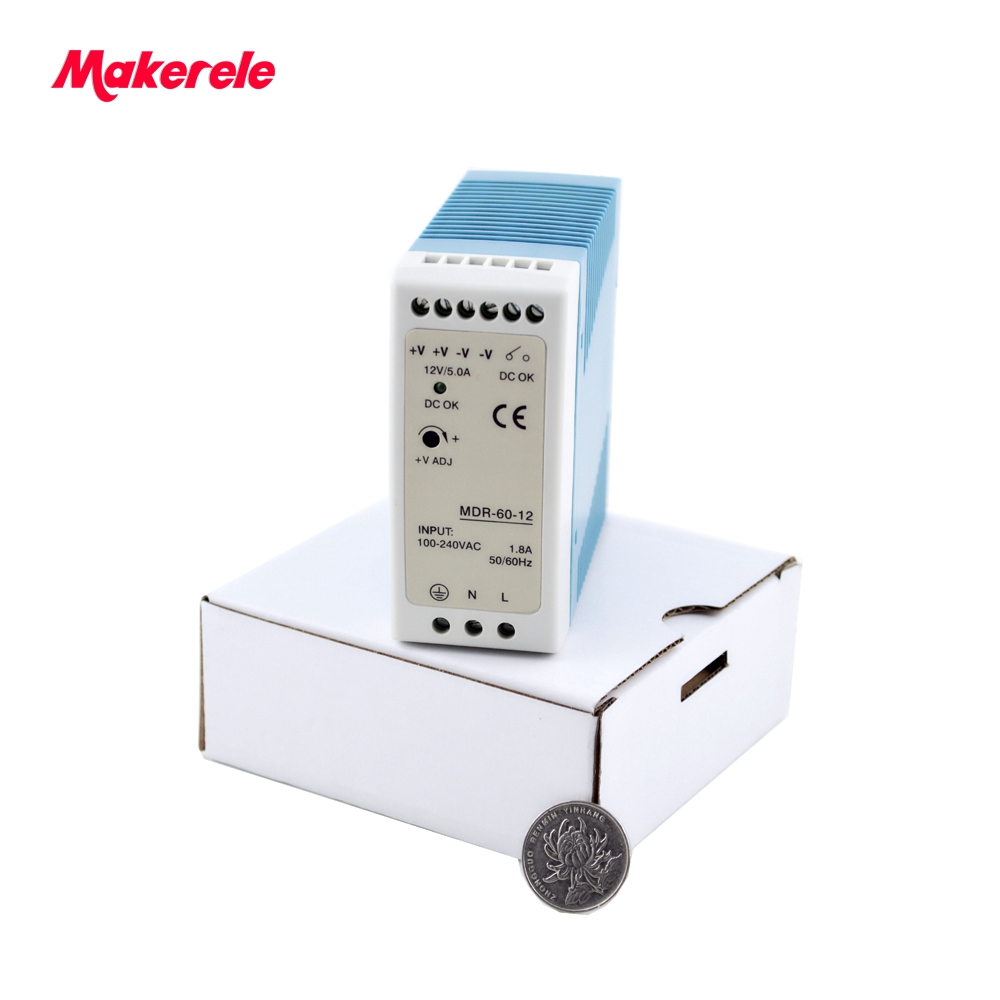

According to your order,we can provide different cartons for you.
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1 & 47 parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
· We Ship to Worldwide, except APO/FPO.
· Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
· Delivery time depends on destination and other factors, it may takes up to 20 business days
· Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html
Warranty and Guarantee:
· 12 months Warranty. Buy with confidence!
· If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
· If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.
· If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee
· We are not responsible for any custom duty or import tax.
· We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
· All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies?
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
