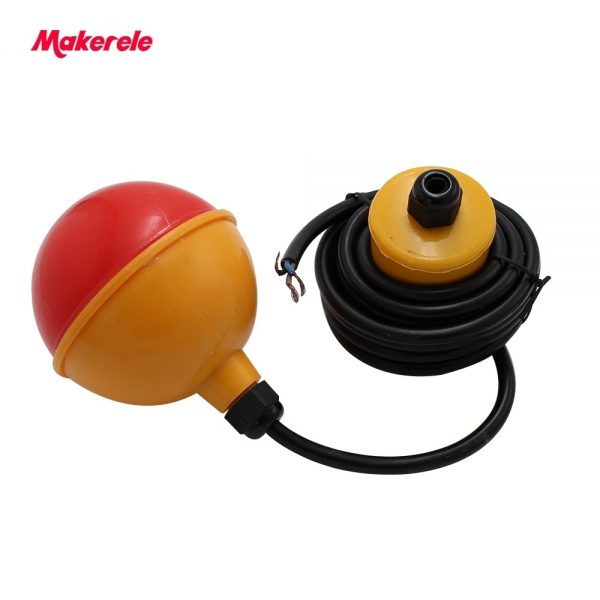

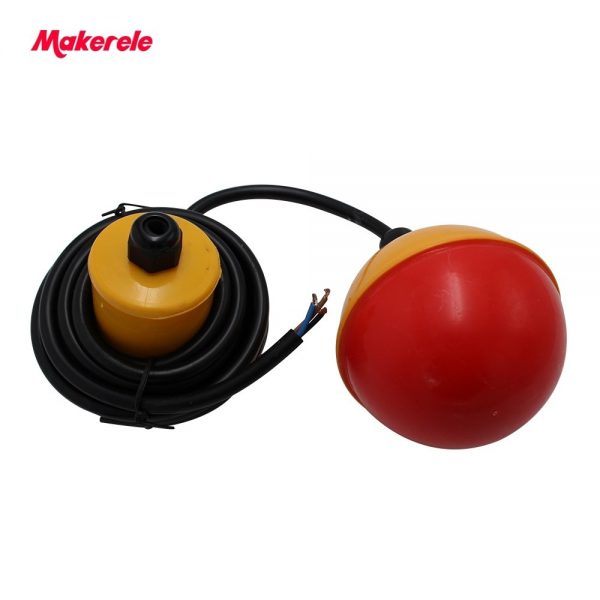

MK-CFS02 3 meter Cable Float Switch Liquid Fluid Water Pump Level NO/NC Controller Sensor

in stock

MK-CFS02 3 meter Cable Float Switch Liquid Fluid Water Pump Level NO/NC Controller Sensor

0 Review(s)

$20.16

Product by: MAKERELE

20 in stock

Description



  • Brand Name: makerele
  • Certification: CCC,CE,RoHS
  • Warranty: 5A
  • Switch Type: Knob switch
  • Model Number: cable float switch
  • Features: 5A
  • Material: Plastic
  • Item Type: Switches
  • DIY Supplies: Plumbing
  • Place of Origin: Zhejiang China (Mainland)
  • Output Signal: SPST NO/NC
  • Working Temperature: -10~60C
  • Float Material: ABS
  • Cable Length: 3m or customized
  • Working pressure: 1 atmosphere;
  • Rated voltage: 250 v – 380 v
  • Applicable medium: water, sewage, oil and acid and alkali liquid medium

Rating:1 kw

cable floating switch MK-CFS02
Rating: 1 kw;Rated current, voltage, 5 (A) 0.5 250 v – 380 v (5 A);

Product Description
MK – CFS02 cable floating switch instructions
MK – CFS02 cable float switch uses micro switch , contact switch or dry reed pipe as Contact switch.
When cable float with a heavy hammer as the origin reaches a certain Angle (usually micro switch rise 28 , +/- 2 ), the switch will have signal output ON or OFF.
MK – CFS02 is plastic injection molding, so it has strong structure, stable and reliable performance, non-toxic, corrosion resistance, easy installation, low cost characteristics.And have good performance of multipoint control , heavy water pump, and the control of volatile liquid or impurity liquid . General liquid can also be used. Cable length and special requirements can be customized.

MK-CFS02 cable floating switch characteristics

Leading design and strict manufacturing process provide a reliable guarantee for product quality.

The shell adopts engineering plastics or ABS,so the peoduct has high mechanical strength, good sealing, simple structure and reliable performance.
It can output stable and reliable “on” and “off” switch control signals, it never have any wrong action,and reliability is high.
Easy installation, convenient debugging, move up and down positioning block, can adjust at will control.

MK – CFS02 cable floating switch technology parameters

Rated current, voltage, 5 (A) 0.5 250 v – 380 v (5 A); (it is recommended to use working voltage is 24 v)
Rating: 1 kw;
Working temperature: – 10 degrees to 60 degrees Celsius (plastic);
Working pressure: 1 atmosphere;
Applicable medium: water, sewage, oil and acid and alkali liquid medium concentration below.
Cable length: 2m 3m 4m 5m 10m ,special length can be customized.

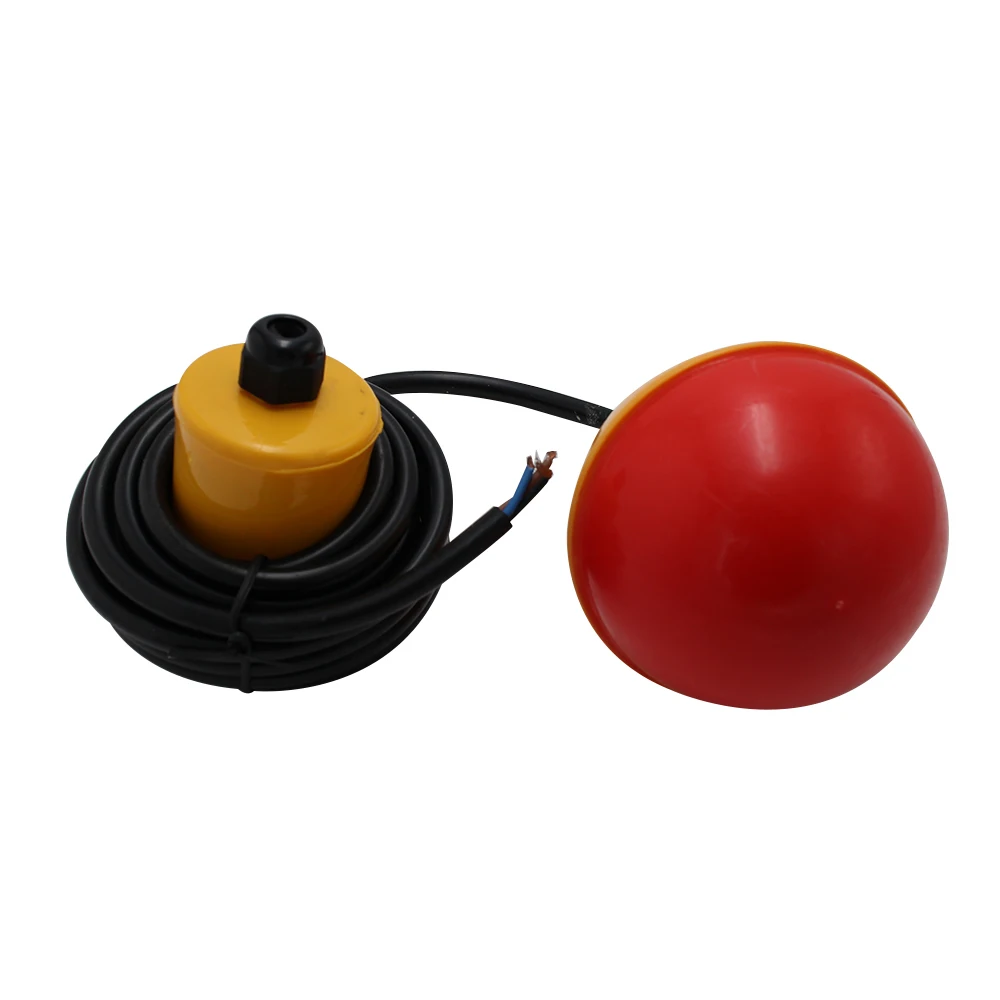

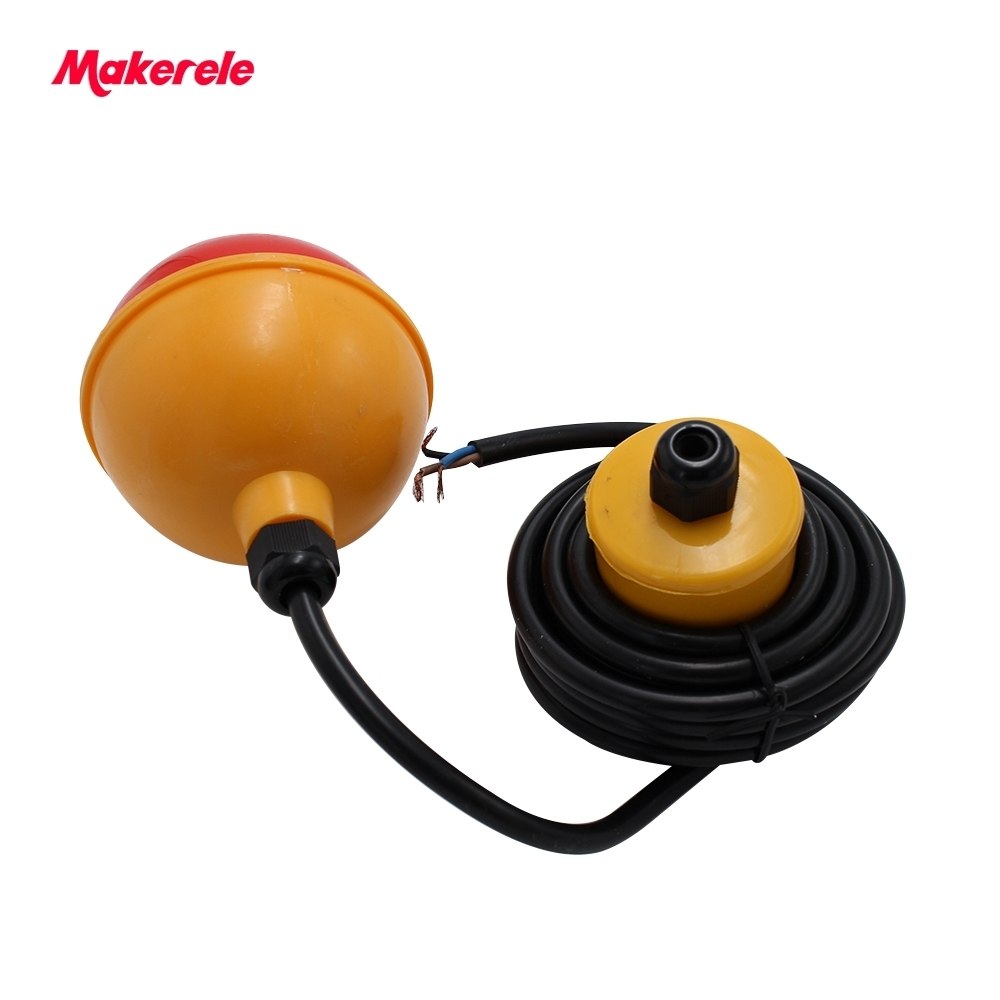

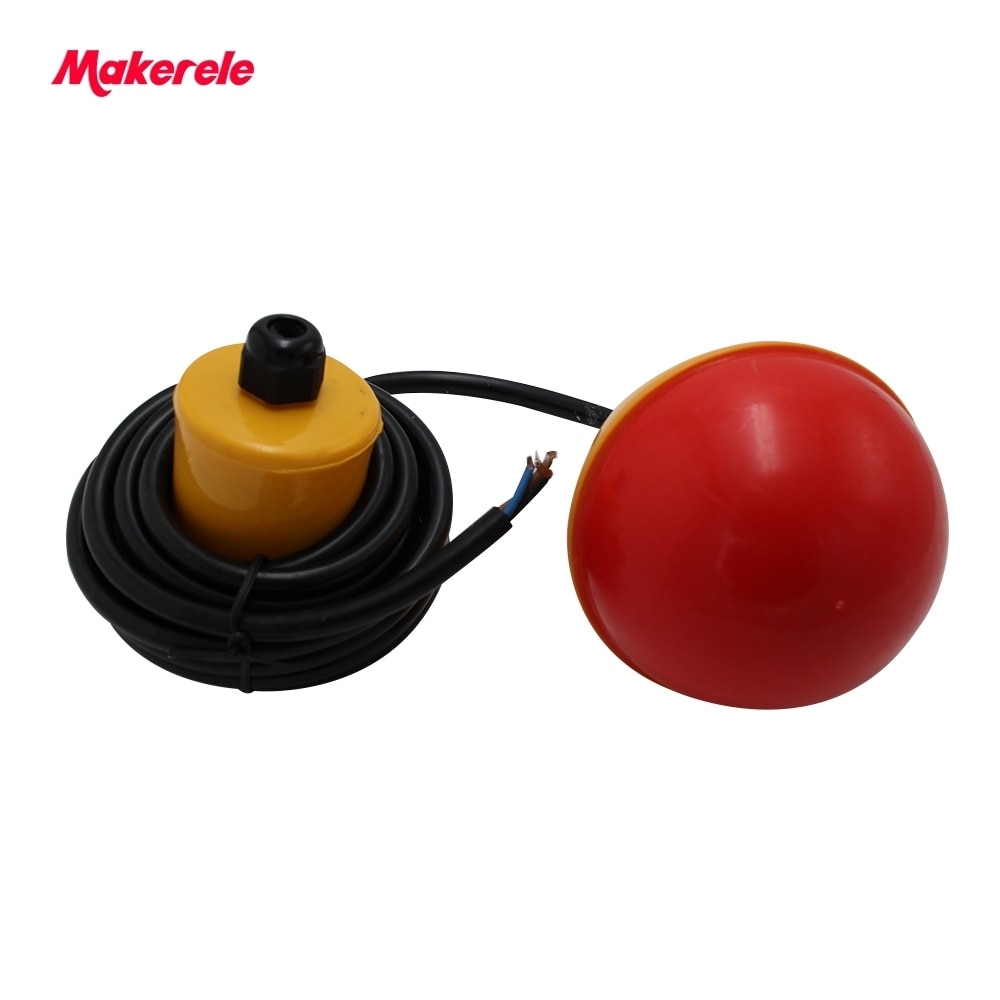

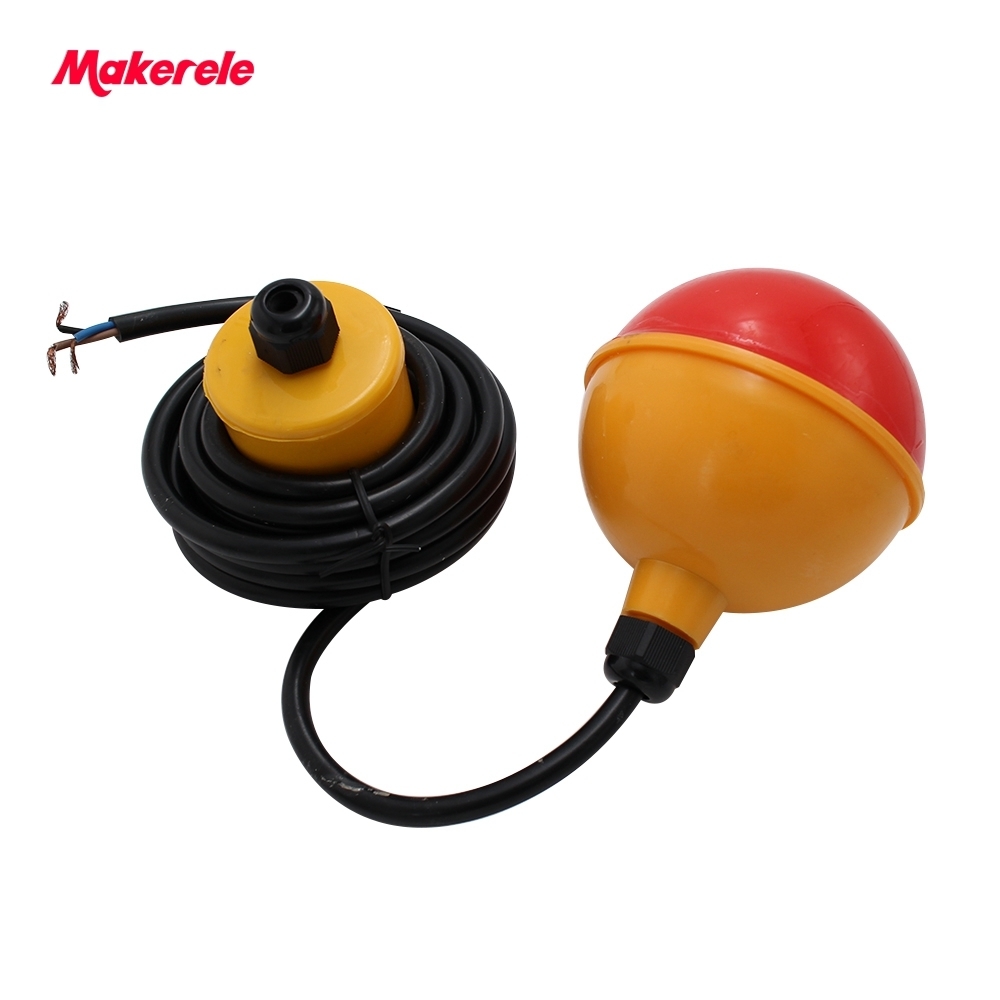

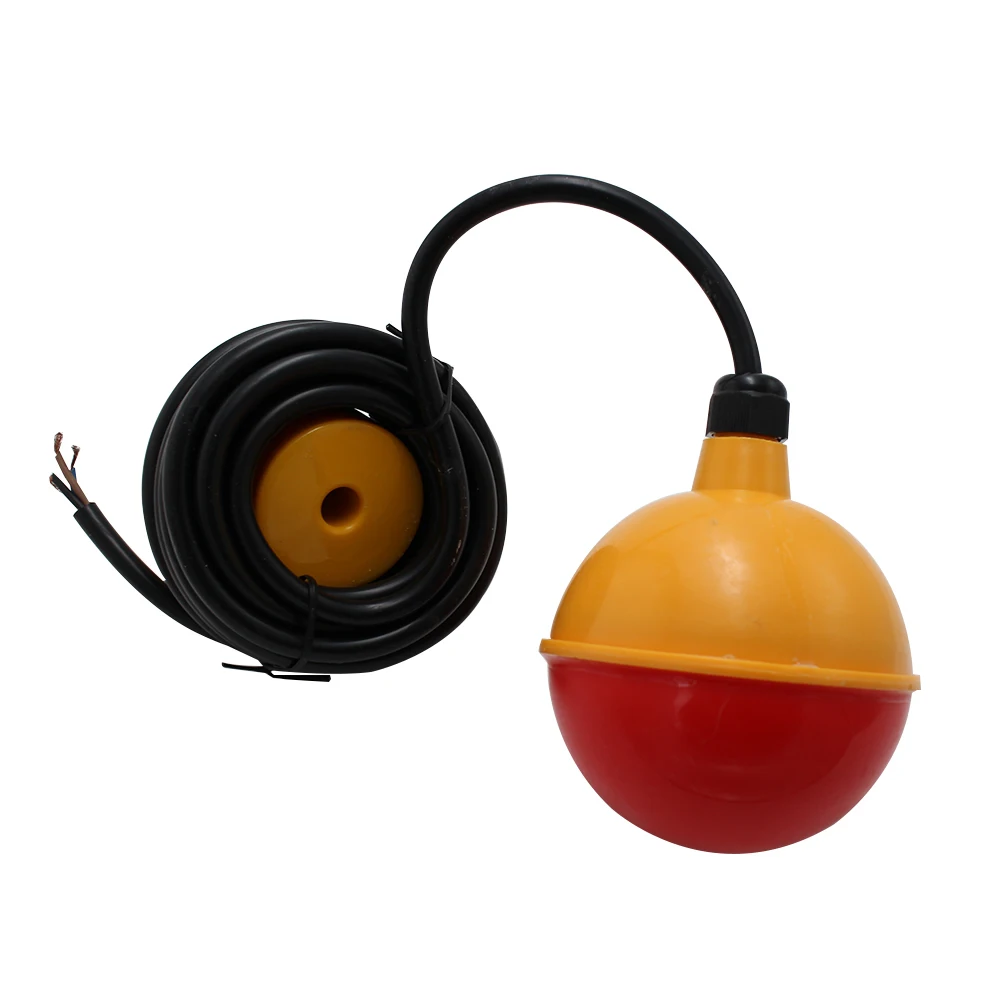

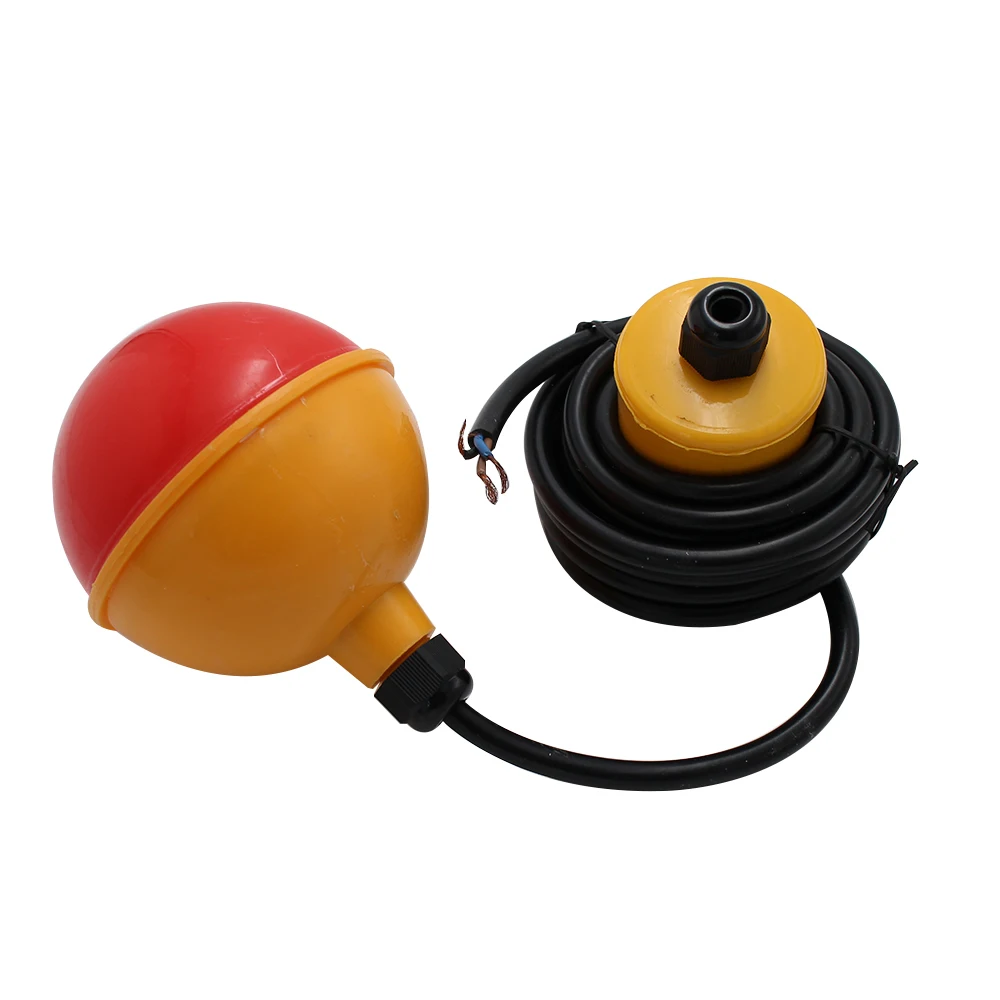

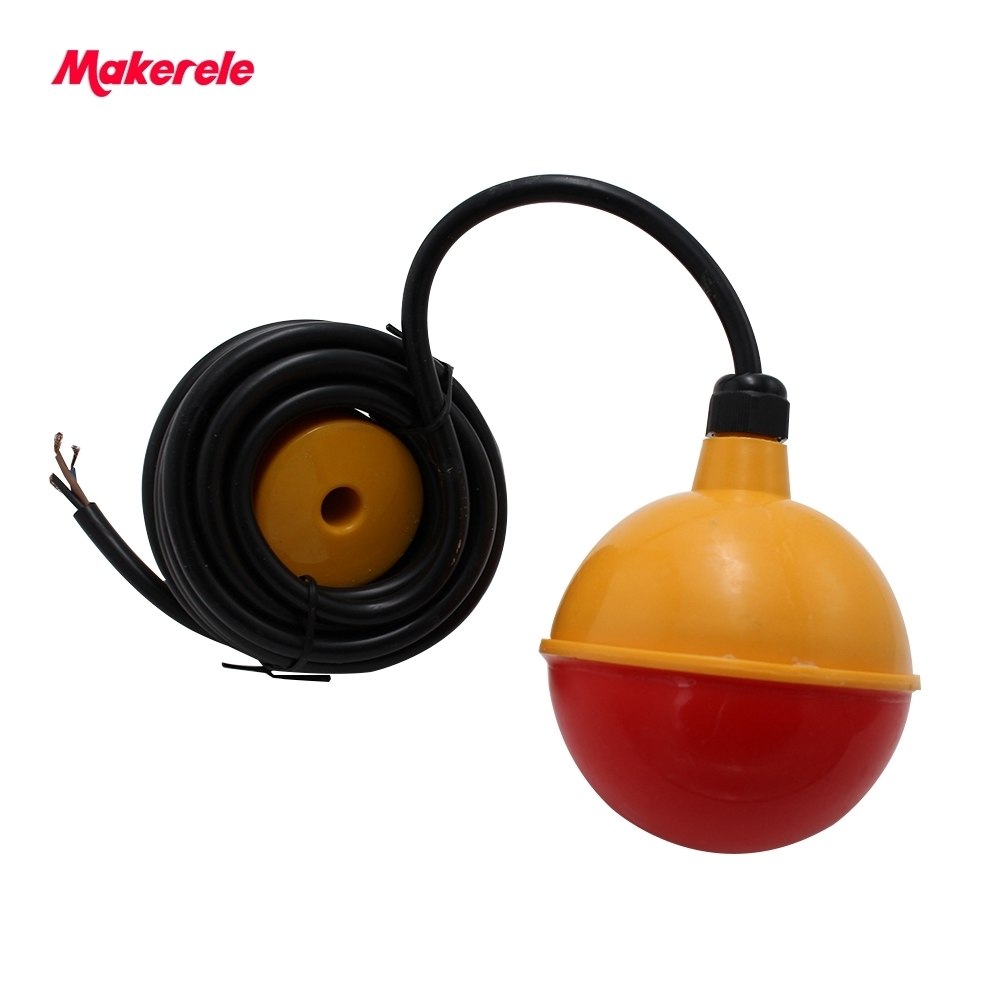

cable floating switch Pictures:





Packaging & Shipping

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

Our Services
  • 1. Item will be shipped within 5-7 business days.
  • 2. Delivery Time:
  • —-Via Air: Generally 1-3 working days
  • —-Via Express: Generally 3-7 working days.
  • —-Via China Post Air Mail: Generally 15-25 working days
  • —-Via Sea: According to the order.
  • 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
Company Information

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.

  • Custom Product Design
  • OEM/ODM
  • Profession in export service from Maker Electric
  • High quality Product, Affordable Price
FAQ



What About Cable Float Switch?



The Cable Float Switch is a mechanically actuated floating switch intended to activate electrical components, usually pumps, to start and stop automatically. The switch is perfect for simple level control of liquids for filling or draining reservoirs and tanks. Cable float switches are the most universally used for pump automation, due to their high reliability, economical pricing, and easy installation. Counterweights and cable hangers are available to suit a variety of mounting applications. Optional cables available include those with UL/CSA approval, higher chemical compatibility, high temperature durability, oil resistance, and drinking water suitability. Contact factory for piggyback plug option, gold contact switch option and cable length options ranging from 10 to 70 ft (3.04 to 21.34 m).

Performance and characteristics of Cable Float Switch

Simple construction, reliable performance

The Cable Float Switch can output stable and reliable switch control signal of making, breaking without any fault action, so its reliability is very high.

Sturdy and durable, need not maintain

The product can be used for a long time after it being installed. Almost no maintenance and repairing problem would occur during its operation period.

Easy installation method, convenient adjustment method

The liquid level control scope can be adjusted at will with the locating piece moving up and down. Only one screw is needed to secure the signal cable to finish installation.

Wide application scope, strong generality

The Cable Float Switch applies to branch water, sewage acid-base solution of less than medium concentration, oils and situations requiring no pollution (for example food and drinks industry), diesel oil gasification kitchen range, and automatic fuel feeding.

Simple circuit, economical and practical

Operation voltage is 200V, and current can be up to 10A. the applied circuit of the product is simple, so application cost is very low.
