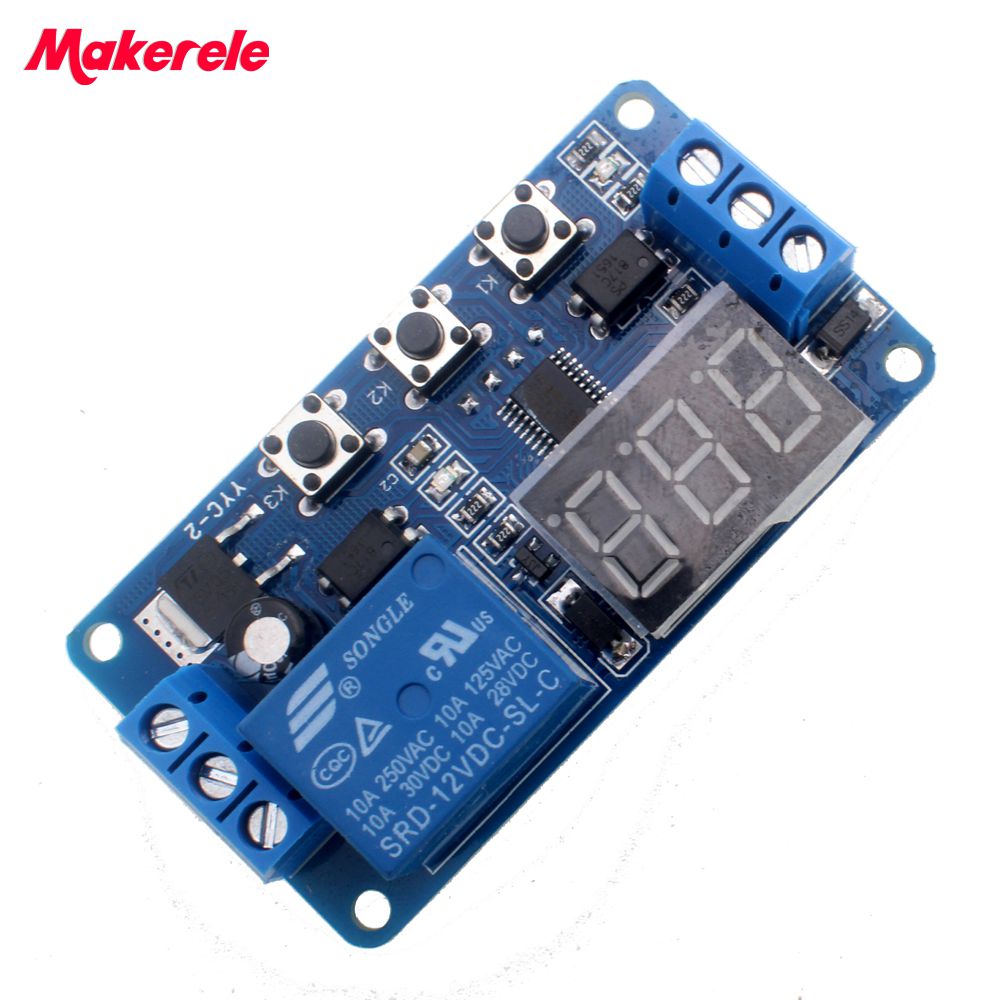

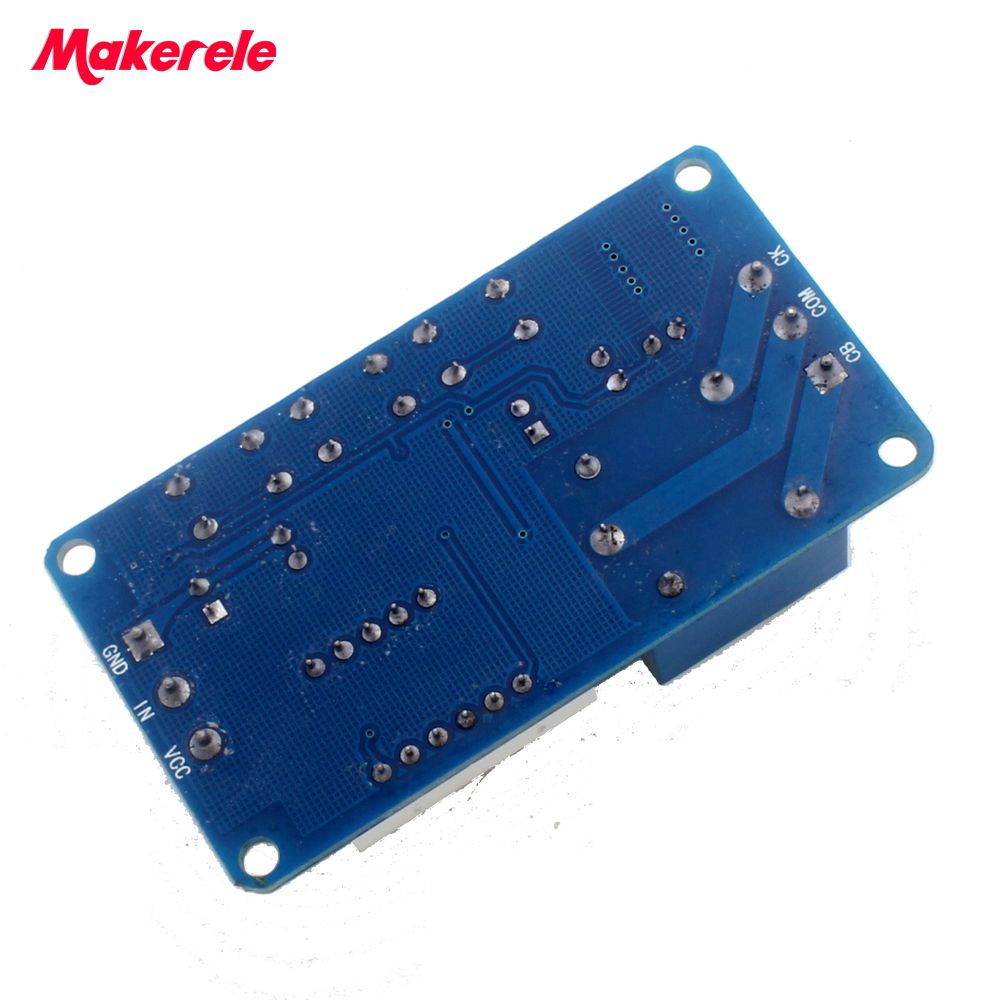

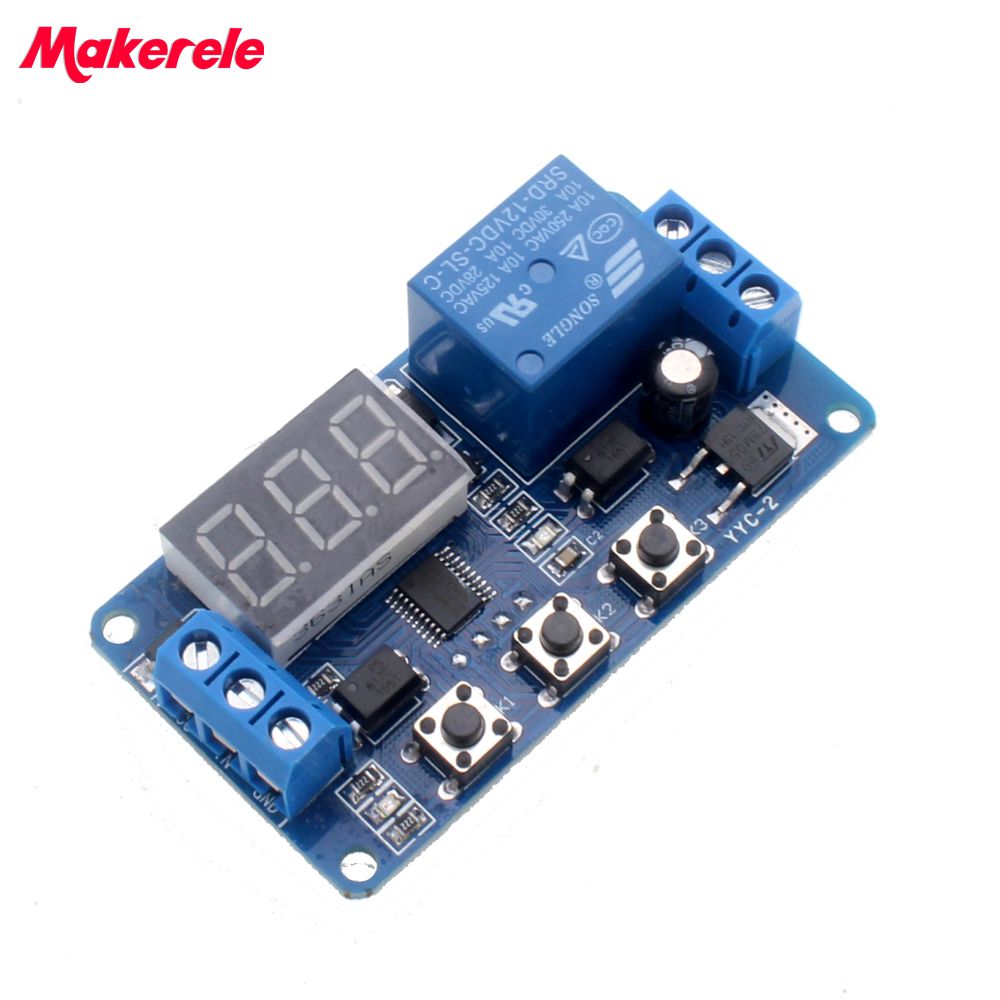

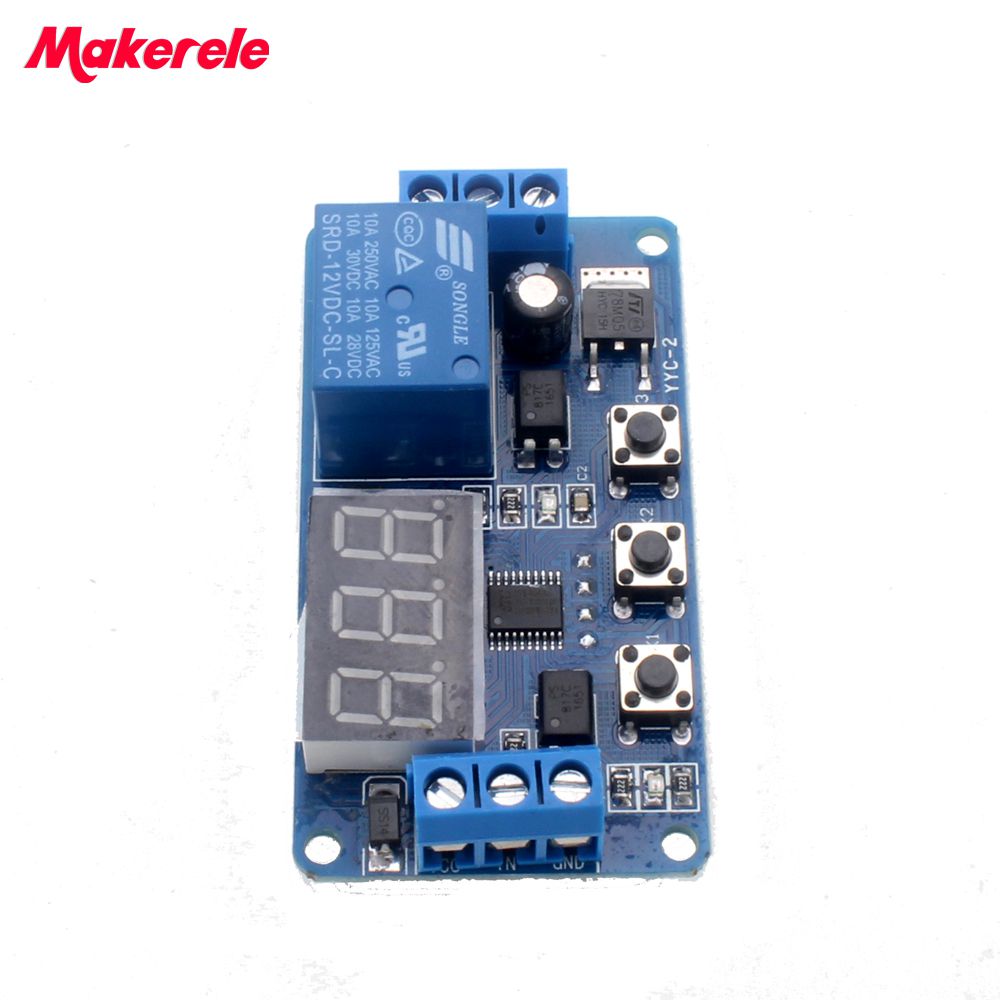

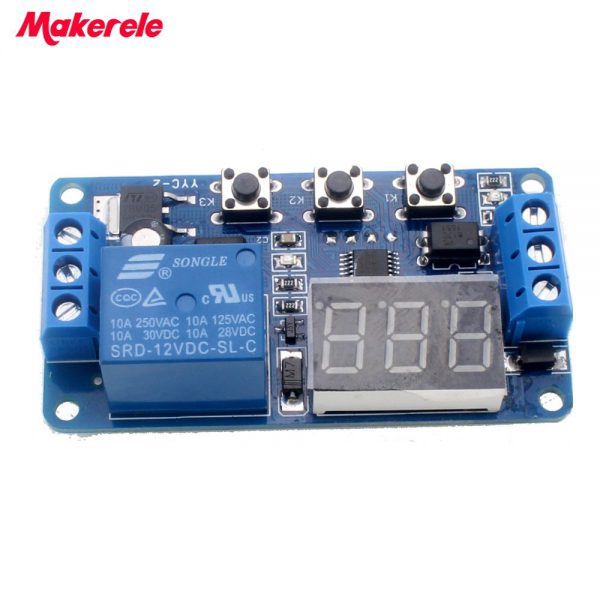

New Timer Relay DC 12V LED Display Digital Delay Control Switch Module PLC Automation

Description

• Protect Feature: Epoxy
• Theory: Time Relay
• Brand Name: makerele
• is_customized: Yes
• Power Source: DC
• Contact Load: Low Power
• Usage: PCB
• Model Number: MK-YYC-2
• Voltage: 12V

Product Description

• Material: Electrical components
• Color: See pictures
• Working voltage: DC12V (normal operating voltage DC10V-16V)
• Source: DC4V ~ 20V (positive trigger common power button, PNP sensors, PLC signals, etc.)
• Output capability: You can control the DC or AC 220v5A within 30v5A within
• Quiescent Current: 20mA,
• Working current: 50mA
• Life: more than 10 million times;
• Working temperature: -40 ~ 85’C;
• Features:
• Anti-reverse voltage input circuit, worry-free wiring. Signal input optocoupler isolation, anti-interference ability.
• Set the parameters of power and permanent memory. Powerful flash MCU online programming capabilities, according
   to user needs can contact the manufacturers to customize the functionality.
• Receives a trigger signal to start the countdown, while the relay, timing the end of the relay to stop working, time to
   recover to the set, waiting for the next trigger.
• Instructions:
• Click K1 enter the time setting, one hundred digital start flashing, then press K2, one hundred the number of changes;
   then click K1 ten digital start flashing, then press K2, the tens digit changes; then click K1 bit digital start flashing,
  then press K2, single-digit change; then click K1, exit the setting, LED no longer flashes.
•

Product show
