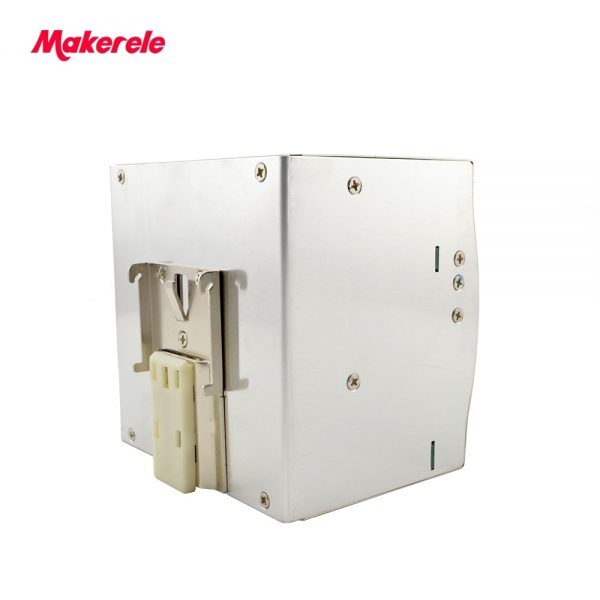

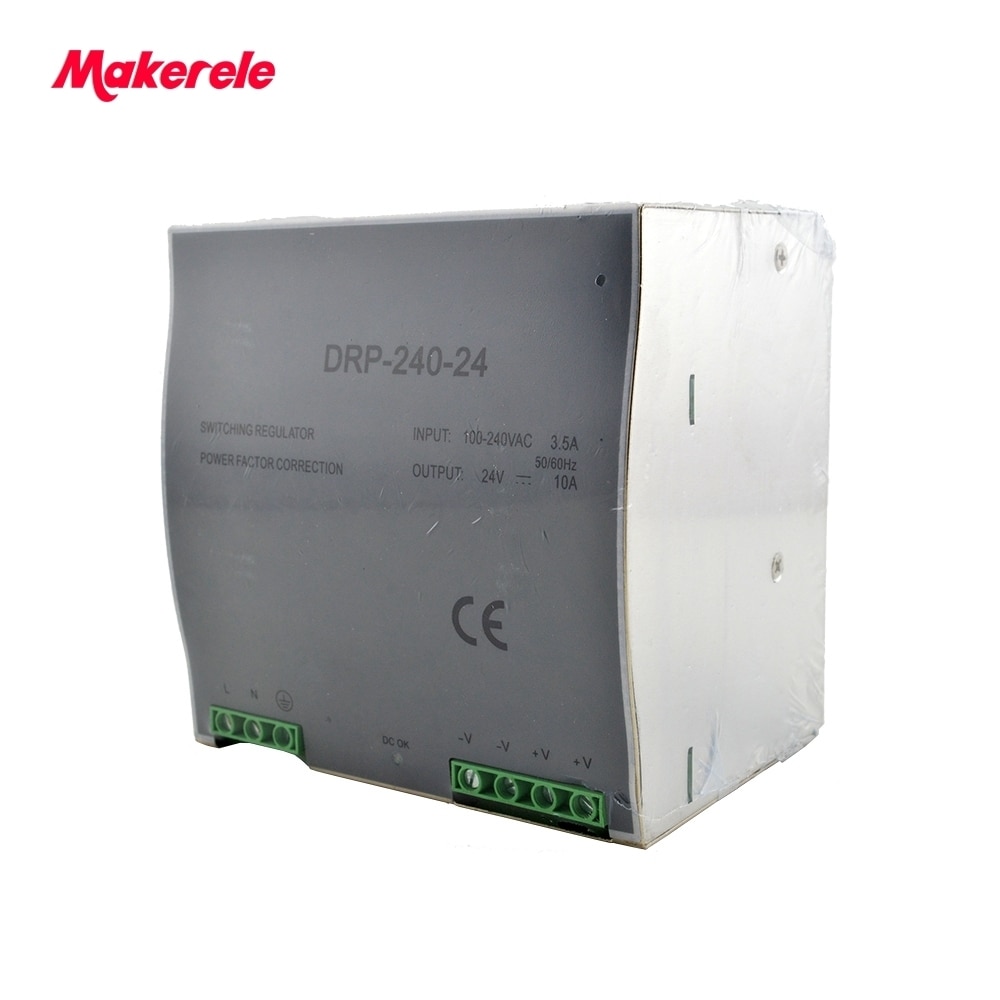

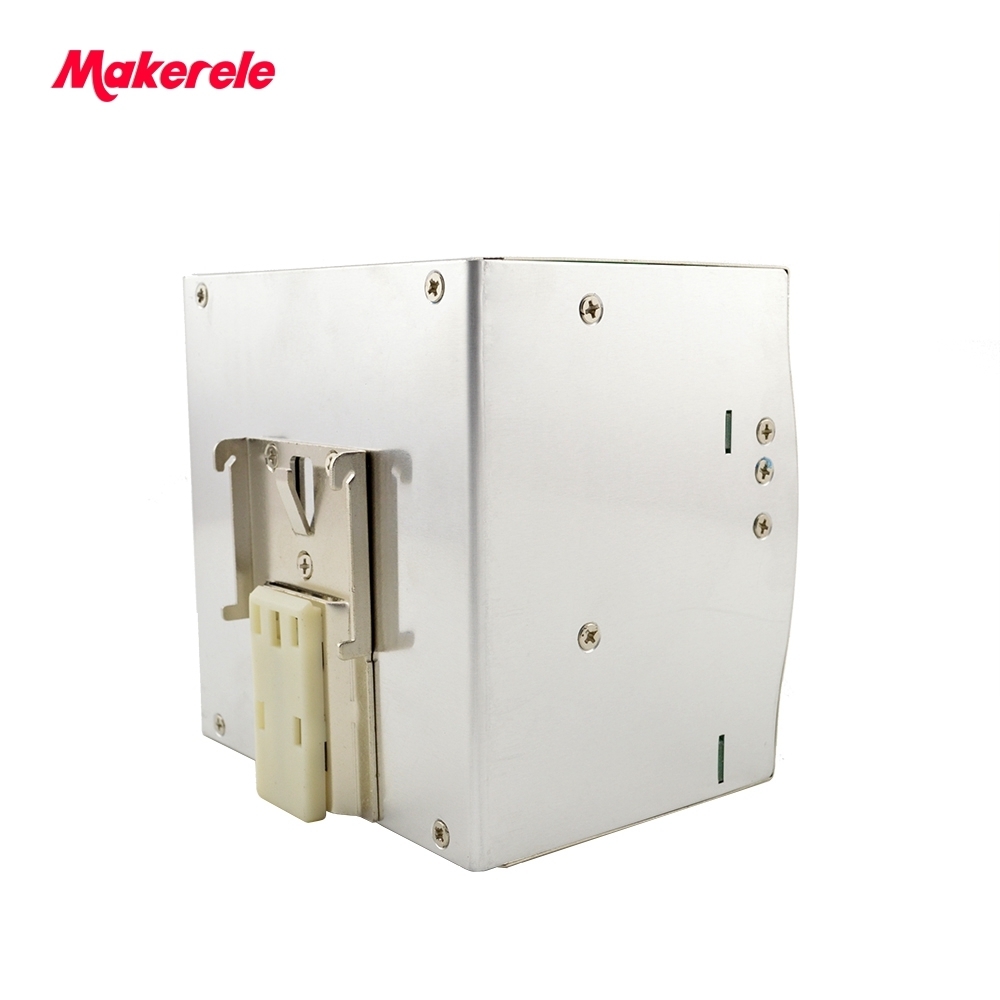

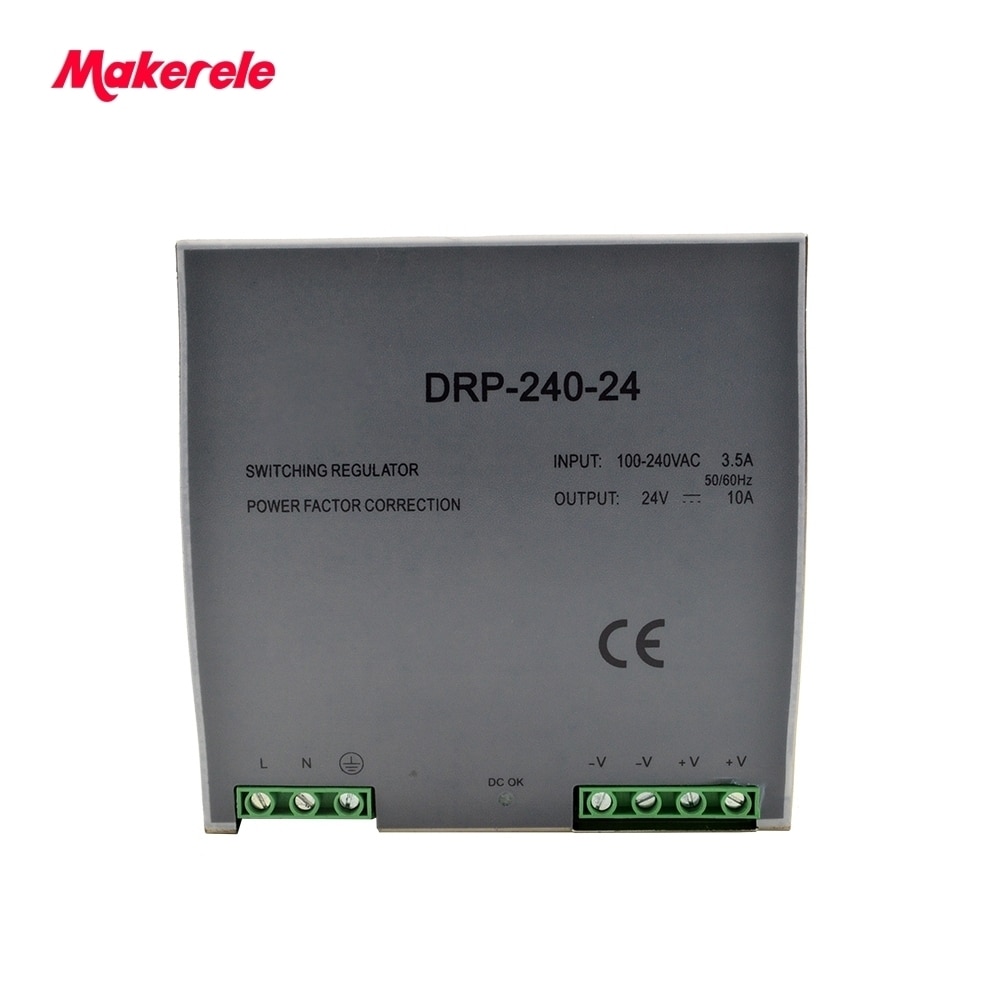

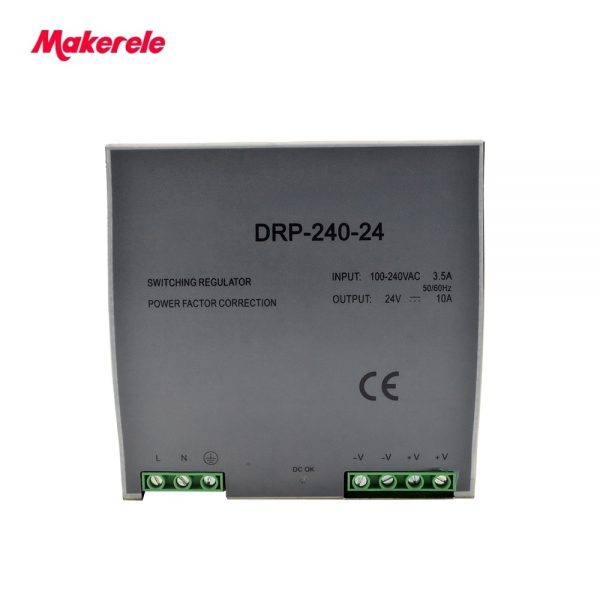

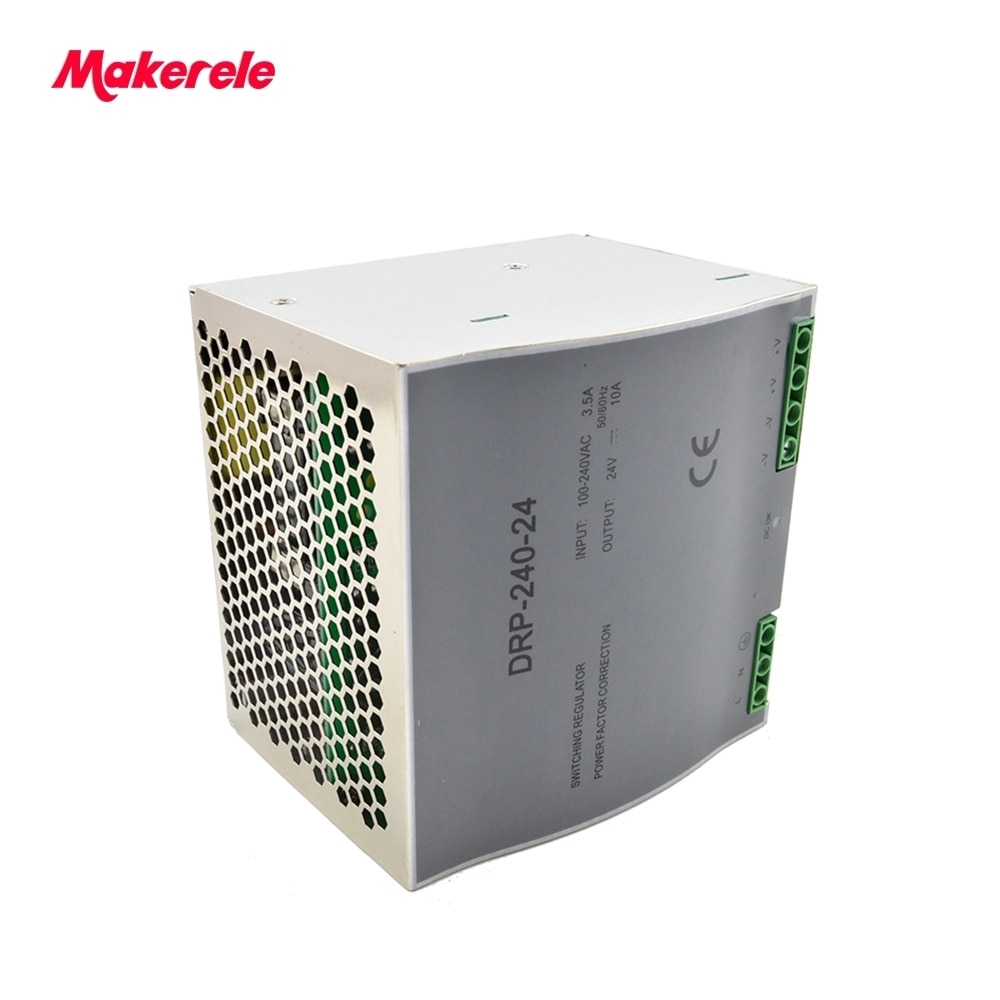

- Brand Name: makerele
- Output Power: 201 – 300W
- Output Type: Single
- Model Number: DR-240
- Output Frequency: 47~63Hz
- is_customized: Yes
- Output Current: 48A 20A 16A 10A 5A
- Input Voltage: 88~264VAC 120~370VDC
- Rated Power: 240W
- DC Voltage: 12V 15V 24V 48V
- Voltage Tolerance: 1%
- AC Current: 2.8A/115 V 1.4A/ 230V
- DC Adjustment Range: 24-48V
- Efficiency: 84%(HDR-240-24)
- Inrush Current: Cold start 27A/115V 45A/230V
- Certification: CE ROHS
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we’ll arrange the one as the item specs says.

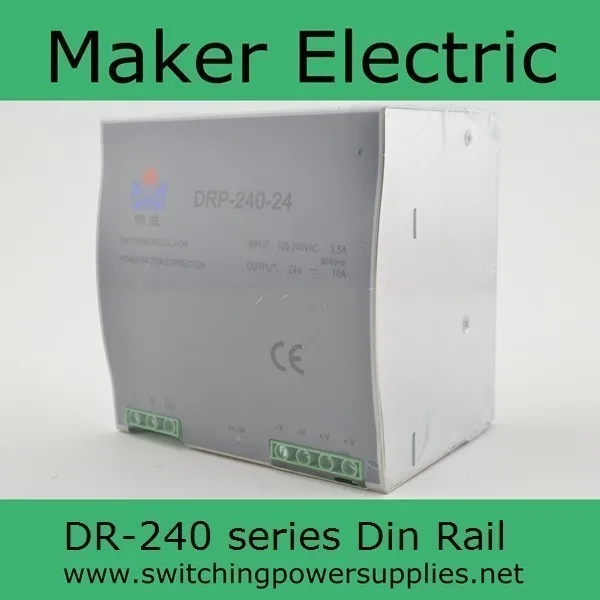

Model DR-240-12 DR-240-15 DR-240-24 DR-240-48
DC Voltage 12V 15V 24V 48V
Voltage Tolerance 1% 1% 1% 1%
Rated Current 48A 20A 16A 10A 5A
Current Range 0-48A 0-20A 0-16A 0-10A 0-5A
Rated Power 240W 240W 240W 240W 240W
Ripple & Noise 80mVp-p 150mVp-p
DC Adjustment Range 24-48V 48-53V
Setup, Rise Time: 800ms,40ms/230VAC at full load800ms,40ms/115VACat full load
Hold Time : 24ms/230VAC24ms/115VAC at full load
Voltage Range 88~264VAC47~63 Hz; selected by switch 120~370VDC
AC Current 2.8A/115 V 1.4A/ 230V
Efficiency 84%(HDR-240-24); 85%(HDR-240-48)
Inrush Current Cold start 27A/115V 45A/230V
Leakage Current <3.5mA/240VAC
Over Load 105%~150%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage 30-36V( HDR-240-24);54-60V(HDR-240-48)
Protection type: Shut down o/p voltage, re-power on to recover
OVER TEMP. 100C5C(TSW1)
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
Working Temp., Humidity -10C~+70C;20%~90 %RH
Storage Temp., Humidity -20C~+85C;10%~95 %RH
Vibration 10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
Safety Standard Design refer to UL508,UL60950-1,TUV EN60950-1
EMC Standard EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2)
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 & 47 parallel capacitor.
3 .Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5 . Derating may be needed under low input voltages. Please check the derating curve for more details.
