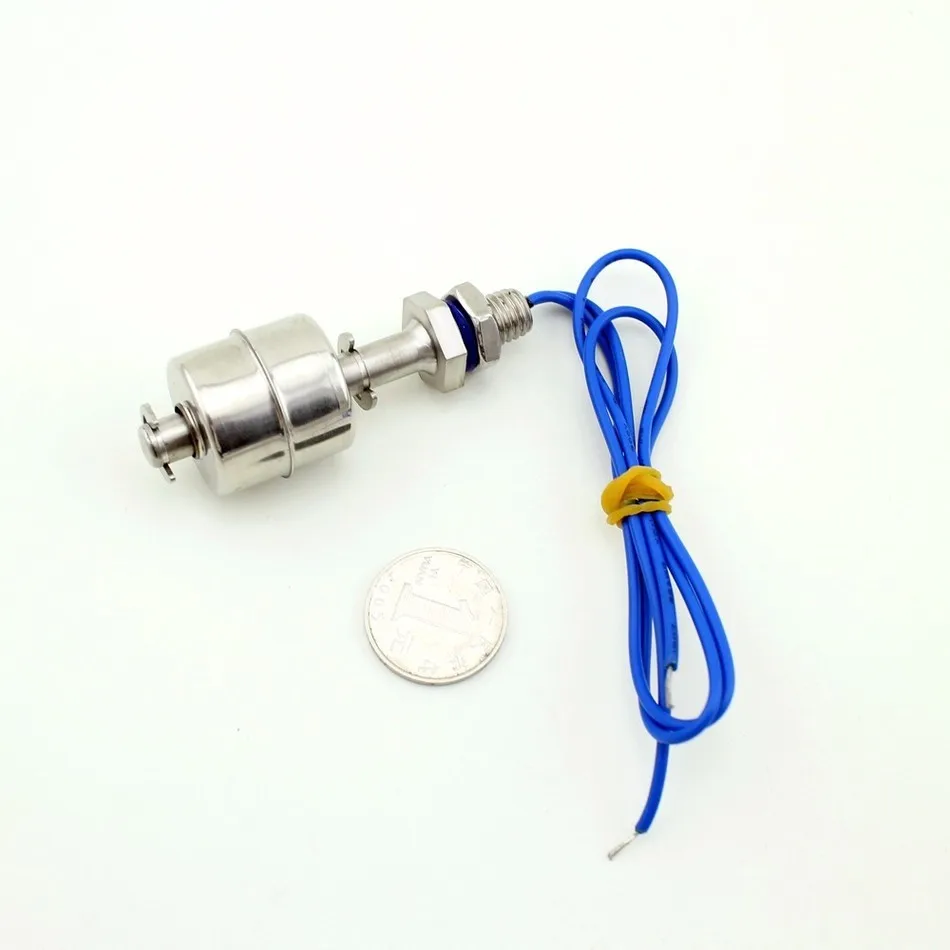

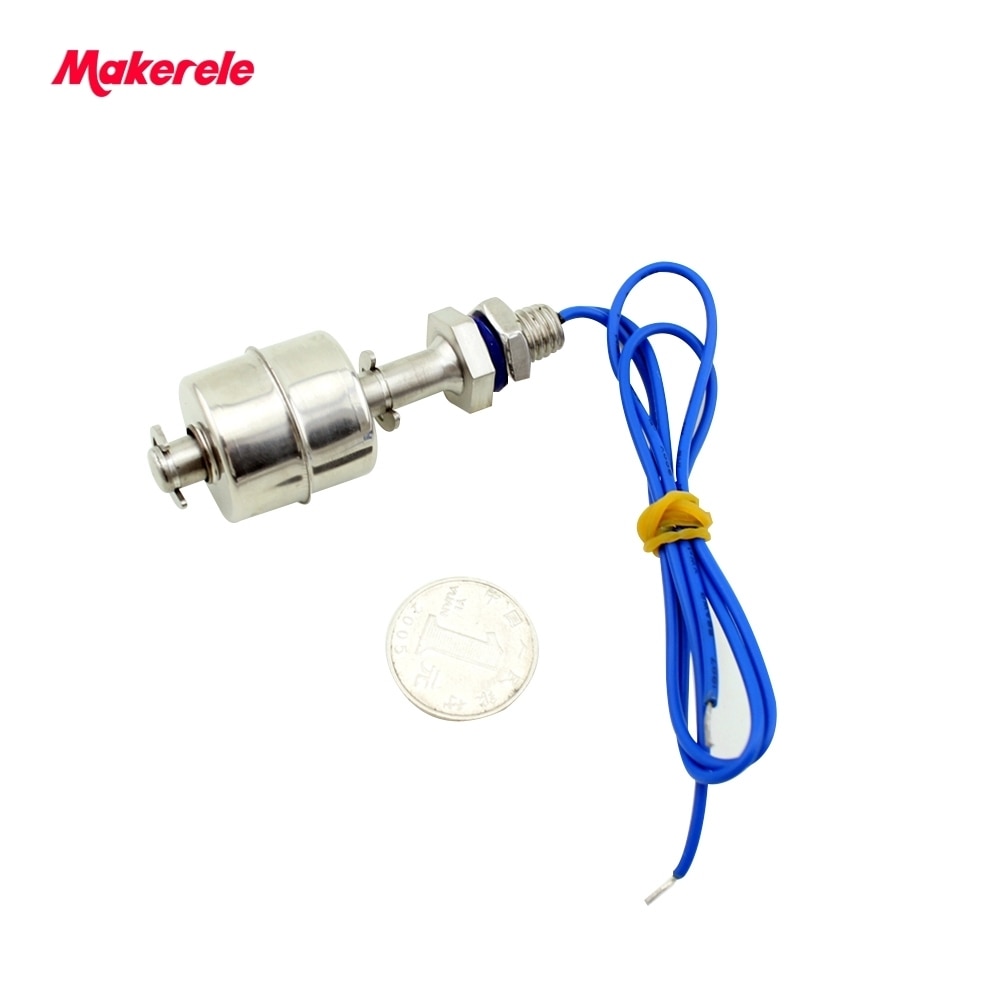

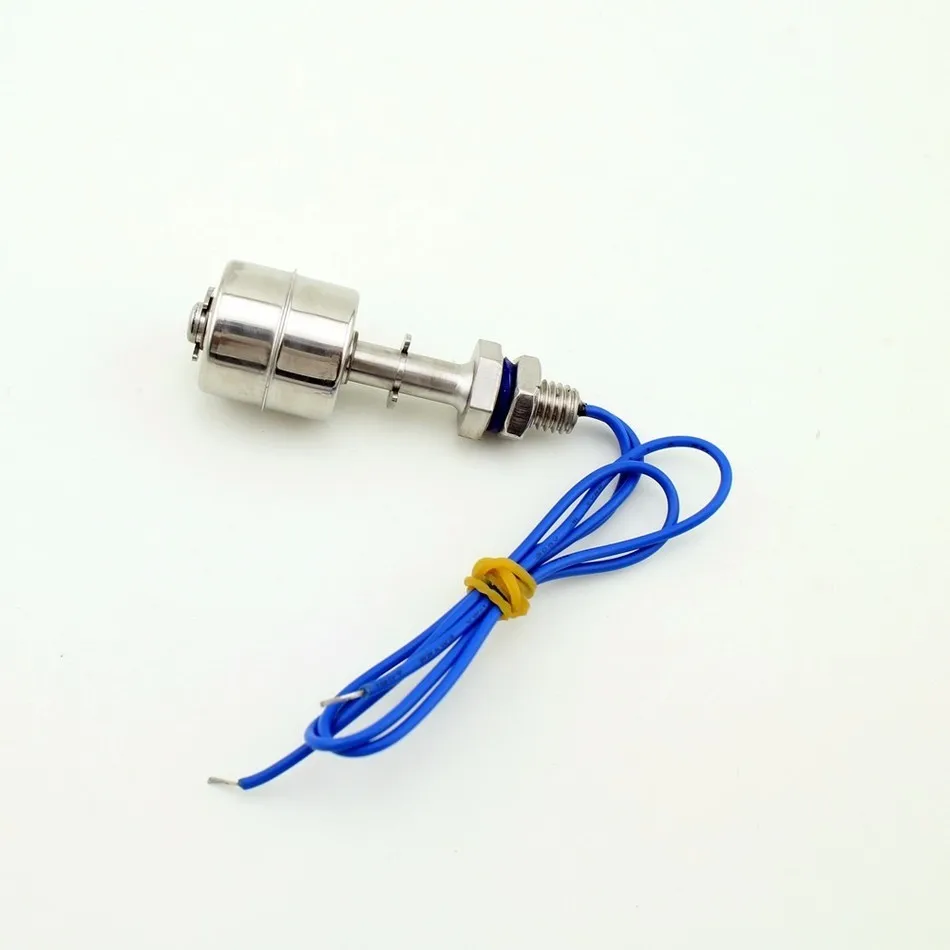

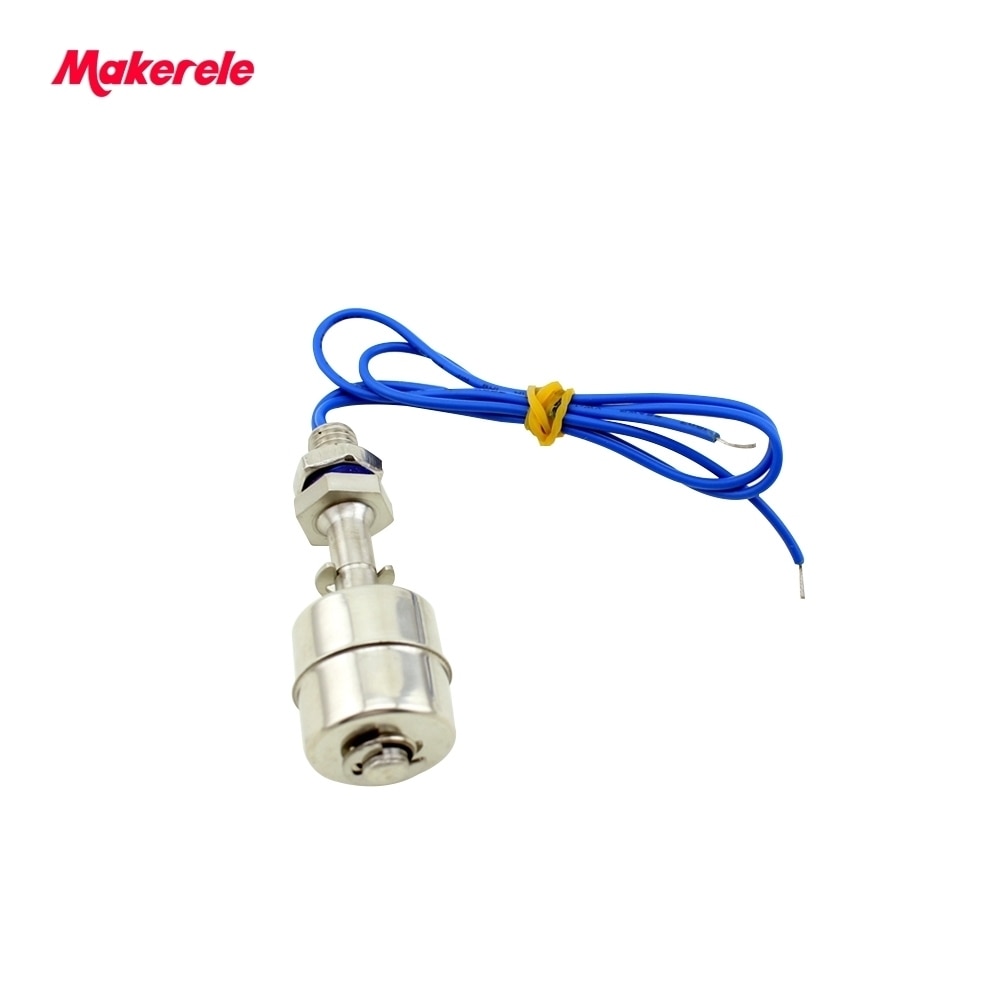

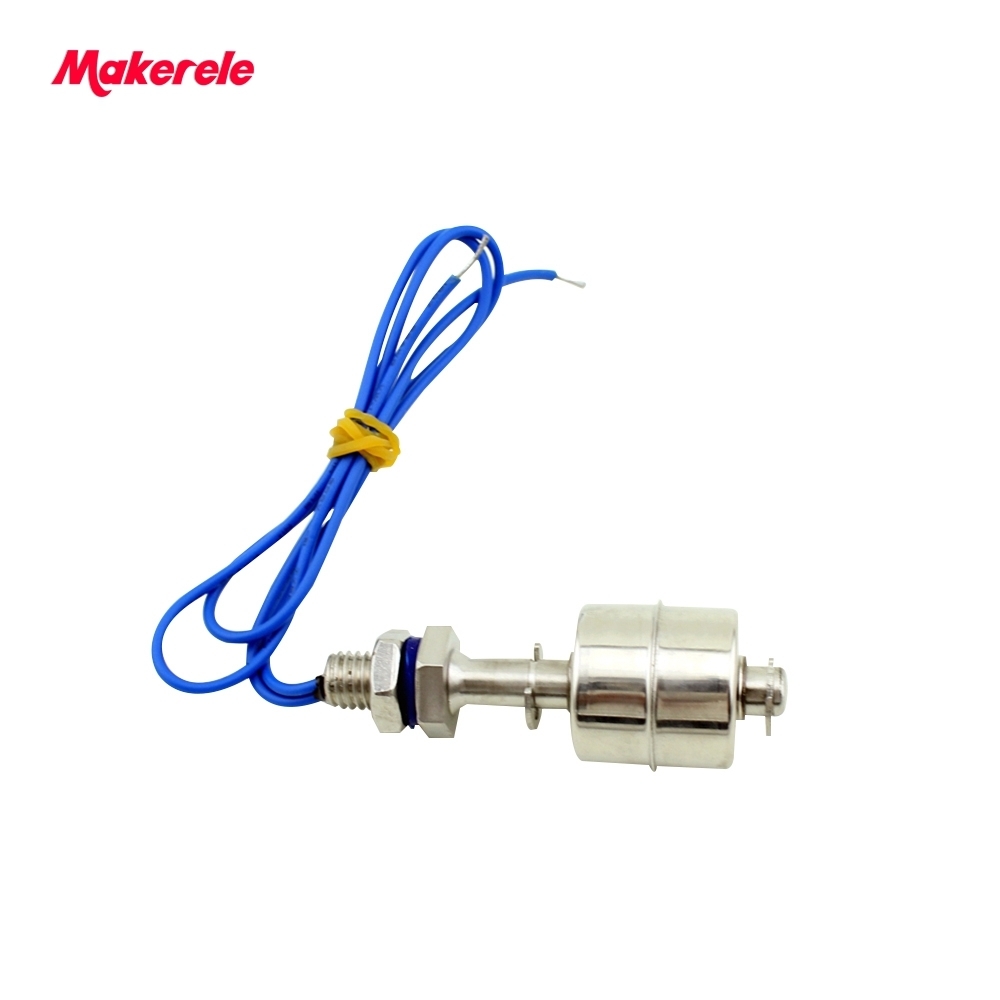

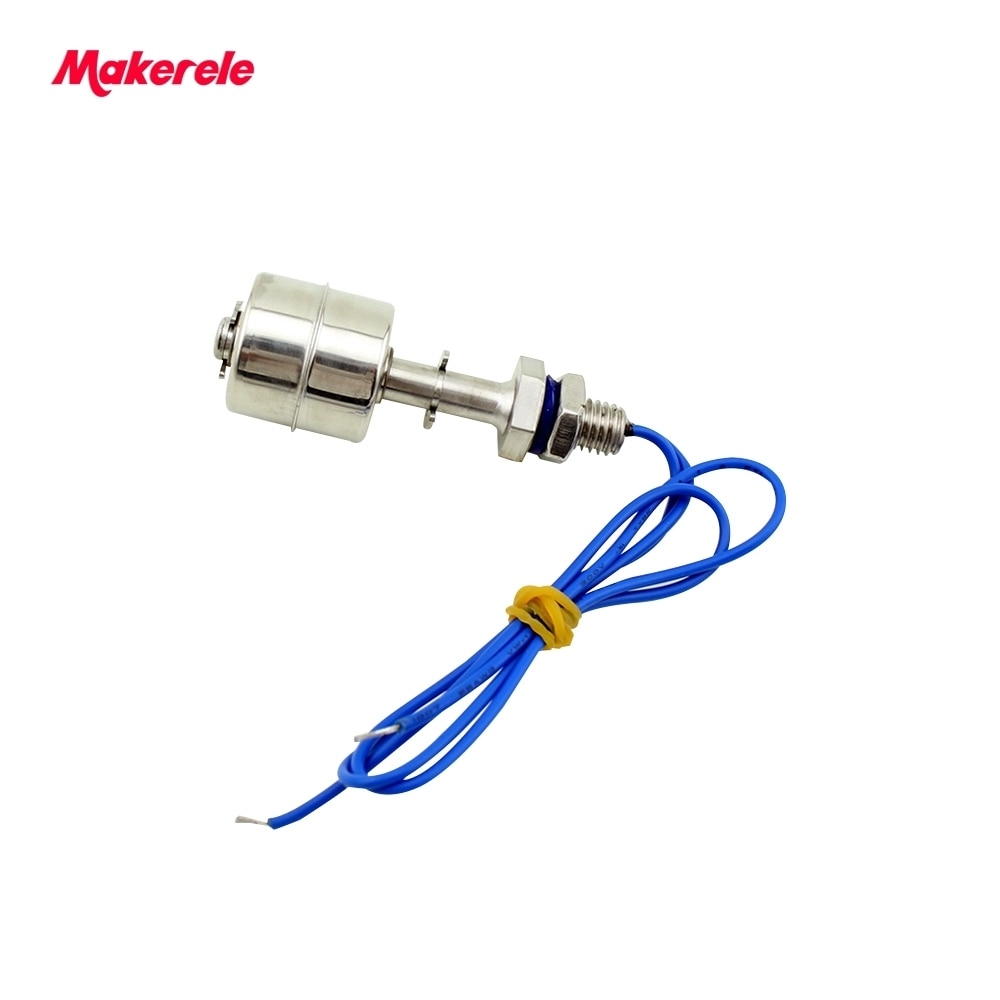

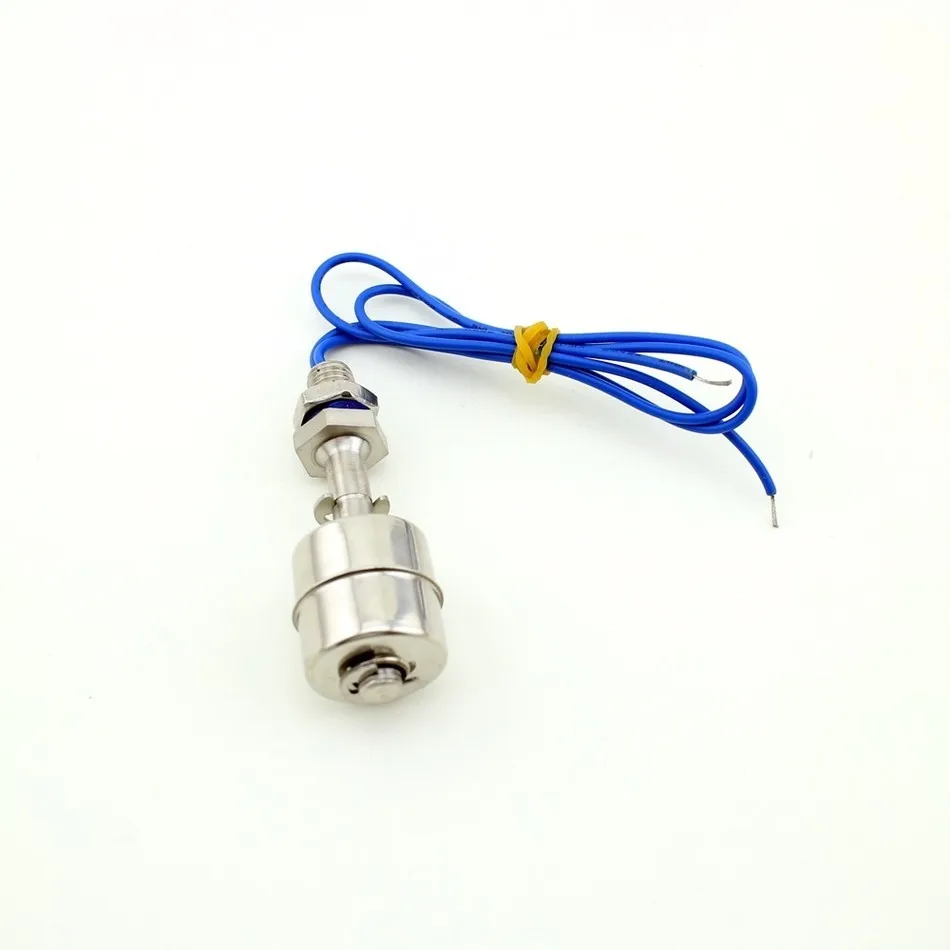

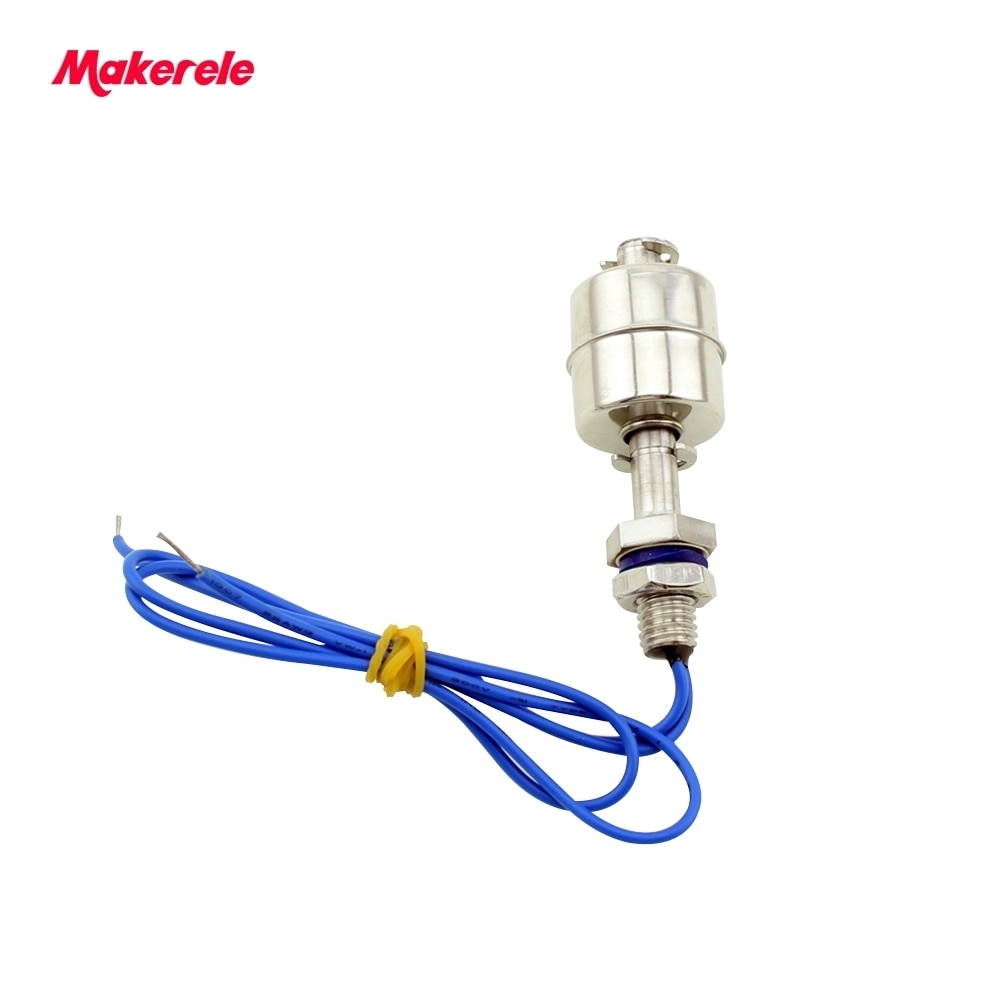

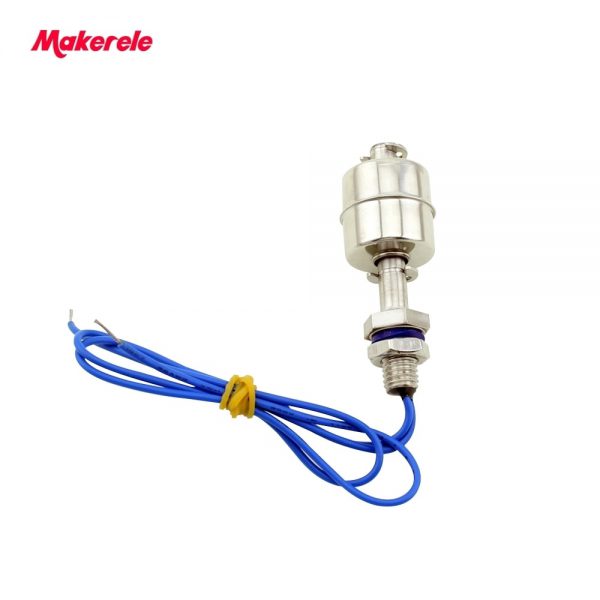

Stainless Steel Float Switch 110v/220v makerele MK-SFS6010 Liquid Water Level Control Sensor
$6.88 – $8.35
Description
-
- Brand Name: makerele
- DIY Supplies: Plumbing
- Model Number: MK-SFS6010
- Place of Origin: Zhejiang China (Mainland)
- Type: Stainless float ball switch
- Temperature rating: -20 to 160
- Power Input: 220v 1A 50w,110v 0.5A 10w
- Output: SPST NO/NC
- Protection Ratings: IP68
<li class=”property-item” data-attr=”” data-title=” Pressure rating: <=1.5 Mpa
- Probe material: SUS304
- Color: Metallic Stainless float ball switch
|
||||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
|
Certificates:CE ROHS Stainless float ball switch
Product Description
stainless float MK-SFS6010 stainless steel float switches,stainless steel ball float valve Feature
(1)Choice of normal open or normal close
(2)No standby power requirement.
(3)Customer can define activated distance, cable length and connector.
(4)Hermetically sealed, suit to tough environment and long life.
stainless float MK-SFS6010 stainless steel float switches,stainless steel ball float valve Working principle
When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.
stainless float MK-SFS6010 stainless steel float switches,stainless steel ball float valve Specification
Product Name |
Stainless float ball switch |
Contacts | NO/NC |
Max Contact Rating | 10W/ |
Max Switch Voltage | 110VDC |
Max Switch Current | 0.5A |
Max Contact Resistance | 100m ohm |
Temperature Rating | -10 – +85C |
Float Ball Material | Stainless Steel |
Float Body Material | Stainless Steel |
Screw Thread Diameter | 9.5mm/0.27″ |
Color | Silver Ton |
-

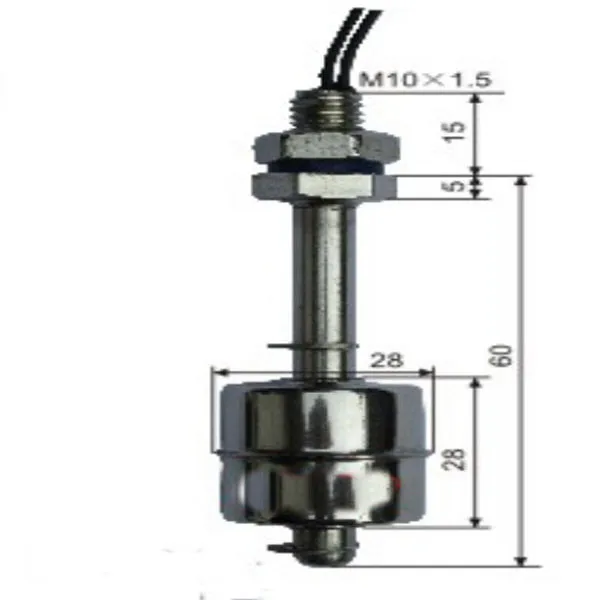

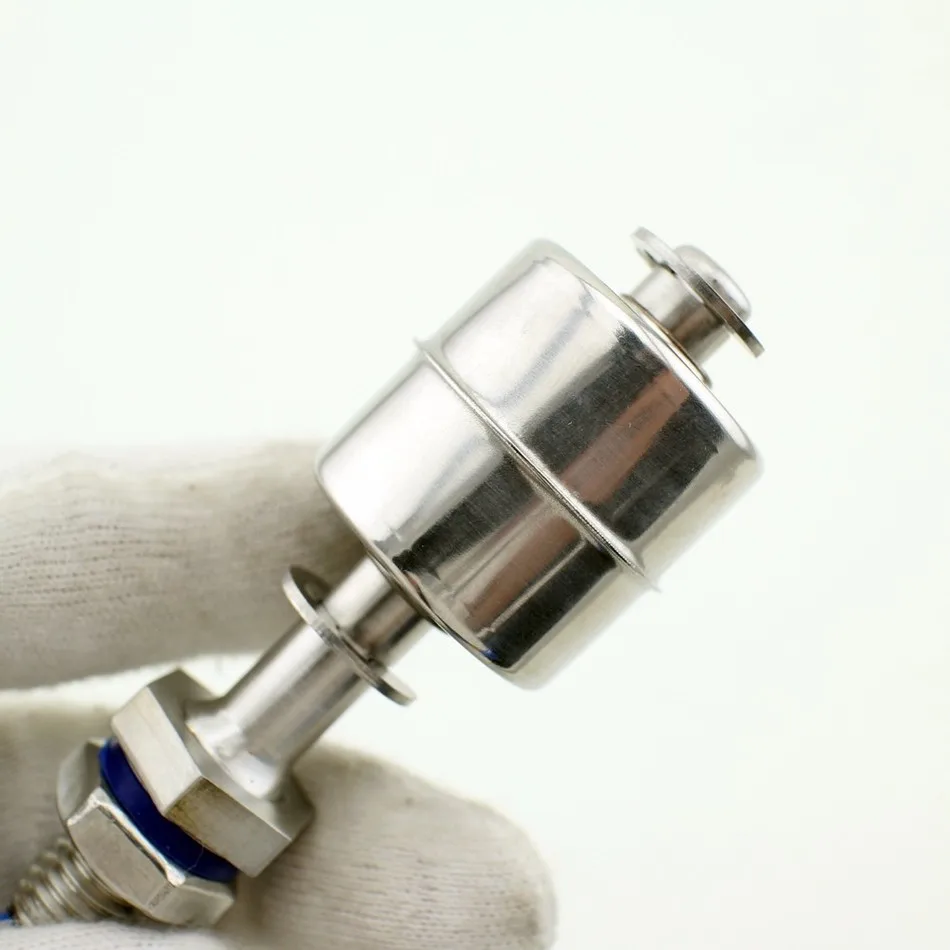

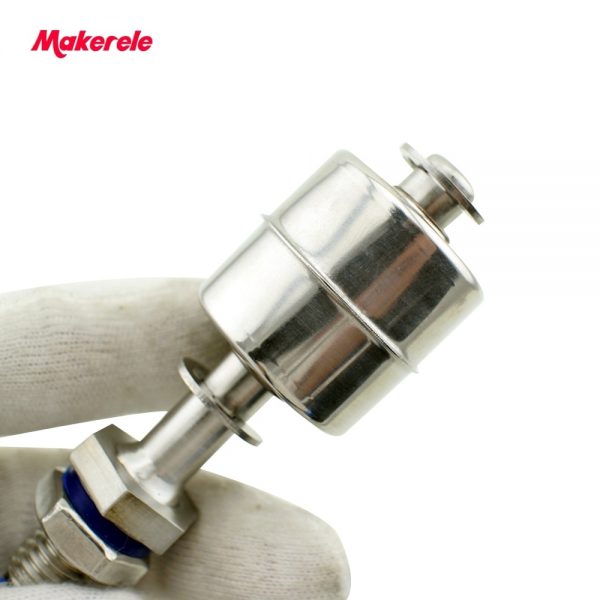

stainless float MK-SFS6010 stainless steel float switches,stainless steel ball float valve Sizestainless float MK-SFS6010 stainless steel float switches,stainless steel ball float valve Detailstainless float MK-SFS6010 stainless steel float switches,stainless steel ball float valve OperatingPackaging & Shipping
stainless float MK-SFS6010 stainless steel float switches,stainless steel ball float valve Packing
stainless float MK-SFS6010 stainless steel float switches,stainless steel ball float valve Shipping
Our ServicesOur advantages
1. A professional float ball switch manufacturer ;
2. High reliability and good stability, through the use of test from 3000 customers;
3. Complete certification, CE, RoHS, EMC etc., which small factory often lack of;
4. After-sale guaranteed, real integrity transactions, 100% replace the faulty items;
5. Flexible and fast delivery.Company InformationMaker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.
