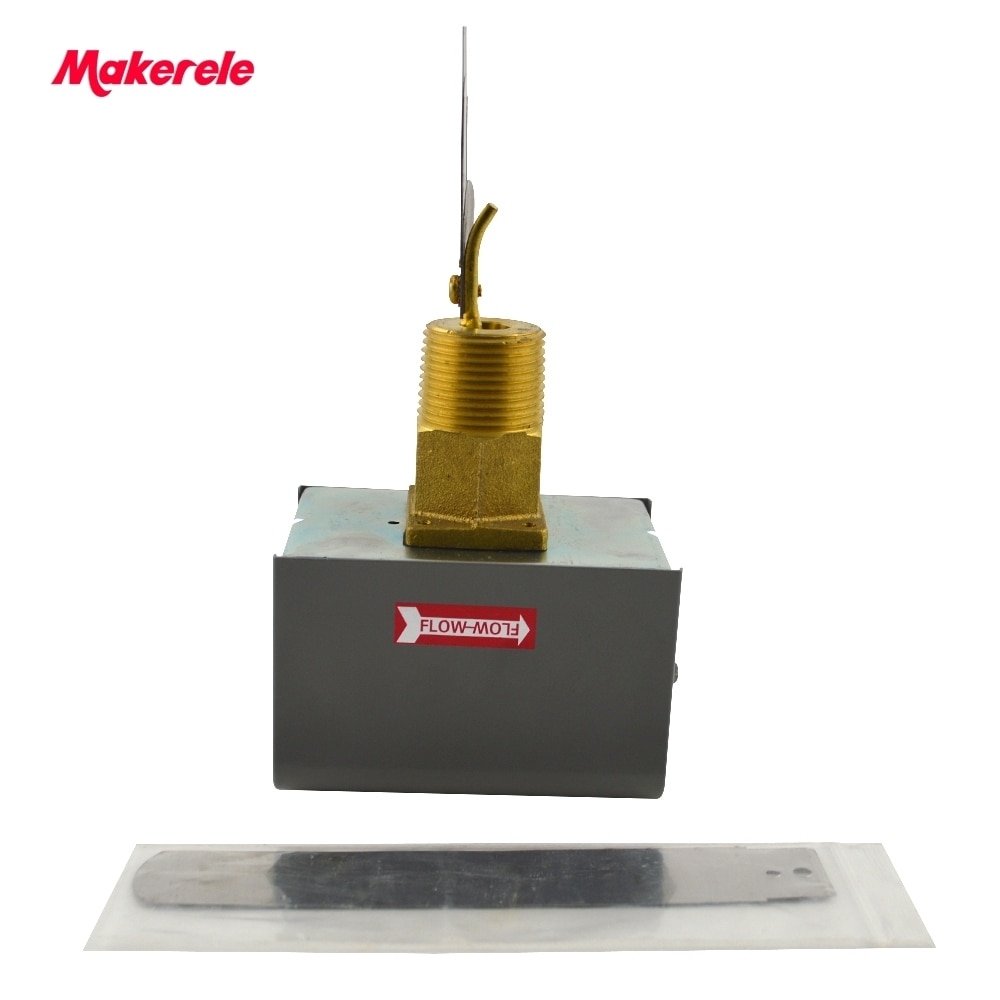

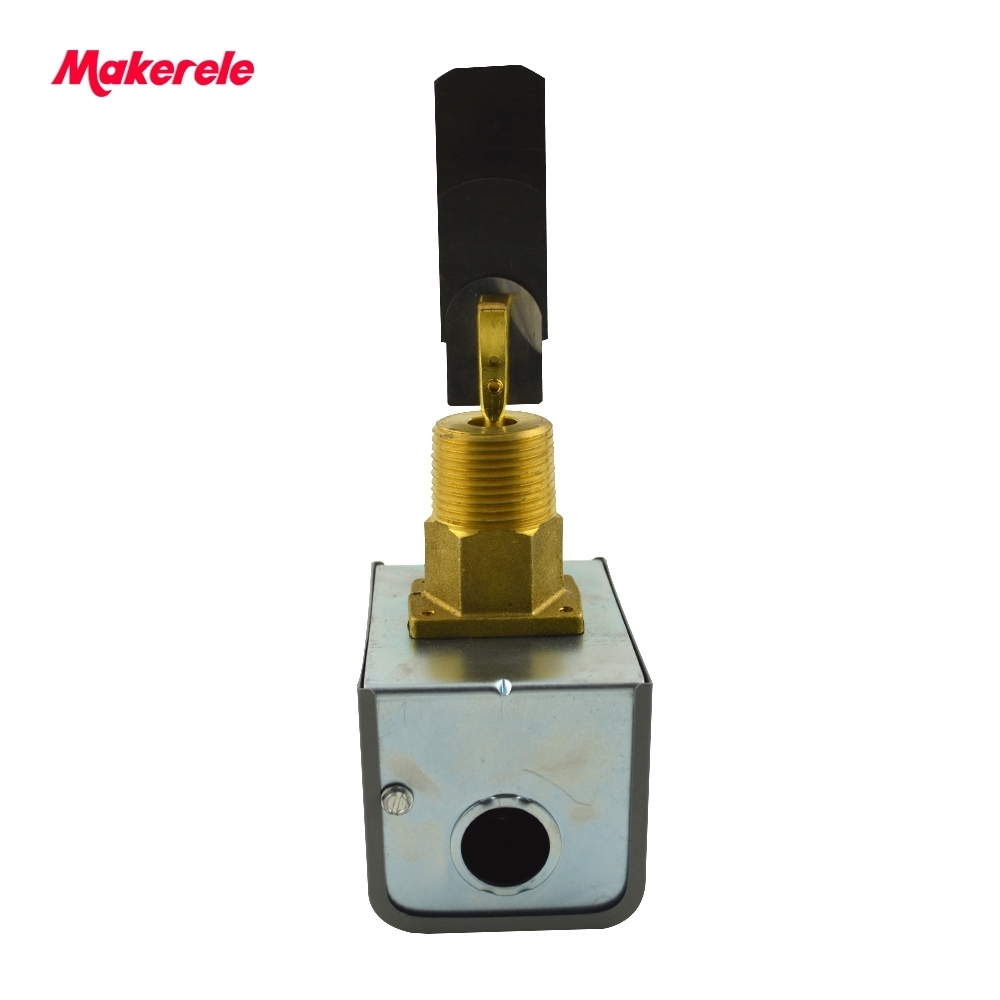

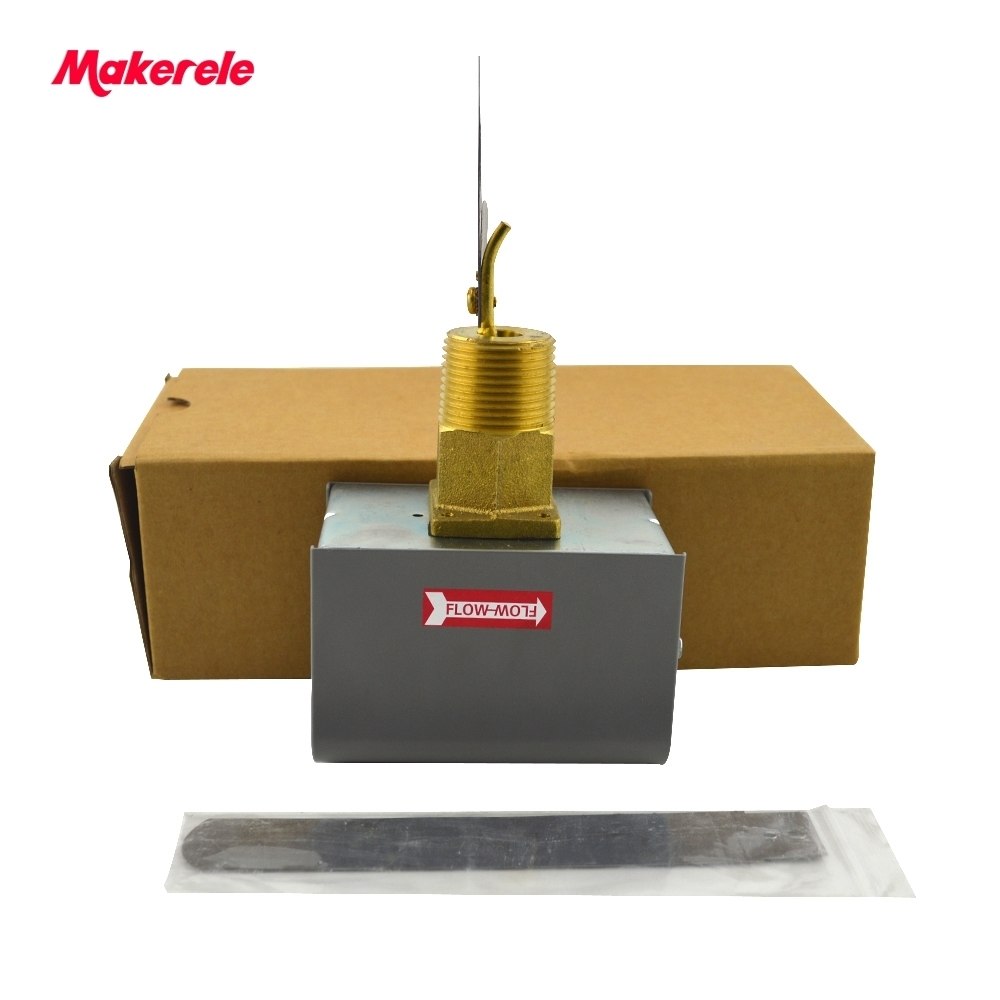

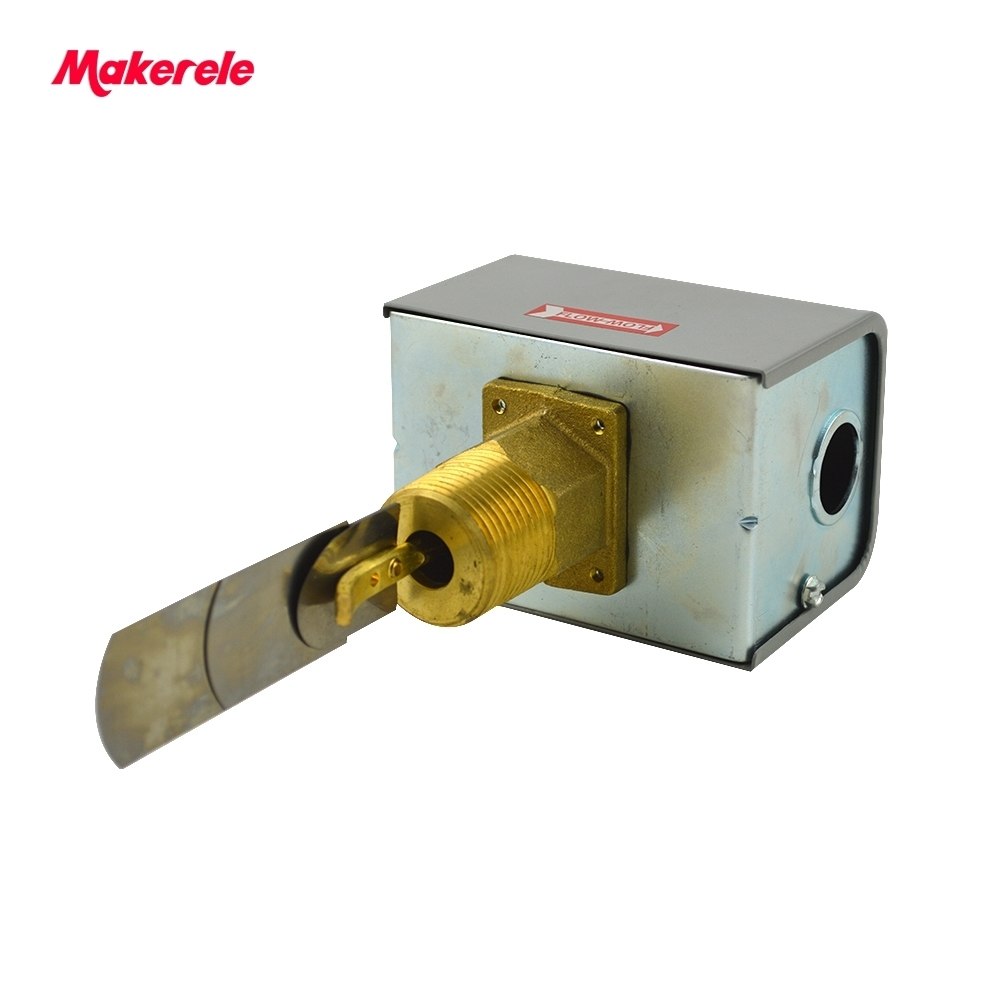

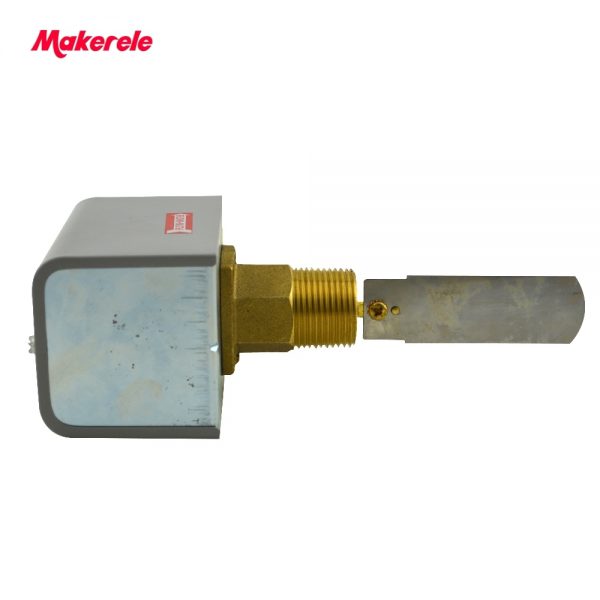

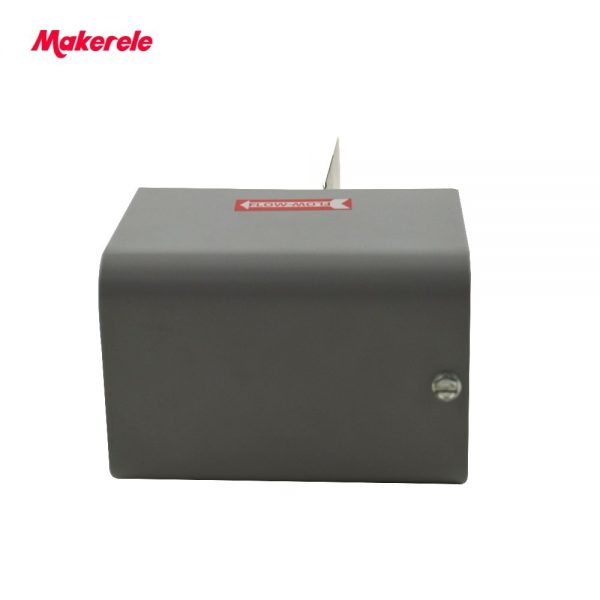

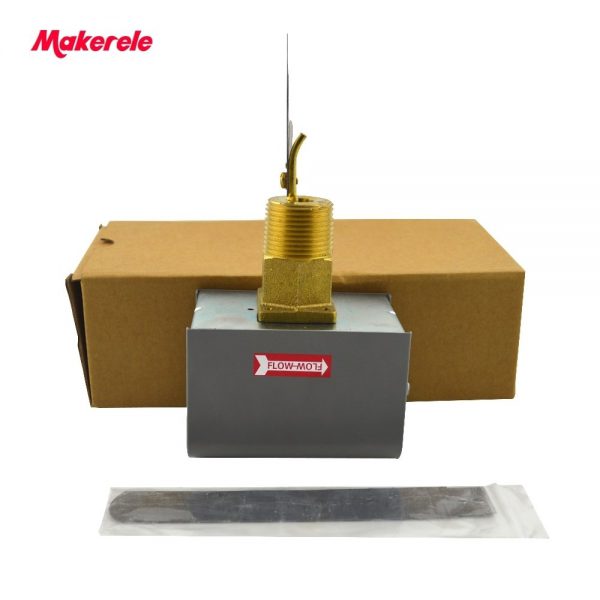

Water Paddle Flow Sensors Male Thread Flow Paddle Water Pump Flow Switch Hydraulic MK-FS06 from makerele
$38.38
199 in stock
Description
- Brand Name: makerele
- Warranty: 100000 times
- Switch Type: Proximity Switch
- Model Number: Brass/stainless flow switch
- Features: 1034Kpa
- Material: Stainless Steel
- Current: 16A
- Item Type: Switches
- Certification: CE approved flow switch
- Place of Origin: Zhejiang China (Mainland)
- Flow switch Max working voltage: 1.5Mpa
- Flow switch Pipe Standard: 1 in. 11-1/2 NPT Threads
- Flow switch Maximum Fluid Temperature: 250F
|
||||||
|
Flow switch color:Gray flow switch
1.Paddle flow switches used for gas and liquid
2..Quick respond,high accuracy
3.Customized
Hydraulic Flow Switch feature
Waterproof construction
· SPDT snap-acting switch
· Paddle size 3.2 x 6.9 (80 x 175 mm)
· Operating temperatures -14 to 185C
Hydraulic Flow Switch specification
MOTER RATINGS |
120V |
208V |
240V |
277V |
Horsepower |
1 16 96.0 |
1 8.8 52.8 |
1 8 48.0 |
– – – |
Noninductive or Resistance Load Amps |
16.0 |
16.0 |
16.0 |
16.0 |
Pilot Duty-125VA24/277VAC |

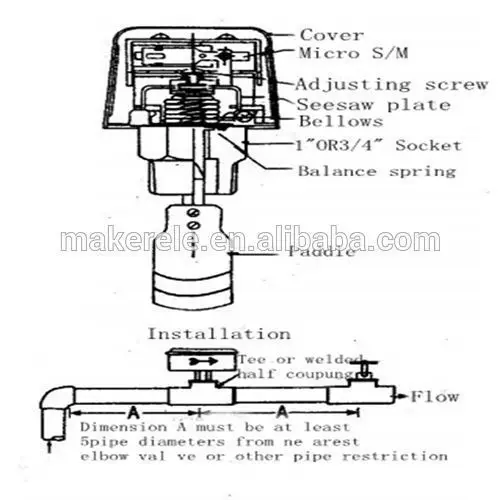

Hydraulic Flow Switch principle
Hydraulic Flow Switch rates
GPM(m3/hr)Required to Actuate Switch |
|||||||||||
Pipe Size(in) |
1 |
1-1/4 |
1-1/2 |
2 |
2-1/2 |
3 |
4* |
5* |
6* |
8* |
|
Min.adjust |
FlowIncreaseR to YCloses |
4.2 |
5.8 |
7.5 |
13.7 |
18.0 |
27.5 |
65.0(14.8) |
125.0(28.4) |
190.0(43.1) |
375.0(85.2) |
FlowDecreaseR to BCloses |
2.5 |
3.7 |
5.0 |
9.5 |
12.5 |
19.0 |
50.0(11.4) |
101.0(22.9) |
158.0(35.9) |
320.0(72.7) |
|
Max. adjust |
FlowIncreaseR to YCloses |
8.8 |
13.3 |
19.2 |
29.0 |
34.5 |
53.0 |
128.0(29.1) |
245.0(55.6) |
375.0(85.2) |
760.0(172.6) |
FlowDecreaseR to BCloses |
8.5 |
12.5 |
18.0 |
27.0 |
32.0 |
50.0 |
122.0(27.7) |
235.0(53.4) |
360.0(81.8) |
730.0(165.8) |
Hydraulic Flow Switch mounting
Mounting
Flow switch be mountedin a horizontal pipe line or vertical pipeline .
Mount the instrument in a section of pipe where there is a straight run of atleast 5pipe diameter on each side of the flow swhtch
Adjustment
Note :sealed adjustments are not field addjustable .
Adjust Setting
1,Remove switch cover
2,For higher flow rater-turn range adjusting screw clockwise
3,For lower flow rater-turn range adjusting screw counter clockwise.
4,Be sure flow swtich cover is replaced before leaving job.
Hydraulic Flow Switch shipping
- 1. Item will be shipped within 5-7 business days.
- 2. Delivery Time:
- —-Via Air: Generally 1-3 working days
- —-Via Express: Generally 3-7 working days.
- —-Via China Post Air Mail: Generally 15-25 working days
- —-Via Sea: According to the order.
- 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply
Our advantages
1. A professional flow switch manufacturer ;
2. High reliability and good stability, through the use of test from 3000 customers;
3. Complete certification, CE, RoHS, EMC etc., which small factory often lack of;
4. After-sale guaranteed, real integrity transactions, 100% replace the faulty items;
5. Flexible and fast delivery.
Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing – The world-famous city for low-voltage electric apparatus.
- Custom Product Design
- OEM/ODM
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Q:The application of flow switch?
A:Used for gas and liquid . Suitable for industrial automation / mechanical equipment/compressed air industry /refrigeration and air conditioning .
Q:The Classification of flow switch?
A: Baffle-type flow switch, thermal type flow switch, pressure gradient flow switch.
|
||||||||
